Carbide Wear Parts

High Wear Resistance YG8 Square Carbide Brazing Blanks

High Wear Resistance YG8 Square Carbide Brazing Blanks

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG8 YG10 YG11 YG6
Minimum Order Quantity:2KG
Price:Negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

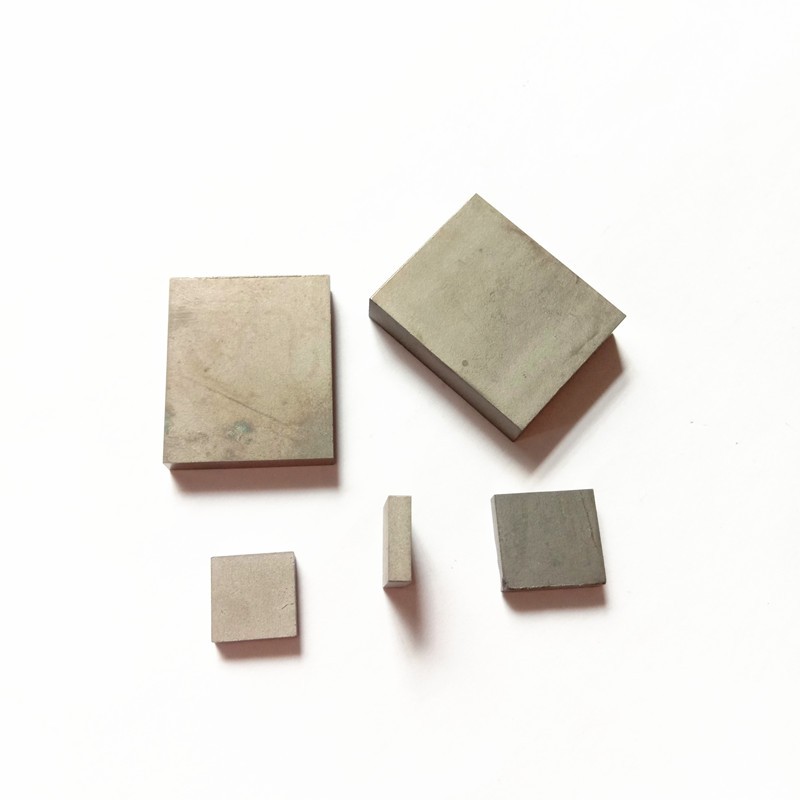

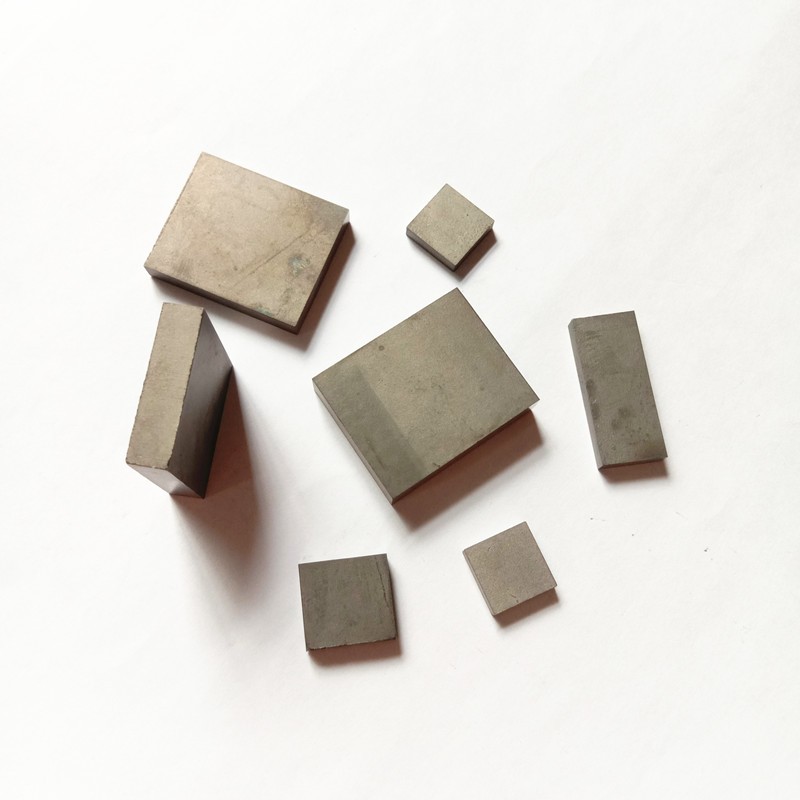

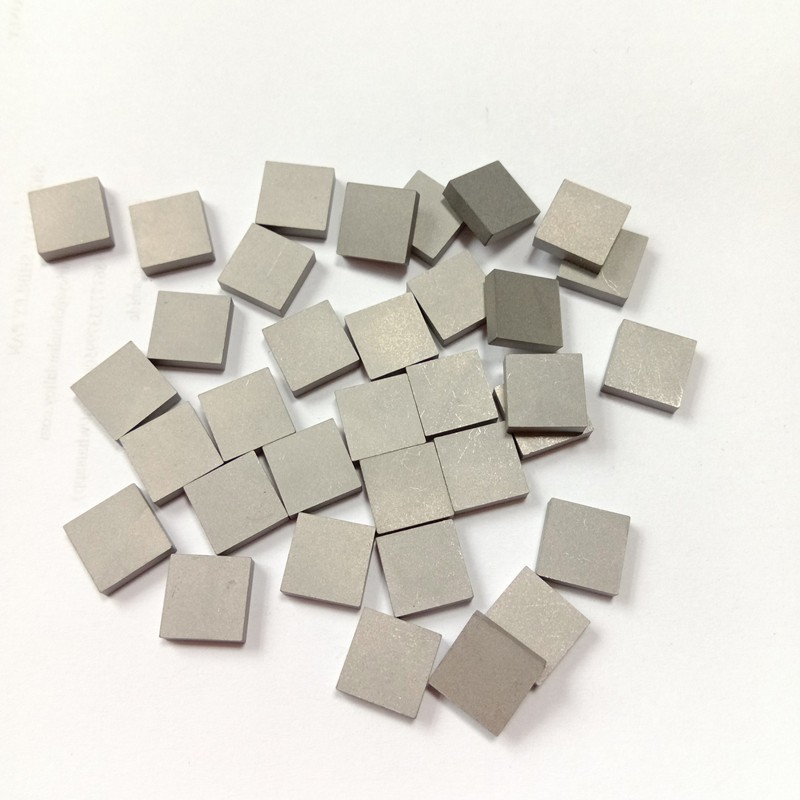

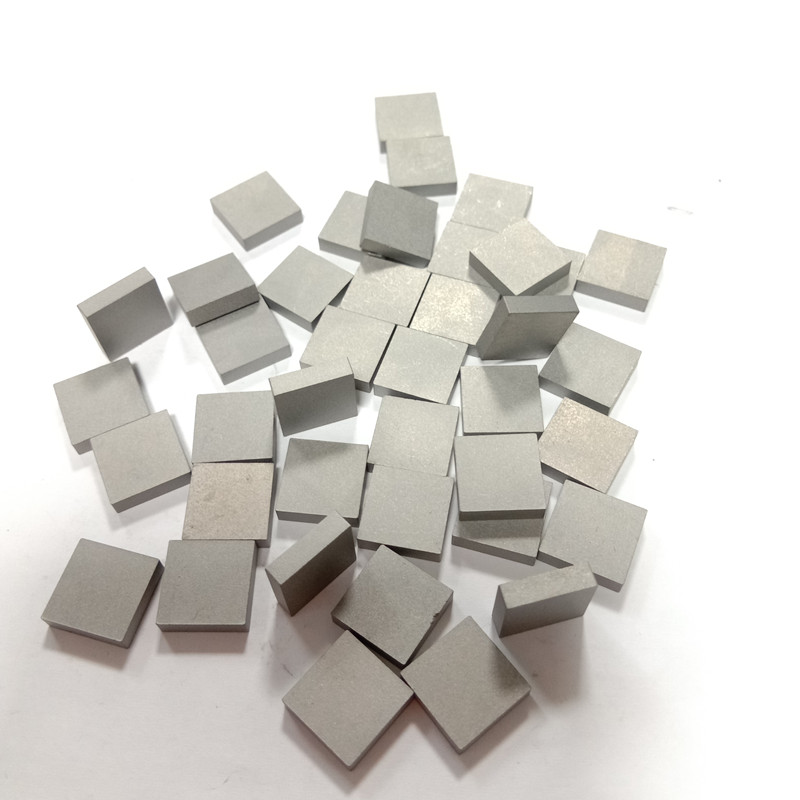

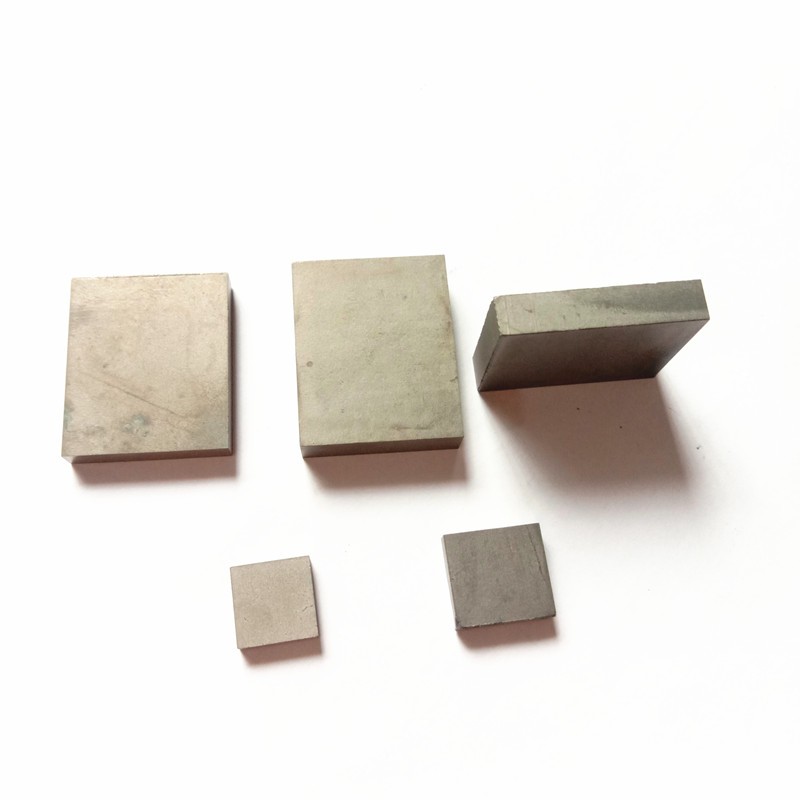

High Wear Resistance YG8 Square Carbide Brazing Blanks

Detail Information

Material: WC+Co
Grade:YG6 (K20)  Hardness: HRA90   Bending strength:2200
Size:  10*10*3mm  9*9*4mm, 100*100*10mm    Customized
Features: Wear Resistance, Corrosion Resistance, nonmagnetic
Technology: HIP sintering
All technical data only for reference. We can make based non requirement

Some Grade Information

Grade	Density(g/cm3)	Hardness(Hra)	Toughness(N/mm2)	Composition
YG6X	14.5-14.8	91.5	2000	6%Co
YG6	14.5-14.8	90	2200	6%Co
YL10.2	14.8-15	91.5	2100	10%Co
YG10X	14.8-14.9	90	2000	10%Co
YG8	14.1-14.3	89.5	2300	8% Co
YG15	13.8-14	87	2350	15%Co
YN6	14.8-15	91	2100	6%Ni
YN8	14.2	90.5	2300	8%Ni
YN9	14.7	89.5	2200	9% Ni
YN11	14.4	88	2250	11%Ni
YN12	14.3	86.5	2300	12%Ni

Our advantage:

Material: using high quality raw material
Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
Perfect quality control systerm: ISO9001:2015
Various dimension for choosing
Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
We also accept manufacturing based on your drawing
We have professional technician team and sales team, giving you professional suggestion
Common size List

W(mm)	T(mm)	L(mm)	W(mm)	T(mm)	L(mm)
3-10	1.2-10	10-450	50-60	1.2-10	10-450
20-30	1.2-10	10-450	60-70	1.2-10	10-450
30-40	1.2-10	10-450	70-80	1.2-10	10-450
40-50	1.2-10	10-450	80-100	1.2-10	10-450
