Ground Tungsten Carbide Rod

  • Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod
  • Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod
  • Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod
  • Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod
Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod

Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF0063
  • Minimum Order Quantity:10 pcs
  • Price:USD 45-58/kg
  • Delivery Time:3-5 days
  • Payment Terms:100% TT before shiping
  • Supply Ability:100000 pcs/month

Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Ground Tungsten Carbide Rod



Tungsten carbide Rod is mainly used in welding or making the drill bits, endmills, reamers, graver, integral vertical milling cutter and special cutter for automobile, printed circuit board, engine,  and etc.

Besides, they can be used for making of cemented carbide stamping head, Core bar and perforation tools

Specification of  Carbide rods and bars

GRADE OVERVIEW
CHEMICAL COMPOSITIONPHYSICAL PROPERTIES
GRADEWC+othersCoGRAIN
SIZE
(μm)
HARDNESS
(HV30)
HARDNESS
(HRA)
TRS
(N/mm²)
TRS
(KPSI)
DENSITY
(g/cm³)
Fracture Toughness
 KIC
   Mpa.m1/2
XN20892.00%8%0.2210094.64700681.514.4610.5
XN20991.00%9%0.2205094.2480069614.3611
YU06A94.00%6%0.4210094.7380055114.758.31
XU3088.00%12%0.4175092.5400058014.115.20
YF0694.00%6%0.5185093.1360052214.99.17
XF20T90.00%10%0.6165091.7380055114.4515.40
XF3088.00%12%0.6170092.3400058014.113.26
YL10.290.00%10%0.8160091.5400058014.4214.60
YL10A92.00%8%1.0178092.8380055114.6510.74



Carbide ground Rod(tol.h5/h6)

,


Length100mm ,



Chamfered 45°








TypeD(mm)L(mm)ToleranceL(mm)C(mm)
φ1.0×1001.0100up on request0.3
φ1.5×1001.5100up on request0.3
φ2.0×1002.0100up on request0.3
φ2.5×1002.5100up on request0.3
φ3.0×1003.0100up on request0.3
φ3.5×1003.5100up on request0.3
φ4.0×1004.0100up on request0.3
φ4.5×1004.5100up on request0.3
φ5.0×1005.0100up on request0.3
φ5.5×1005.5100up on request0.3
φ6×1006.0100up on request0.5
φ6.5×1006.5100up on request0.5
φ7.0×1007.0100up on request0.5
φ7.5×1007.5100up on request0.5
φ8.0×1008.0100up on request0.5
φ8.5×1008.5100up on request0.5
φ9.0×1009.0100up on request0.5
φ9.5×1009.5100up on request0.5
φ10.0×10010.0100up on request0.5
φ10.5×10010.5100up on request0.5
φ11.0×10011.0100up on request0.5
φ11.5×10011.5100up on request0.5
φ12.0×10012.0100up on request0.7
φ13.0×10013.0100up on request0.7
φ14.0×10014.0100up on request0.7
φ15.0×10015.0100up on request0.7
φ16.0×10016.0100up on request0.7
φ18.0×10018.0100up on request1
φ19.0×10019.0100up on request1
φ20.0×10020.0100up on request1
φ21.0×10021.0100up on request1
φ22.0×10022.0100up on request1
φ23.0×10023.0100up on request1
φ24.0×10024.0100up on request1
φ25.0×10025.0100up on request1.5
φ26.0×10026.0100up on request1.5
φ28.0×10028.0100up on request1.5
φ30.0×10030.0100up on request1.5
φ32.0×10032.0100up on request1.5
φ33.0×10033.0100up on request1.5
φ34.0×10034.0100up on request1.5
φ35.0×10035.0100up on request1.5
φ36.0×10036.0100up on request1.5
φ38.0×10038.0100up on request1.5
φ40.0×10040.0100up on request

Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable


Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

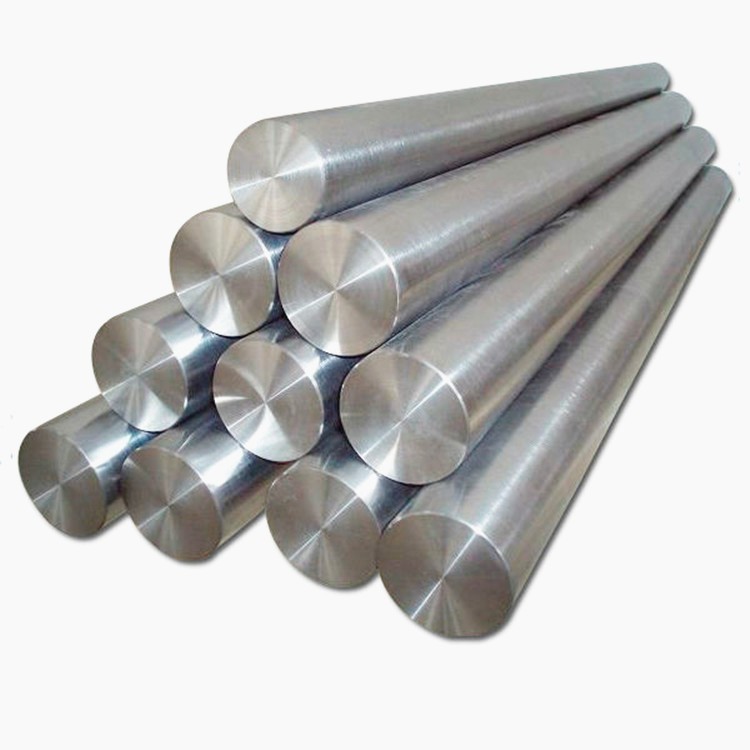

High Wear Resistance Cemented Carbide Rods , Molybdenum Round Bar In Silver(图1)

Why choose us ?
1. We are a real factory with very very nice wholesale price with high quality and good after sales service.
2. Rearch and development team with 5 members is rich experienced. OEM and label printing
orders are welcome.
3. The MOQ is 1pc.Sample and freight fee is borne by buyer.The sample fee will be reduced in
the next big quantity order.
4. Quick delivery time. We have carbide rods in stock. Delivery time within 3 days after your payment.If quantity is customized and large,delivery time is negociate.


If have any more doubt, please feel free to contact with me.
