Ground Tungsten Carbide Rod

Tungsten Carbide rods 10% cobalt Grounded h6 dia 1/4" length 330mm

Tungsten Carbide rods 10% cobalt Grounded h6 dia 1/4" length 330mm

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF0093
Minimum Order Quantity:100pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

Tungsten Carbide rods 10% cobalt Grounded h6 dia 1/4" length 330mm

We , ZHUZHOU ZHENFANG YAGUANG TUNGSTEN-MOLYBDENUM CO., LTD, manufacture unground carbide rods in stock with HIP and CIP sintered and 100% virgin material. Our grade include ISO K05 to K40, from machining carbon steel to aluminum , non-ferrous metals and titanium or we develop grade for your applications.

We recommended grade 10% cobalt covers a number of applications in cutting tools. The stability and high performance of the series bring many benefits to our customers and inspires them to develop quality products.

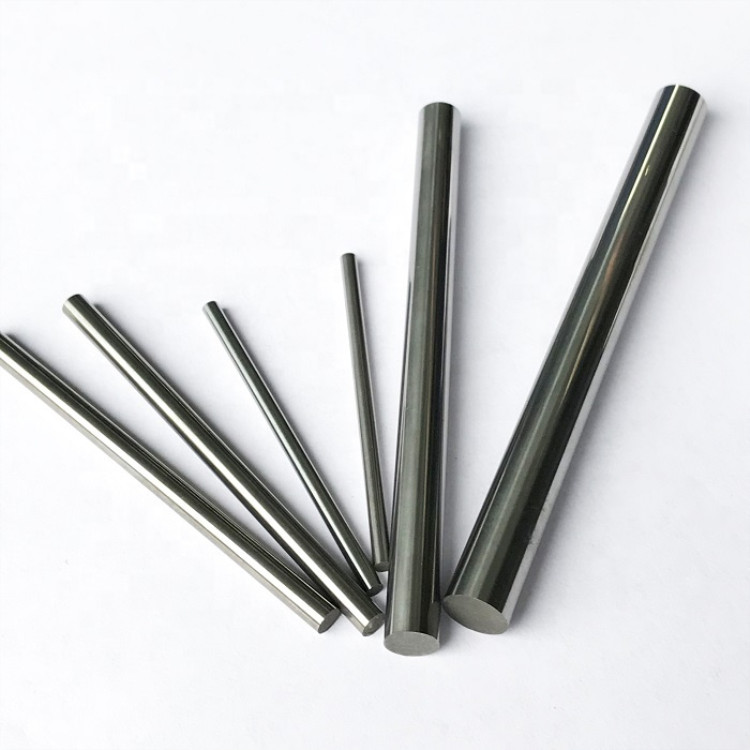

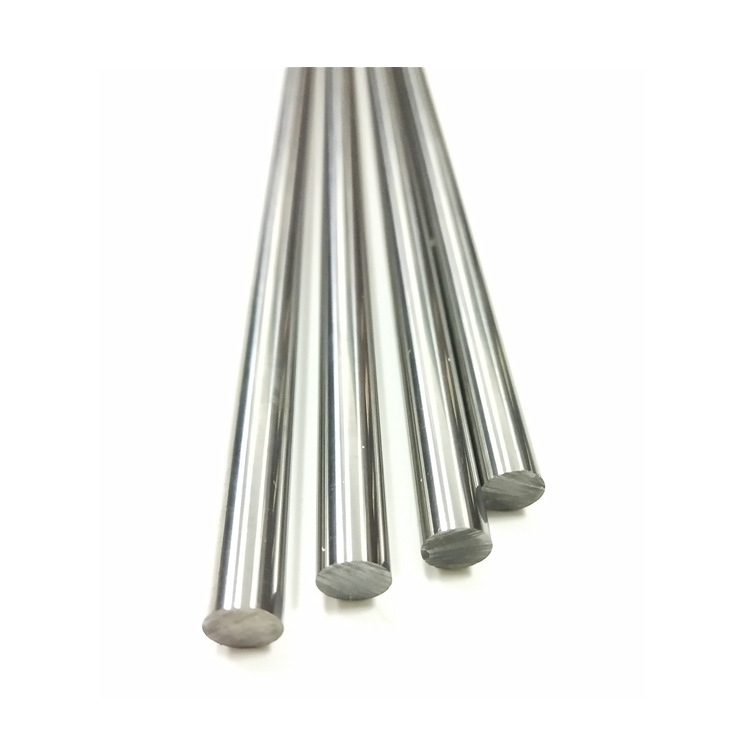

Solid tungsten carbide rods:

1. Grade: 10% cobalt and 12% cobalt recommend

2. Size: Diameter 4--30mm available

3. Certification: ISO9001:2005,

4. Mirror polished to h6 and unground carbide rod are available

5. Each Metric and Inch dimensions available

6. Standard length: 330mm and can cut into different length as per requirments

Cheap price tungsten carbide solid round rod Features?

1. Excellent quality and competitive price

2. 100% raw material and recyle material as per your option

3. Good abrasion, heat and corrosion resistance

4. Various size and shape, grade

What's the Application?

1.Metal working, process into press tool, blade, cutter, wear parts, Blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu ,steel,and stainless steel,etc.

2.Wood working,blanks and polishing solid tungsten carbide rods for wood working stone pit industry and mining industry.

3.Stone working,blank and polishing solid tungsten carbide rods for crusher machining of marble,granite,cobblestone,mountain stone,etc.

4.Other application,such as wear resistance parts of punching mold,measuring and cutting industry.

Recommended Grade:

GRADE	GRAIN SIZE	COBALT	DENSITY	HRA	TRS
LX25	<=0.8um	10%	14.4	>=91.3	>=3600
LBC15	<=0.8um	10%	14.4	>=91.5	>=3800
LBC25	<=0.6um	12%	14.1	>=92.5	>=4000

Dimension and Tolerance:

Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.5	-0/+5.0
Max BL-Φ50.0×330	+0.30/+0.8	-0/+5.0

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
