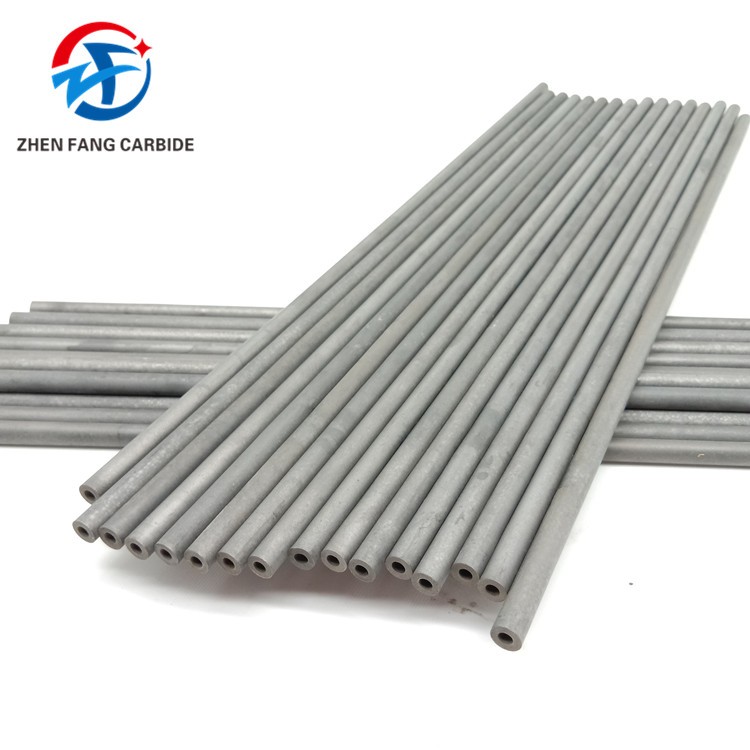

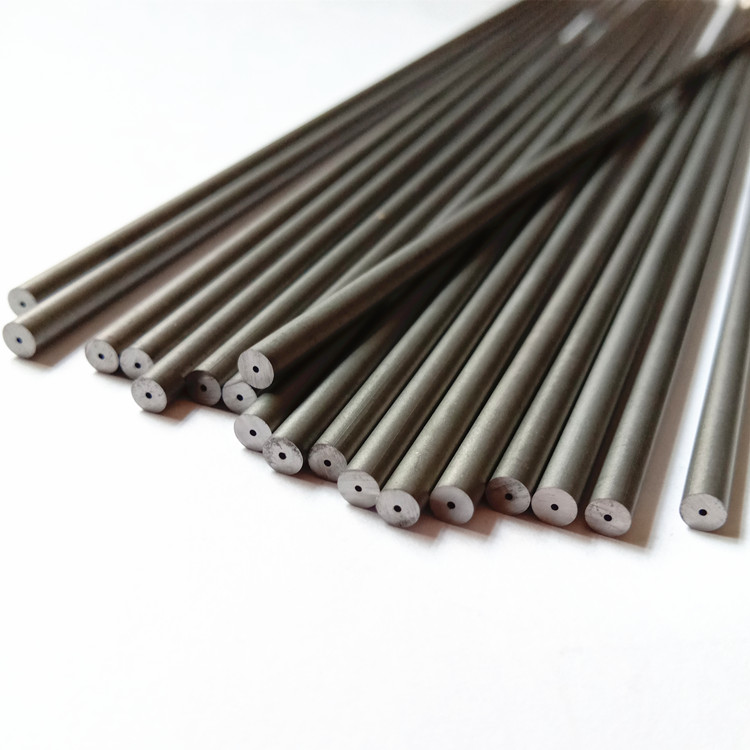

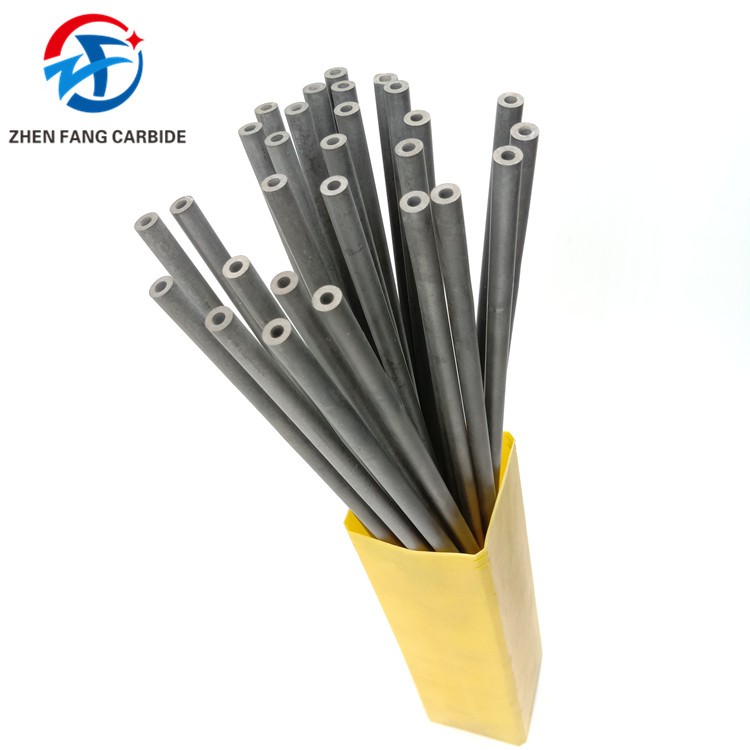

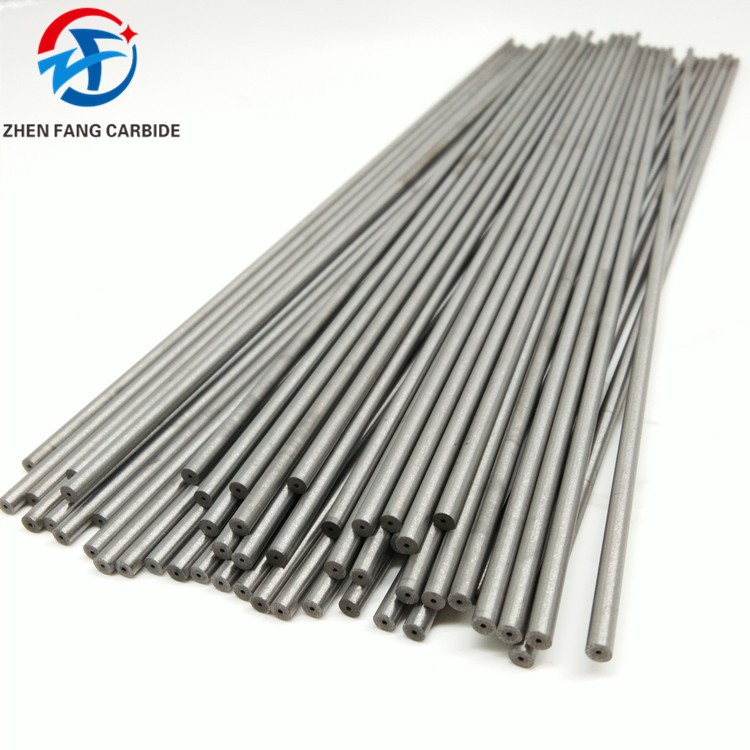

Tungsten carbide rod with coolant hole

  • YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm
  • YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm
  • YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm
YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm

YL10.2 Extrusion Sintered Carbide Rod With Single Hole 0.15mm

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R489
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pam(Ms.)

Email:shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)


YL10.2 Extrusion Sintered Tungsten Carbide Rod With Single Hole 0.15mm

Specification

Material:

100% virgin tungsten carbide raw material

Dimension:

OD3*ID0.15*330mm  various size for choose

Blank Tolerance:

OD:+-0.3mm    ID:+-0.05mm

Grade:

YL10.2

Type:

carbide hollow round rod

Surface:

blank or grinding

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Performance

High hardness, wear /corrosion resistancce, good toughness, good straightness
Application:

production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines.

Non-standard or tolerance can be customized

Tungsten carbide rod with single hole is tungsten carbide round rod, which has one radial holes.These rods are mainly used for manufacturing mills, drills, drill bits and other tools, but we also use them for processing cold heading die, stamping die, cold punching ball, warheads, watch parts for stamping, punching battery shell, toothpaste tubes and other molds.

But we cannot omit the fact that tungsten carbide rod with single hole if used for making knife or parts of mold, they are clamped in circular shaft, which is not conducive to the cutter and mold clamping. Of course, we are able to provide quality Tungsten Carbide Single Hole Rods

Our common size models:

Size range(ODXIDXL mm)
Detail size and blank tolerance
OD( mm)
ID (mm)
L(mm)
ODxIDx330
2-3(0/+0.3)
0.15/0.2/0.25/0.3/......1.1(+-0.05)
30-340
ODxIDx330
4-6(0/+0.4)
0.2/0.25/0.3/0.4..........4(+-0.05)
30-340
ODxIDx3307-10(0/+0.5)0.2/0.25/0.3/0.4...........6(+-0.05)30-340
ODxIDx33011-20(0/+0.5)0.2/0.25/0.3/0.4........12(+-0.05)30-600
ODxIDx330226/8/10/12(+-0.2)100-600
ODxIDx330256/8/10/12(+-0.2)100-600
We are able to help you customized various diameter and length carbide rod

Material Physical Properties:

1) Hardness greater than or equal to HRA 92.5;
2) TRS greater than or equal to 3800 N/mm²;
3) Density greater than or equal to 14.2 g/cm³;
4) Porosity = A00 / B00 / C00;
5) No contamination by other materials;
6) Free of ETA phase condition;
7) Uniform and consistent grain size. No grain size can be larger than specified.
Some grade information for reference
GradeDensity g/cm3Hardness HRA(hv)    T.R.S      (M Pa)Performances &applications recommended
YL10.214.592.53800Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG614.989.52150Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG814.6892320Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG1114.487.52260Medium grain, for wear parts and mining tools
YG1514.186.52400Medium grain, for mining tools, cold heading and punching dies
YS2T14.4592.52800Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi814.688.51710This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.
Other tugnsten carbide grade information for reference
YS series grades
GradeISO rangeDensity g/cm3Hardness HRA(hv)  T.R.S     (M Pa)Performances &applications recommended
YS2TK3014.40-14.6091.52200It is belong with ultrafine grain alloy , suitable for low-speed roughturning, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best .
YS8M05,K1013.992.51720Suitable for high, stainless steel, high manganese steel and high temperature alloy, silicon steel sheet, and cutting all kinds of coating materials, also suitable for high hardness cast iron and

glass and so on work pieces of rough machining, finish machining.

YS10M05,K1014.30-14.5091.52650

Suitable for high nickel iron, ball mill infinite chilled cast iron and white iron rough and finish machining, also used in rough machining and finish machining of cast iron.

YS25P20,P4012.80-13.2091.02000Suitable for carbon steel, cast steel, high manganese steel, high strength steel and alloy steel rough turning, milling and planing.
YS30P25,P3012.45911800

Alloy ultra fine particles, suitable for large feeding high efficiency milling all kinds of steel, especially the alloy steel milling.

YS5


13.95-14.25922000

It is belong ultra fine grain alloy, suitable for high speed car, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best

Cutting steel class grade
YT5P3011.50-13.2090.01750Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14P2011.20-11.8091.01550Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15P1011.10-11.6091.51500Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40P4013.00-13.4089.51860Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1M1012.85-13.4092.01380Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2M2012.65-13.3591.01680Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3M1012.85-13.1092.01420It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

Our factory advantage of tungsten carbide rod with single hole

1. Focusing on manufacturing tungsten carbide products over 13 years.

2. Specialist manufacturer equipped with advanced processing machines

3. Over 15 tons/month productivity to assure sustainable supply of products

4. Full ability to accept OEM & ODM orders

5. Stringent quality control and quality consistency.

6. Strict inspection for quality of raw material and finished products
