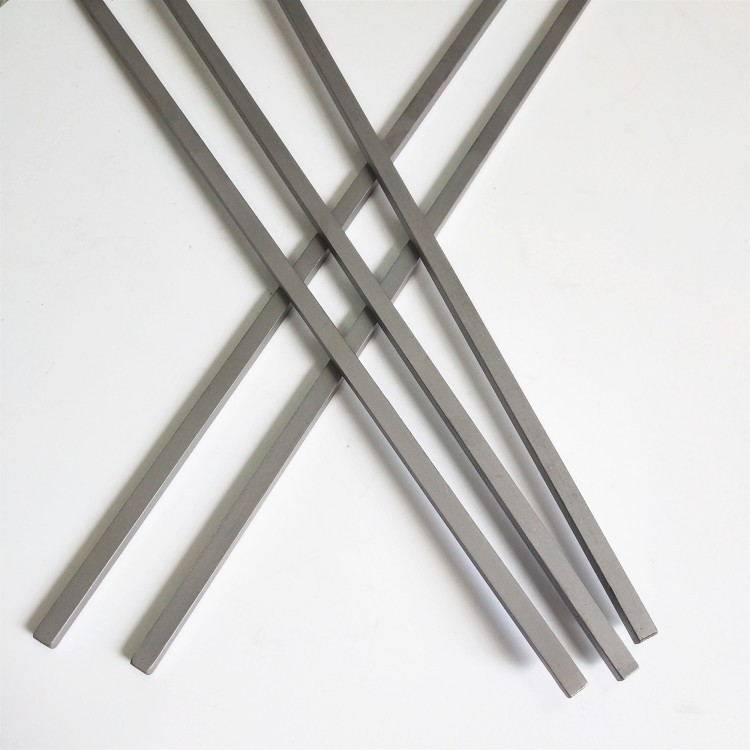

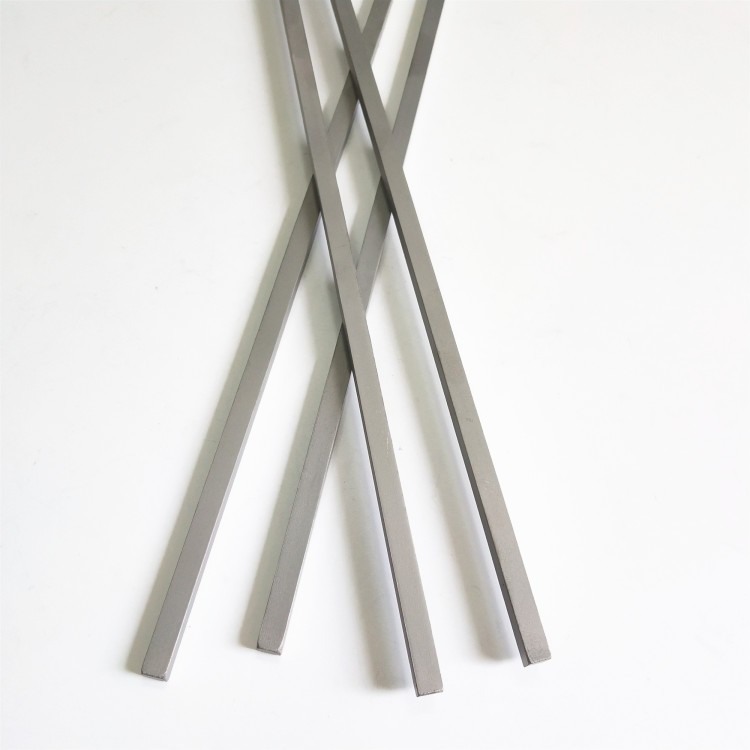

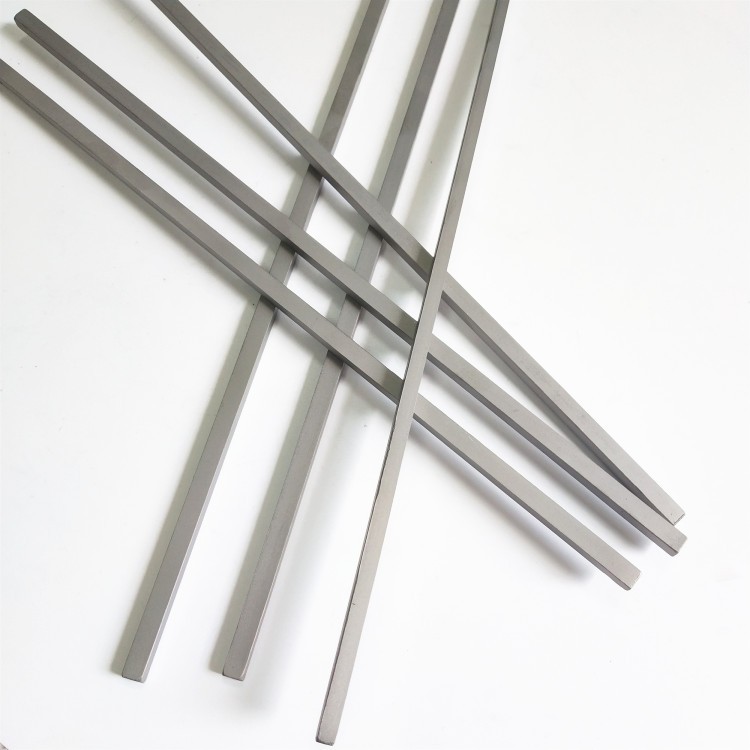

2020 hot sale blank tungsten carbide strips cemented carbide flat bar square bar price per kg

2020 hot sale blank tungsten carbide strips cemented carbide flat bar square bar price per kg

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG6, YG8, YG11, YL10.2, YG15
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:1000000 pcs/month

2020 hot sale blank tungsten carbide strips cemented carbide flat bar square bar price per kg

Applications

Carbide plate is a highly efficient and green material, which features qualities of stainless steel: Corrosion resistance, oxidation resistance, wear resistance, bonding proof and acid-base resistance; And ensures its good strength, toughness, bending and stretching, impact resistance.

Tungsten carbide strip is used for woodworking cast iron cutting tool. It can be used in many field such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc

Advantage

1.Superior heat stability.
2.Anti-deformation in high temperature.
3.Fine thermal shock resistance.

4.High thermal conductivity.

5.Excellent Oxidation control ability.

6.Strong anti-corrosion in high temperature.

7.Good corrosion resistance from Chemical.

8.High-wearing feature.

9.Long usage lifetime.

Grade Recommended

The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.

Other grades can be offered according to customers’ requirements. Afterwards the board can be broken out from the panel.

Grade	Density (g/cm3)	T.R.S (MPa)	Hardness (HRA)	Performance & Application recommended
YL10.2	14.50	3400	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG11C	14.40	2260	87.5	Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc.
YG6X	14.90	1560	91.0	Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron.
YS2T	14.45	2800	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG15	14.10	2400	86.5	Used for punch dies,stamping dies and wear resistance parts.

ISO Grade	Co%	Density(g/cm3)	Hardness	Bending Strength(N/mm2)	Compression Strength(N/mm2)	Grain Size(μm)
ISO Grade	Co%	Density(g/cm3)	HRA (ISO3738)	Bending Strength(N/mm2)	Compression Strength(N/mm2)	Grain Size(μm)
E10S	6	14.8	90.5	2900	5100	4.0
E20S	13.5	14.0	90	3600	5200	1.5
E30	12	14.25	90	3500	4900	1.8
E40	12.5	14.1	89.5	3600	4600	2.0
E50	14.0	14..0	88.5	3700	4500	2.0
E60	15	13.9	87.5	3500	4200	<0.5

Specification:

L	W	S
200	200	10-45
150	150	10-45
150	130	10-45
150	100	10-45
150	80	10-45
120	120	10-45
100	100	10-50
100	50	10-50
100	45	10-50
80	55	10-50
80	40	10-40
70	35	5-40
45	25	5-20
35	19	5-20
20	20	5-20
18	13	5-20

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Quality control:
1.All raw materials are tested in terms of density, hardness and TRA and HV30 before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced

Our Guarantee
1. Competitive price , but good performance.
2. Press by CIP and Sintered in HIP furnace
3. Feedback within 24 hours. More details, please contact us skype/whatsapp: +86-13307338220
4. ISO9001: 2008 certificate professional manufacturer over 20 years
5. Fully adopted in advance technology and equipment.
6. Quality Control System and strict inspection.

7. OEM and ODM are accepted as well.

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
