Tungsten carbide rod

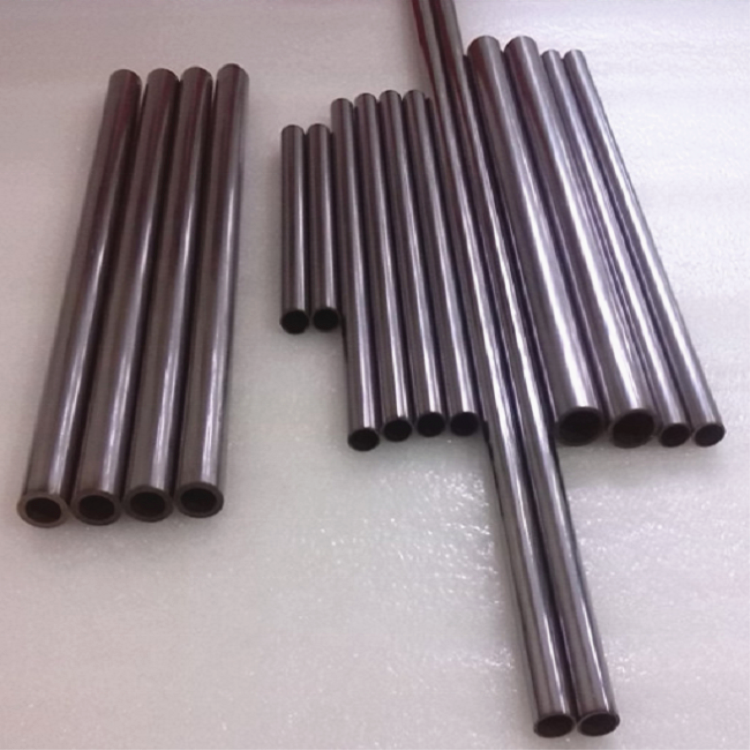

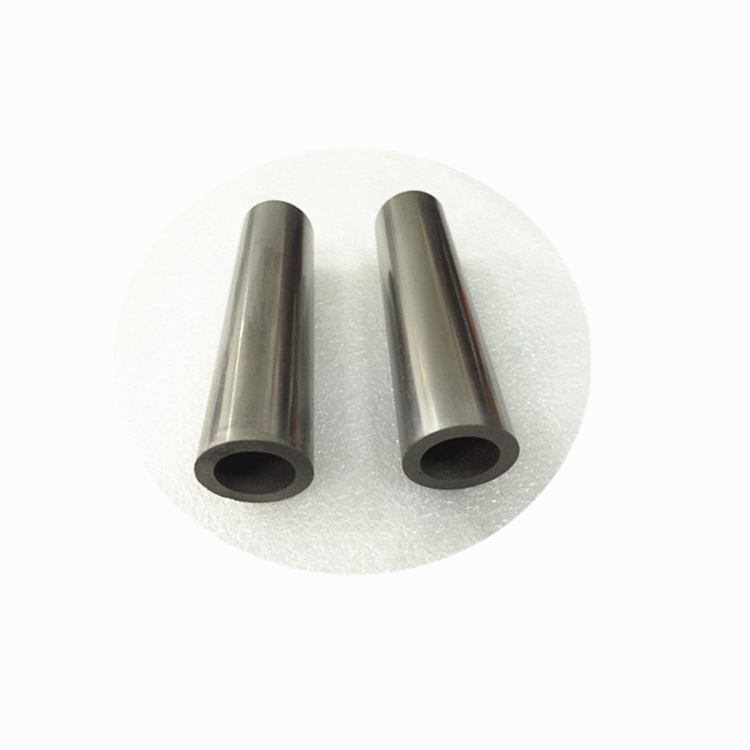

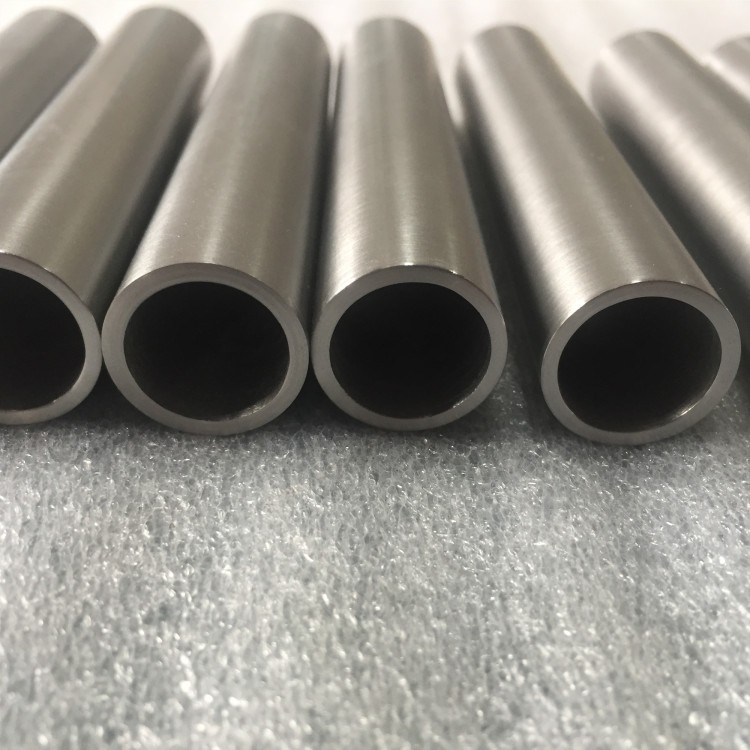

  • WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed
  • WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed
  • WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed
  • WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed
WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed

WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF0084
  • Minimum Order Quantity:100 pcs
  • Price:USD 55-65/kg
  • Delivery Time:7-15 days
  • Payment Terms:100% TT before shiping
  • Supply Ability:100000 pcs/month

WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed


Description


Service
We supply various material grades includes standard YG8, YG6, YG6X, etc. Using good carbide is like using thin kerf saw blades.
The differences are not dramatic but they are important. Good carbide will reduce breakage and give better quality cuts overall.

There are several types of Carbide, including advanced grades. Our R&D Team can supply you with more information about these advanced grades and tungsten carbide grades when you make the inquiry.


YT5 has the best strength, impact resistance and seismic resistance, but poor wear resistance. It is suitable for roughing and semi-finishing of carbon steel and alloy steel (including forgings, stampings and cast iron skins) when they are cut intermittently.

YT14 has the advantages of high strength, good impact resistance and seismic resistance, nearly inferior to YT5 alloy, but its wear resistance is better than YT5. It is suitable for rough turning and rough milling of carbon steel and alloy steel in continuous cutting, semi-finishing turning and finishing turning in discontinuous cutting.

YG3X has the best wear resistance but poor impact toughness in tungsten cobalt titanium alloy. It is suitable for high-speed finishing of small sections of cast iron non-ferrous metal and its alloy, pyroclastic steel and alloy steel.

YG6 has higher wear resistance, but lower than YG3, better impact resistance and vibration resistance than YG3X. It is suitable for semi-finishing and finishing of cast iron, non-ferrous metals and alloys with medium cutting speed.

YG8 has higher strength, impact resistance and seismic resistance than YG6, but its wear resistance and allowable cutting speed are lower. It is suitable for low-speed rough machining of cast iron, non-ferrous metals and alloys.

Yd201 is suitable for semi-finishing, rough machining of cast iron and light alloy, and milling of cast iron and low alloy steel.

Yw1 has a good red hardness and can bear a certain impact load. It is a universal alloy suitable for the processing of refractory steel such as heat-resistant steel, high manganese steel and stainless steel, and also suitable for the processing of ordinary steel and cast iron.
ISO Grade
Co%
Density(g/cm3)
HV30
(kg/mm2)
HRA
(ISO3738)
Bending Strength(N/mm2)
Grain Size(μm)
K05-K10
6
14.8
1860
93.5
3800
<0.5
K05-K10
6
14.9
1510
91.4
3000
1.0
k20-K30
8
14.6
1700
92.7
3800
0.8
K30
8
14.8
1300
89.6
2500
1.2
K20-K30
10
14.5
1600
92.1
3800
0.7
K20-K30
12
14.1
1680
92.6
3800
<0.5
M10
6
14
1600
92
3800
1.2
M20
8
13.1
1550
91.5
2000
1.2

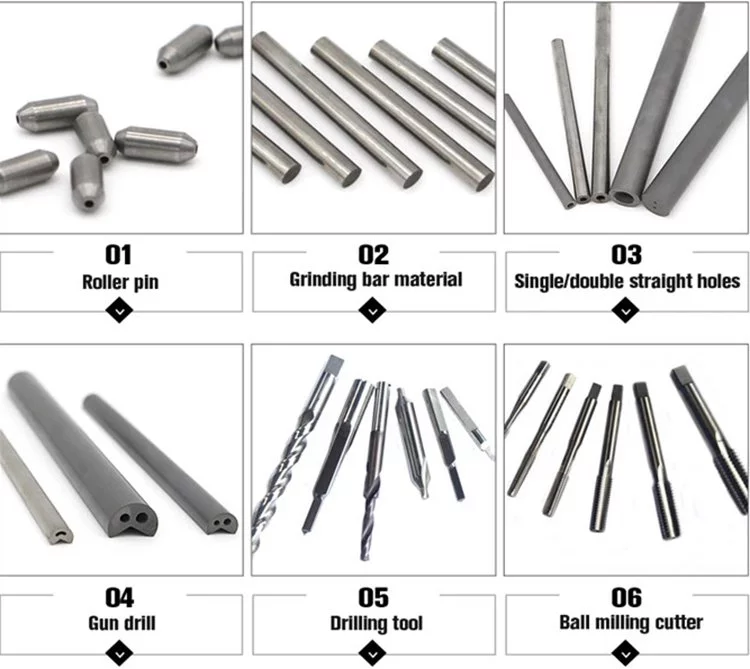

Our more products

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade


Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication
