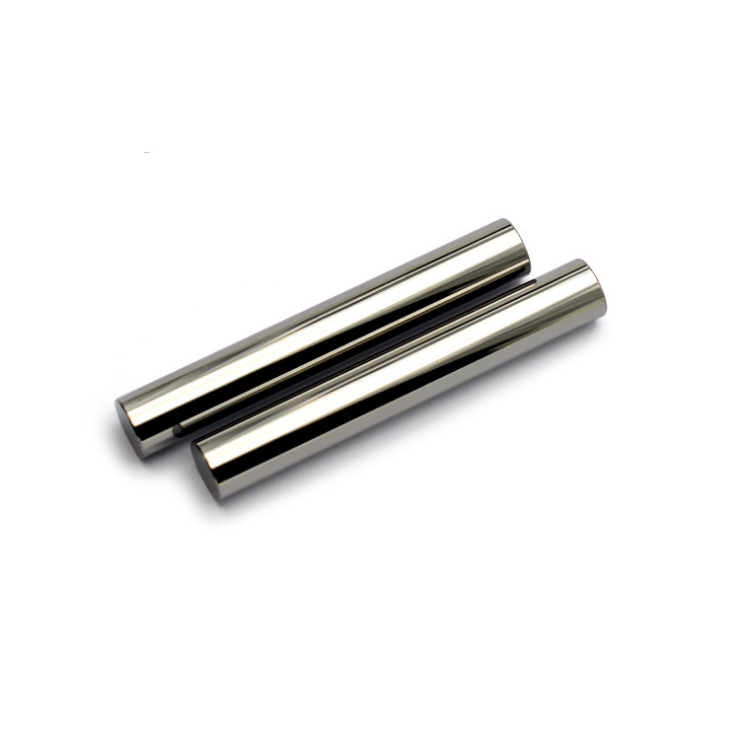

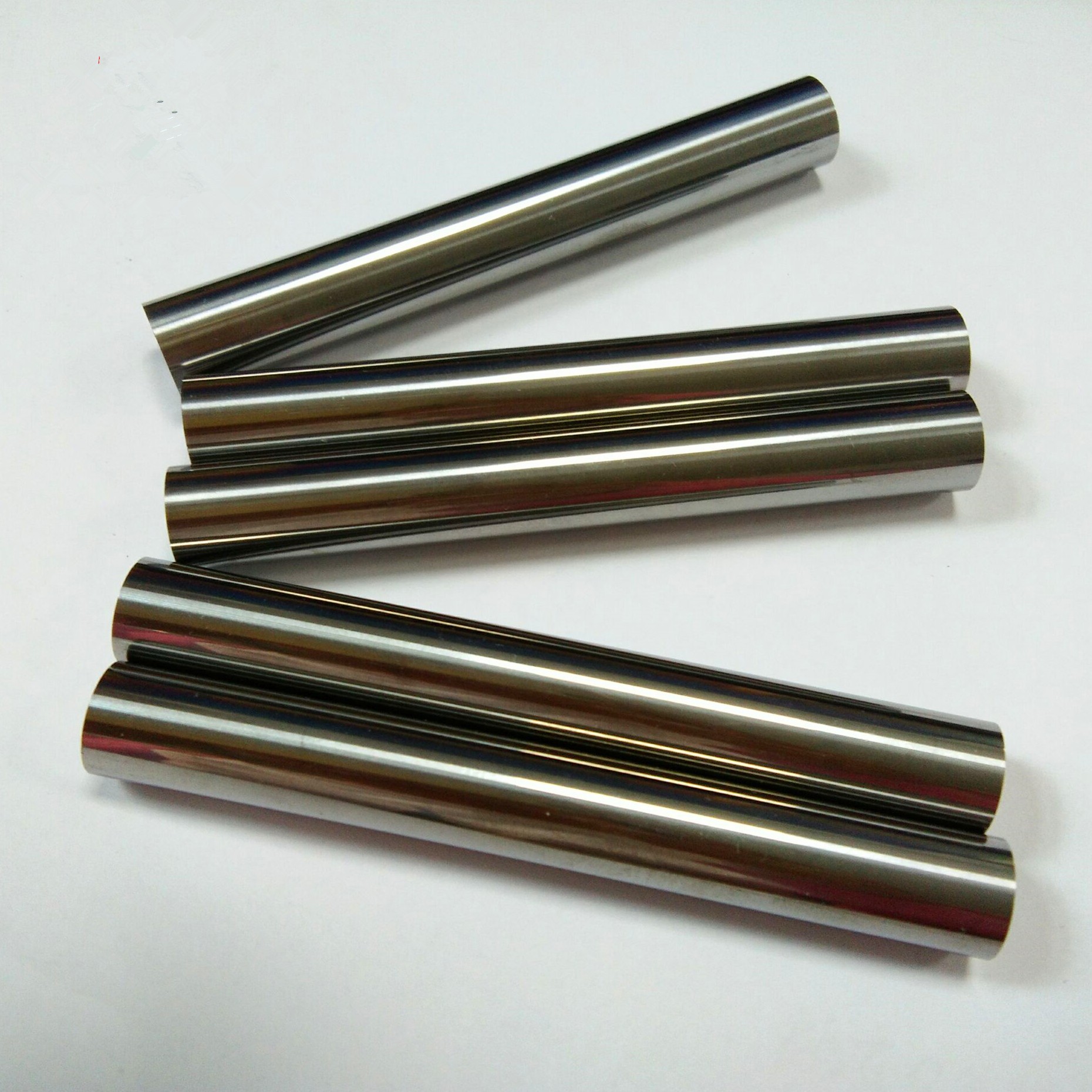

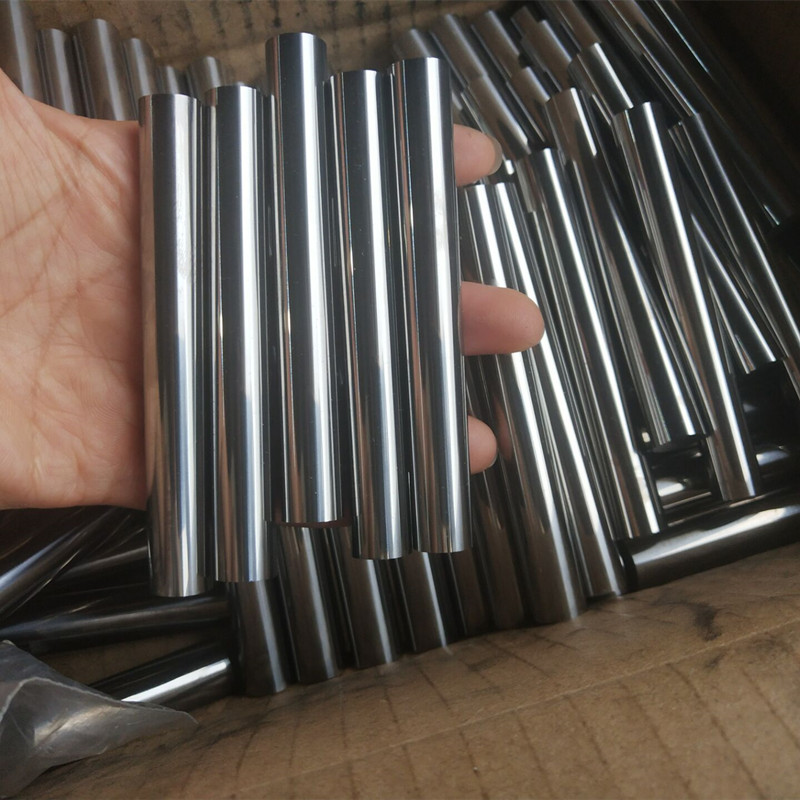

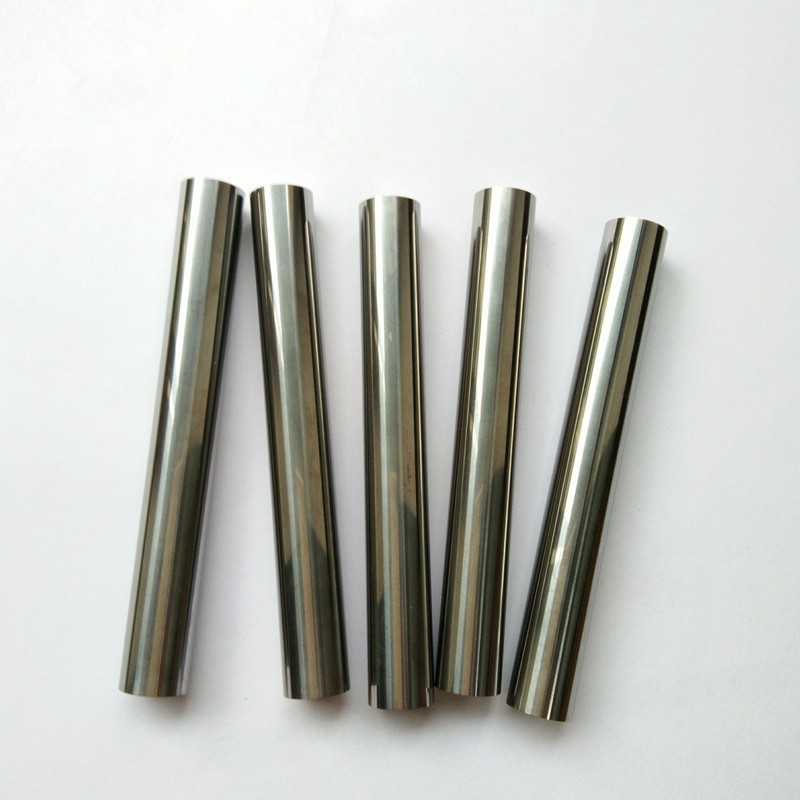

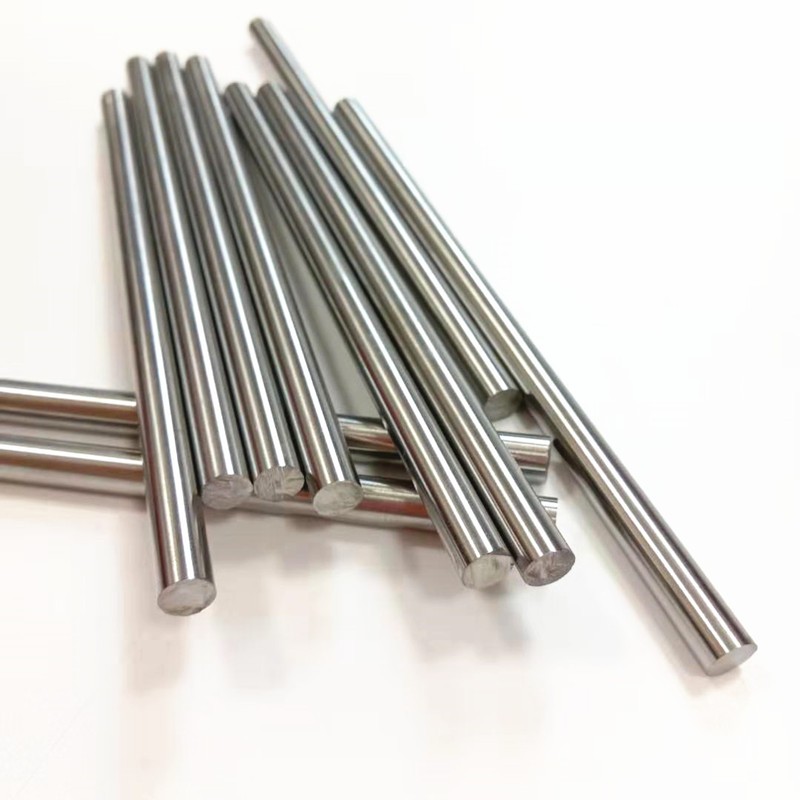

Tungsten carbide rod

  • Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
  • Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
  • Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter
Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter

Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter

  • Place of Origin:
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade:
  • Minimum Order Quantity:10 pcs
  • Price:
  • Delivery Time:
  • Payment Terms:
  • Supply Ability:

For more information, warmly welcome to contact me

Shirley Pam(Ms.)

Email:shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)


Ground Tungsten Carbide Rod Dia10mm*100mm No Stick For Milling Cutter

We can offer a lot of type tungsten carbide rods:

1. un-gound tungsten carbide rod
2. Ground Tungsten Carbide Rod
3. Carbide rods with central coolant duct;
4. Fixed length Carbide Rod
5. Random Length carbide rod
6. Carbide rods with chamfered end.

Products Details:

Dimension:Dia10*100mm, Dia12*330mm  various size
Material:100% virgin tungsten carbide          magnetic and non-magnetic
Grade:YL10.2
Hardness:HRA92.5
Surface:ground
Precision:+-0.01   based on your requirement
Features:durable, high performance, no stick for cutting tools
Application:

Metal Tool Parts

Common Unground Dimension and Tolerance

DimensionTolerance of diameter(mm)Tolerance of length(mm)
ZF-Φ4.0×330+0.3/+0.5+0/+5.0
ZF-Φ6.0×330
ZF-Φ8.0×330
ZF-Φ10.0×330
ZF-Φ10.0×330



+0.30/+0.70


+0/+5.0




ZF-Φ12.0×330
ZF-Φ14.0×330
ZF-Φ16.0×330
ZF-Φ18.0×330



+0.40/+1.0





+0/+5.0


ZF-Φ20.0×330
ZF-Φ22.0×330
ZF-Φ24.0×330
ZF-Φ26.0×330
ZF-Φ28.0×330

       ZF-Φ30.0×330

ZF-Φ32.0×330+0.7/+1.5+0/+5.0
ZF-Φ34.0×330
We are able to help you customized various diameter and length carbide rod.                  gound or unground both available

Some grade information for Reference

GradeDensity g/cm3Hardness HRA(hv)T.R.S (M Pa)Grain Size(μm)
YL10.214.592.538000.6-0.8
YG614.989.521500.8-1.2
YG814.68923200.8-1.2
YG1114.487.522600.8-1.2
YG1514.186.524000.8-1.2
YS2T14.4592.528000.6-0.8
YNi814.688.517100.8-1.2


Applications of Tungsten Carbide

Tungsten Carbides have a wide range of application in many industry sectors such as metal machining, wear parts for mining and oil industries, metal forming tools, cutting tips for saw blades and have now expanded to include consumer items such as wedding rings and watch cases, plus the ball that is in many ball point pens.

Application Industries:

- Defense industries

- Paper

- packaging

- printing

- Non-ferrous metal processing

- Mechanical

- Chemical

- Petroleum

- Metallurgy

- Electronic

Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower.

Our advantage of tungsten carbide rod

* ISO 9001:2015 Certification

* Use 100% tungsten carbide raw material

* Advanced technology , automatic pressing , HIP sintering

* with over ten year experience

* And precision grinding

* the tolerance of polish and ground can be +0.005/-0.005mm

* Full ability to accept OEM & ODM orders

* Stringent quality control and quality consistency.

* Strict inspection for quality of raw material and finished products
