Tungsten Carbide Nozzle

Industrial Solid Tungsten Carbide Nozzle Abrasion Resistant With Thread

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-N035
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-15days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pan(Ms.)

Email: shirley@chinahardalloy.com

Mobile:+8617773379950

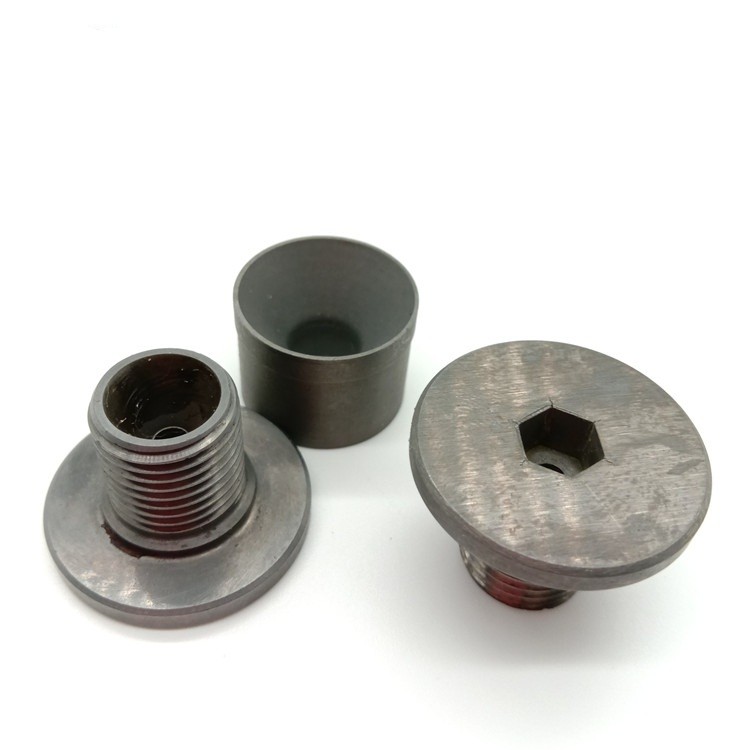

Abrasive Resistant Industrial Solid Tungsten Carbide Nozzle With Thread

We can provide you all kinds of high performance nozzles, such as spray nozzles, oil nozzles, blasting nozzles and so on.

Grades of carbide sandblasting nozzle

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Performances &applications recommended
YG6	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood, aluminum section bar,brass rod and cast iron.
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YS2T	14.45	92.5	2800	Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YL10.2	14.5	92.5	3400	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YN8	14.6	88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance perfor
YN6	14.9	89	1700	This grade with 6% nickel binder, it has good wear resistance& corrosion resistance perfor

Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance. They are widely uased in abrasive water jet, dry/wet blasting, suction blast, scrubber, descaling, slurry jet,centrifuge and so on.

Material	100% Virgin Tungsten Carbide
Grade	YG8/YG6/YL10.2/YG6X......
Chemical composition	WC/Co
Property	good wear resistance and corrosion resistance
Grain size	ultrafine/fine/submicron/medium/coarse
Powder compaction	Press
Sintering	HIP sintering
Application	industrial cleaning, cooling, Oil Drilling Tools, Dust control, Painting

Product Application

With high speed to wash,well wear resistance, excellent corrosion resistance,Tungsten carbide nozzles often be used in agricultural irrigation and urban greening.

Used in geological prospecting, machinery or tool manufacturing and serves as drill bit in wind drill and electric drills for coal dig.

Fit for precision lathe are used in nonstop cutting of die-cast iron.

Used For painting

Advantages of Tungsten Carbide Nozzle

Cost effective

Good performance property of abrasive resistance

corrosion resistance

stable property performance and long service life.

Customized nozzles are available according to your drawing and application.

Our Service:

We can according to customers’ requirement and drawings or sample to process all kinds of fine products, also can help customer in design.
