tungsten carbide blade

  • High Quality Tungsten Carbide tipped Circular Saw Blade
  • High Quality Tungsten Carbide tipped Circular Saw Blade
  • High Quality Tungsten Carbide tipped Circular Saw Blade
  • High Quality Tungsten Carbide tipped Circular Saw Blade
High Quality Tungsten Carbide tipped Circular Saw Blade High Quality Tungsten Carbide tipped Circular Saw Blade High Quality Tungsten Carbide tipped Circular Saw Blade High Quality Tungsten Carbide tipped Circular Saw Blade

High Quality Tungsten Carbide tipped Circular Saw Blade

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG8 YG10 YG11 YG6
  • Minimum Order Quantity:10 pcs
  • Price:
  • Delivery Time:3-15days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

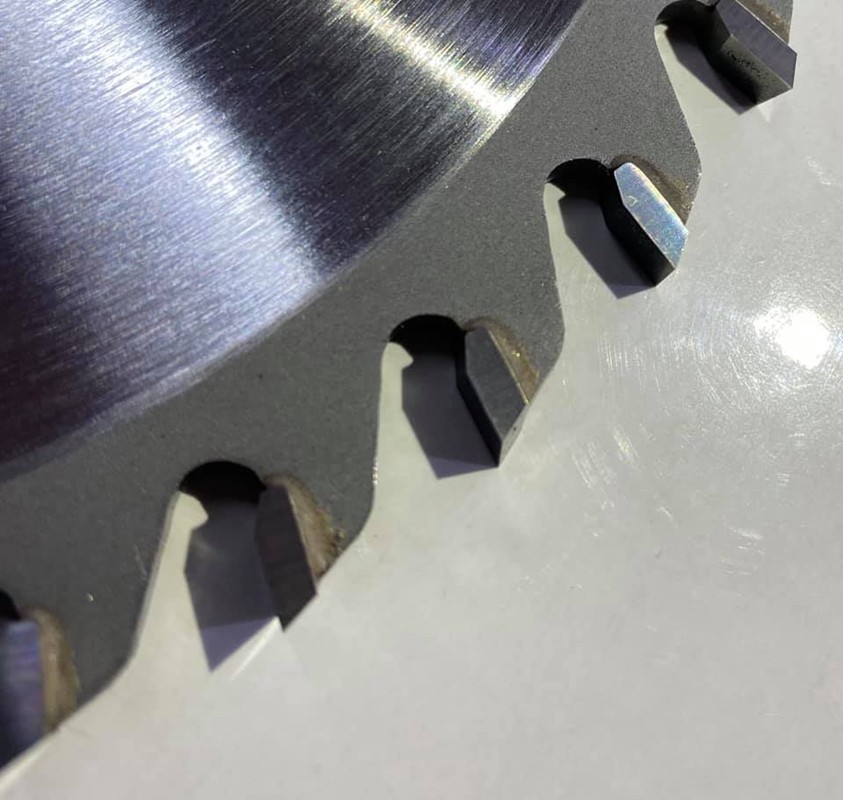

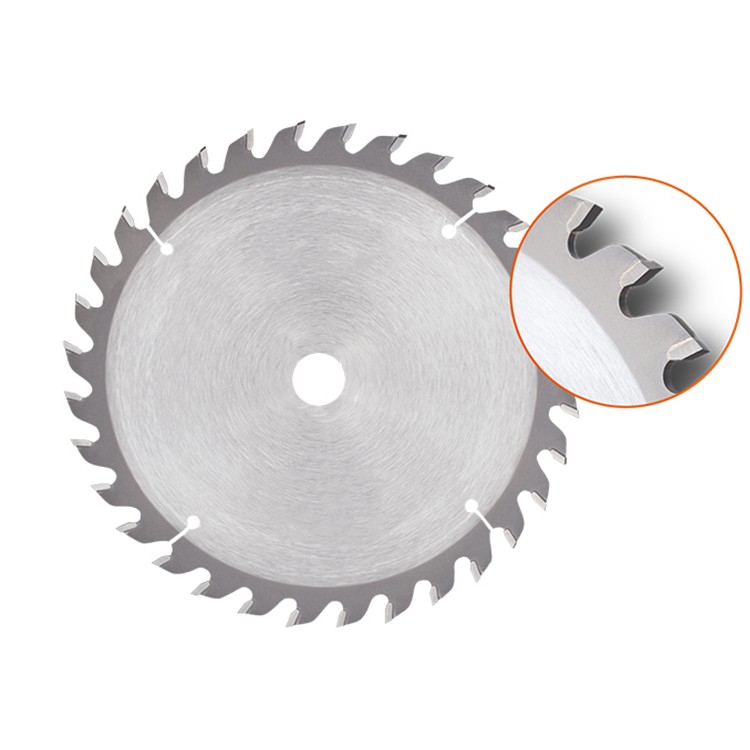

High quality tungsten carbide tipped circular saw blade



Product Show




Product NameGeneral Using TCT Circular Saw Blade for Wood Cutting
Material

Teeth Material: Tungsten Carbide
Body Material: 50# Carbon Steel ( 65Mn Steel is available )

ProcessHigh-Frequency Welded
Teeth TypeATB Teeth  ( ATB Teeth with anti-kickback, FT Teeth, TCG Teeth, ATBR Teeth are available)
Arbor Hole SizeAll size is available upon request,such as 5/8'', 1'' 20mm, 22.23mm, 25mm, 30mm, 35mm...etc
Teeth DesignTeeth number Could be adjusted upon request, Hook Angle could be adjusted upon request
PackageOne piece in one PVC double blister, paper box or PVC Skin Card

Features

1. This TCT Circular saw blades are designed as general crosscut blades, suitable for cross-cutting softwood, hardwood, plywood, chipboard, multi-board, panels, MDF,plated&counted-plated panels, laminated&Bi-laminate plastic, and FRP. Providing a high degree of finish edge. The blades also can rip cut along the grain.

2. Incorporates an ATB (Alternating Top Bevel) offset tooth design,  The angle of the tooth scores the surface of the wood in advance of the cut, cleanly cutting the wood fibers before the following teeth remove the chip. This provides for a much smoother cut, with much less chance of splintering the surface of the wood.

3. Tungsten carbide teeth provide excellent wear and heat resistance. The positive cutting angle which provides fast and efficient removal of chips and swarf.

4. Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.

5. Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.

6.Equipment used with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc.

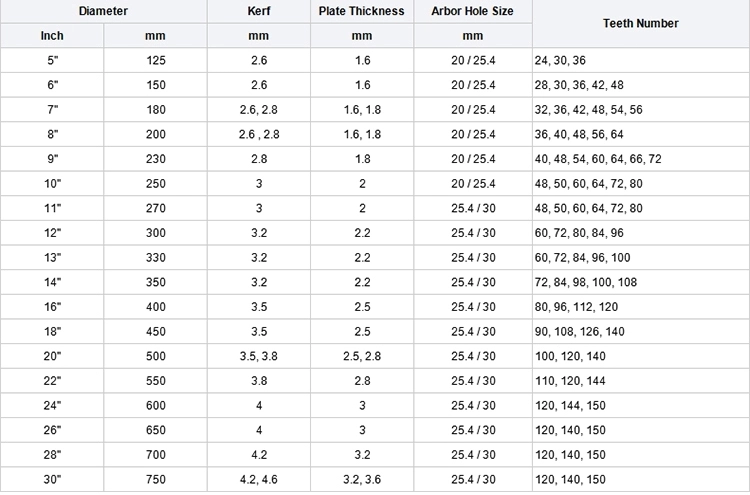

 Products Size:

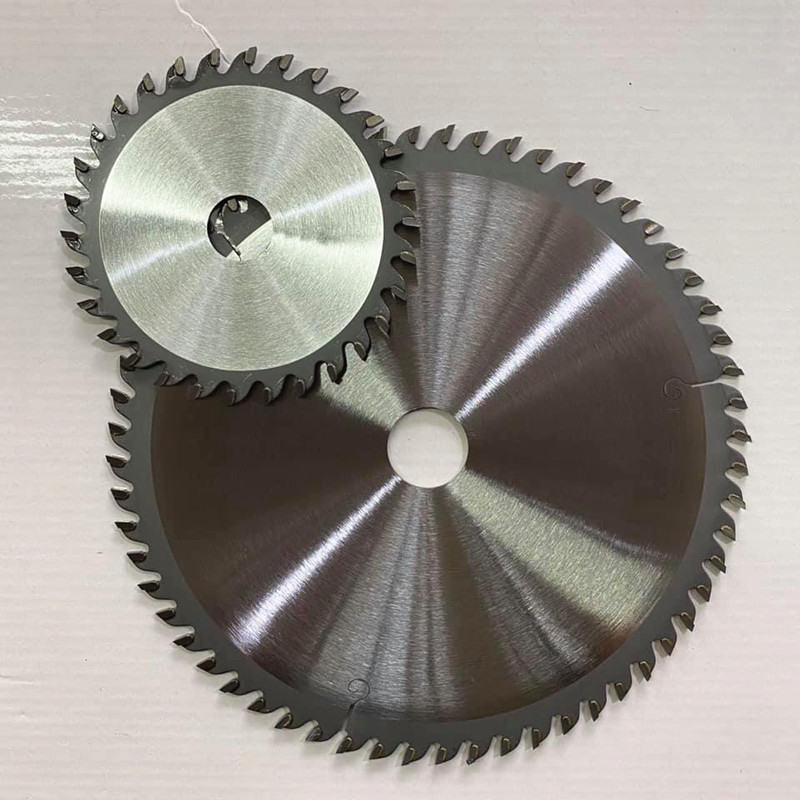

TCT saw Balde
High quality tungsten carbide tipped circular saw blade

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

7. tugnsten carbide nozzle

8. carbide bushing/sleeve

 Our Packing and shipment:
PackingOutside Carton or plywood case with inner plastic box.
ShippingUPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

For more information, please feel free to contact me

Ms. Shirley Pan

Email:shirley@chinahardalloy.com

Mobile: +86 17773379950
