Solid Carbide Rods

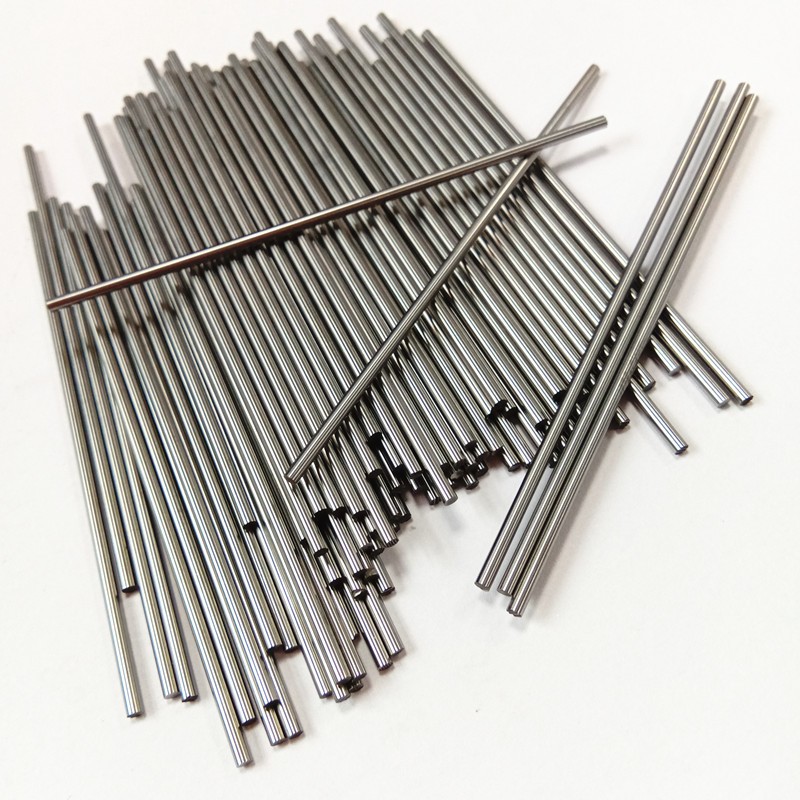

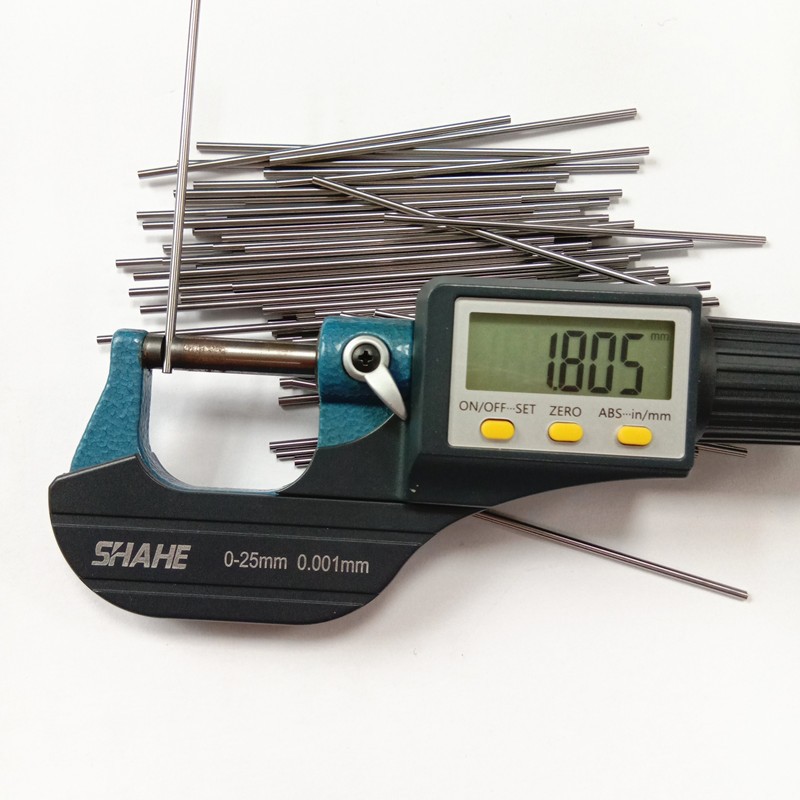

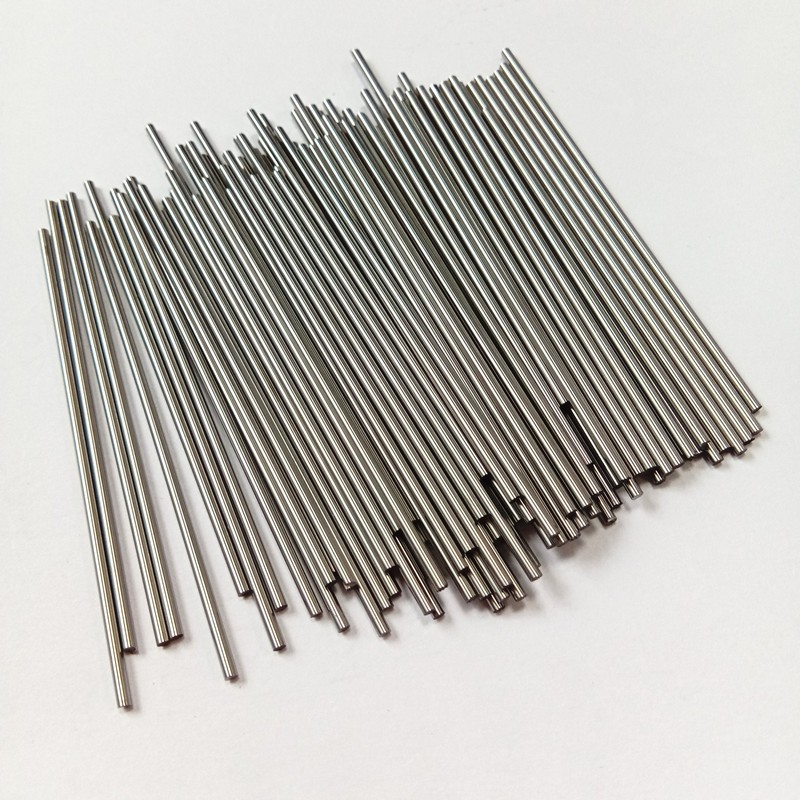

  • 150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools
  • 150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools
  • 150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools
150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools 150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools 150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools

150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R885
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

If you want lear  more information, warmly welcome to contact me

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile:+8617773379950(wechat/whatsapp)


150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools

Tungsten carbide rods produced with high temperature resistance and high hardness and toughness, widely used in PCB micro drills, for making drills, end mill reamer,taps,burrs, etc.

Also suitable for cast iron, non-ferrous metals, hard wood, common wood ect.

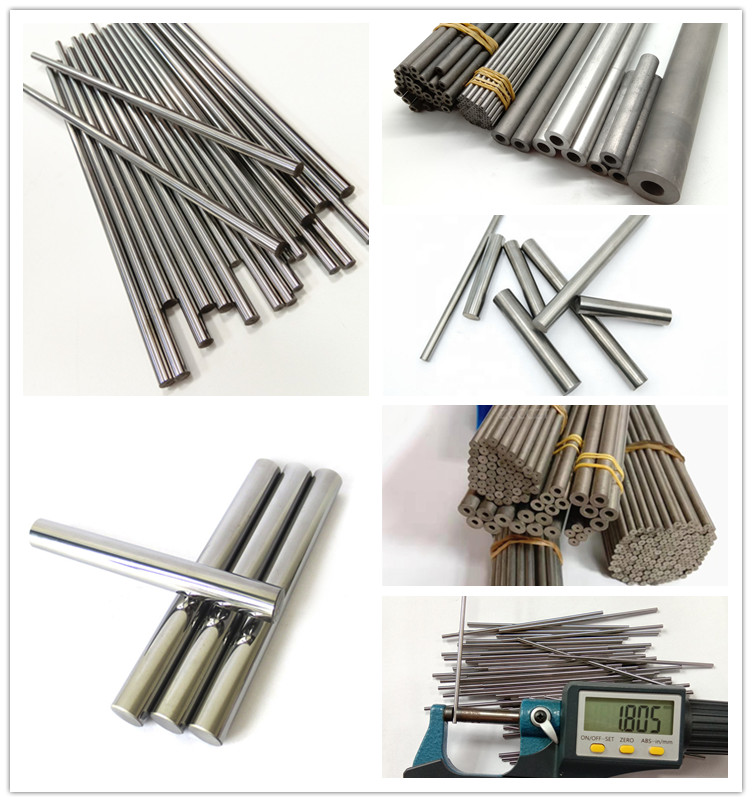

150mm Length Solid Carbide Round Bar High Toughness For PCB Drill Tools(图1)

Production Advantages

1. we using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. ISQ 9001-2015 Quality Control System.

7. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

8. We make tungsten carbide rods extruded or pressed.

Specification

Material:

tungsten carbide

Dimension:

Dia12*75/100/150mm     various size for choose

Ground Tolerance:

+-0.05mm  based on requirement

Blank tolerancce: +0.3~0.5mm
Grade:

K20 K30 K10, YL10.2, YG20 YG10X

Production Process:Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type:

round rod

Surface:

blank or grinding

Performance

High hardness, wear /corrosion resistancce, good toughness, good straightness

Application:

production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines.

Non-standard or tolerancecan be customized


Our Various Size List

Grinding

Blank

D

L

D

L

(mm)

Tol.(mm)

Tol.(+1mm)

(mm)

Tol.(mm)

Tol.(+3mm)

2

h6

330

2.2

+0.2

330

3

h6

330

2.7

+0.2

330

3.175

h6

330

3.2

+0.2

330

4

h6

330

3.7

+0.2

330

5

h6

330

4.2

+0.2

330

6.35

h6

330

4.7

+0.2

330

7

h6

330

5.2

+0.2

330

8

h6

330

5.7

+0.2

330

9

h6

330

6.2

+0.2

330

10

h6

330

6.7

+0.2

330

11

h6

330

7.2

+0.2

330

12

h6

330

7.7

+0.3

330

12.7

h6

330

8.2

+0.3

330

13

h6

330

8.7

+0.3

330

14

h6

330

9.2

+0.3

330

15

h6

330

9.7

+0.3

330

16

h6

330

10.2

+0.3

330

17

h6

330

10.7

+0.3

330

18

h6

330

11.2

+0.3

330

19

h6

330

11.7

+0.3

330

20

h6

330

12.2

+0.3

330

For more size information, please kindly email or call us


Various grade for your choice

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

WC%Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application
YG6XK109460.6-0.814.9922000Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2K25-K3590100.6-0.814.592.53800Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
Carbide Rods Grades for Moulds/Dies
Grade

ISO

Grade

WC%Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application
YG8K309281.214.6892320Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6K209461.214.989.52150Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG15
85151.614.186.52400Medium grain, for mining tools, cold heading and punching dies
YG20
80201.613.7852500


suitable for stamping dies such as screw, watch parts


YG20C
80201.8-213.6822200suitable for colding heading dies, stamping dies such as shaft ,standard parts

We guarantee:

* We are real factory in Zhuzhou

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

* Full ability to accept OEM & ODM orders

* Strict inspection for quality of raw material and finished products
