Carbide Wear Parts

  • YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire
  • YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire
  • YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

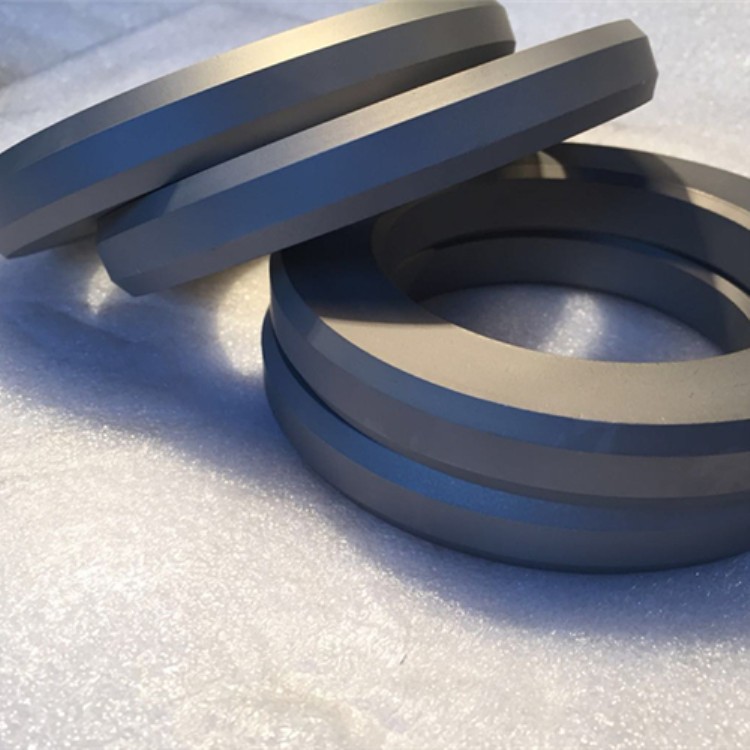

YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF00111
  • Minimum Order Quantity:10 pcs
  • Price:USD 55-65/kg
  • Delivery Time:7-15 days
  • Payment Terms:100% TT before shiping
  • Supply Ability:100000 pcs/month

YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire


If have any more information,  please feel free to contact with us.

Contact

Ms Sharon Chen

Mobile: 0086-13823202651(wechat/whatsapp)

Email address:sharon@chinahardalloy.com

Website:www.wmcarbide.com

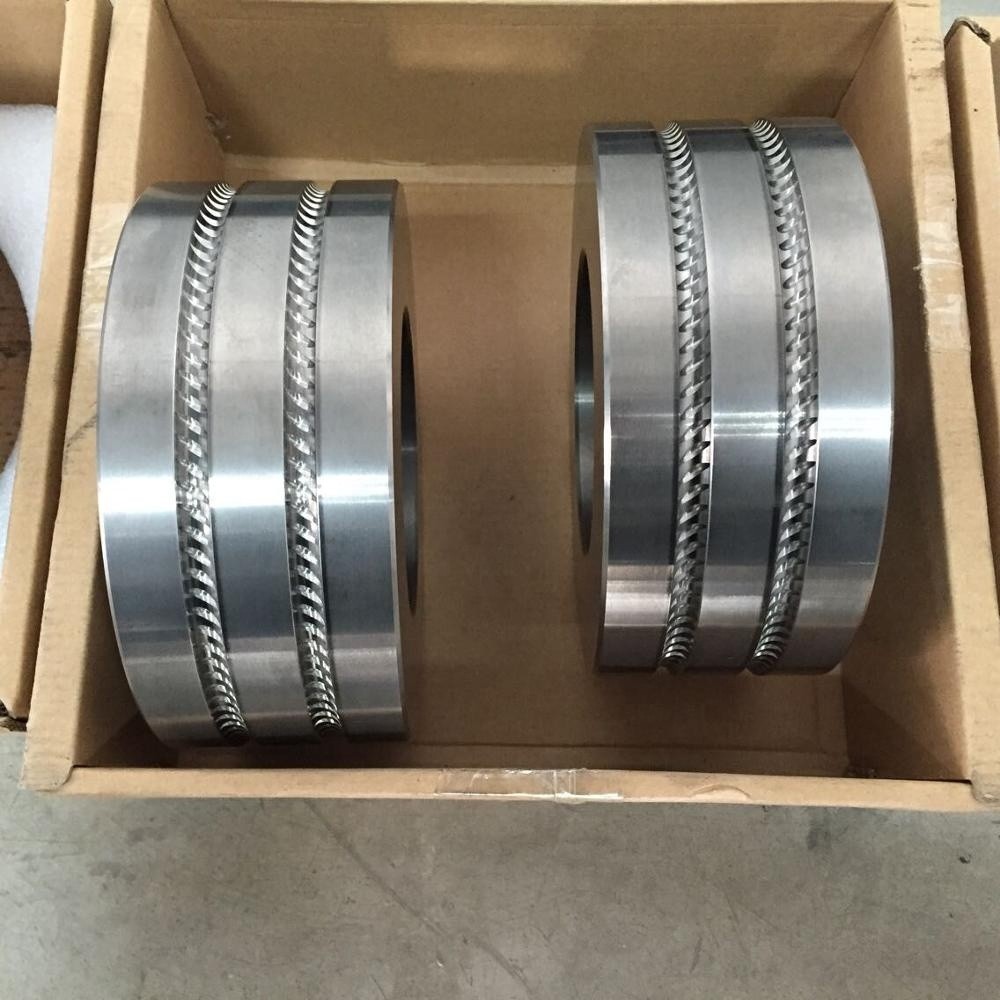

Cold rolled ribbed bar with Zhenfang carbide three dimensional rolls roll, which rib accuracy and mark clear, at same time to improve the performance of steel, enhance the strength. It makes sure that the quantity of a rolling reach to 800-1500 tons. Carbide rolls can be repaired repeatedly, and greatly reduces the production cost, significantly improves the efficiency.





Recommended Grade: ZF30/ZF40



Grade

Grain size(um)

Density(g/cm³)

Hardness(>=HRA)

TRS(>=MPA)

ZF30

1.6

14.03

87.0

3000

ZF40

1.6

13.85

86.2

3100





ZF30:Used for rolling cold rolled ribbed steel bar.

ZF 40:Used for rolling cold rolled ribbed steel bar with strong strength.

ZF Carbide Three Dimension Ring Available Size:


Dimension(mm)

Size

Diameter

Bore

Height

CR-125*82*15

1258215

  CR-140.8*90*15

1409015

CR-145*95*15

1459515

  CR-145.8*90*15

1459015

CR-150*90*15

1509015

CR-150*95*15

1509515

CR-180*125*18

18012518





Finished size (mm):

Radial run-out of groove

Radial run-out of periphery

End face runout

Surface parallelism

    Inner hole cylindricity

0.013

0.013

0.01

0.01

0.01



Finished size with the tolerance(mm):

OD

Tolerance

ID

Tolerance

H

Tolerance

<=125

+0.015/+0.015

<=90

0.0/+0.02

<=20

-0.01/+0.01

>125~180

+0.015/+0.015

>90~95

0.0/+0.02

>20

-0.01/+0.01

>180~250

+0.015/+0.015

>95

0.0/+0.02-----0.01/+0.01

>250

+0.015/+0.015-----0.0/+0.02-----         -0.01/+0.01


Our service

1:Before order: give you detailed quote and technology consulting.

2:Order processing: offer the manufacturing process regular.

3:After Salesend all test certificate, follow up the goods usage.


Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade



Our Packing and shipment:
PackingOutside Carton or plywood case with inner plastic box.
ShippingUPS,TNT,EMS,Fedex,DHL,or by sea,as you request.



Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacturer in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture. We always pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools. Tungsten carbide rod and customized wear parts is our advantage.

We always keep good relationship with our clients, enhancing communication and Cooperation to each other, trying to create WIN-WIN cooperation
