Carbide Wear Parts

  • K20 Squared Tungsten Carbide Wear Block With High Wear Resistance
  • K20 Squared Tungsten Carbide Wear Block With High Wear Resistance
  • K20 Squared Tungsten Carbide Wear Block With High Wear Resistance
K20 Squared Tungsten Carbide Wear Block With High Wear Resistance K20 Squared Tungsten Carbide Wear Block With High Wear Resistance K20 Squared Tungsten Carbide Wear Block With High Wear Resistance

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-P56
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcoem to contact me

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)

Skype: zzzfcarbide


K20 Squared Tungsten Carbide Block With High Wear Resistance

Application of our tungsten carbide block:
1. tungsten carbide square bar are uswed for cutting metal, wood and other material
2. It is suitable for making discharge plate, stamping die, punch, electronic progressive die and other stamping die

Recommanded Grades For Your Reference

Grade

Density

g/cm3

Hardness

HRA(hv)

T.R.S

(M Pa)

Performances &applications recommended


YG6


14.9


90


2150

Good Wear resistance, used for hard wood, processing original wood,aluminum section bar, brass rod and cast iron.


YG8


14.6


89.5


2320

Suitable for the roughening of cast iron and light
alloys and also for the milling of cast iron and low-alloy steel.
YG6A14.9921850fine grade alloy, with good wear resistance, used for processing blade, wear resistance parts, etc.
YG1514.186.52400Medium grain, for mining tools, cold heading and
punching dies
YG2014852500Medium grain, for stamping dies of Instrument leaf spring, battery shell, toothpaste, screw nut
YL10.214.592.53400Wear resistance and strength comparatively
higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.

Detail Information

1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 150*150*10mm. 195*195*20mm, according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG8/YG6/YG6X/YG15...
6. Length of Tungsten Carbide Plate: 10.0 mm to 400 mm; Width: 10.0 mm to 400 mm
7. Thickness: 1.0 mm to 100.0 mm

Some size list:

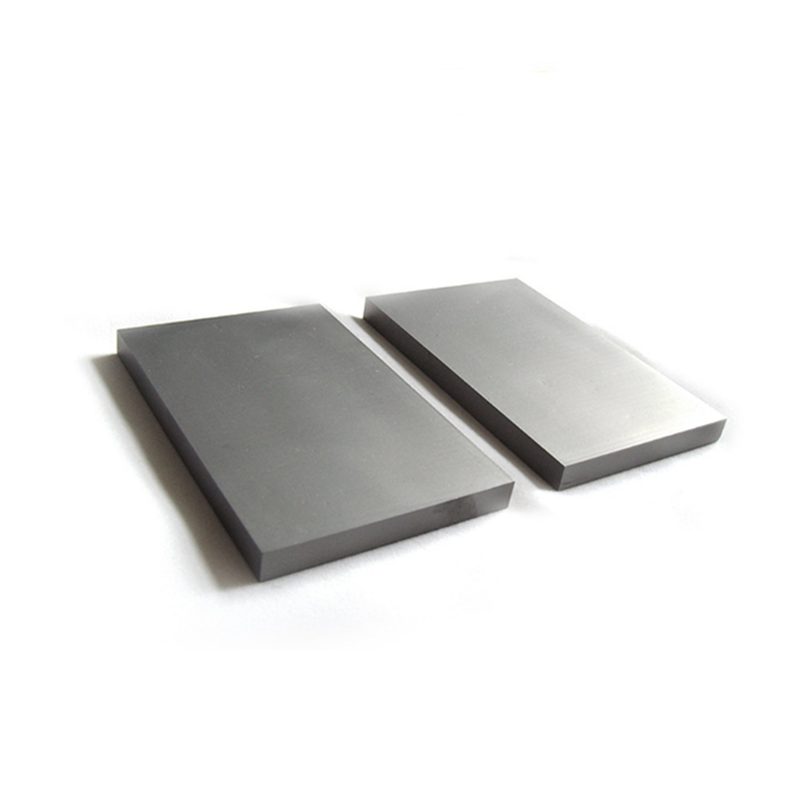

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance(图1)

L

W

S

200

200

10-45

150

150

10-45

150

130

10-45

150

100

10-45

150

80

10-45

120

120

10-45

100

100

10-50

100

50

10-50

100

45

10-50

80

55

10-50

80

40

10-40

70

35

5-40

45

25

5-20

35

19

5-20

20

20

5-20

18

13

5-20

.....

...

...

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
Advantge of Our tungsten carbide block
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing

Outside Carton or plywood case with inner plastic box.

Shipping

UPS,TNT,EMS,Fedex,DHL,or by sea,as you request.

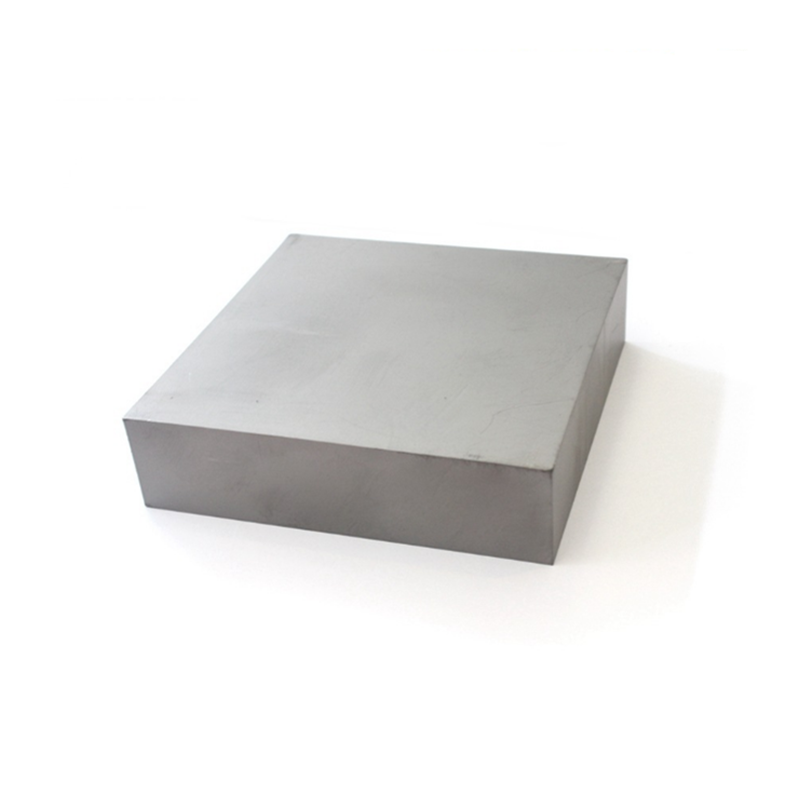

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance(图2)

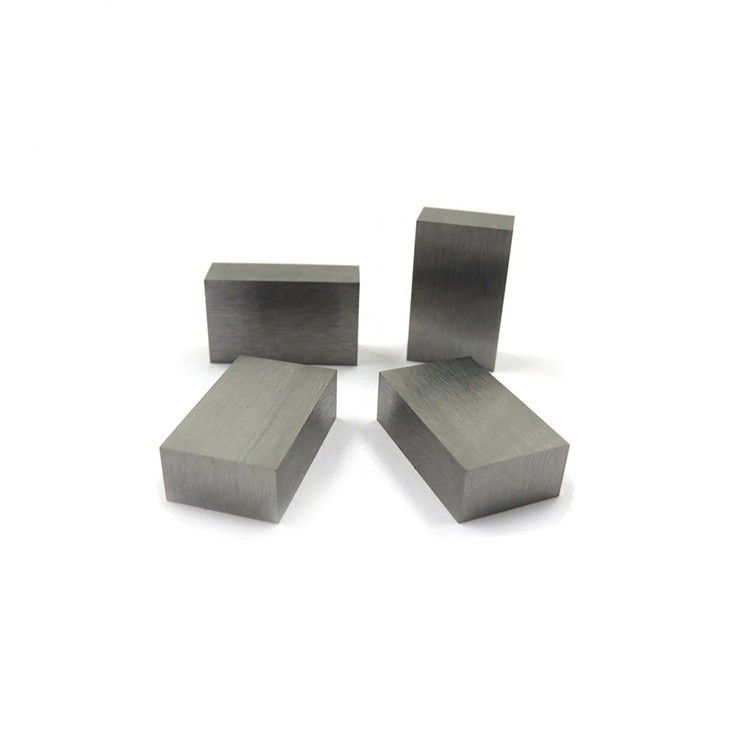

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance(图3)
