Tungsten Products

Thoriated Tungsten Electrode With Red Color Tig Welding Rod

Thoriated Tungsten Electrode With Red Color Tig Welding Rod

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-TR025
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

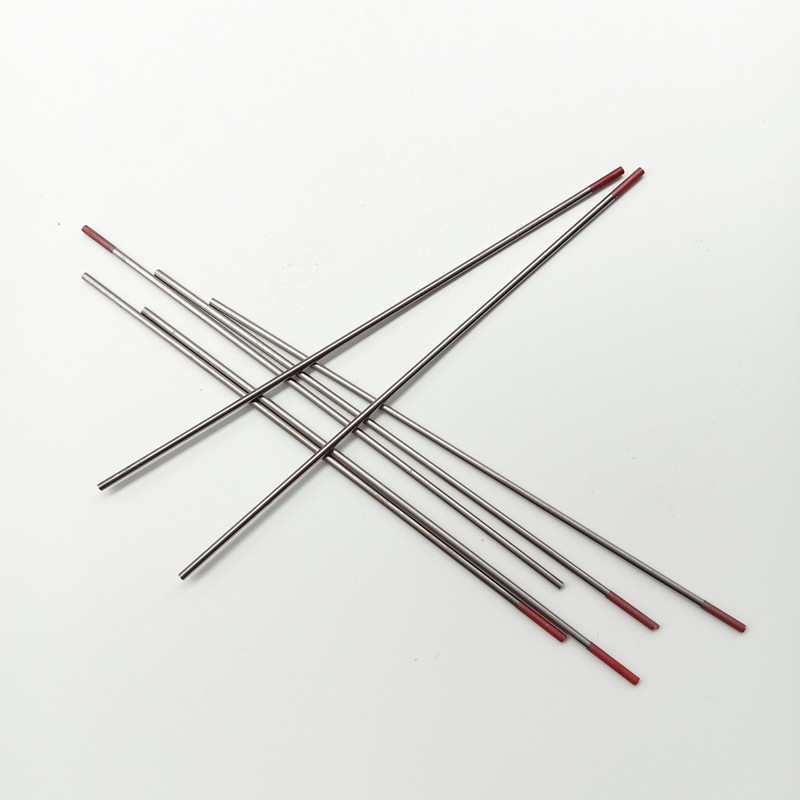

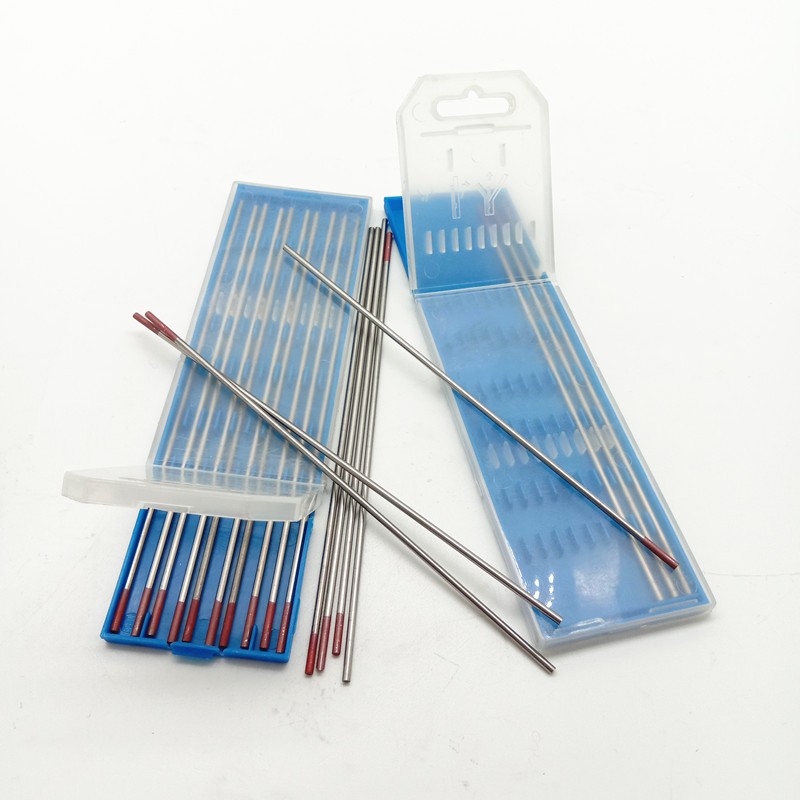

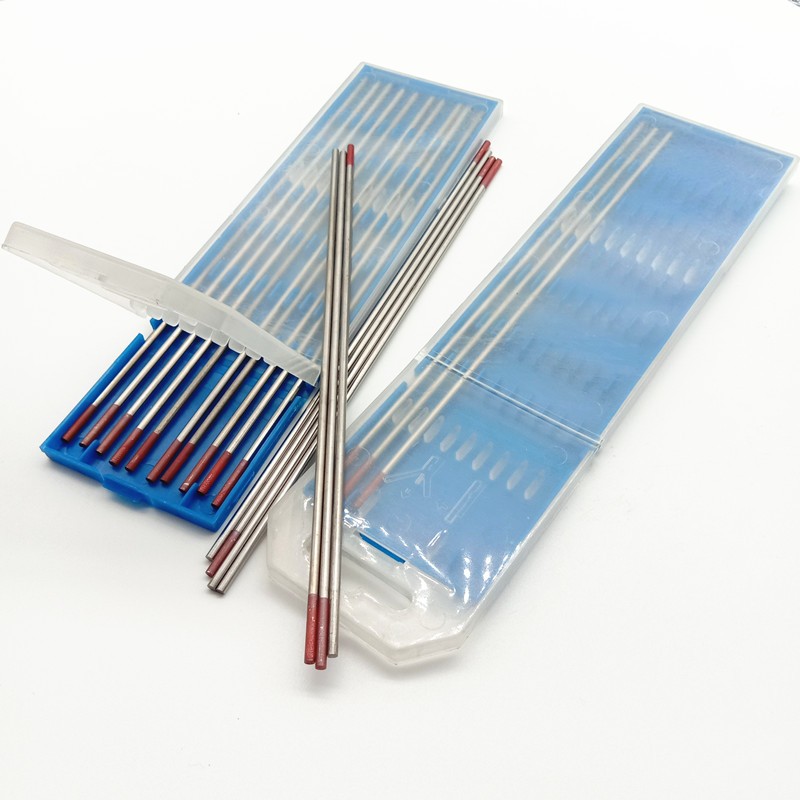

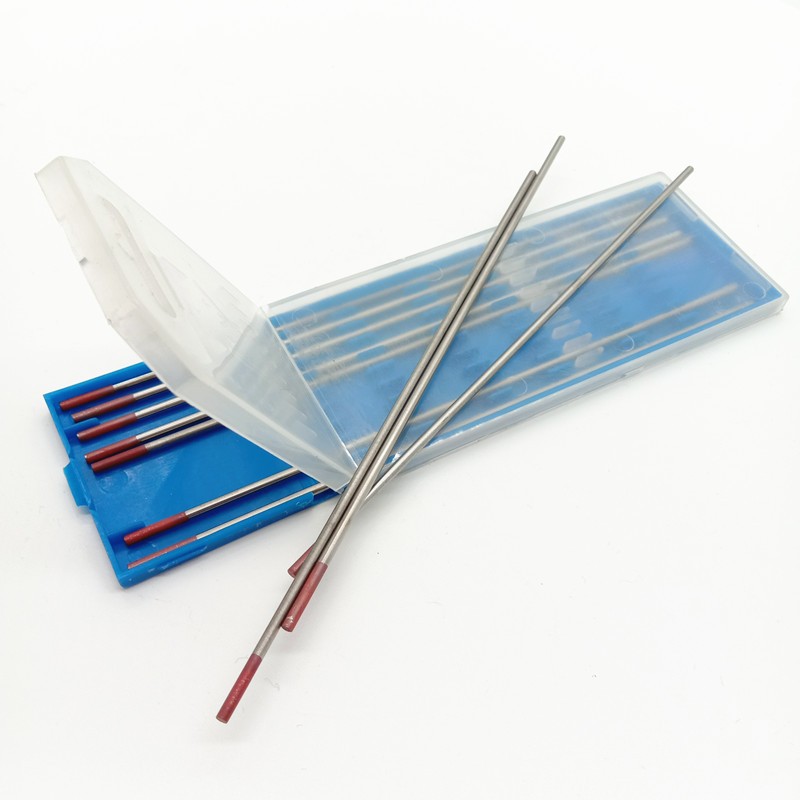

Thoriated Tungsten Electrode With Red Color Tig Welding Rod
Thoriated Tungsten Electrode is widely used as an additive oxide electrode. It can be operated easily, has a high current load and produces arc easily and steadily. In addition, the gap of the breaking arc is big, loss less and longer life. With higher re-crystallized temperature, better conductivity and mechanical cutting property, Tungsten WT20 is applied to welding carbon
steel, stainless steel, nickel alloy and titanium metal. Thoriated Tungsten Electrode becomes the first selection material for high quality welding.
Detail information of tugnsten electrode rod
1.Material: 2%Thoriated Tungsten
2. Dimension: Dia 2.4* 175mm (various size for choose)
5. Features: Low thermal expansion,good thermal conductivity,high Elastic modulus, low resistivity
6 . Usage: tig-welding electrode.
7. Surface: sintered / forging/Rotary forging/ rolling/ grinding
Specified Diameter (mm)

Mark	Color signThO2 Content	Color sign	Size
WT10	0.90 - 1.20	Primary	Diameter(mm): 1.0,1.6,2.0,2.4,3.0,3.2,4.0 etc Length (mm):150, 175


WT20	1.80 - 2.20	Red	Diameter(mm): 1.0,1.6,2.0,2.4,3.0,3.2,4.0 etc Length (mm):150, 175

WT30	2.80 - 3.20	Purple	Diameter(mm): 1.0,1.6,2.0,2.4,3.0,3.2,4.0 etc Length (mm):150, 175


WT40	3.80 - 4.20	Orange Primary	Diameter(mm): 1.0,1.6,2.0,2.4,3.0,3.2,4.0 etc Length (mm):150, 175

Tungsten electrodes have excellent welding performance:

1. Great arc starting capacity with good arc stability

2. low electrode burning loss,

3. long service life

4. free of slag and splashing and high welding quality

5. they are mainly used for inert gas protection are welding.

Thoriated tungsten electrode is the most commonly used tungsten electrode, Thoria is a low-level radioactive material, but it was

the first to display a significant improvement over pure tungsten.

Application of Tungsten Electrode

Thoriated tungsten is a good general use tungsten for DC applications, because it operates well even when overload with extra amperage, thus improves the performance of welding.

Our Service
Prompt response within 24 hours after receving your inquiry.
Experienced people do the right thing for your order.
Payment term could be negotiated.
Quality could be guaranteed, because the materials is from our reliable partners who is in this field more than 10 years.
On-time delivery: We ensure that your goods can be completed within 20 days once got the down payment.
