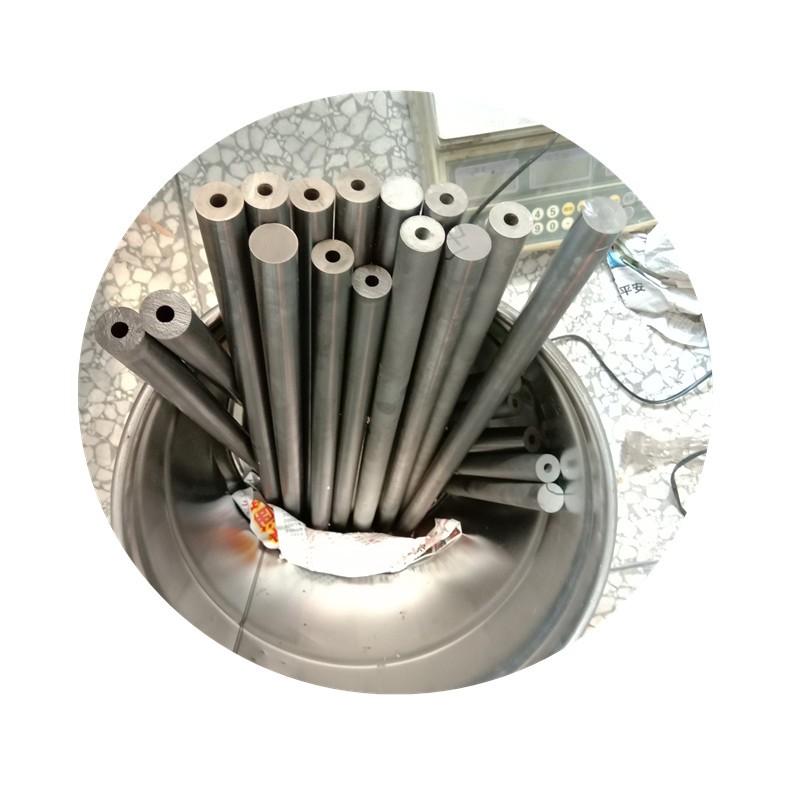

Tungsten Carbide Round Bar

  • High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole
  • High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole
  • High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole
  • High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole
High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole

High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole

  • Place of Origin： Zhuzhou, Hunan
  • Brand Name： Zhenfang
  • Certification： ISO9001:2015
  • Grade： ZF-R812
  • Minimum Order Quantity:10 pcs
  • Price:Negotiable
  • Delivery Time:3-15days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

Detail Specification

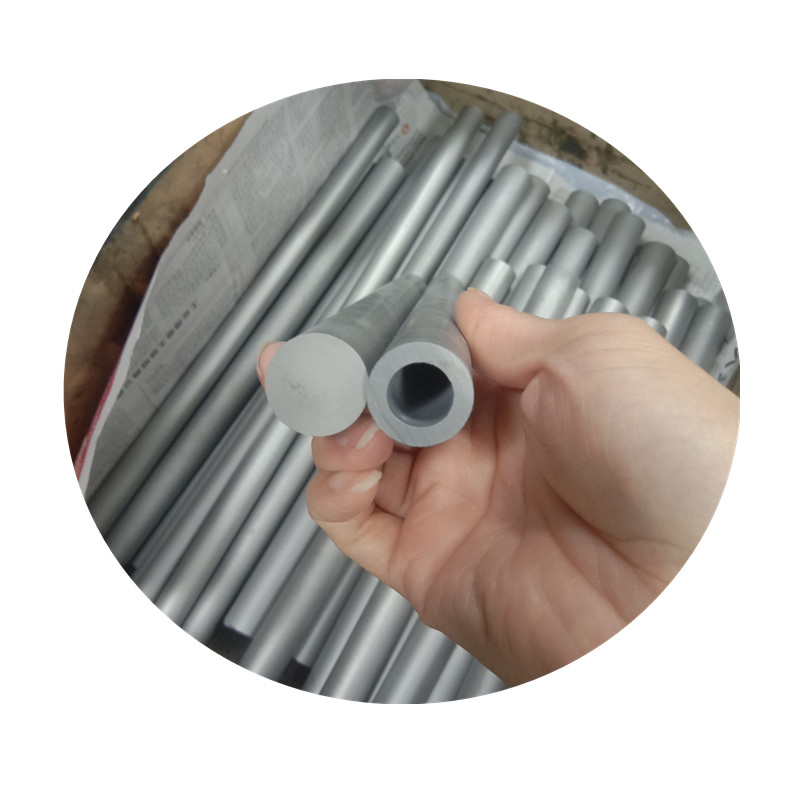

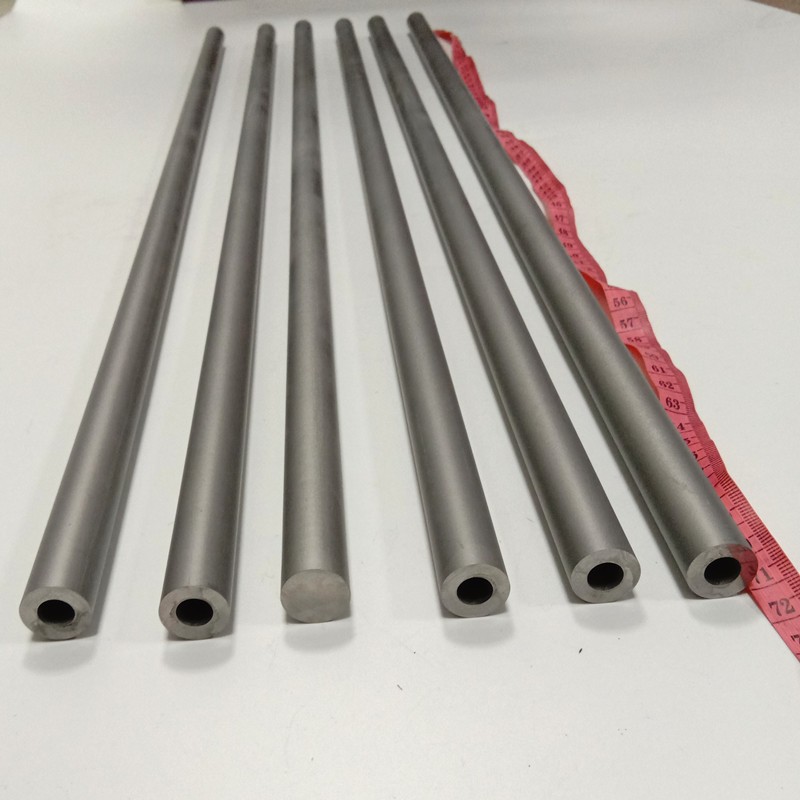

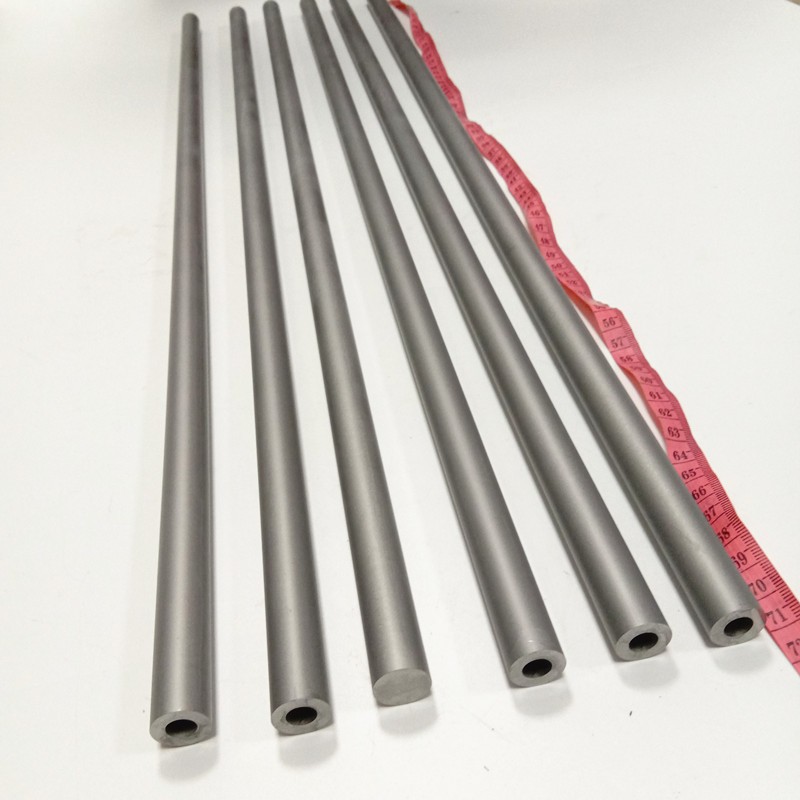

1.Product Name:high wear resistance tungsten carbide tube with 700mm length
2.Material: 100%virgin WC+CO
3. Specification: OD18*ID10*L700mm with blind hole various size for choosing

4.Features: one central blind hole
5.Property: excellent abrasive resistance,  high temperature/corrosion resistance

6.Good precision of size

7.Three times sintered,the sealed is sintered, not soldering, more durable
8. Application: Used as protection tube for thermocouple/thermo resistance  in cement plant, coal plant, power plant
Main Properties of Tungsten Carbide tube
1) under Acid-Bases environment, resistant temperature: 700degree
2) Under Aluminum Water , resistant temperature: 700degree
4) Long using lifetime

5) high wear resistance
Recommanded grades for your reference

Grade
ISO Range
Cobalt(%)
Density(g/cm3)
Hardness(HRA)
YG8
K30
8
14.8
89.5
YG6
K20
6
14.95
90.5
YL10.2
K25-K35
10
14.5
91.8

General size list (other size also available)


Dimension(mm)
OD(MM)
ID(mm)
Length(mm)
12*ID*L
12
6/6.5/7/8
100-700mm
14*ID*L
14
6/6.5/7/8
100-700mm
15*ID*L
15
6/6.5/8/10
100-700mm
16*ID*L
16
6/6.5/8/10
100-700mm
18*ID*L
18
6/6.5/8/10/
100-700mm
20*ID*L
20
6/6.5/8/10/12
100-500mm
21*ID*L
21
6/7/8/10/12
100-500mm
22*ID*L
22
6/8/10/12
100-500mm
25*12*L
25
12
100-500mm
40*30*L
40
30
100-500mm

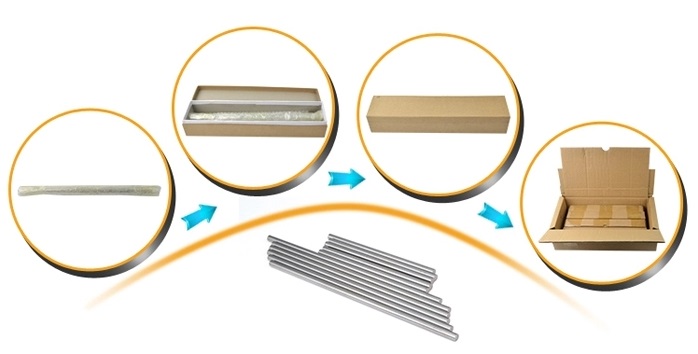

Packing And Delivery


High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole(图1)

High Wear Resistance Tungsten Carbide Pipe Tube With 700mm length One Central Blind Hole(图2)

Our Advantages of Carbide Protection Tube

1. manufacturing this products for about 8 years, good reputation from our clients

3. rich experience  in the application of this products

4.professional techinician providing suggestion ofr your aplication and customize chemical composition based on requirement

5. 100% virgin material for this products

6. advanced production equipment and perfect testing ,wich guarantee quality and competitive price


If you want learn more about our products, please feel free to contact us at any time, and warmly welcome to visit us

Ms. Shirley Pan

Email:shirley@chinahardalloy.com

Mobile: +8617773379950


PREVIOUS：Customize Unground cemented carbide tube pipe made by 100% virgin tungsten carbide NEXT：Period
