Tungsten Carbide Round Bar

330mm length 100% raw material yg10x solid tungsten carbide rod round bar

330mm length 100% raw material yg10x solid tungsten carbide rod round bar

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00105
Minimum Order Quantity:10 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

330mm length 100% raw material yg10x solid tungsten carbide rod round bar

Solid tungsten carbide rods:

1. Grade: 10% cobalt and 12% cobalt recommend

2. Size: Diameter 4--30mm available

3. Certification: ISO9001:2005,

4. Mirror polished to h6 and unground carbide rod are available

5. Each Metric and Inch dimensions available

6. Standard length: 330mm and can cut into different length as per requirments

We manufacture ground and unground carbide rods in stock with HIP sintered and 100% virgin material.Our recommend grade for machining carbon steel to aluminum , non-ferrous metals and titanium which cutting tool material HRC<=55. which 10% cobalt, grain size 0.8um, TRS>=3800. The stability and high performance of the series bring many benefits to our customers and inspires them to develop quality products.

Advantages of product:

1. Adopting spray drying tower granulation, raw material with low oxygen content, contamination, the flowability, apparent density particle and granulate is uniform;

2. Adopting high-precision extrusion molding machine, uniform product density, precise dimension, high roundness, and straightness;

3. Adopting advanced HIP sintering, effectively eliminate the internal holes and defects, the product has good compactness, high strength, good polishing performance;

4. Adopting a special stress-relief process to eliminate the internal stress of products to further enhance the product strength and improve the microstructure;

5. Precision grinding machine processing, ground rod can reach h6 tolerance.

Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of tools. We are looking forward to establish new business with new customers.

Recommended Grade

Grade	Grain size(μm)	Density(g/cm³)	Hardness(>=HRA)	TRS(>=MPA)
YG8	1.6	14.80	89.0	2800
YG6X	1.0	14.90	90.5	2300
ZF05	0.4	14.80	93.0	3300
LX25	0.8	14.50	91.3	3800
YL10.2	0.8	14.40	91.5	4000
ZF10	0.5	14.2	92.7	4400

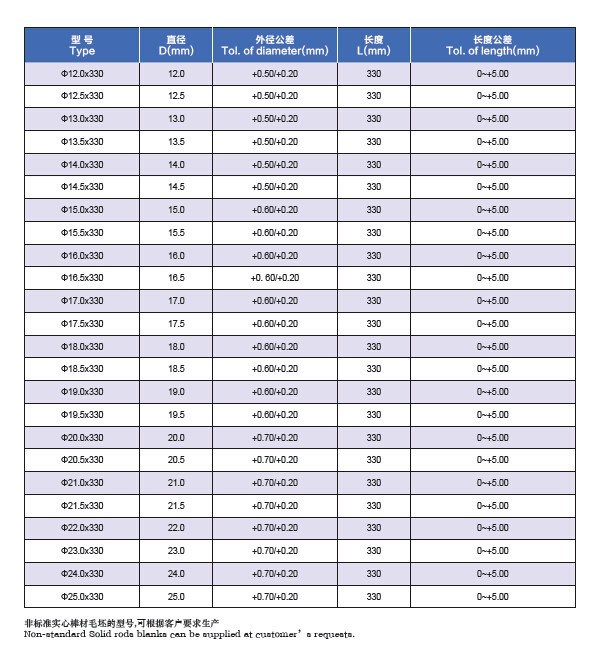

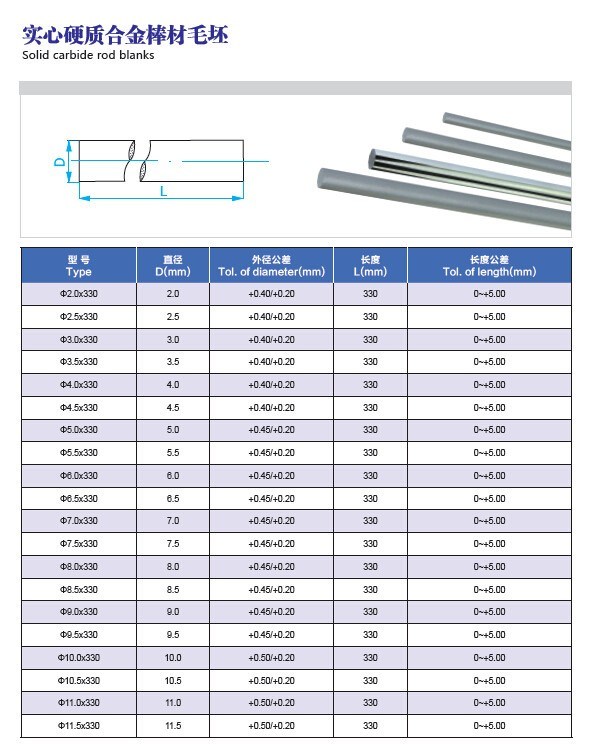

Dimension and Tolerance

Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.45	-0/+5.0
Max BL-Φ50.0×330	+0.20/+0.45	-0/+5.0

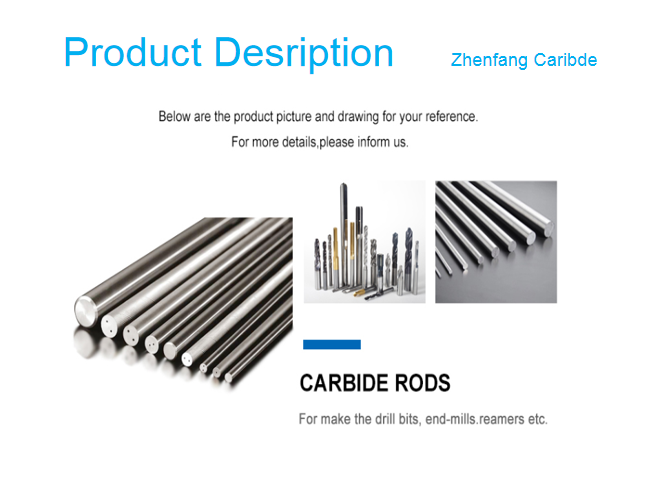

330mm length 100% raw material yg10x solid tungsten carbide rod round bar (图2)

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

High Performance YG8 Carbide Bar Ground Cemented Carbide Rod (图4)
