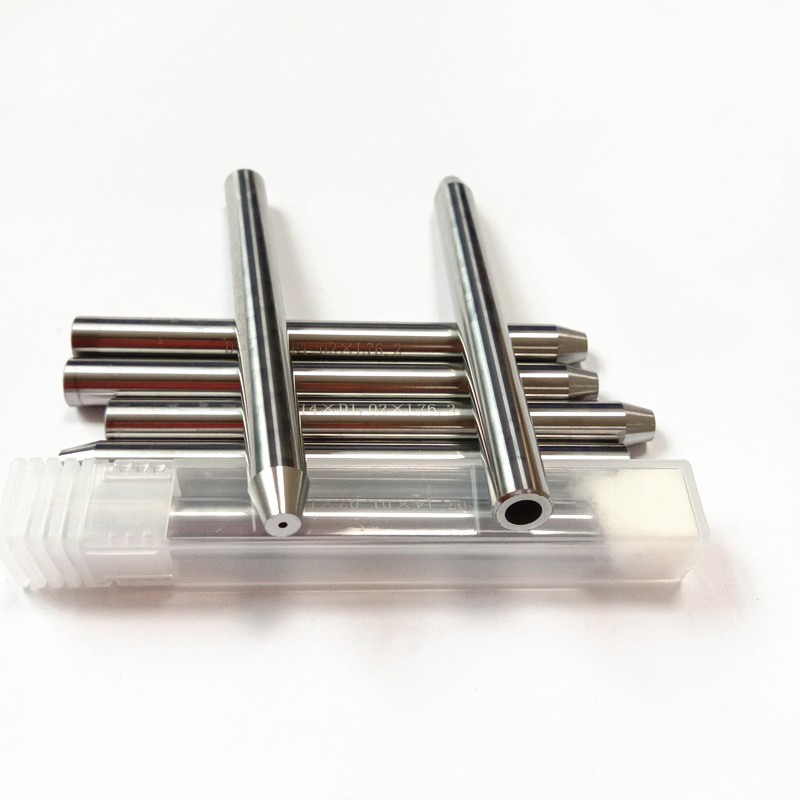

Tungsten carbide rod with coolant hole

For more information, warmly welcome to contat me at any time

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile:+8617773379950

YL10.2 Ground Tungsten Carbide Rod High Strength Carbide Tube 0.15/0.2mm Hole

Tungsten Carbide Rod We offer:

pressed and extruded unground, ground and polished rods with or without chamfers
rod products that can be ground to h6 tolerances
carbide rod with one or two parallel holes
carbide rod with chamfer
a variety of grades that provide exceptional wear and impact resistance
grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools
grades for use in a broad range of applications in almost any material
grade for stamping /colding/ forging dies

We can supply all kinds of dimensions solid carbide rods with fine&sub micron grain size We manufactured and stocked many dimensions of ground and unground carbide rod for your. We have a large range of grade for your choice. We also can develop grade based on your application.

Grade		YL10.2 (K25-K35)
Co	%	10
WC	%	90
Density	g/cm³	14.5
HV30	kg/mm²	1600
Hardness	HRA	92.5-92.8
Bending Strength	N/mm²	>3800
Porosity	A B C	A02B00C00
WC Grain Size	μm	0.6

Application of tools:

Twist drill,End mill,Tap

Applications of material:

◆ Cast iron

◆ Stainless steel,Heat-resistant steel,Hardened steel(hardness<60HRC)

◆ Nickel-based, Titanium alloys

Production Process of Tungsten Carbide Rod:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Various grade for your choice

Grade	YL10.2	YG6	YG6X	YG10X	YG8	YG15
ISO Range	K25-K35	K20	K10	K35	K30	K40-K50
WC+others %	90	94	94	90	92	85
Co %	10	6	6	10	8	15
Grain Size μm	0.6	0.8	0.6	0.6	0.8	0.8
Density g/cm3	14.5	14.9	14.9	14.5	14.6	14.1
Hardness HRA	92.5-92.8	89.5	92	90	89	86.5
T.R.S N/mm2	3800-4000	2150	2000	2200	2200	2400

Grade	Application
YL10.2	ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6	Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X	ultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10X	ultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8	fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15	fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

Production Advantages

1. we using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

7. We make tungsten carbide rods extruded or pressed.

8. Customization is acceped

Part of our carbide rod Size List

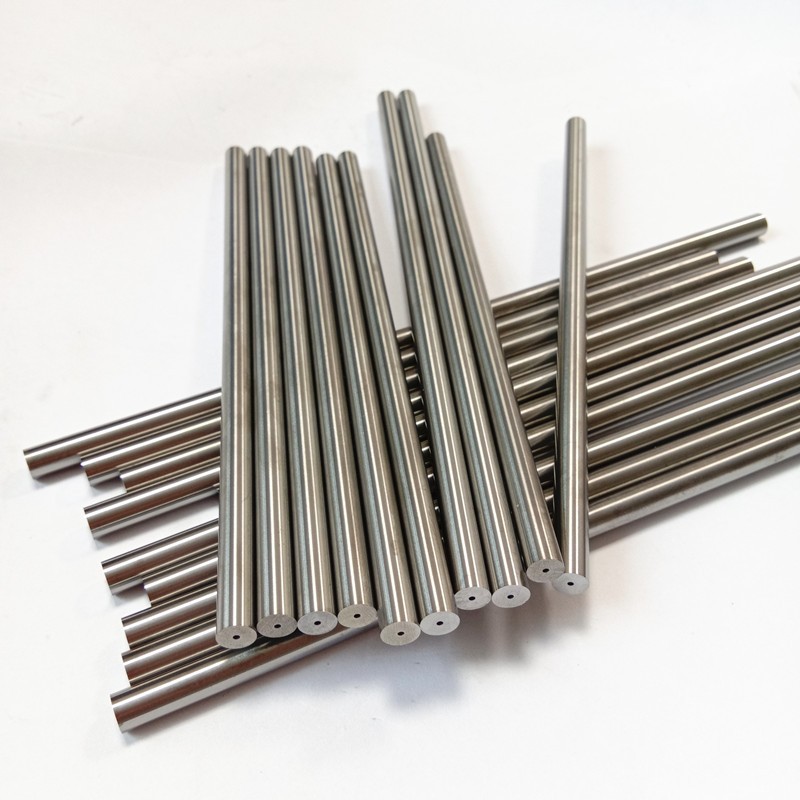

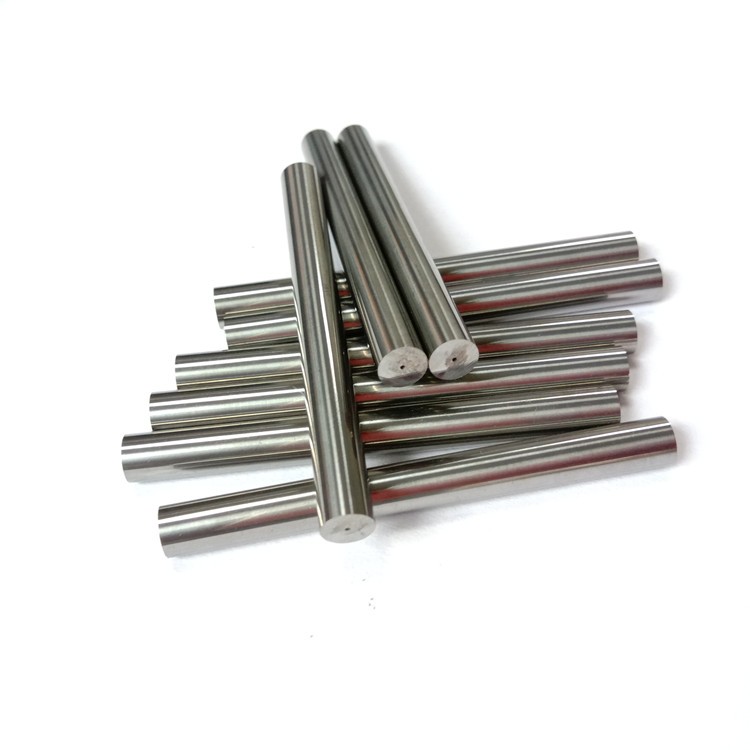

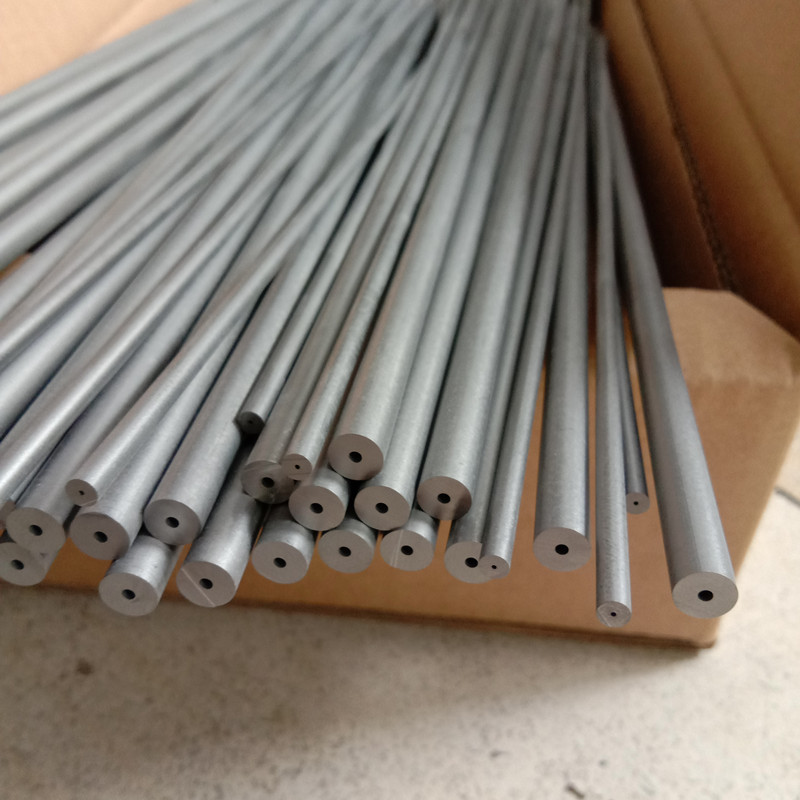

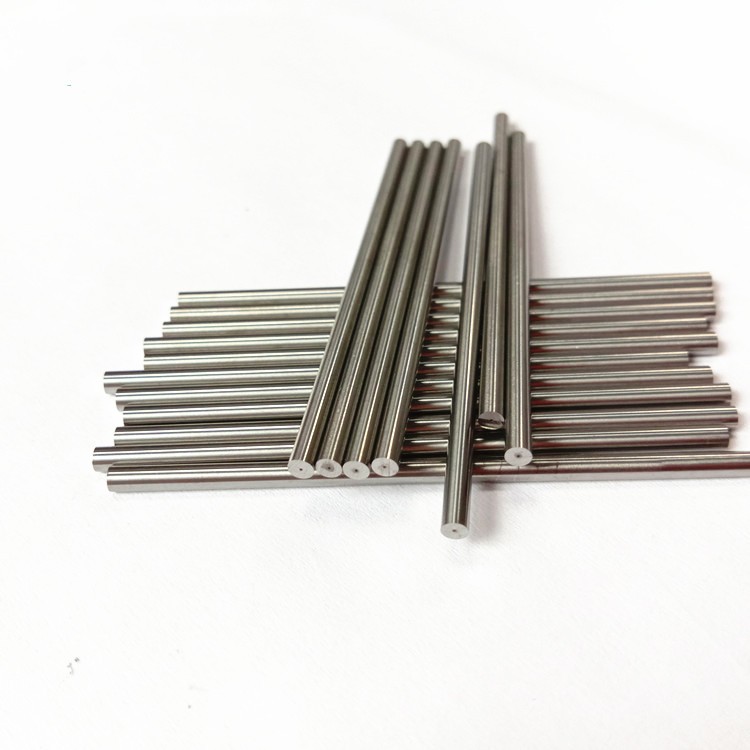

YL10.2 Ground Tungsten Carbide Rod High Strength Carbide Tube 0.15/0.2mm Hole(图1)

D	DTol	d	dTol	L	Tol
mm	mm	mm	mm	mm	mm
2.5	+0.20～0.50	0.3	±0.05	330	0～+5.0
4.0	+0.20～0.50	1.0	±0.05	330	0～+5.0
6.0	+0.20～0.50	1.0	±0.05	330	0～+5.0
8.0	+0.20～0.50	1.5	±0.05	330	0～+5.0
10.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
12.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
14.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
16.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
18.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
20.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
22.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
24.0	+0.40～0.80	4.0	±0.05	330	0～+5.0
26.0	+0.40～0.80	5.0	±0.05	330	0～+5.0
15	+0.40～0.80	6	+-0.5	550max	0～+5.0
22	+0.40～0.80	10	+-0.5	550 max	0～+5.0
25	+0.40～0.80	12	+-0.5	500	0～+5.0
