Tungsten carbide rod

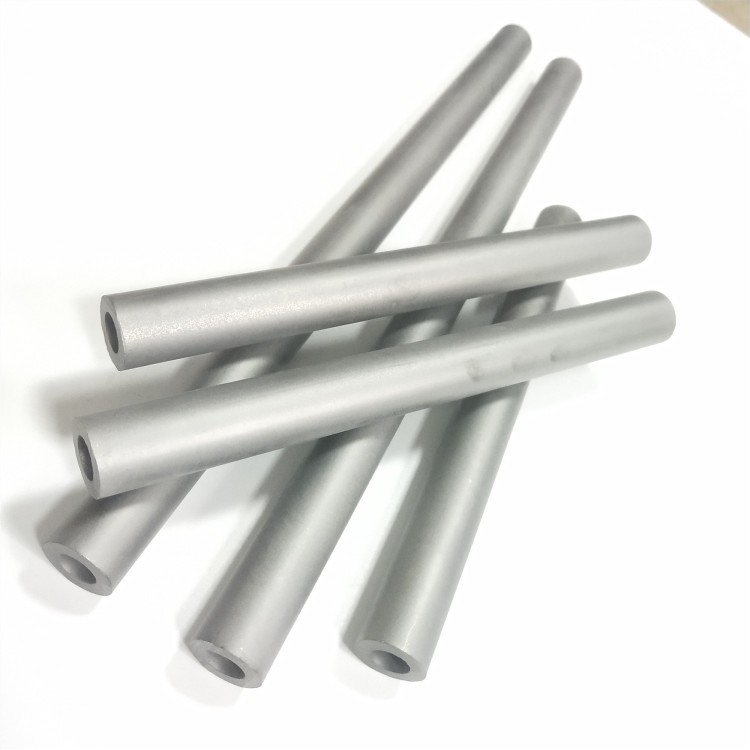

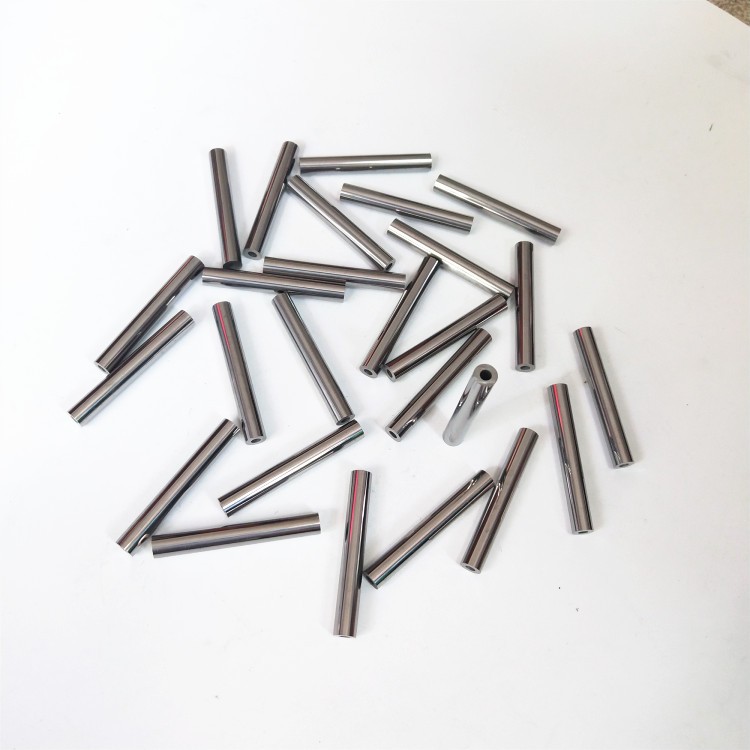

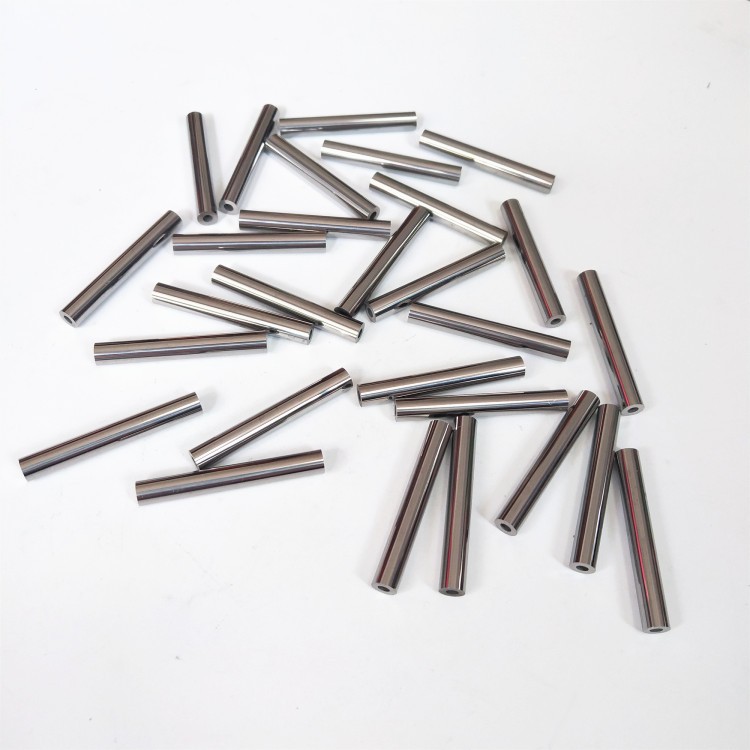

Long life solid carbide rod polished single straight hole tungsten cemented carbide tube

Long life solid carbide rod polished single straight hole tungsten cemented carbide tube

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG6, YG8, YL10.2,YG11,YG15
Minimum Order Quantity:100pcs
Price:USD 55-65/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

Long life solid carbide rod polished single straight hole tungsten cemented carbide tube

For more information, warmly welcome to contact us

Ms. Sharon Chen

Email:sharon@chinahardalloy.com

Mobile:+8618173388506

Whatsapp:+8613823202651

Advantages of our tungsten carbide rods:

1. Extruded rod and HIP sintering.

2. Ultrafine particle size powder.

3. Runout and roundness can be less than 5 microns (0.005mm).

4. Carbide rods are solid or with straight / spiral coolant holes.

Grade :	various grade of extruded tungsten carbide rods /bars( Other grade such as YG8 YG10 , YL10.2, YG12)
Quality	High precision and 100% quality assurance.
Engineering	Professional engineer for more than 30 years.
Application	Welding carbon steel materials
Standard	Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc.
length:	Diameter from 0.3mm to Dia 52.00mm, Length: from 2.0mm to 1000 mm.
Place of origin	China.Hunan.Zhuzhou
Surface treatment	Polished to h6 Tolerance or Blanks( ungrounded), both OK.
Grain size	0.2u 0.4u 0.6u 0.8u according to the grade and composite.
extrusion	solid carbide rods or pressing rods for large diameter.
Physical properties:	Density: 14.45g/cm3, TRS> 3800 MPA, Hardness> 92.00HRA.
Chemical composition:	10%Cobalt,12%Cobalt and other as you need.
After sales service	Technical support and best after-sales service.
Delivery time	3-5 working days, depending on the quantity ordered. Express delivery via DHL, UPS, FEDEX, TNT or shipping.
advantage	1.Extrusion rods and HIP sintering.2.Ultrafine grain size powders3.Run-out and Roundness can be less than 5 micron(0.005mm).4.Carbide rods is solid or with straight/helix coolant holes.

Detailed Product Description
1.Detailed Product Description
1. Diameter from 0.8 to 42mm.
2. High quality and best price
3. Large stock so the fast delivery

Service
We supply various material grades includes standard YG8, YG6, YG6X, etc. Using good carbide is like using thin kerf saw blades.
The differences are not dramatic but they are important. Good carbide will reduce breakage and give better quality cuts overall.
There are several types of Carbide, including advanced grades. Our R&D Team can supply you with more information about these advanced grades and tungsten carbide grades when you make the inquiry.
Detail Production Information:

YT5 has the best strength, impact resistance and seismic resistance, but poor wear resistance. It is suitable for roughing and
semi-finishing of carbon steel and alloy steel (including forgings, stampings and cast iron skins) when they are cut
intermittently.

YT14 has the advantages of high strength, good impact resistance and seismic resistance, nearly inferior to YT5 alloy, but its
wear resistance is better than YT5. It is suitable for rough turning and rough milling of carbon steel and alloy steel in
continuous cutting, semi-finishing turning and finishing turning in discontinuous cutting.

YG3X has the best wear resistance but poor impact toughness in tungsten cobalt titanium alloy. It is suitable for high-speed
finishing of small sections of cast iron non-ferrous metal and its alloy, pyroclastic steel and alloy steel.

YG6 has higher wear resistance, but lower than YG3, better impact resistance and vibration resistance than YG3X. It is suitable
for semi-finishing and finishing of cast iron, non-ferrous metals and alloys with medium cutting speed.

YG8 has higher strength, impact resistance and seismic resistance than YG6, but its wear resistance and allowable cutting speed
are lower. It is suitable for low-speed rough machining of cast iron, non-ferrous metals and alloys.

Yd201 is suitable for semi-finishing, rough machining of cast iron and light alloy, and milling of cast iron and low alloy steel.
Yw1 has a good red hardness and can bear a certain impact load. It is a universal alloy suitable for the processing of refractory
steel such as heat-resistant steel, high manganese steel and stainless steel, and also suitable for the processing of ordinary steel and cast iron.
Key Features:

1.High melting point (3410°C)
2. low thermal expansion
3.High resistance
4. Vapor pressure is low
5. Good thermal conductivity
6. High density

Application:
1.Suitable for the production of ion implantation parts
2.production of electric light source parts and electric vacuum parts and elements and refractory parts
3.used as heating elements and refractory parts in high temperature furnaces
4.Used as electrode for rare earth metal industry
5.Electrode in the field of equipment and processing technology or in the lighting industry.Recommanded grades for your reference

Grade	ISO Range	Cobalt%	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K30	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG15	K40	15	14	87.5

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Why choose us ?
1.We are a real factory with very very nice wholesale price with high quality and good after sales service.
2.Rearch and development team with 5 members is rich experienced. OEM and label printing
orders are welcome.
3.The MOQ is 1pc.Sample and freight fee is borne by buyer.The sample fee will be reduced in
the next big quantity order.
4.Quick delivery time. We have carbide rods in stock. Delivery time within 3 days after your payment.If quantity is customized and large,delivery time is negociate.
Our Packing and shipment:
Packing
Outside Carton or plywood case with inner plastic box.
Shipping
UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

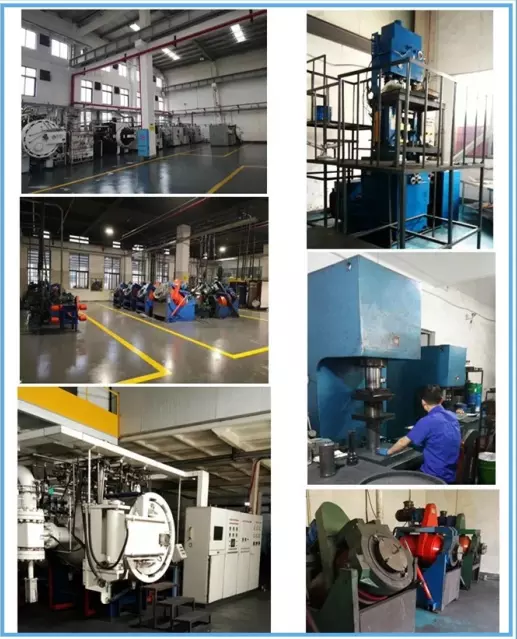

Our equipments and process
