Cemented Carbide Rods

  • Factory custom Tungsten carbide needles carbide tool tips and pins
  • Factory custom Tungsten carbide needles carbide tool tips and pins
  • Factory custom Tungsten carbide needles carbide tool tips and pins
Factory custom Tungsten carbide needles carbide tool tips and pins Factory custom Tungsten carbide needles carbide tool tips and pins Factory custom Tungsten carbide needles carbide tool tips and pins

Factory custom Tungsten carbide needles carbide tool tips and pins

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG6, YG8, YG15
  • Minimum Order Quantity:100pcs
  • Price:USD 2-10/pcs
  • Delivery Time:5-10 days
  • Payment Terms:T/T, western union, LC etc
  • Supply Ability:10000 kg/month

Factory custom Tungsten carbide needles carbide tool tips and pins



Description and Application
Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a
Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower.  Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy,  titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products  have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new  customers.
Products Specification:
Dimension:
Dia 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, till 25mm with length 5mm, 8mm, 10mm, till 330mm, cut to length
Cutting angles:

30°, 45°, 60°, 90°, 120°. Or Based On Requirement
Material:
100% virgin tungsten carbide steel
Grade:
YL10.2
Hardness:
HRA92.5-92.8
Composition:
10%Co+90%WC
Grain Size:

0.6um
Surface:
unground
Features:
durable
high wear resistance
Replaceable
Very Sharp Point
Create Fine Edge
Application:
Assembling On Tool Bit, Engraving or Scribing On Very Hard Items,
For Example:
Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.

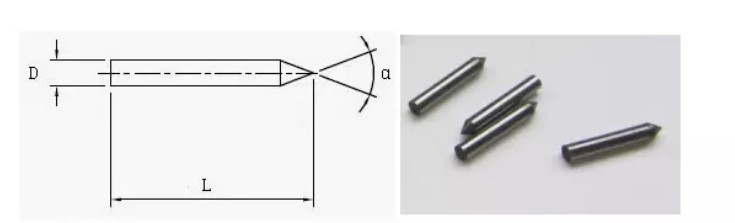

Common Size List
D(mm)
L(mm)
α
1.5
5
40°-90°
2
10
40°-90°
2.5
10
40°-90°
3
18
40°-90°
3
10
40°-90°
3.5
10
40°-90°
4
20
40°-90°
Other size can be customized

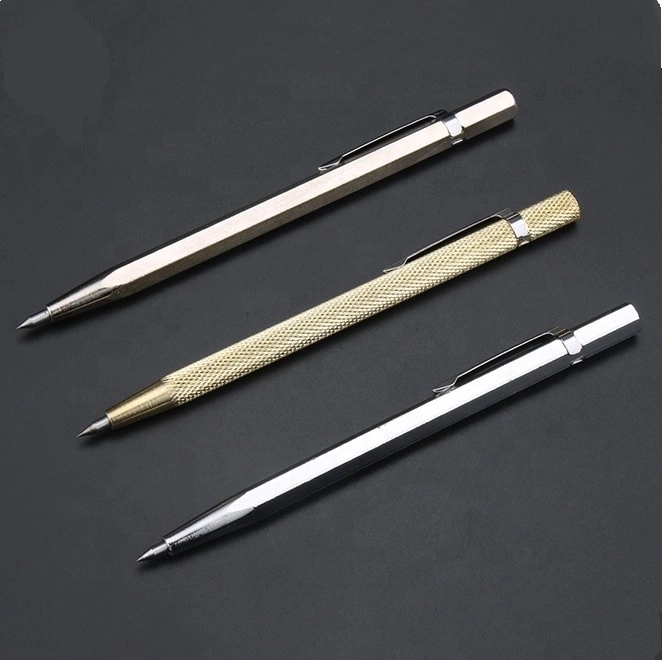

Application of tungsten carbide pin/neddle
Assembling On Tool Bit, Engraving or Scribing On Very Hard Items, For Example: Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.
Our advantage of tungsten carbide pin
* ISO 9001:2015 Certification
* Use 100% tungsten carbide raw material
* Advanced technology , automatic pressing , HIP sintering
* with over ten year experience
* And precision grinding
* the tolerance of polish and ground can be +0.005/-0.005mm
* Full ability to accept OEM & ODM orders
* Stringent quality control and quality consistency.
* Strict inspection for quality of raw material and finished products

We Guarantee:
1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. free online technical service available.
7. OEM and ODM are accepted as well.
8. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
9. Undertake orders of non-standard sizes at customer's requests.

We can offer a lot of type tungsten carbide rods:
1. un-gound, finish-ground in metric and imperial diameters;2. Carbide rods with central coolant duct;
3. Fixed length Carbide Rod
4. Random Length carbide rod
5. Carbide rods with chamfered end.


Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade



If have any more information, please feel free to contact with me.
