Tungsten Carbide Drill Blanks

Sintered blank solid tungsten carbide bar k40 tungsten carbide rod

Sintered blank solid tungsten carbide bar k40 tungsten carbide rod

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00108
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

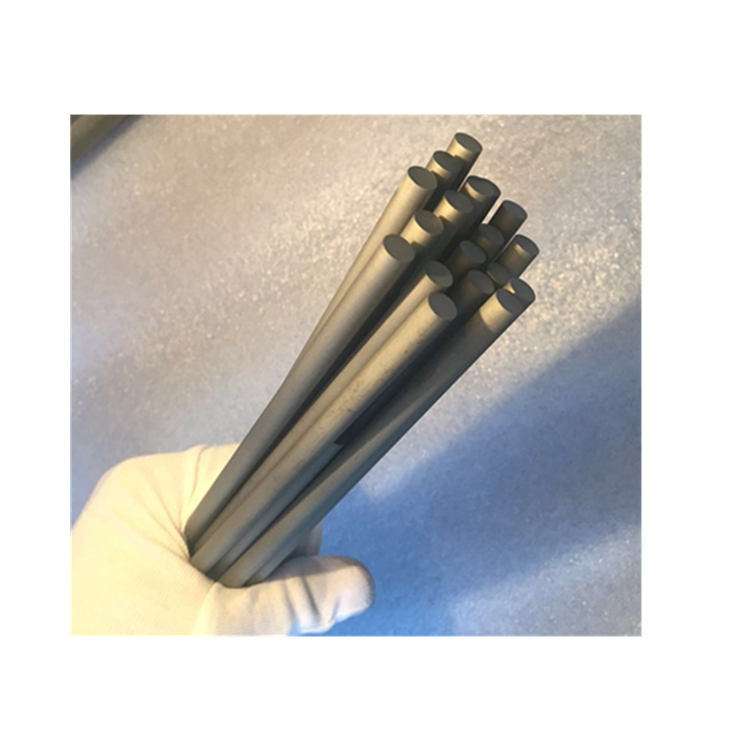

Sintered blank solid tungsten carbide bar k40 tungsten carbide rod

The tungsten carbide rods also can be called cemented carbide rods. They can be in sintered unground condition, high precision grinding and mirror polished. They’re widely used in machining carbon steel, wood, stone, aluminum , non-ferrous metals and titanium, cast iron , stainless steel, etc. The carbide rods are widely used for making PCB drills , drills , cutters, end mills &reamers , mold punches , core pins&hole drilling tools. They also can be used for making of cemented carbide stamping head, core bar and perforation tools, used as wear resistance parts of punching mold,measuring and cutting industry ,etc.

Features:

1. Made from 100% virgin raw material

2. HIP sintering

3. Stable chemical properties

4. High hardness, good compactness

5. Excellent performance and good wear / corrosion resistance

6. Blanks, high machining accuracy / precision

7. Various grades of tungsten carbide available

8. OEM customized sizes available

9. Factory’s offer

10. Strict products quality inspection

Grade	ISO grade	Physical and mechanical properties
Grade	ISO grade	Density(g/cm3)	Hardness(HRA)	TRS(N/mm2)
YG6X	K10	14.8-15.1	≥91.0	≥1560
YG6A	K10	14.7-15.1	≥91.0	≥1580
YG6	K20	14.7-15.1	≥89.5	≥1670
YG8	K20-K30	14.6-14.9	≥89.0	≥1840
YB06	K05-K10	14.9-15.0	≥93.5	≥3000
YB10	K20-K30	14.4-14.5	≥91.8	≥3000
YK25	K40	14.3-14.6	≥86.5	≥2100
YG11C	K40	14.0-14.4	≥86.0	≥2060
YG15	K40	13.9-14.1	≥86.5	≥2020
YG16C		13.7-14.1	≥84.0	≥2400
YGH40		13.5-13.9	≥83.0	≥2450
YG20		13.4-14.8	≥83.5	≥2480
YG20C		13.4-14.8	≥82.5	≥2480
YLH90		13.2-13.5	≥81.5	≥2580
YLH100		13.0-13.4	≥81.0	≥2650
YT15		11.1-11.6	≥91.0	≥1180
YW1		12.7-13.5	≥91.5	≥1180
YL10.2		14.3-14.5	≥91.0	≥4000

Any grade can be customized as per request!

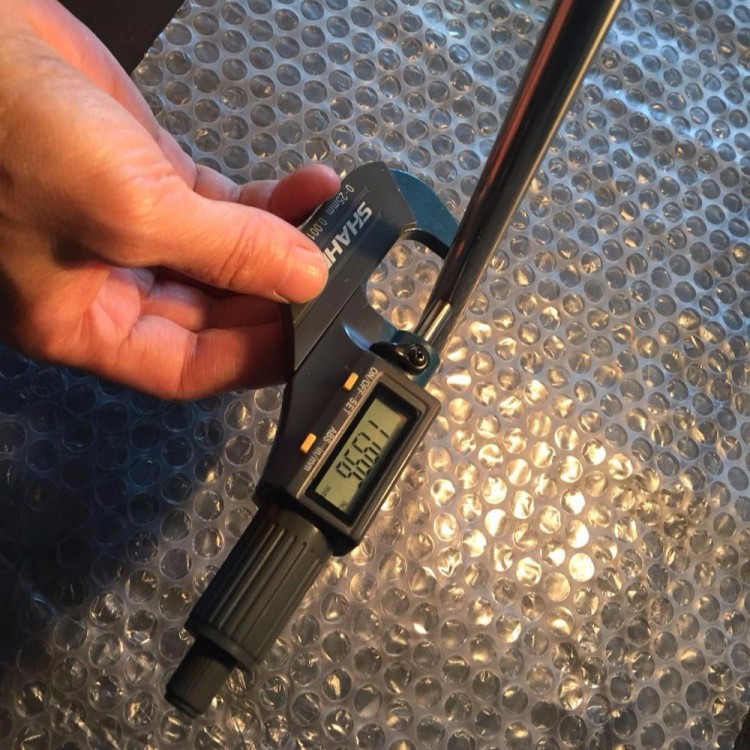

Dimension and Tolerance

Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.45	-0/+5.0
Max BL-Φ50.0×330	+0.20/+0.45	-0/+5.0

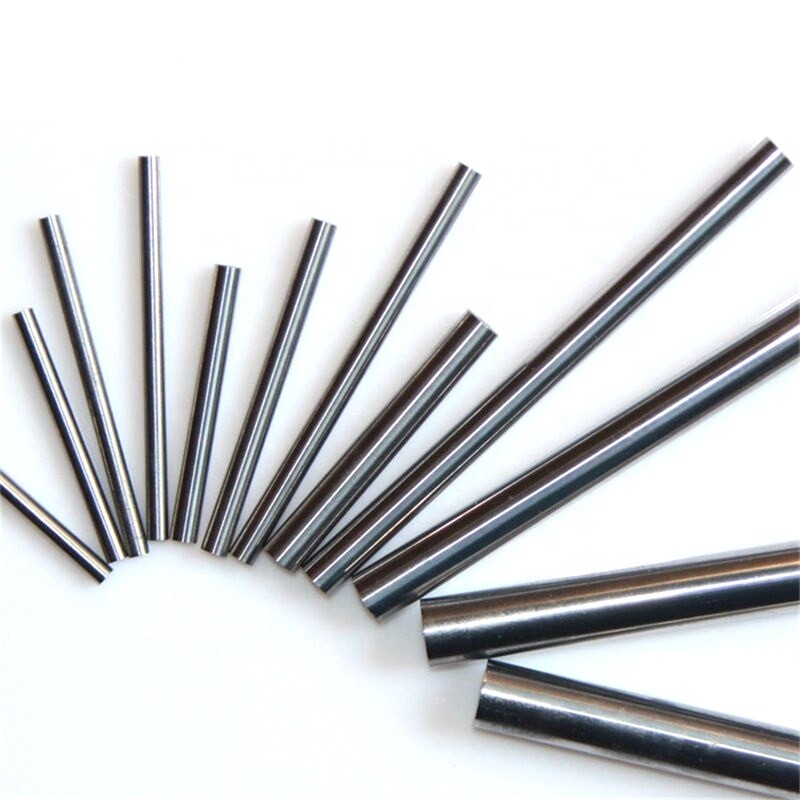

330mm length 100% raw material yg10x solid tungsten carbide rod round bar (图2)
