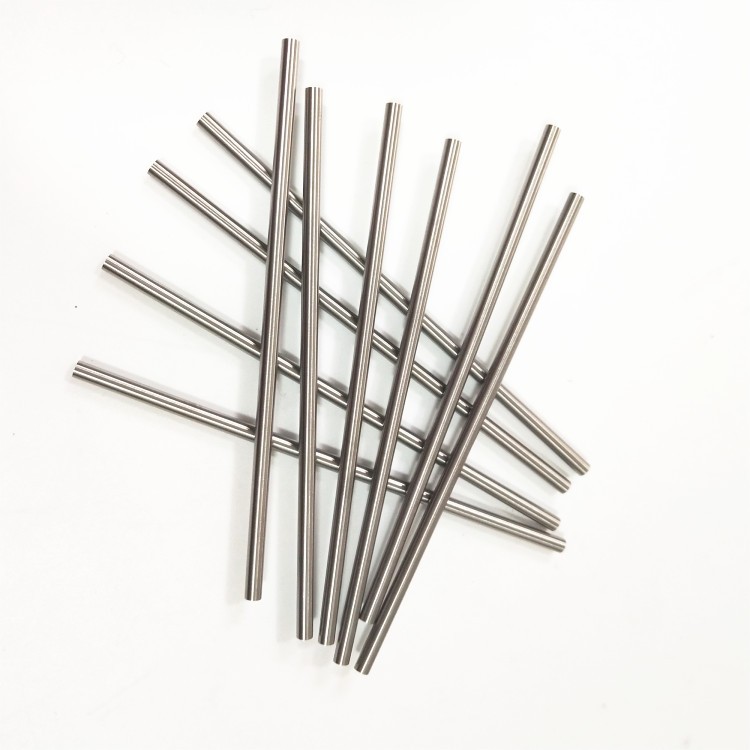

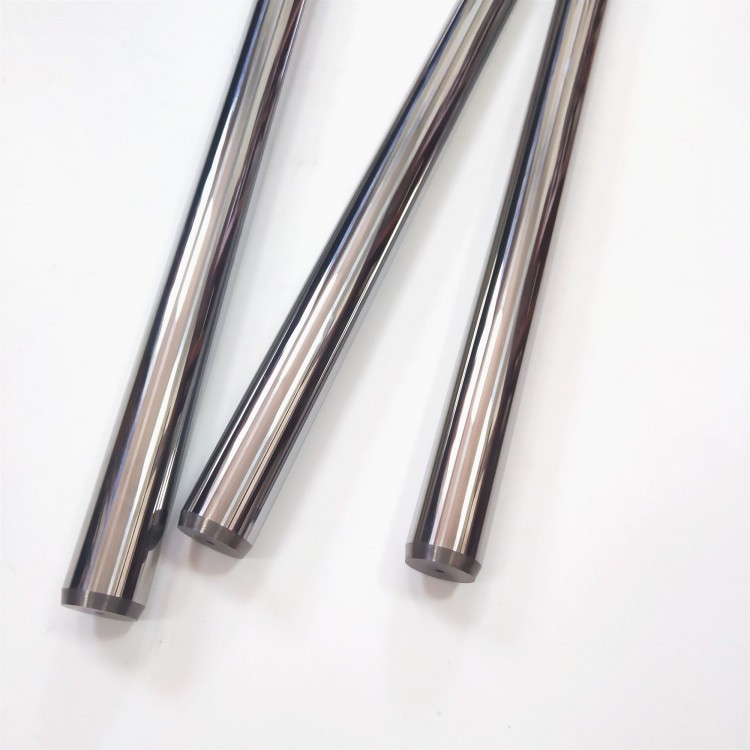

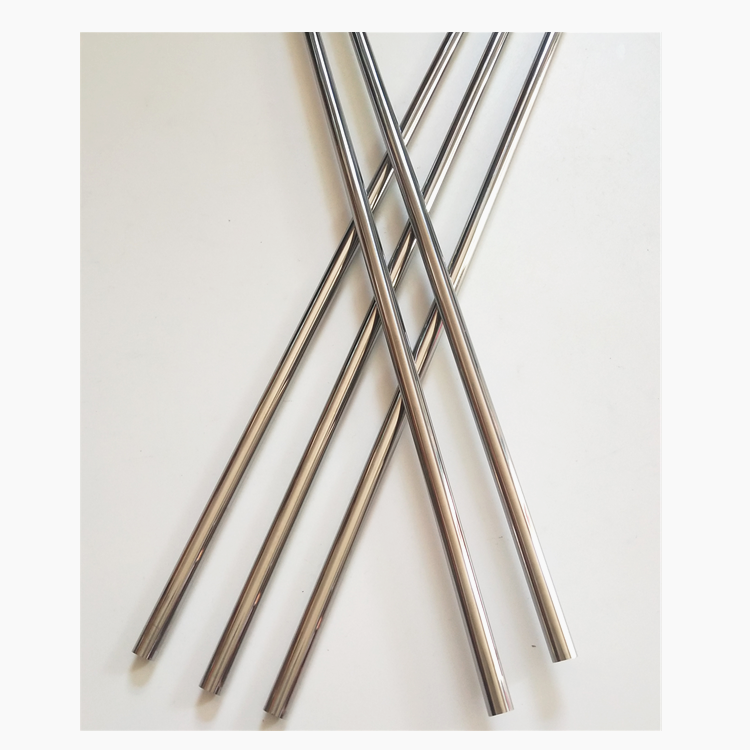

Solid Carbide Rods

Factory sale length 330mm solid tungsten alloy carbide rods cemented carbide bar dia 1-22mm in stock

Factory sale length 330mm solid tungsten alloy carbide rods cemented carbide bar dia 1-22mm in stock

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10,K20,K30
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

Factory sale length 330mm solid tungsten alloy carbide rods cemented carbide bar dia 1-22mm in stock

Description and Application
Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower. Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new customers.Products Specification:

Dimension:	Dia1-40mm with length330mm stock: dia2-18mm with 330mm length
Material:	100% virgin tungsten carbide steel
Grade:	YL10.2
Hardness:	HRA92.5-92.8
Composition:	10%Co+90%WC
Grain Size:	0.6um
Surface:	unground
Features:	durable, high performance, no stick for cutting tools
Application:	Metal Tool Parts

Common Unground Dimension and Tolerance

Dimension	Tolerance of diameter(mm)	Tolerance of length(mm)
ZF-Φ1-3*330	0/+0.3	+0/+5
ZF-Φ4*330	+0.3/+0.5
ZF-Φ6*330
ZF-Φ8*330
ZF-Φ10*330
ZF-Φ12*330	+0.3/+0.7
ZF-Φ14*330
ZF-Φ16*330
ZF-Φ18*330	+0.5/+1.0
ZF-Φ20*330
ZF-Φ22*330
ZF-Φ24*330
ZF-Φ26*330
ZF-Φ28*330
ZF-Φ30*330
ZF-Φ32*330	+0.7/+1.5
ZF-Φ33*330	+0.7/+1.5
We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm

Application Industries:
- Paper
- packaging
- printing
- Non-ferrous metal processing
- Mechanical
- Chemical
- Petroleum
- Metallurgy
- Electronic
- Defense industries
Common Unground Dimension and Tolerance

Our advantage of tungsten carbide rod
* ISO 9001:2015 Certification
* Use 100% tungsten carbide raw material
* Advanced technology , automatic pressing , HIP sintering
* with over ten year experience
* And precision grinding
* the tolerance of polish and ground can be +0.005/-0.005mm
* Full ability to accept OEM & ODM orders
* Stringent quality control and quality consistency.
* Strict inspection for quality of raw material and finished products

We Guarantee:
produced with advanced equipments and process.
high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
all products go through in-process and final inspection.
Quality Control System and strict inspection.
stable and continuous production ability.
free online technical service available.
OEM and ODM are accepted as well.
Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
Undertake orders of non-standard sizes at customer's requests.

We can offer a lot of type tungsten carbide rods:
un-gound, finish-ground in metric and imperial diameters;2. Carbide rods with central coolant duct;
Fixed length Carbide Rod
Random Length carbide rod
Carbide rods with chamfered end.

For more size information, please kindly email or call us.For length, we can cut to any size.

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

If have any more information, please feel free to contact with me.
