Plunger

Non Magnetic Tungsten Carbide Bars Plunger High Polishing For High Pressure Pump

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF0031
Minimum Order Quantity:3 pcs
Price:USD 55-65/kg
Delivery Time:15-25 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

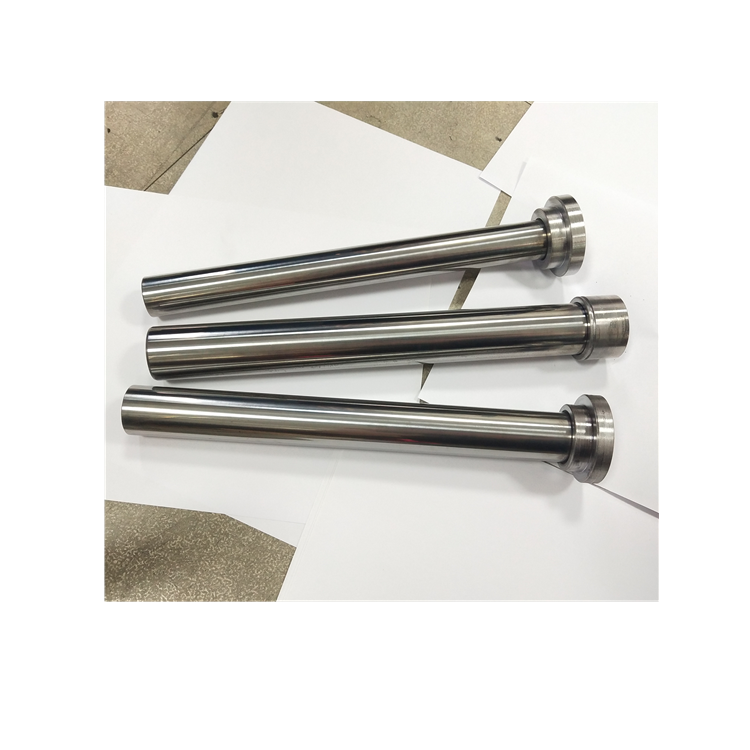

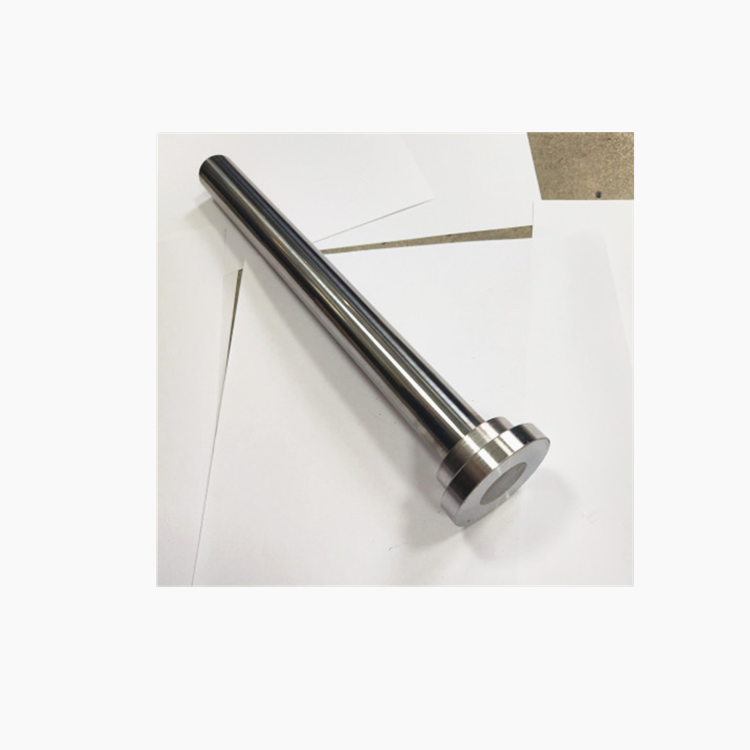

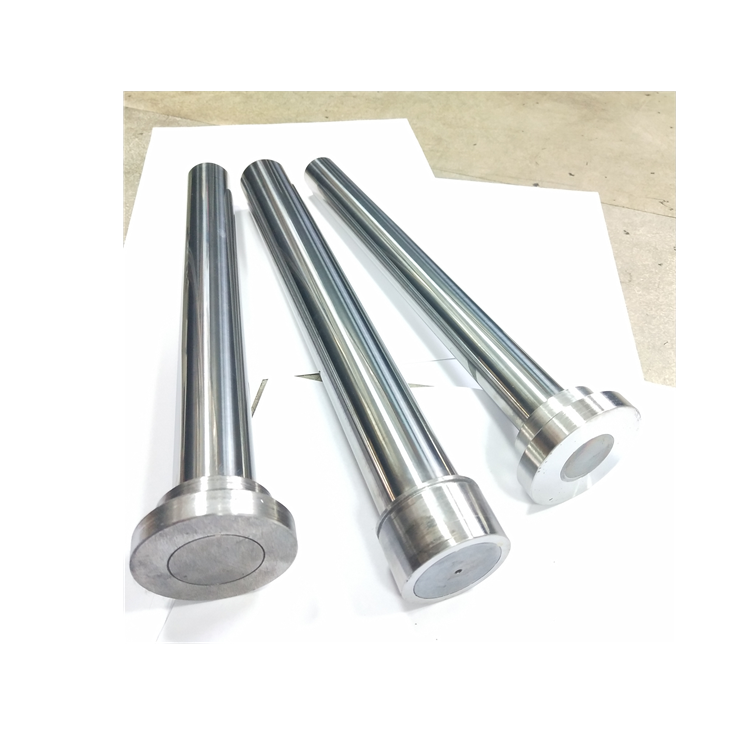

Non Magnetic Tungsten Carbide Bars Plunger High Polishing For High Pressure Pump

Application of Our Tungsten Carbide plunger:It used for high pressure pump.

Product Detail:

1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co

2. Specification: 150*150*10mm. 195*195*20mm, according to customer requirement

3. Property:high hardaness,good wear-resistance,long lifetime

4. Surface:Grinding or blank

5. Grade: YG6/YG8/YG8C/YG11/YG11C/YL10.2/YG10X/YG12X etc

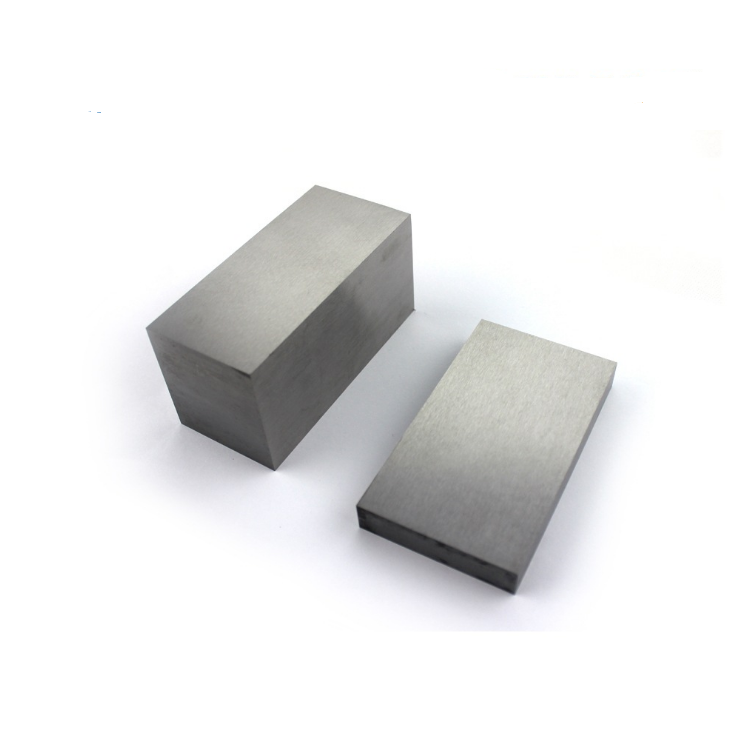

6. Length of Tungsten Carbide Plate: 10.0 mm to 400 mm; Width: 10.0 mm to 400 mm
7. Thickness: 1.0 mm to 100.0 mm

Recommanded grades for your reference

Grade	ISO Range	Cobalt%	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K30	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG15	K40	15	14	87.5

Some size list:

L	W	T
200	200	10-45
150	150	10-45
150	130	10-45

Advantge of Our tungsten carbide plunger

1. We are factory ,guarantee competitive price and high quality.

2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)

4. 100% QC inspection Before Shipment.

5. We guarantee that all of our products are used with 100% Virgin Raw Material.

6. Customization is avaliable

Our more Products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our standard size models:

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
11	h6	330	7.2	+0.2	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
19	h6	330	11.7	+0.3	330
20	h6	330	12.2	+0.3	330
22	h6	330	14.2	+0.3	330

We can customize dimension for you.For more size information, please kindly email or call us

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Our standard size models:

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
11	h6	330	7.2	+0.2	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
19	h6	330	11.7	+0.3	330
20	h6	330	12.2	+0.3	330
22	h6	330	14.2	+0.3	330

We can customize dimension for you.For more size information, please kindly email or call us

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Non Magnetic Tungsten Carbide Bars Plunger High Polishing For High Pressure Pump(图1)

Our advantage

1 We are a Real Factory in Zhuzhou City.

2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Non-poisonous ,Good mechanical properties

3.100% QC inspection Before Shipment.

4. We guarantee that all of our products are used with 100% Virgin Raw Material.

5. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.
