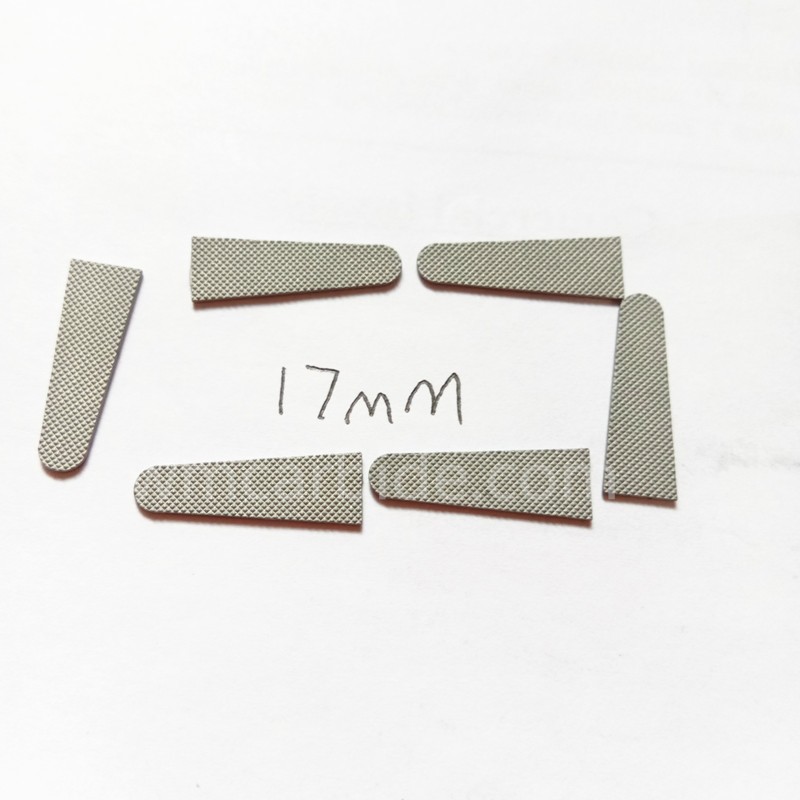

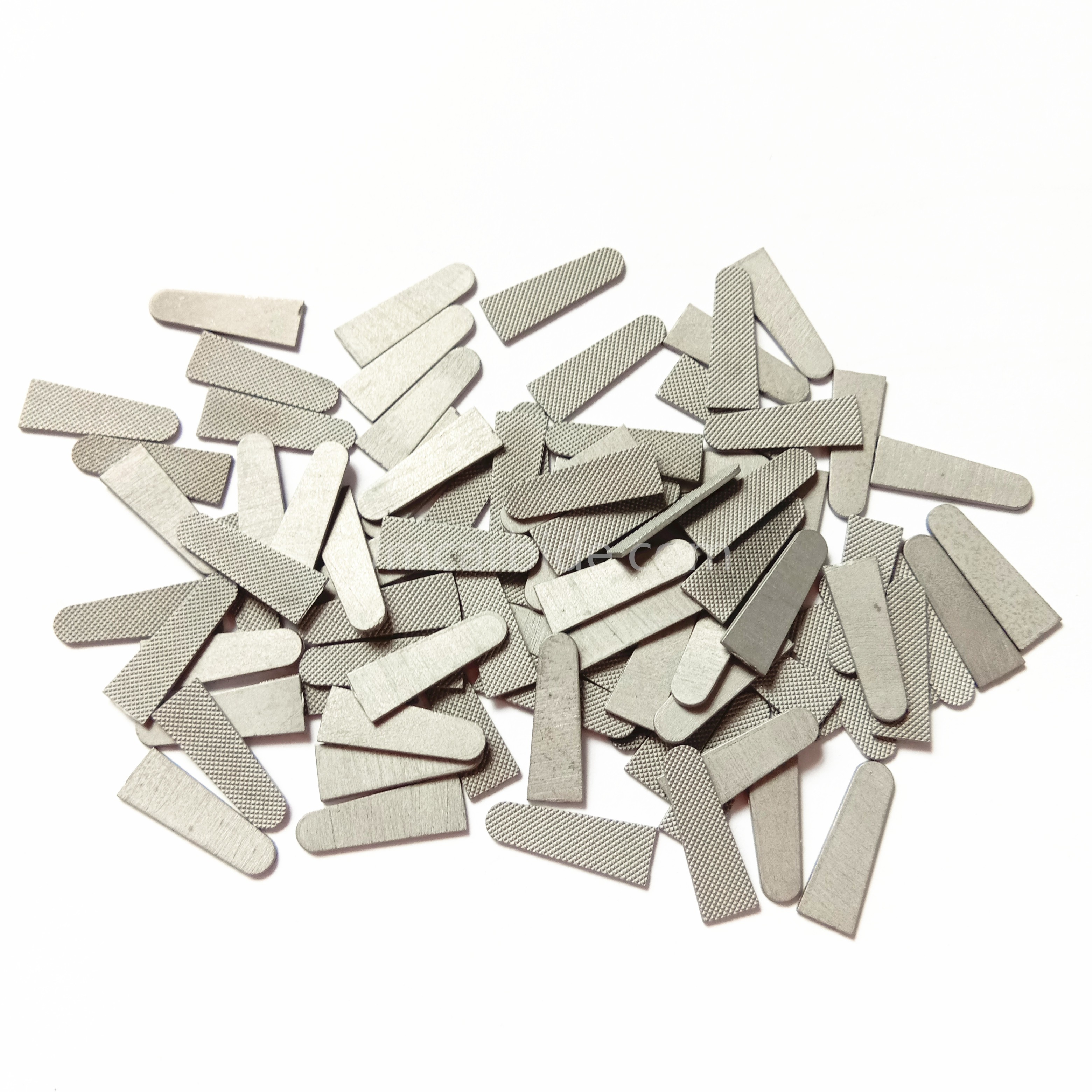

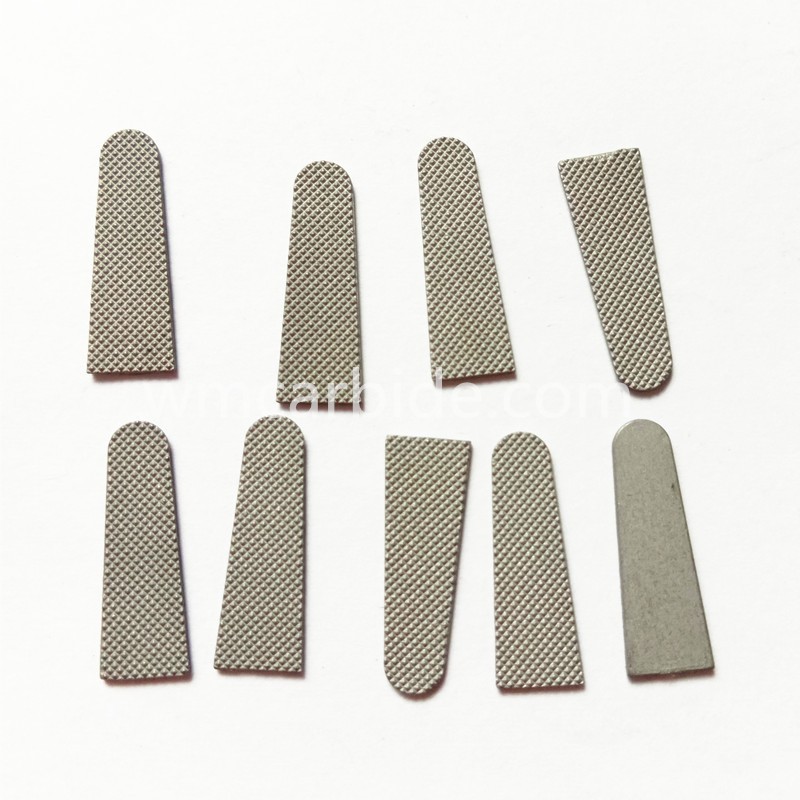

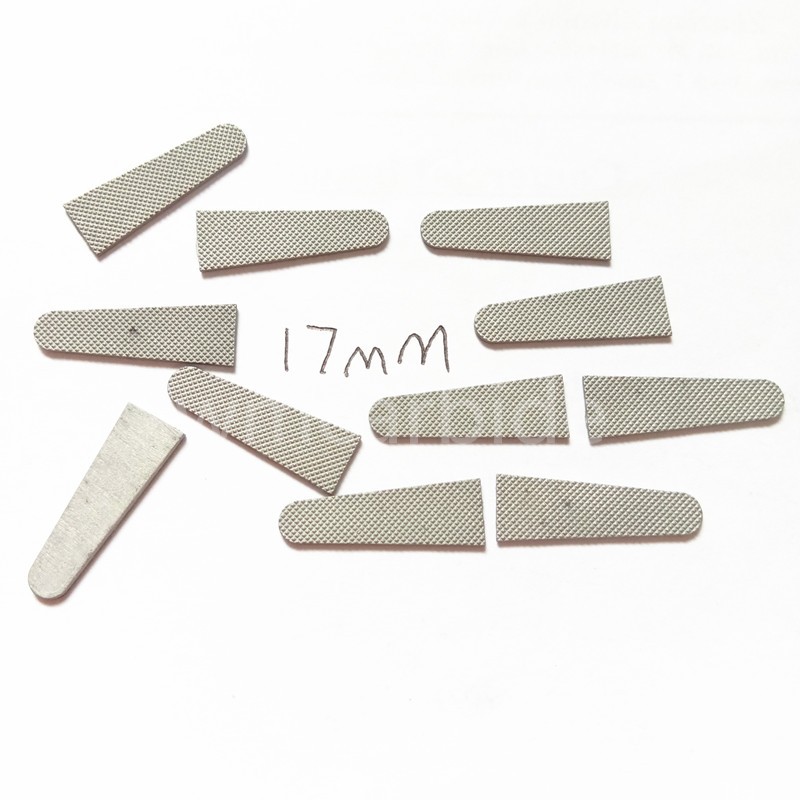

Tungsten Carbide Tips For Surgical Needle Holder Forceps 15mm/17mm
Features

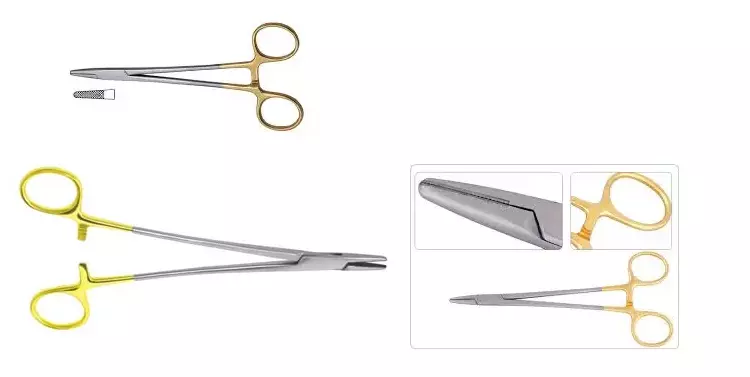

The needle holder is a common device used for the operations of the surgical department,
1. High wear resistance.
2. High precision and polish.
3. Various types available.
4. ISO9001:2008.
5. tungsten carbide inserts for needle holders
6. no break on grinding
Grade information for tungsten carbide inserts for needle holders
Grade | Density(g/cm3) | Hardness HRA | T.R.S(M Pa) |
YG6 | 14.9 | 89.5 | 2150 |
YG8 | 14.5 | 89 | 2250 |
YG10 | 14.2 | 87 | 2350 |
YG11 | 14 | 86 | 2400 |
Other grade also available, based on your requiremen

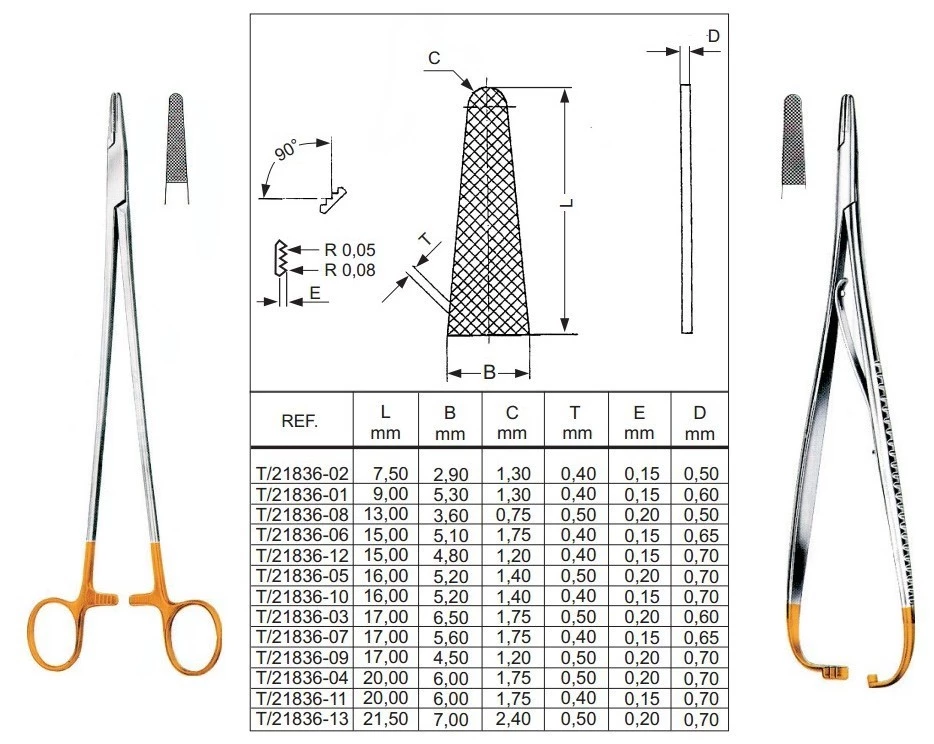

Size List
Size | dimension | pitch size |
15mm | 15*5.1*0.7mm | 0.4 |
17mm | 17*5.6*0.7mm | 0.4 |
20mm | 20*8*0.7mm | 0.4 |
tApplication: mainly used for surgical needle holders
we specializes in manufacturing a series of Tungsten Carbide products, such as:
Tungsten carbide rod
Tungsten carbide bar
Tungsten carbide saw tips
Tungsten carbide inserts for mine tools
Tungsten carbide mould
Tungsten carbide pins
Tungsten cabide plates and boards
Tungsten carbide nonstandard products
Tungten carbide seal ring/ bushing
Tungsten carbide blades and cutters
