Carbide Wear Parts

Anti-oxidant superalloy tungsten carbide plate for 3D curved glass molding machine

Anti-oxidant superalloy tungsten carbide plate for 3D curved glass molding machine

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG4 YG8 YG6
Minimum Order Quantity:10 pcs
Price:Negotiable
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

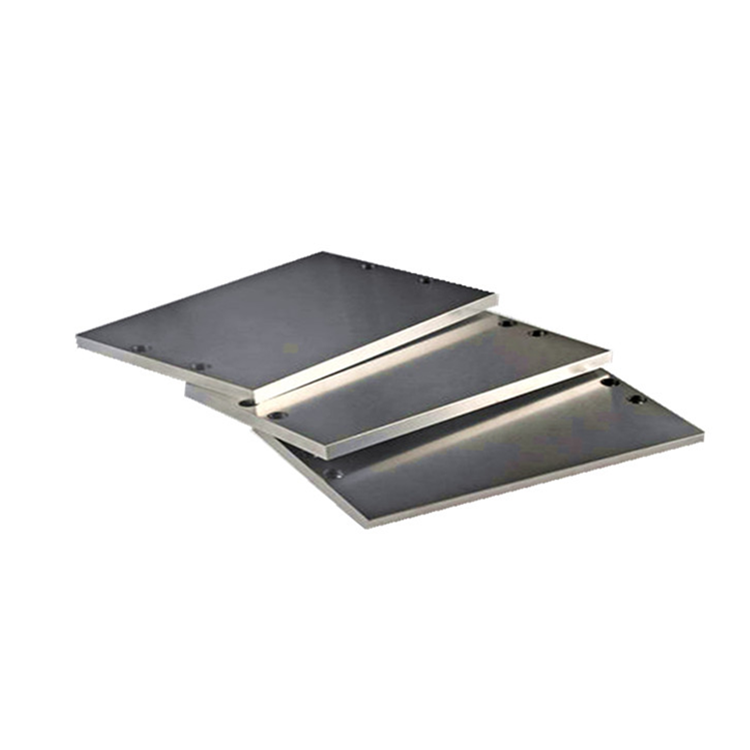

Anti-oxidant superalloy tungsten carbide plate for 3D curved glass molding machine

Tungsten carbide heating plate is used on 3D curved glass molding machine, generally 6pieces for one set. Our carbide plate for 3D glass molding machine have high temperature resistant(over 800℃), high thermal conductivity.

Product Description

Product Name	super hard alloy cemented tungsten carbide plate for 3D curved glass bending machine
Material	tungsten carbide+Cobalt+Ni+Al+Cr etc.
Function	application for processing 3D mobile phone and watch glass hot bending molding machine
Package	by wooden case

Grade Information

Grade	ISO Range	Cobalt%	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K20	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG15	K40	15	14	87.5

Product application

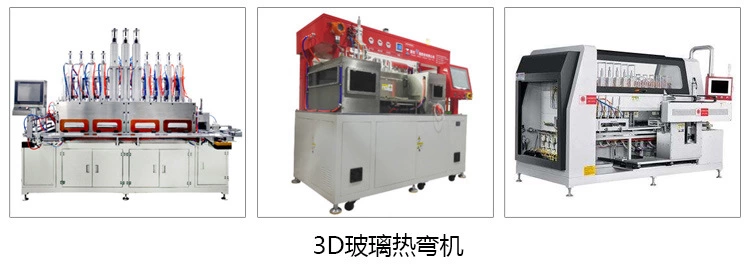

Application Are: 3D Hot bending Glass Molding Machine

Super hard alloy tungsten carbide plate, mainly application for 3D curved glass hot bending molding machine , is widely used to process and form 3D curved glass of mobile phone, watch and TV. Compared with conventional tungsten steel plate and cemented carbide series, super hard alloy composite carbide plate has higher hardness, better high temperature deformation resistance, higher thermal conductivity and thermal diffusion coefficient when used at 900 ℃ high temperature . More stable performance greatly improves the production efficiency.

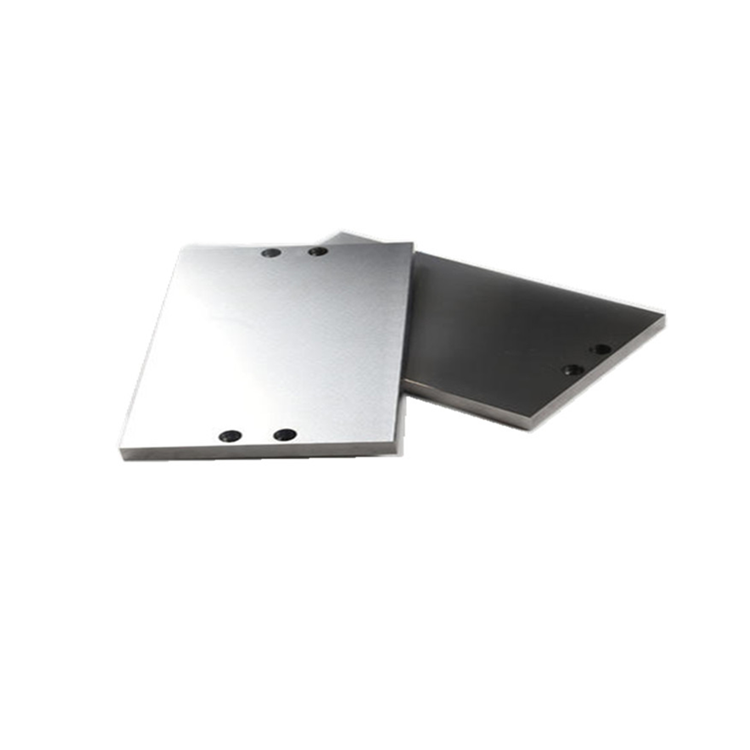

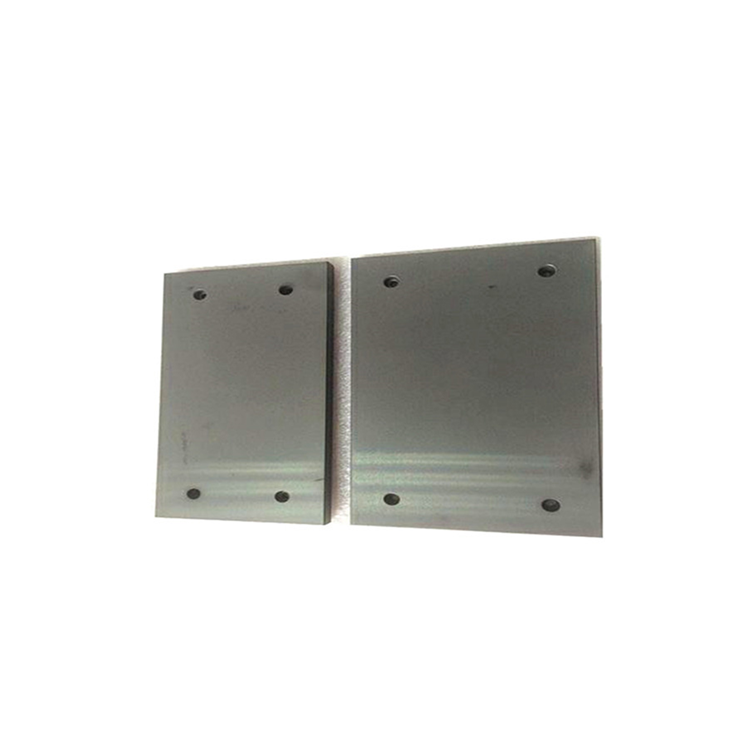

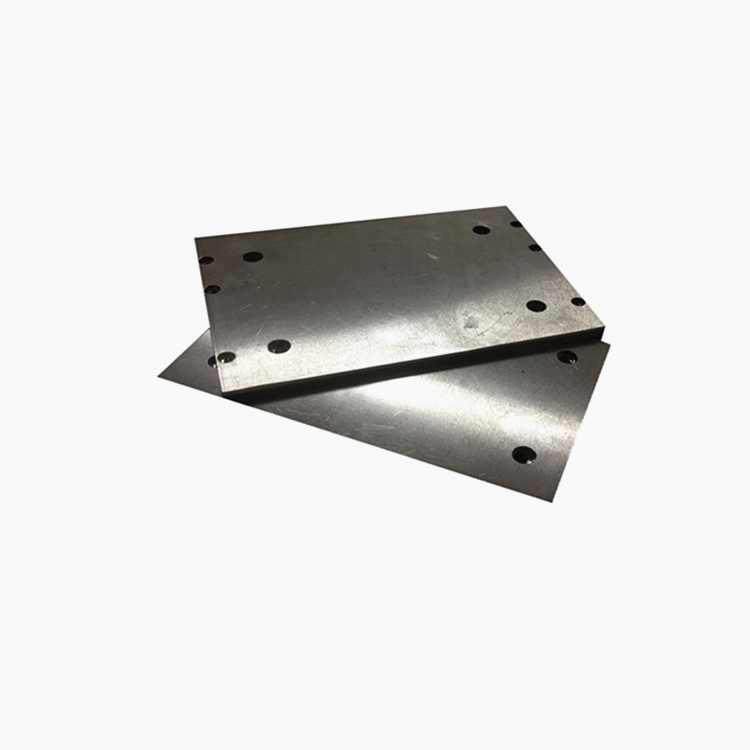

anti-Oxidant tungsten carbide plate for 3D curved glass molding machine

Anti-Oxidant Tungsten Carbide Plate For 3D Hot Bending Forming Machine (图2)

Product Advantages:

1. Excellent tensile strength:500-600MPa at 900 ℃;
2. High thermal shock resistance:fast heating up and cooling down available;
3. Good processability: workable in any condition according to customers’ need;
4. Super high temperature corrosion resistance: long service life without coating;
5. Strong chemical stability:No chemical reaction with glass,graphite and nitrogen;
6. Energy saving,environmental protection,good appearance of products.
