Custom Tungsten Carbide Parts

  • Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production
  • Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production
  • Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production
Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production

Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG6,YG8
  • Minimum Order Quantity:1000 pcs
  • Price:USD 45-58/kg
  • Delivery Time:7-15 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production

Features of Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production :

1. Material:100% virgin raw material with submicron grain size

2. Grade: Various grades for choice

3. Advanced production equipments and testing equipments

4. Precious Ground and polished

5. High wear resistance,high hardness and impact toughness

6. Advanced technology, automatic pressing, HIP sintering and precision grinding

7. Samples & small orders are acceptable.

Application:

1. Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.

3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.

4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.

5. Used for stamping die, extrusion die, stamping molds.

6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc


Advantages of our tungsten carbide dies

1. tungsten carbide with high hardness, high wear resistance and high red hardness, at 550 ℃ still maintain more than 56HRC hardness;
2. Has a high modulus of elasticity, generally is (4 ~ 7) × 104kg / mm2, and excellent rigidity at room temperature;
3. Have a high compressive strengthwhich is greater than 6000MPa;
4. Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized;
5. Has a low coefficient of thermal expansion, suitable for manufacturing high ,precision, sharp die.

Our size range of tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.) Cold heading, cold punching, forming and shaping dies

1. d:2----120mm available

2. D12----200mm available

3. H5----100mm available

Also your drawngs are warmly welcomed by our factory.



Carbide wire guide dies including
Tungsten carbide wire guides
Tungsten carbide bush
Carbide bunching and stranding dies
Tungsten carbide straightener dies





Main Grade for Suitable 43x27 steel case 16x14mm T.C carbide wire drawing dies for steel rope production:



Grade No.

Density

(g/cm3)

HRA

T.R.S

(Mpa)

Application

YG3X

14.9

≥91.5

≥1300

For drawing non-ferrous metal wire and stainless steel wire etc.

YG6

14.8

≥90.0

≥2150

For drawing steel wire and stainless steel wire etc.

YG6X

14.8

≥92.0

≥1860

For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness..

YG8

14.8

≥89.5

≥2320

For drawing steel wire, stainless steel wire. Good general performance.

YG11

14.4

≥88.5

≥2420

For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.


Our more products

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade


Our Packing and shipment:
PackingOutside Carton or plywood case with inner plastic box.
ShippingUPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our factory


Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

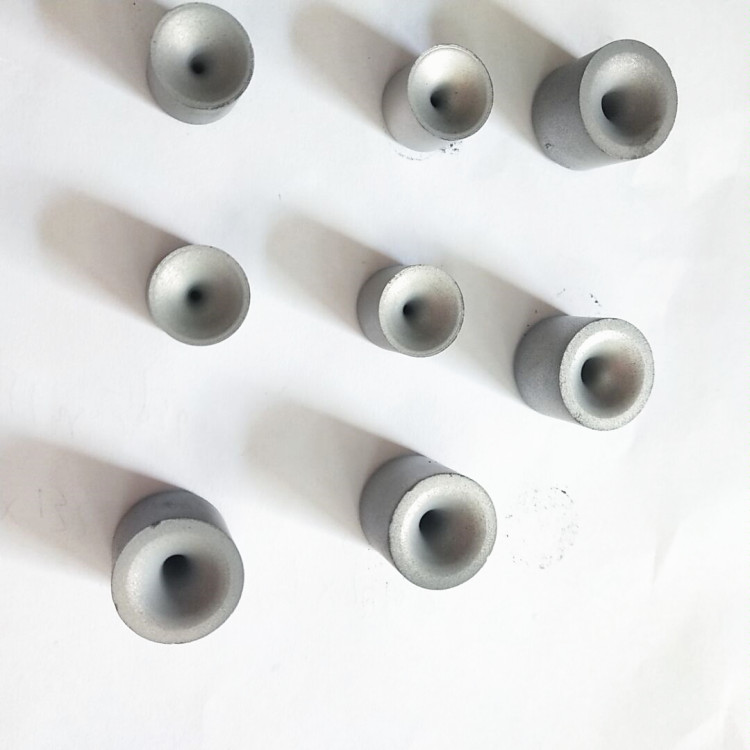

High quality small size tungsten carbide yg6 yg8 wire drawing die (图2)



Transport

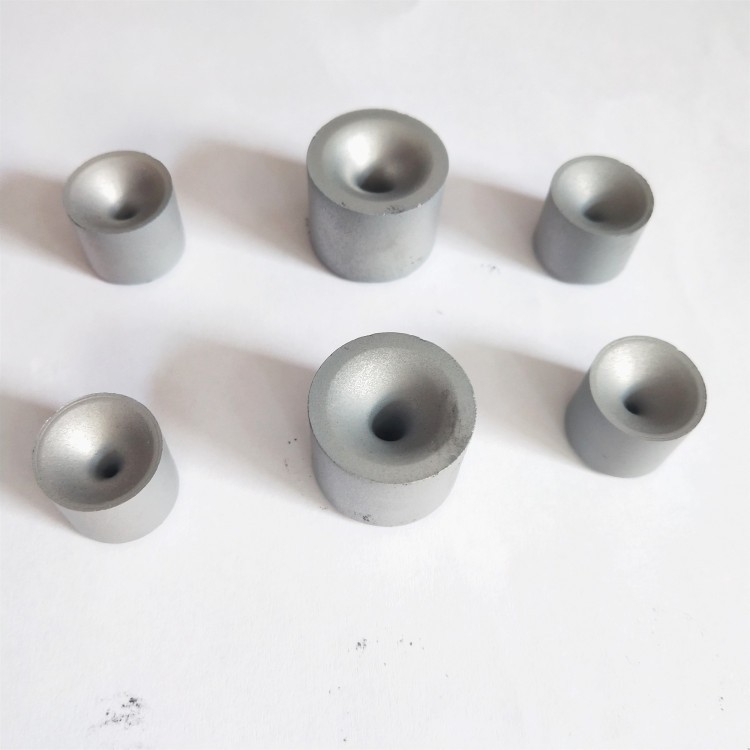

High quality small size tungsten carbide yg6 yg8 wire drawing die (图3)


Please feel free to contact with me if need know more information
