Custom Tungsten Carbide Parts

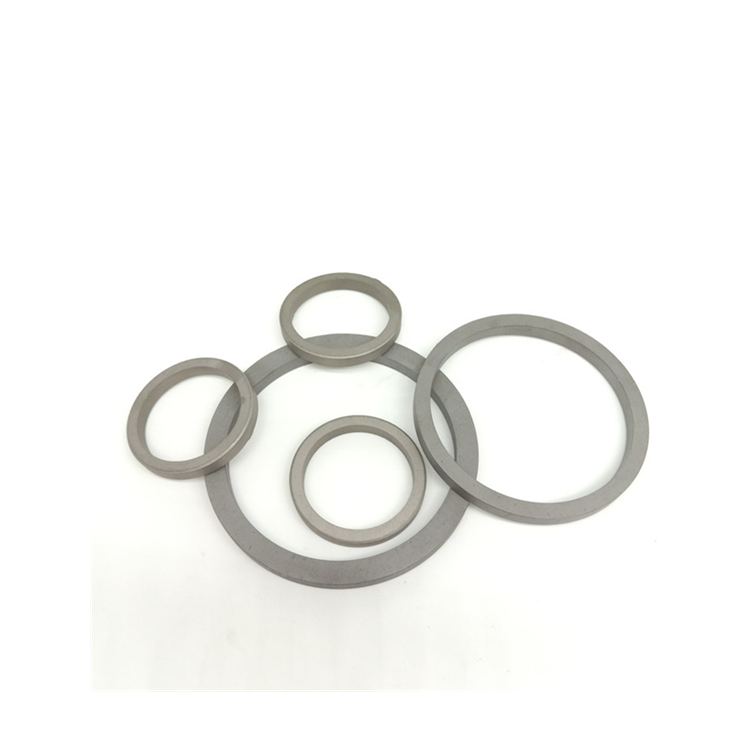

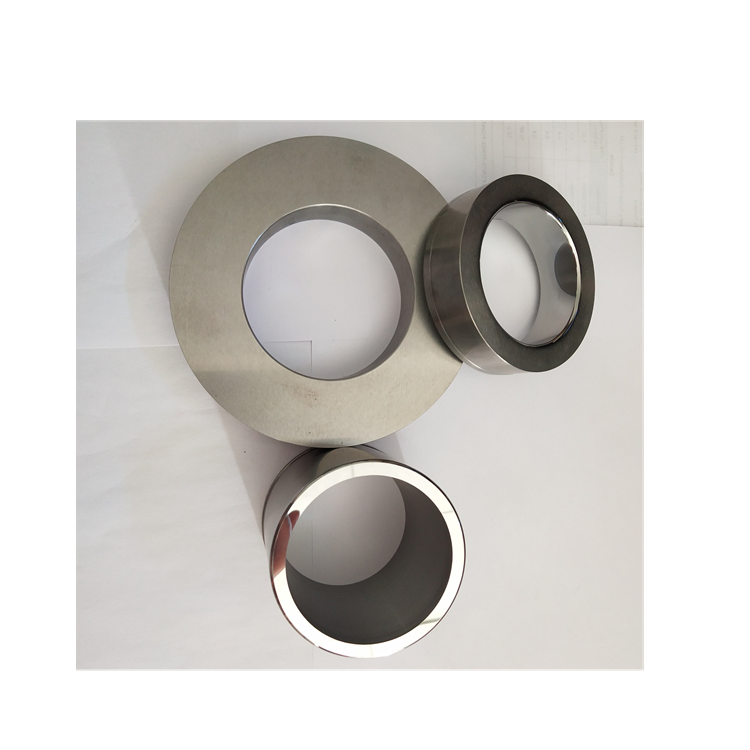

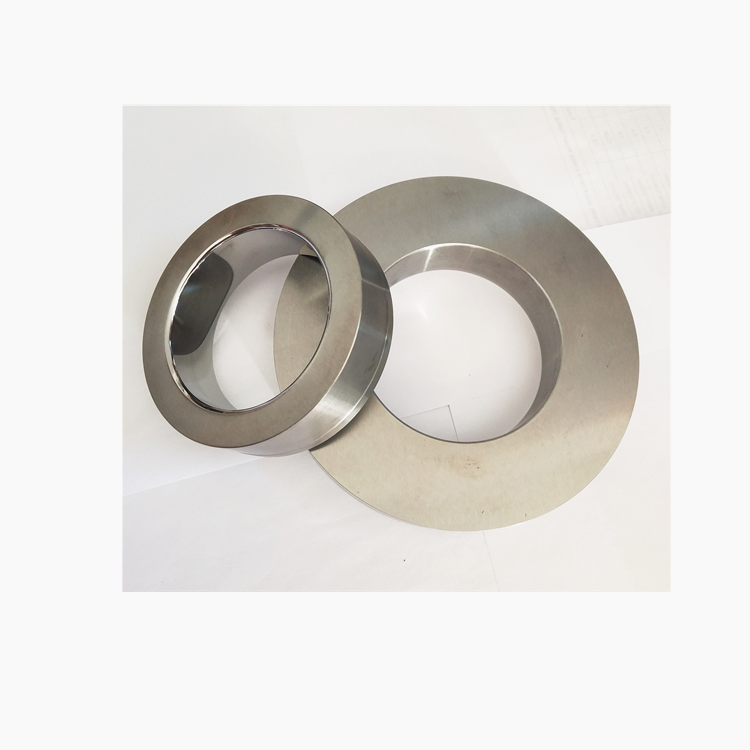

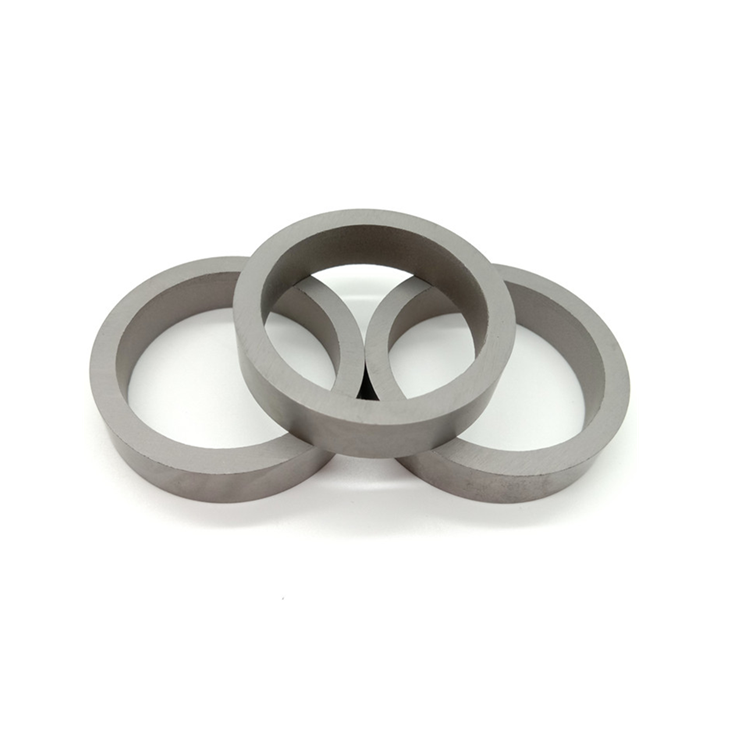

Customized tungsten carbide seal ring with good anti wear resistance

Customized tungsten carbide seal ring with good anti wear resistance

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF0066
Minimum Order Quantity:10 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

Customized tungsten carbide seal ring with good anti wear resistance

Product description of tungsten carbide ring

Tungsten carbide represents a versatile seal ring material that is broadly applied in all acidic environments. It is generally the material of choice in applications where distortion due to high pressures or rapid wear in abrasive environments are modes of premature failure. Tungsten carbide seals possess a unique combination of high fracture strength and high hardness that minimizes or eliminates these problems. Other favorable properties of tungsten carbide seals include high thermal conductivity values and low coefficients of thermal expansion. These kinds of seal rings lifetime more than other material. There are enjoy high reputation at home and aboard. These characteristics promote the efficient removal of heat and provide dimensional stability at higher operating temperatures.

Recommenced grade of tungsten carbide ring

Grade	Density g/cm3	Hardness	HPA (hv) M Pa	Performances & applications recommended
YG6	14.9	89.5	2150	Good wear resistance, used for hard wood, processing original wood, aluminum section bar, brass rod and cast iron.
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low- alloy steel
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain for mining tools, cold beading and punching dies
YS2T	14.45	92.5	2800	Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high mananese steel etc. Mainly used for disc cutter and other tools.
YL10.2	14.5	92.5	3400	Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YNi8	14.6	88.5	1710	This grade with 8% nickel binder, it was good wear resistance & corrosion resistance performance, especially used for high environmental, also good for cutting the titanium alloy.

Product Feature of tungsten carbide ring

1. Excellent abrasion resistance

2. High wear resistance

3. High fractural strength

4. high thermal conductivity

5. Small heat expansion co-efficient

Product Application of tungsten carbide ring

1. Petroleum industry

2. Sewerage industry

3. Acid industry

4. Fluidity industry

5.Hydrocarbon industry

Etc.

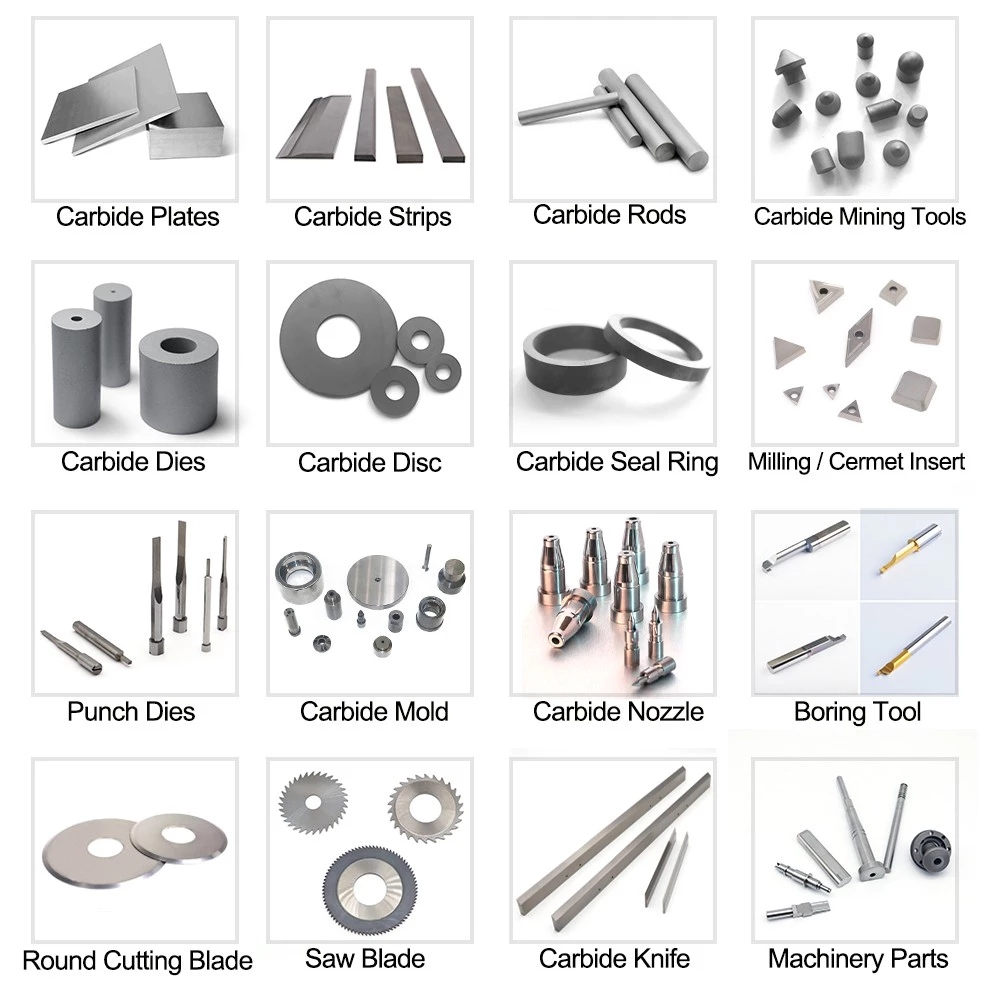

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our Advantage

1 We are a Real Factory in Zhuzhou City.

2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Non-poisonous ,Good mechanical properties

3.100% QC inspection Before Shipment.

4. We guarantee that all of our products are used with 100% Virgin Raw Material.

5. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.

Our factory

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

High Density Tungsten Cemented Carbide Cylindrical with high wear resistance(图1)
