Carbide Wear Parts

tungsten carbide screw making dies

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG15 YG20 YG20C
Minimum Order Quantity:5kg
Price:Negotiable
Delivery Time:3-15days
Payment Terms:T/T, Wstern uinion, bank
Supply Ability:8tons per month

Feature:

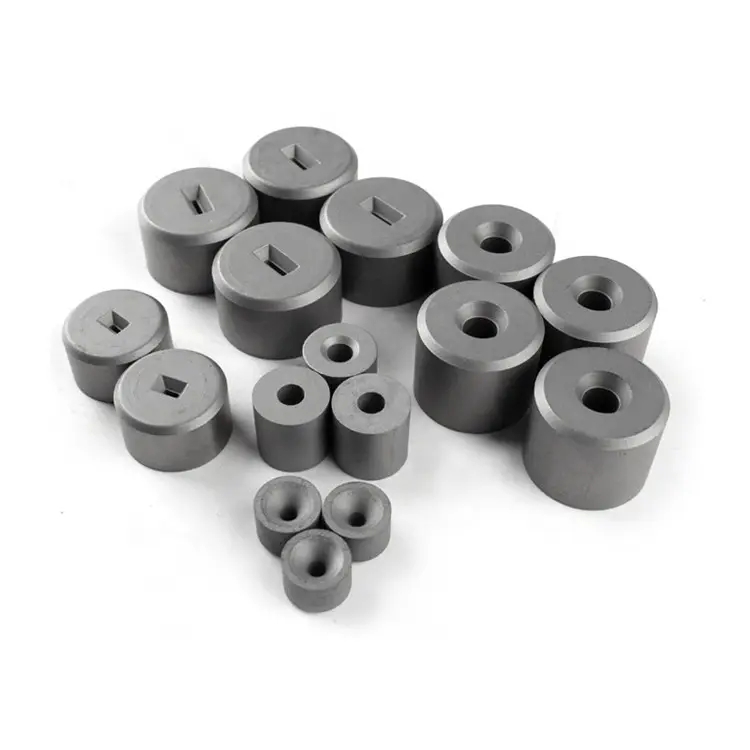

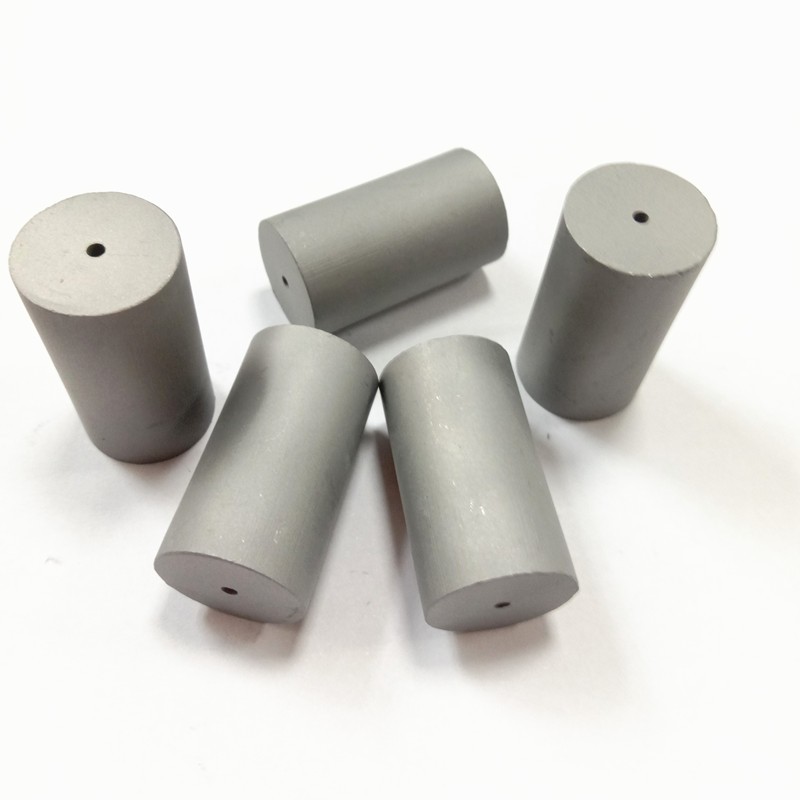

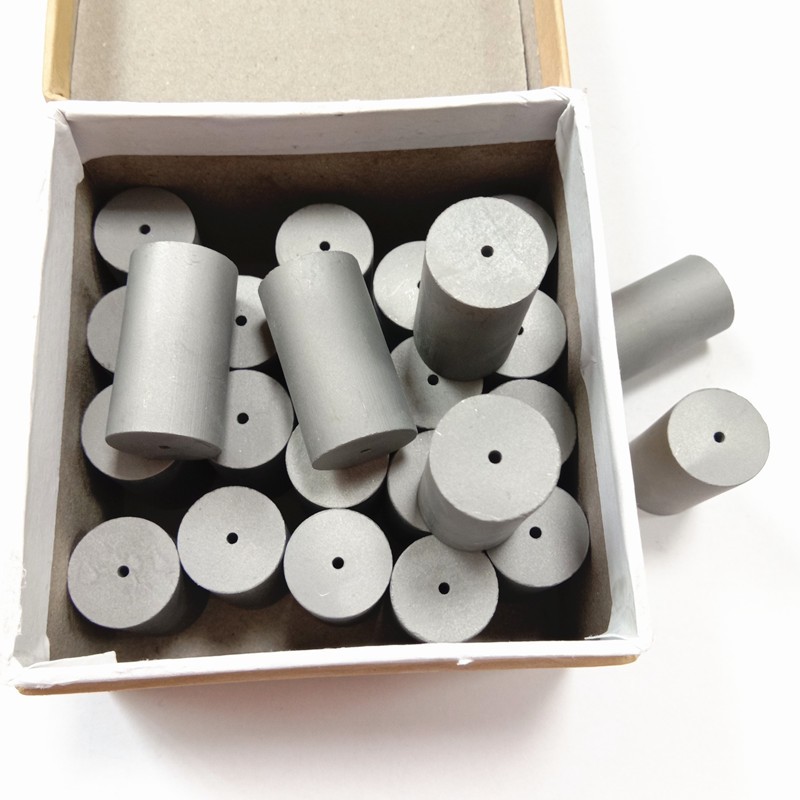

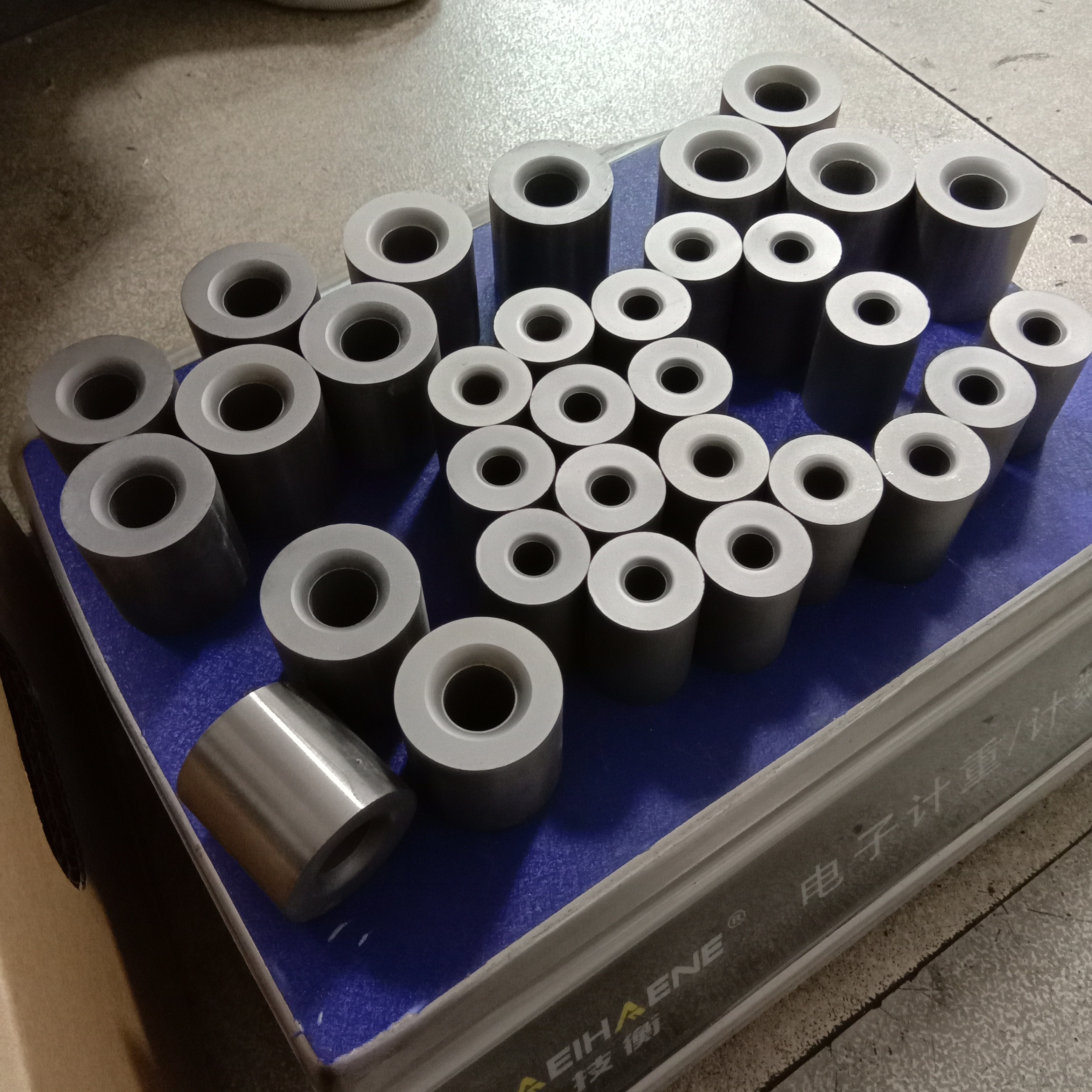

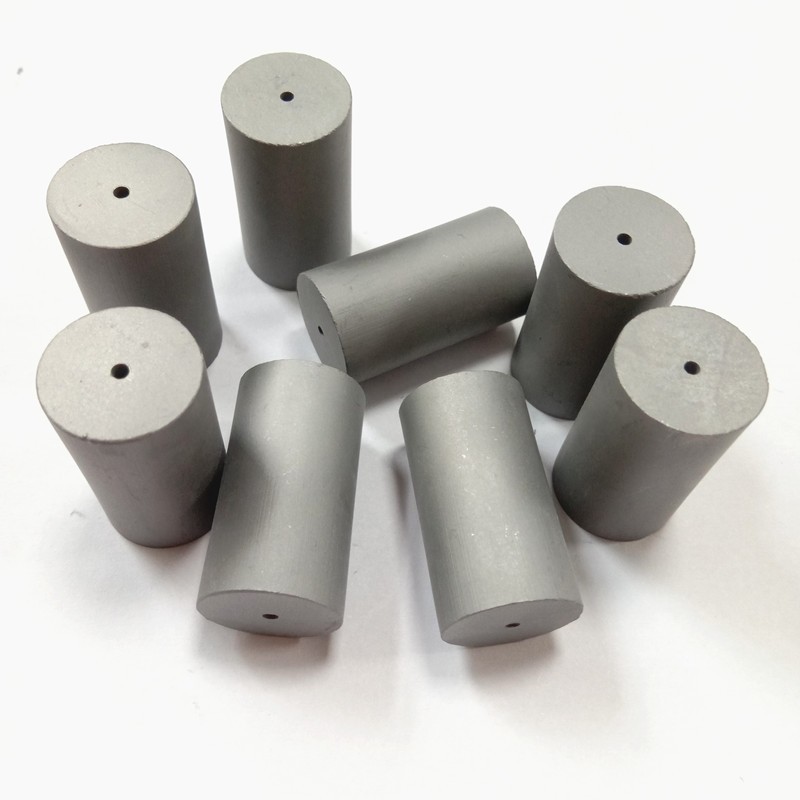

Tungsten carbide cold heading dies for fasteners,high impact resistance,toughness ,wear resistance,and quality consistency.You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making non-ferrous metal, ferrous metal and their alloys.

The are different grade with different properties and applications . Of course the price will be different ,When purchasing , Pls first choose ur decisioin of the grade

Minimum and maximum dimensions:
Holes from 1,0 up to 40 mm, outer dimensions from 10 up to 200 mm, length from 1,0 up to 300 mm.
Mirror polish before and after coating.

Different technologies.
± 0.01 mm tolerances.
Possibility of tooling design.

Mechanical Processing surfaces when it is geometrically possible.

Grade information

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S. (N/mm² )	Performance & Applications recommended
YG20	13.5-13.8	85.5	2400-2800	Application in stamping mould
YG20C	13.5-13.8	83.5	2350-2850	Strong versatility, suitable for make rods, scress
YG22C	13.3-13.8	83	2400-2900	Suitable for heavy loads head molds and nut molds
YG25C	13.1-13.5	82.5	2400-2900	Suitable for heavy loads nut molds and stainless srews header dies
