Carbide Wear Parts

High Quality Tungsten Carbide Brazed Tips C125

High Quality Tungsten Carbide Brazed Tips C125

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10/K20/K30..
Minimum Order Quantity:100 pcs
Price:Negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

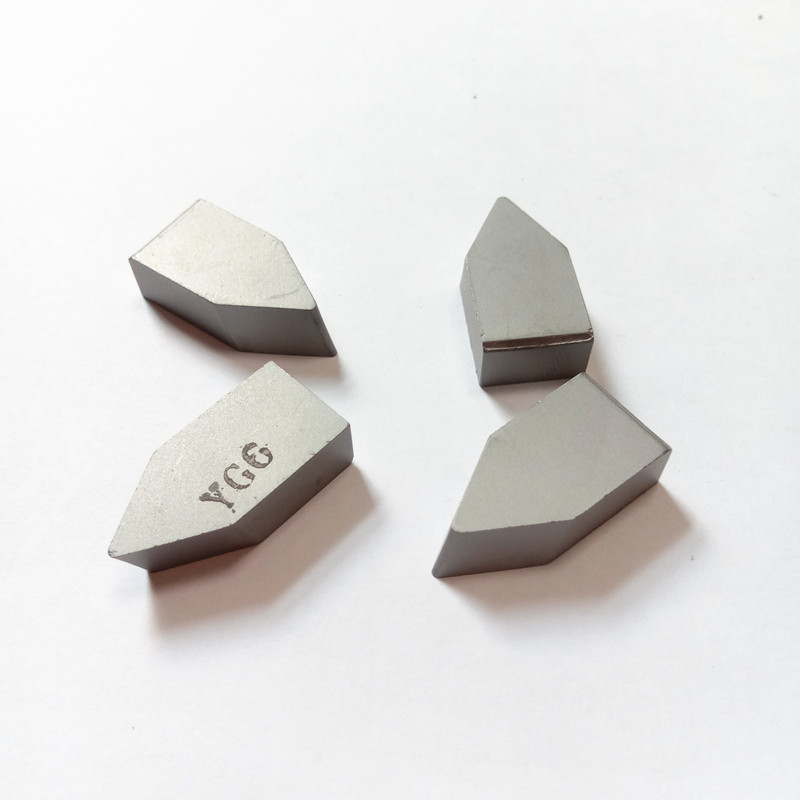

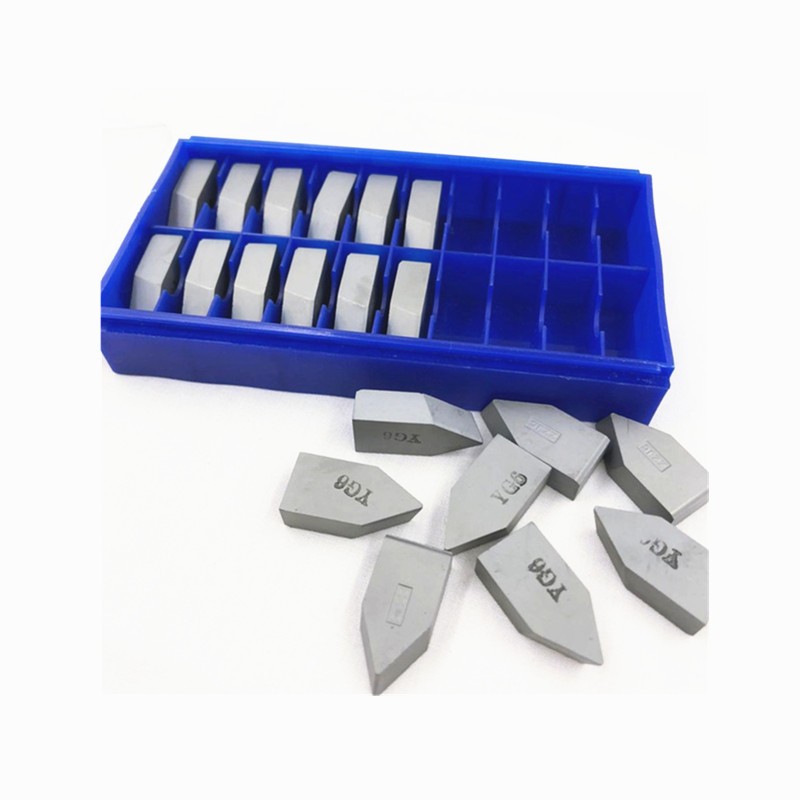

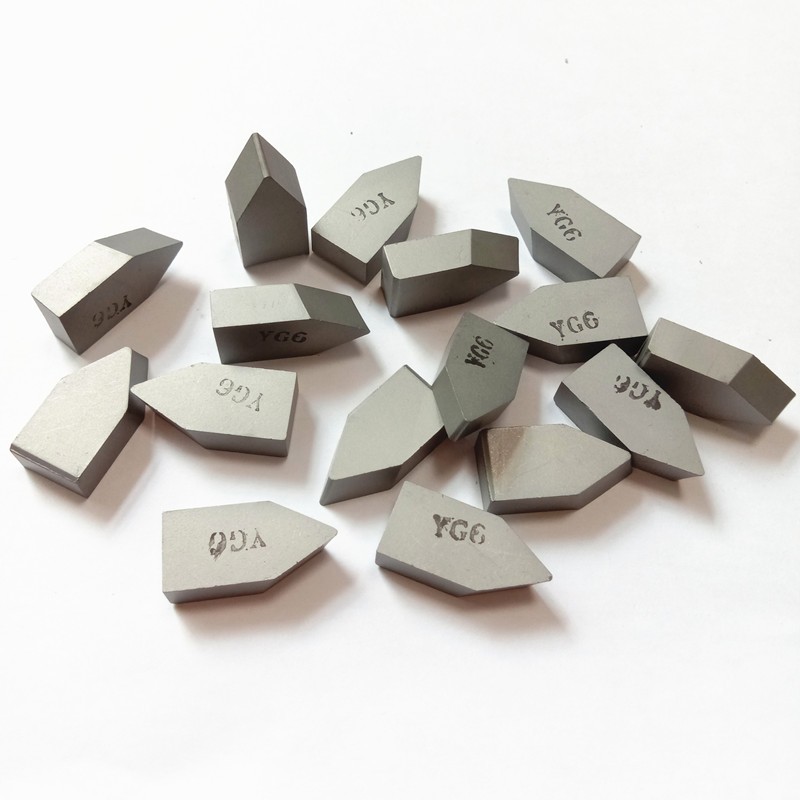

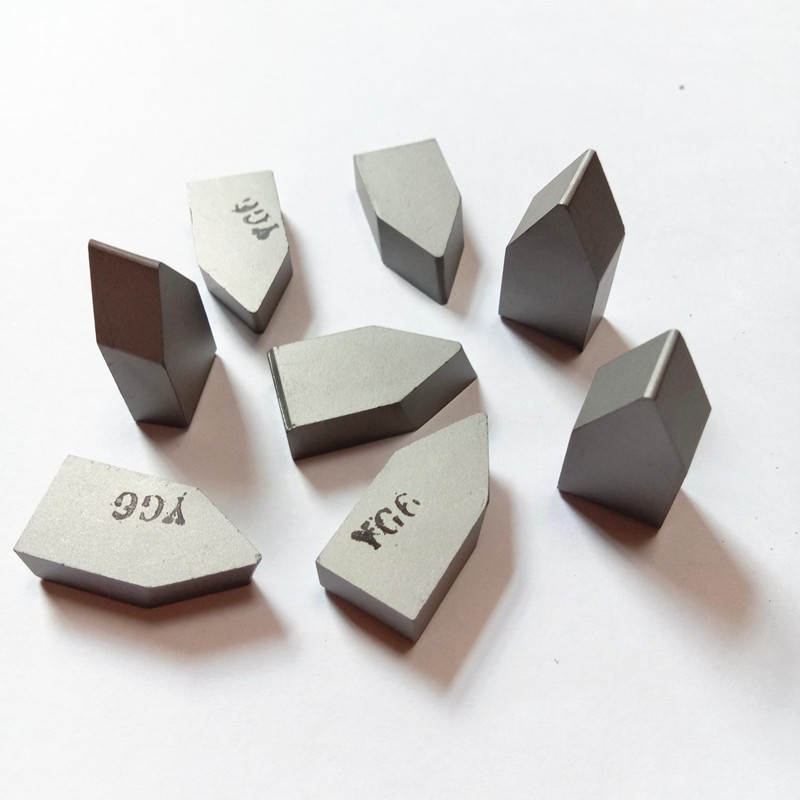

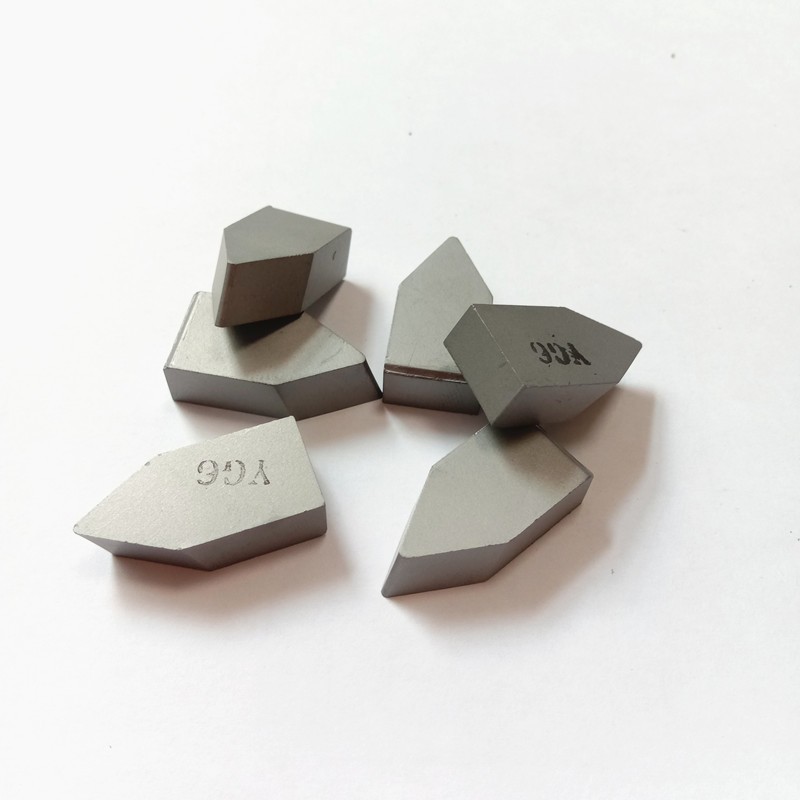

High Quality Tungsten Carbide Brazed Tips C125
Detail Information:
Grade: YG6/YG8/YT5/YW1...Type:   C125
Size: Standard. Can be Customizable
Standard: GB(Chinese industrial standard )
Certification: ISO9001:2015

Product Name	C125 brazed tungsten carbide tips K20
Material	100% virgin tungsten carbide material
Grade	YG8/YG6/YT5/YT15/YW1/YW2/YG6X...
Application	CNC cutting
Property	High quality and stability High performance. dimensionally accurate,good wear resistance
Grain size	0.6-1.2um
Powder compaction	Extrusion/Press
Sintering	HIP sintering

Grade and Application

Grade	ISO	Density (g/cm3)	Hardness(HRA)	T.R.S.(N/mm2)	Application
YT5	P30	12.9	90.5	2200	Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting.
YW1	M10	13	92.5	1710	Better hardness, resistant to impact load. A good grade for general purposes. Suitable for machining of ordinary steel, cast irons as well as steels hard to be machined such as refractory steel, high manganese steel, and stainless steel, etc
YW2	M20	12.9	91	1880	Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc
YG6X	K10	14.8	91.5	1890	Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons
YG6	K20	14.8	89.5	2050	High wear resistance, better impact and shock resistance. Suitable for semi-finishing, and finishing of cast irons, non-ferrous metal, alloys, and non-metallic materials at moderate cutting speed
YG8	K30	14.6	89	2520	High strength, better impact and shock resistance, but lower wear resistance and cutting speed. Suitable for roughing of cast irons, non-ferrous metal, alloys, and non-metallic materials at low speed.
YT15	P10	11.3	92	1650	Higher wear resistance with a certain impact toughness, Suitable for semi-finishing of medium chip sections, or finishing of small chip sections of steel, cast steel, alloy steel.

Some type list of A type brazed tips(various type for choose or customized based on drawing)

A1 Type:	A106 A108 A110 A112 A114 A116 A118 A118A A120 A122 A125 A125A A130 A136 A140 A150 A160 A170
A2 Type:	A208 A210 A212 A216 A220 A225
A3 Type:	A310 A312 A315 A320 A325 A330 A340
A4 Type:	A406 A408 A410 A412 A416 A420 A425 A430 A430A A440 A440A A450 A450A
A5 Type:	A515 A518
A6 Type	A612 A615 A618

We also have standard B type, C type, D type, E type....

Our advantage:

1. We are real factory in Zhuzhou: competitive price
2. we adopt advance production and testing equipment : good quality
3. We have professional technicians: providing professional solution and suggestion
4.100% virgin material
5.100%inspection before shipment
6. Fast response and delivery

More products

1. Tungsten Carbide rod/bar
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Packing and Shipment
