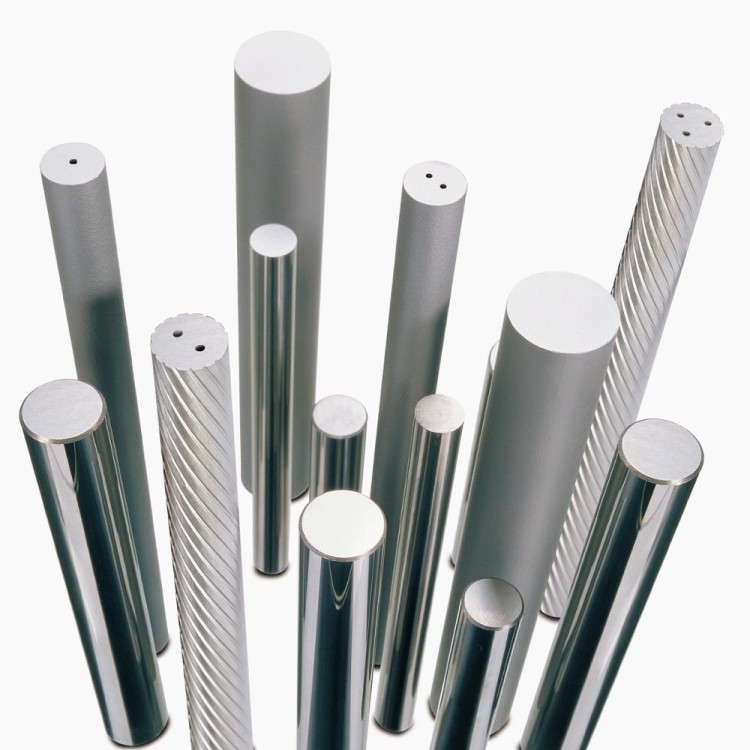

Tungsten Carbide Round Bar

Sintered tungsten cemented carbide round rod with double straight hole

Sintered tungsten cemented carbide round rod with double straight hole

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF0039
Minimum Order Quantity:10 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

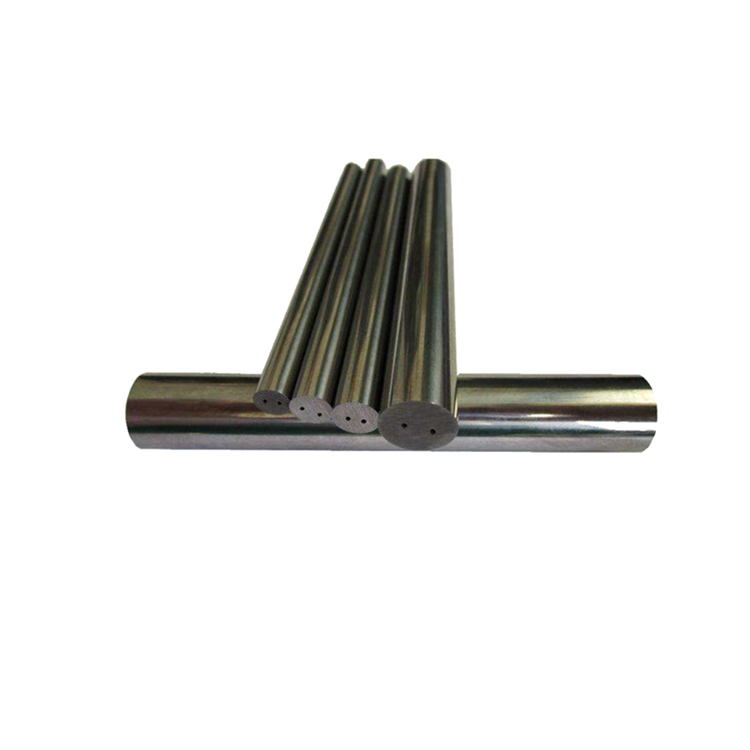

Sintered tungsten cemented carbide round rod with double straight hole

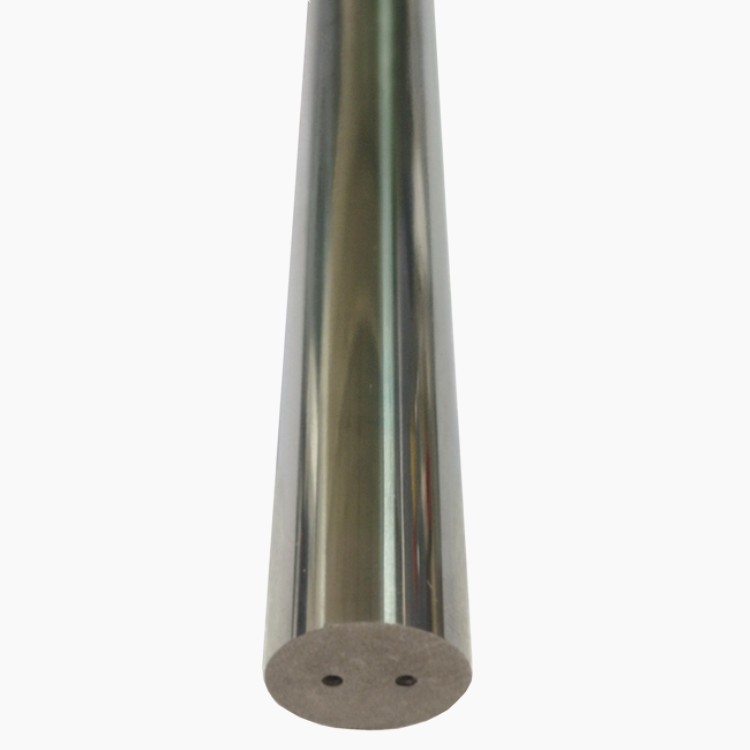

tungsten cemented carbide double straight hole tube

Tungsten Cemented Carbide Grade:

Grade	ISO Code	Chemical Component (%)			Grain size um	Physial Mechanical Properties (≥)
Grade	ISO Code	WC	Co	Others	Grain size um	Density g/cm3	Hardness (HRA)	T.R.S N/mm2
D10UF	K05-K15	93	6	1	0.6	14.70	93.0	2600
D30UF	K20-K30	89	10	1	0.6	14.50	92.0	3800
D30SF	K20-K30	89	10	1	0.5	14.40	92.5	4000
D40SF	K40	87	12	1	0.4	14.30	92.5	4200
DB10X	K20-K30	89	10	1	0.6	14.50	91.5	3800
DP12X	K30-K40	87	12	1	0.6	14.15	91.0	3300
DP13X	K40	86	13	1	0.8	14.10	90.5	4400
YG6	K05-K10	93	6	0	1.2	14.95	91.0	2600
YG6X	K10	93	6	0	1.0	14.95	92.0	2500
YG8	K20-K30	92	8	0	1.2	14.70	90.0	2800
YG10X	K30-K40	89	10	1	0.8	14.50	91.0	3500
YG15	K40	85	15	0	1.2	14.00	87.5	4500
YG25	--	75	25	0	1.2	13.15	82.5	4800

Application of Our Tungsten rod:

Tungsten rod are used for cutting tool. The advantages of our tungsten carbide rod are smooth, good wear-resistance, good hardness, fast cutting speed and have a long-lifetime. Unlimited tracks of grades and sizes of carbide plates are available in our company.

Product Detail:
1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co

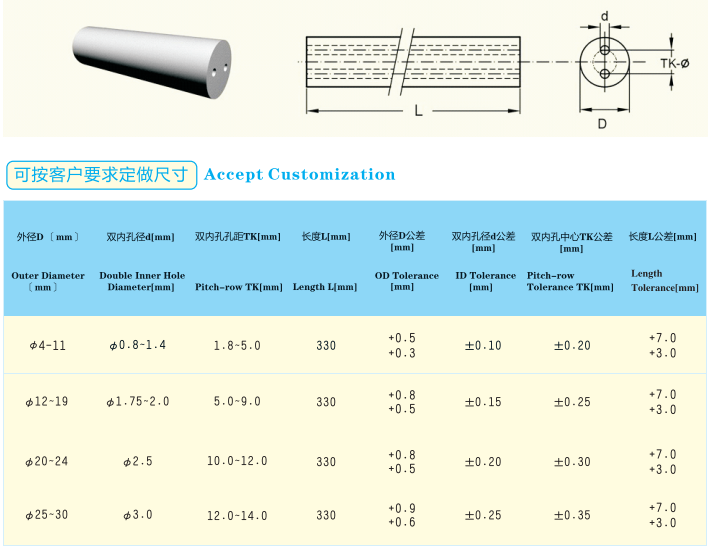

2. Specification: 4*1mm. 4*2mm, 12*8, 12*9 according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG6/YG8/YG8C/YG11/YG11C/YL10.2/YG10X/YG12X etc
7. Thickness: 1.0 mm to 100.0 mm

Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable

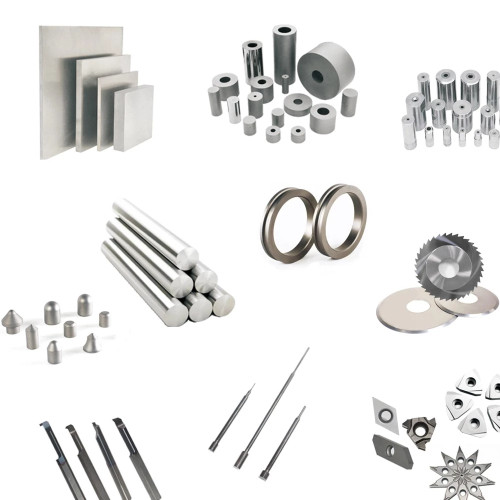

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
