Ground Tungsten Carbide Rod

  • Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance
  • Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance
  • Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance
Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance

Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R490
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

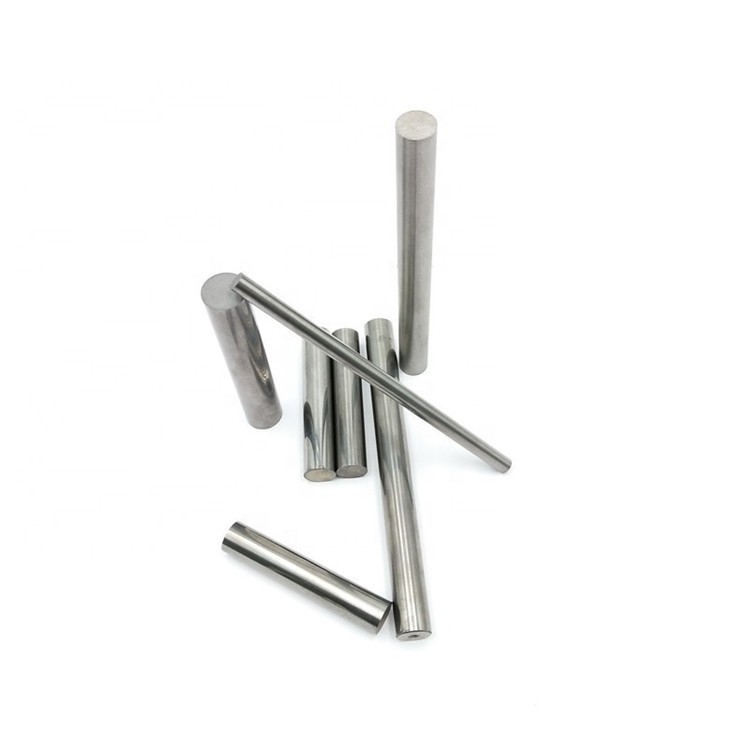

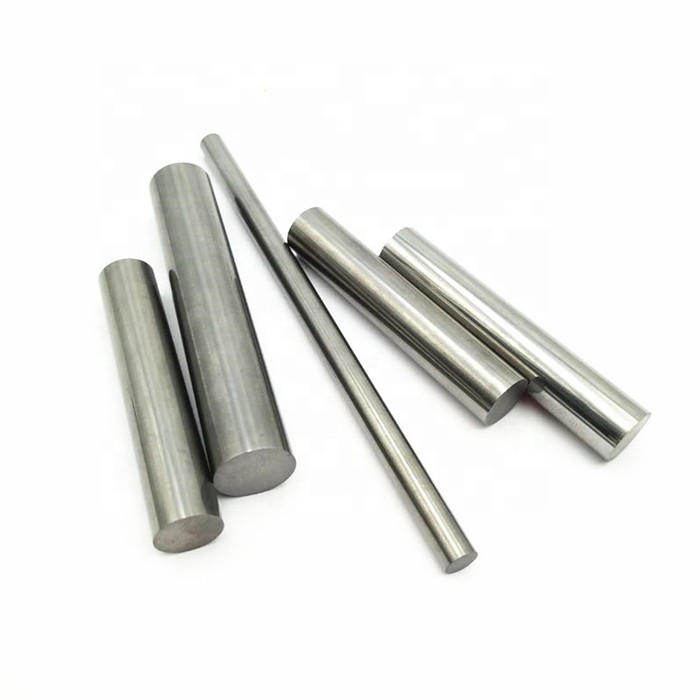

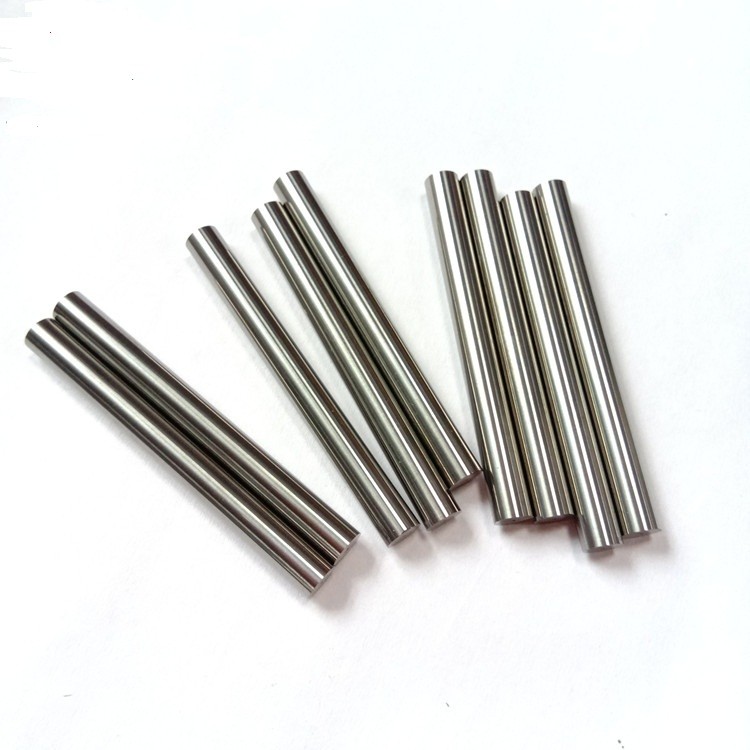

Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance

Good Corrosion Resistance Ground Tungsten Carbide Rod For Oil Field

Grade information

Grade
Density(g/cm3)
Hardness(HRA)
Toughness(N/mm2)
Composition
YG6
14.9
89.5
2150
Co 6%
YG8
14.6
89
2320
Co 8%
YG1114.5872100Co11%
YN6
14.8-15
91
2100
Ni 6%
YN8
14.2
90.5
2300
Ni 8%
YN9
14.7
89.5
2200
Ni 9%
YN12
14.3
86.5
2250
Ni 12%
YL10.214.592.53600C0 12%
Detail Information

1. Material: WC+Ni or WC+Co Grade:YN8 (8% Ni)

2. Hardness: HRA89 Bending strength:3500

3. Size: Dia15*270mm Customized

4. Features: Wear Resistance, Corrosion Resistance
5. Surface finishing: Ra0.4-1.6
6. Straightness:0.005
7. Technology: HIP sintering
All technical data only for reference. We can make based non requirement

We can supply all kinds of dimensions solid carbide rods with fine&sub micron grain size We manufactured and stocked many dimensions of ground and unground carbide rod for your. We have a large range of grade for your choice. We also can develop grade based on your application. Please do not hesitate to contact us.

We offer:

  • pressed and extruded unground, ground and polished rods with or without chamfers

  • rod products that can be ground to h6 tolerances

  • carbide rod with one or two parallel holes

  • a variety of grades that provide exceptional wear and impact resistance

  • grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools

  • grades for use in a broad range of applications in almost any material

  • grade for stamping /colding/ forging dies

We make tungsten carbide rods extruded or pressed.

Diameter from 0.3mm to 40mm,

length in 310mm, 330mm or 340mm.

Grade inYL10.2, K10, K20 K30, K35 or etc.

Our advantage:

1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing
7. We have professional technician team and sales team, giving you professional suggestion

Production Advantages

1. we using 100% WC and the raw matearils of CO.

2. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

3. Long probation,stamping.

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

7. We make tungsten carbide rods extruded or pressed.

8. Customization is acceped

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Other Application industries:

The carbide rods be widely used in

- metal Working industry

- motorcycle manufacturing industry

- electronin industry

- other mold

- mechanical manufacturing industry

- military defense Industry

- oil field industry

- jewelry

Some key areas where cemented carbide components are used:

  • Automotive components

  • Rotary cutters for high-speed cutting of artificial fibres

  • Metal forming tools for wire drawing and stamping application

  • Rings and bushings typically for bump and seal applications

  • Woodworking, e.g., for sawing and planingapplications

  • Pump pistons for high-performance pumps (e.g., in nuclearinstallations)

  • Nozzles, e.g., high-performance nozzles for Oil drilling applications

  • Roof and tail tools and components for high wear resistance

  • Balls for ball bearing and ball point pen

other grades of tungsten carbide rod

GradeYL10.2YG6YG6XYG10XYG8YG15
ISO RangeK25-K35K20K10K35K30K40-K50
WC+others    %909494909285
Co                 %106610815
Grain Size     μm0.60.80.60.60.80.8
Density       g/cm314.514.914.914.514.614.1
Hardness     HRA92.5-92.889.592908986.5
T.R.S          N/mm23800-400021502000220022002400


GradeApplication
YL10.2ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6Xultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10Xultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

Our Various Size List

Grinding

Blank

D

L

D

L

(mm)

Tol.(mm)

Tol.(+1mm)

(mm)

Tol.(mm)

Tol.(+3mm)

0.7h63301+0.2330

2

h6

330

2.2

+0.2

330

3

h6

330

2.7

+0.2

330

3.175

h6

330

3.2

+0.2

330

4

h6

330

3.7

+0.2

330

5

h6

330

4.2

+0.2

330

6.35

h6

330

4.7

+0.2

330

7

h6

330

5.2

+0.2

330

8

h6

330

5.7

+0.2

330

9

h6

330

6.2

+0.2

330

10

h6

330

6.7

+0.2

330

12

h6

330

7.7

+0.3

330

12.7

h6

330

8.2

+0.3

330

13

h6

330

8.7

+0.3

330

14

h6

330

9.2

+0.3

330

15

h6

330

9.7

+0.3

330

16

h6

330

10.2

+0.3

330

17

h6

330

10.7

+0.3

330

18

h6

330

11.2

+0.3

330

19

h6

330

11.7

+0.3

330

20

h6

330

12.2

+0.3

330

25h633014.3+0.3330
30h633016.2+0.3330

For more size information, please kindly email or call us.For length, we can cut to any size.

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For  carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

Oil Field Usage Ground Carbide Round Rod With Good Corrosion Resistance(图1)


We always persuit long term business with our clients by our good quality. please do not hesitate to contact us at any time
