Ground Tungsten Carbide Rod

  • K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage
  • K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage
  • K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage
K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage

K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R485
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pam(Ms.)

Email:shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)


K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage

We manufactured tungsten carbide rods extruded or pressed. Diameter from 0.3mm to 35mm,

length in 310mm, 330mm or 340mm, or others

Grade in YL10.2, K10, K20 K30, K35 or etc.

We manufactured and stocked a large range of dimensions unground and ground carbide rods for you, which guarantee our fast delivery.

Our standard size models:

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(0.3-0.9)x330+0/+0.3h6/h70/+2
Dia(1-5)x330
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)x330
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)x330
+0.5/1.0
h6/h7
0/+3


For any other sizes, we are able to custom-made according to clients’ requirements or drawings.

Specification

Material:tungsten carbide
Dimension:Dia12*75/100/150mm 2.0*330mm various size for choose
Ground Tolerance:h6 based on requirement
Blank tolerancce:+0.3~0.5mm
Grade:K20 K30 K10, YL10.2, YG20 YG10X
Production Process:Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type:round rod
Surface:blank or grinding
PerformanceHigh hardness, wear /corrosion resistancce, good toughness, good straightness
Non-standard or tolerancecan be customized

Application of tungsten carbide rod

Our tungsten carbide rod manufactured with high hardness and toughness, vibration-resistance, especially no stick when working , it is widely used for making various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc. A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys.

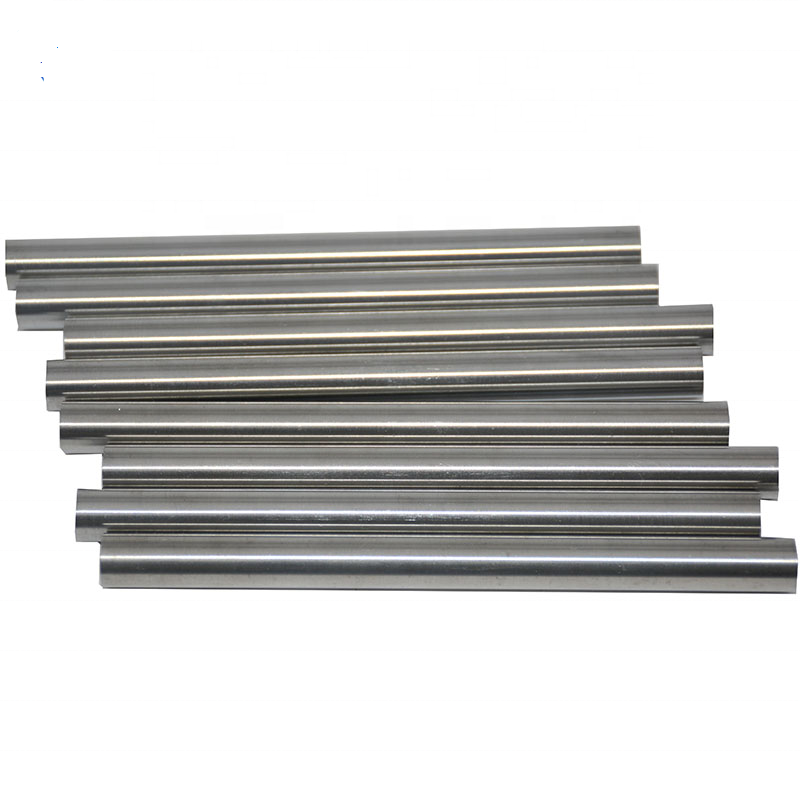

K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage(图1)

Production Features

- All carbide rods are made from the best tungsten carbide powders. The carbide rods are with submicron and average grain size ,the powder is even and stick together firmly,the purity of tungsten carbide powders is quite high.

- All carbide rods are made by the extrusion machine which insure that the inside structure of carbide rods is excellent and apprerance of carbide rods if better ,the flatness is improved a lot .

- All carbide rods are through HIP sintering which insure that the inside structure of carbide rods is free pore and can stick together firmly .Also the TRS is improved around 30% after HIP sintering.

- large stock of regular sizes of carbide rods ,which can enable us to make the delivery within 24 hours.

- Replacement .we will replace the carbide rods for you if there is any defects.

Carbide Rod Grade Information

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

WC%Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application
YG6XK109460.6-0.814.9922000Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2K25-K3590100.6-0.814.592.53800Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
Cutting steel class grade
GradeISO Grade

Density

g/cm3

Hardness

HRA

T.R.S

N/mm2

Application
YT5P3011.50-13.2090.01750Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14P2011.20-11.8091.01550Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15P1011.10-11.6091.51500Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40P4013.00-13.4089.51860Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1M1012.85-13.4092.01380Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2M2012.65-13.3591.01680Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3M1012.85-13.1092.01420It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

We guarantee:

* We are real factory in Zhuzhou

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

* Full ability to accept OEM & ODM orders

* Strict inspection for quality of raw material and finished products

Our tungsten Carbide Rod Type

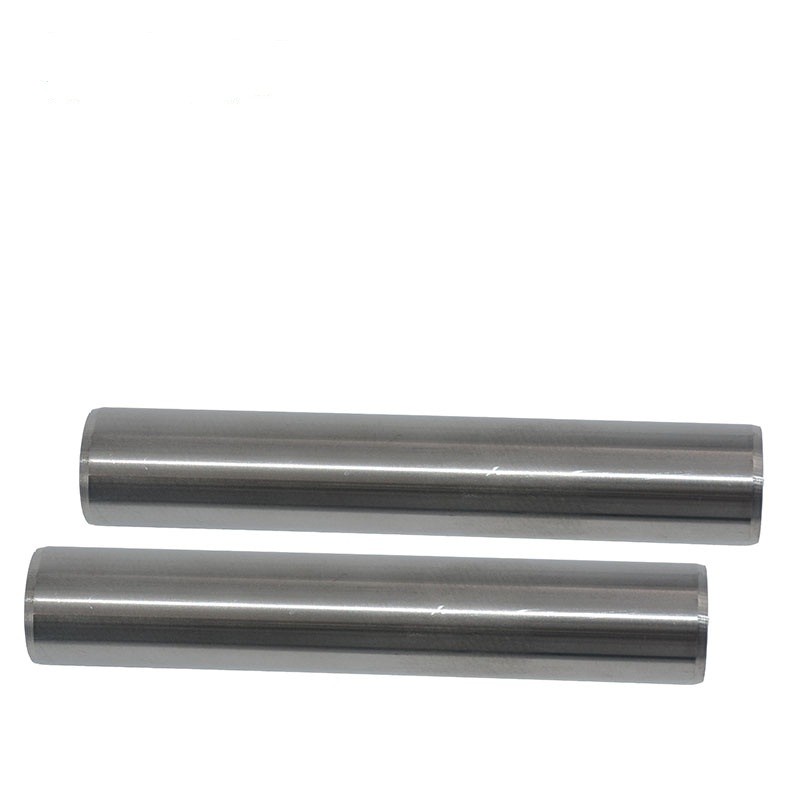

K30 Ground Tungsten Carbide Rod H6 Tolerance End Mills / Reamers Making Usage(图2)

For more detail size,pls email us,thanks
