Carbide Wear Parts

Tungsten carbide weld on tips for cursher stone tool

Tungsten carbide weld on tips for cursher stone tool

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00127
Minimum Order Quantity:1000pcs
Price:USD 0.1-2/pcs
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

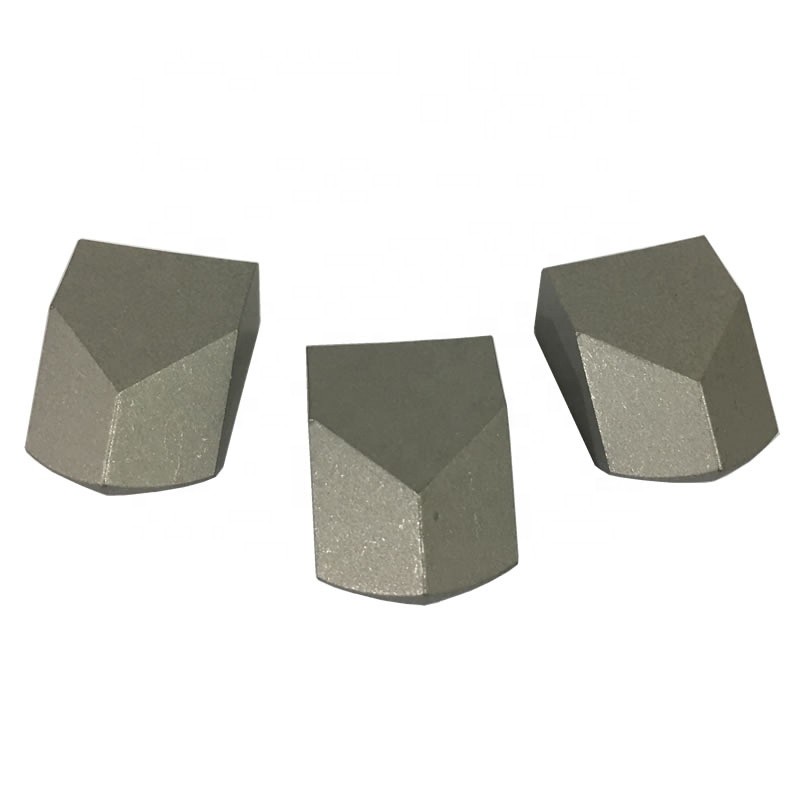

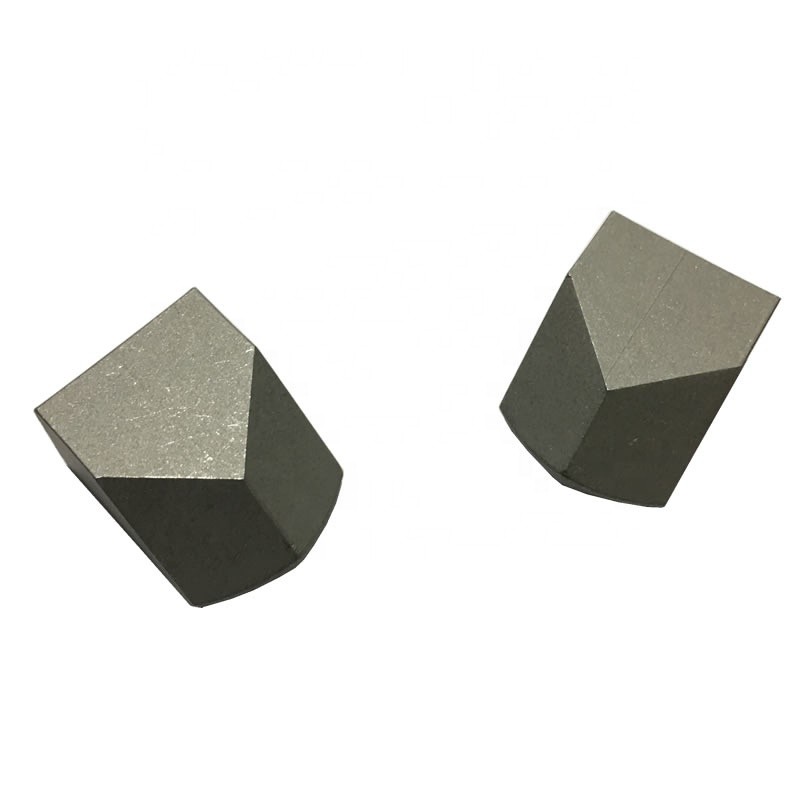

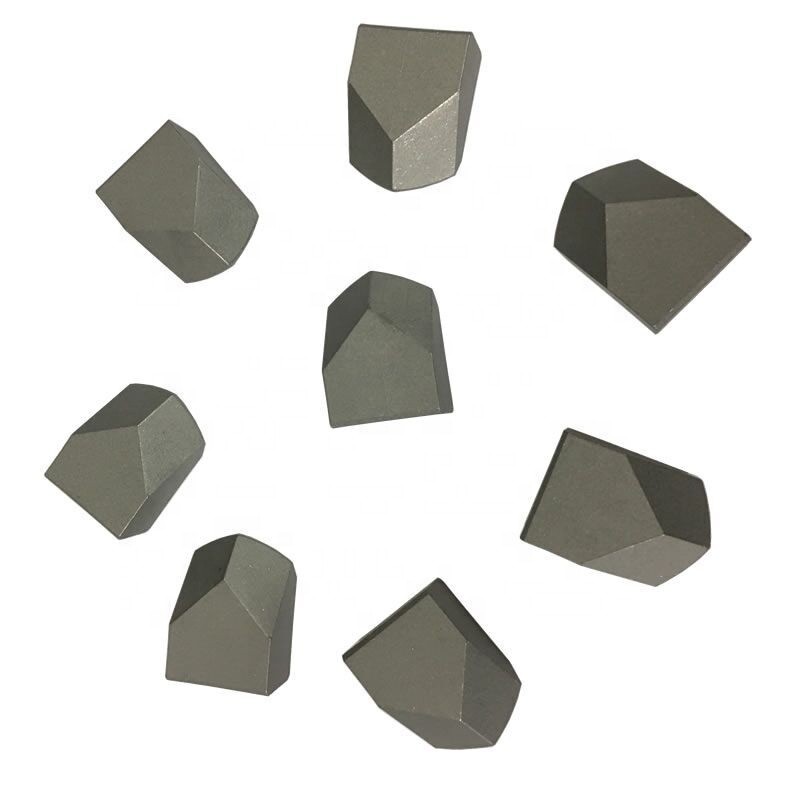

Tungsten carbide weld on tips for cursher stone tool

Product Description

Feature of our tungsten carbide weld on tips for mining tool parts:

1.Excellent corrosive wear resistance.

2.Available in a large range of sizes.

3.Very cost-effective production.

Application:

The cemented carbide brazed tips have wide application, like for cutting and processing cast iron, stainless steel, and other alloy steel, etc., especially for lathes and periphery grinders and so on.

As for carbide brazed tips, below are the general features for your reference. For more details of specific type, please inform us.

1.Full range of types available, more convenient for you to purchase;

2.Various grades available, therefore can provide full machining solutions;

3.Produced with precision molds, the products have better dimensional accuracy and uniform;

4.Careful surface treatment, ensuring perfect appearance, increasing customer satisfaction;

5.Made of top-quality raw material, have more stable properties, therefore easier to braze, also extend its service time.

Grade No. and application:

Grades	Density (g/cm³)	Hardness (HRA)	T·R·S (MPa)	Application Recommended
YG4C	15.00	89.5	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	15.80	89.5	1700	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.70	88.5	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8C	14.70	88.0	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C	14.50	87.0	2400	Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG11C	14.40	86.5	2450	Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C	14.30	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.00	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
YG16	14.10-14.30	87.5	2400	It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
YG20	13.40-13.70	85.0	2254	Mainly for the stamping dies used in the conditions of heavy impact load and large strees

Our more Products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Quality control:
1.All raw materials are tested in terms of density, hardness and TRA and HV30 before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced

Our Guarantee
1. Competitive price , but good performance.
2. Press by CIP and Sintered in HIP furnace
3. Feedback within 24 hours. More details, please contact us skype/whatsapp: +86-13307338220
4. ISO9001: 2008 certificate professional manufacturer over 20 years
5. Fully adopted in advance technology and equipment.
6. Quality Control System and strict inspection.

7. OEM and ODM are accepted as well.

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication
