Carbide Wear Parts

  • Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits
  • Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits
  • Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits

Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: Y6,YG8,YG8X
  • Minimum Order Quantity:100 pcs
  • Price:USD 55-65/kg
  • Delivery Time:7-15 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits

1. 100% virgin raw materials.

2. Various kinds of grades are availalbe based on customer's application.

3. we have professional advanced production line and inspeciton equipments to ensure high quality products.

4. Precision Ground and high polishing process

5. High wear resistance,high hardness and impact toughness

6. Advanced technology , precise grinding.

Material grade list



Chinese

Grade

Equal to ISO Category Number

chemical

composition

Physical mechanical properties



Application


WC

Co

Density

Bend Strength

Hardness


%

%

g/Cm3

N/mm2

HRA


YG3

K01

96.5-97

3

14.9-15.3

≥1180

≥91.0

It is suitable for the finishing of cast iron, non-ferrous metals, alloys and non-metallic materials, and semi-finishing vehicles for intermittent cutting.

YG6X

K10

93.5

6

14.8-15.1

≥1420

≥92

Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron

YG6

K20

94

6

14.7-15.1

≥1600

≥91

Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.

YG8

K20-K30

92

8

14.5-14.9

≥1600

≥90

Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials.

YG10

K40

90

10

14.3-14.7

≥1900

≥89

It is used for large batch production and has excellent strength and toughness.

YG10X

K40

89

10

14.3-14.7

≥2200

≥89.5

Suitable for small diameter micro drills, end mills, rotary boring tools, etc.

YG15

K30

85

15

13.9-14.2

≥2100

≥87

Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses

YG20

K30

80

20

13.4-13.7

≥2500

≥85.5

Stamping die, stamping watch parts, musical instrument spring piece;

YG20C

K40

80

20

13.4-13.7

≥2200

≥82

Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die, warhead to the shell of the stamping die

YG30


70

30

12.75

≥2500

≥82.8

High toughness



Product Description

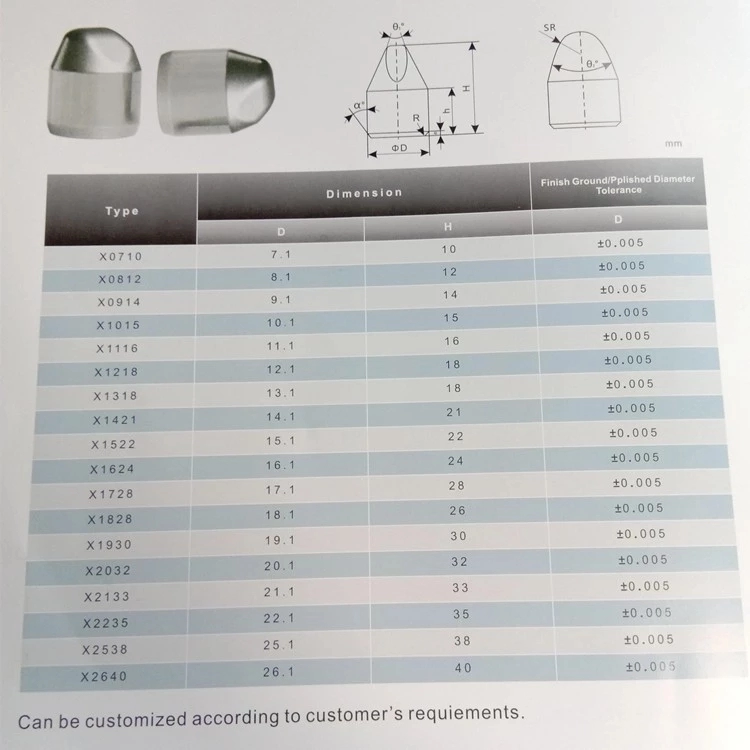

1.Wedged Carbide button Type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图1)

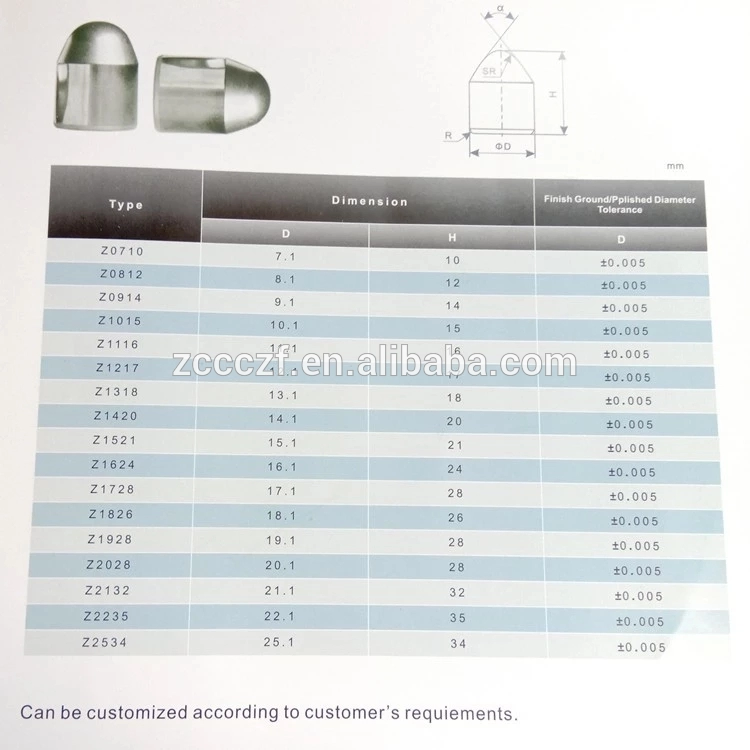

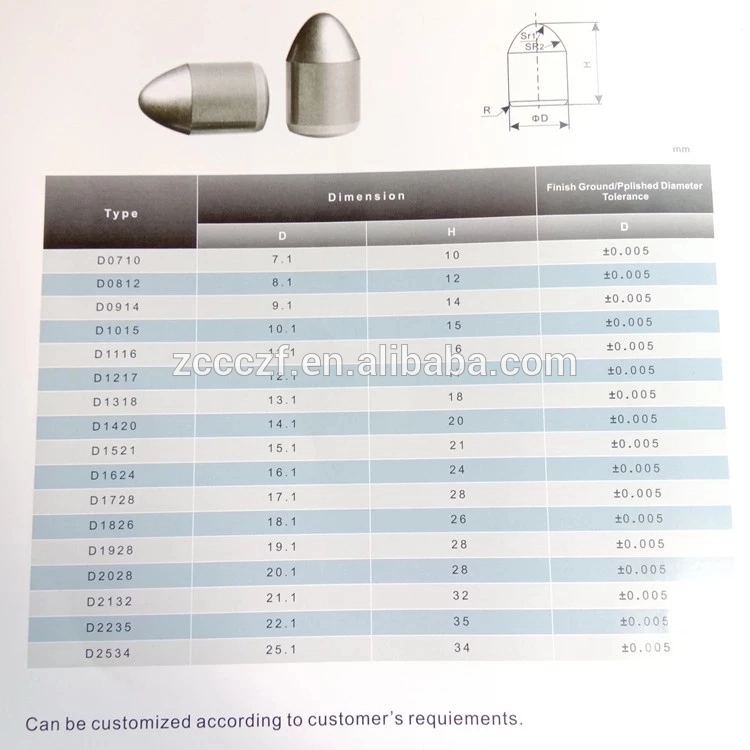

2.Ballistic Carbide Button type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图2)
3.Conical Carbide button Type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图3)

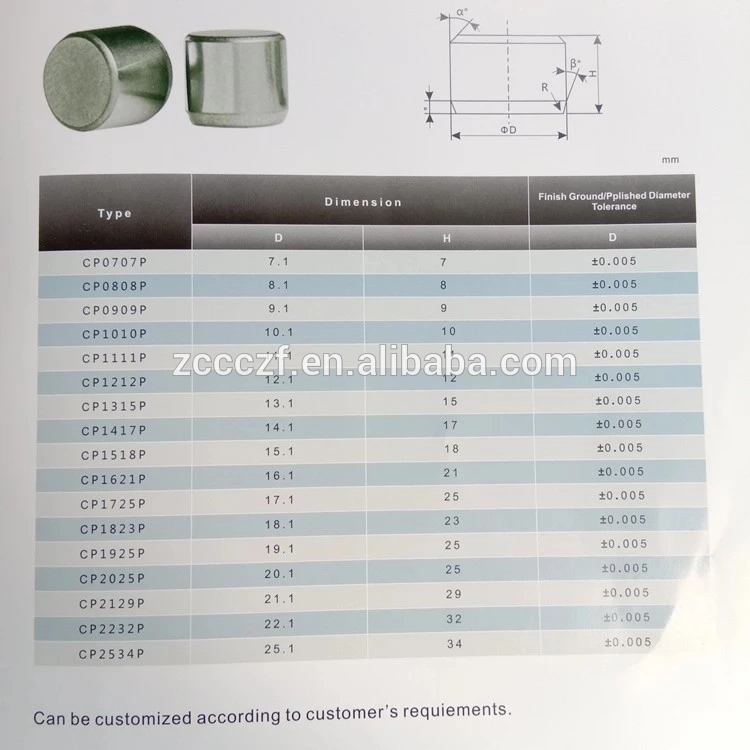

.4.Flat Carbide button Type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图4)

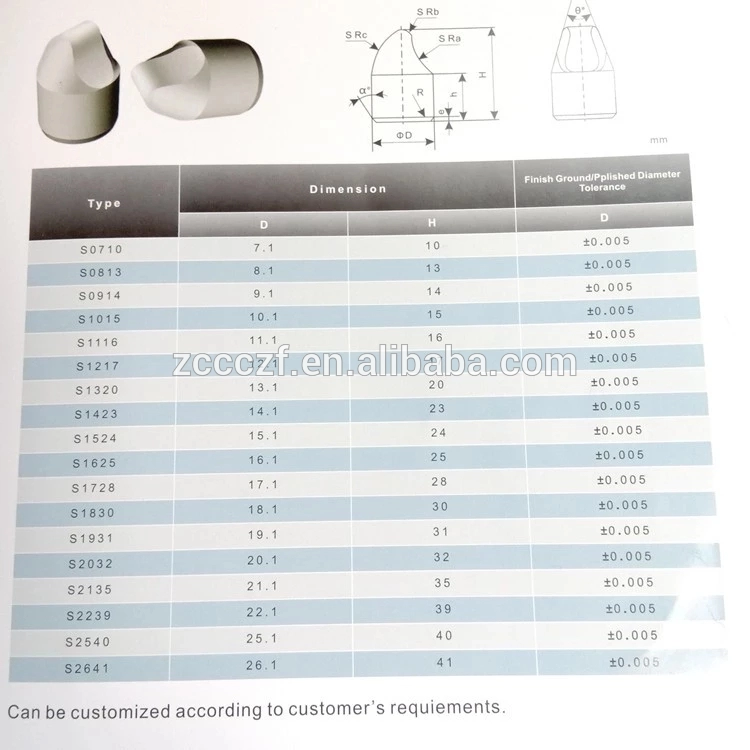

5.Scoop Carbide Button Type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图5)

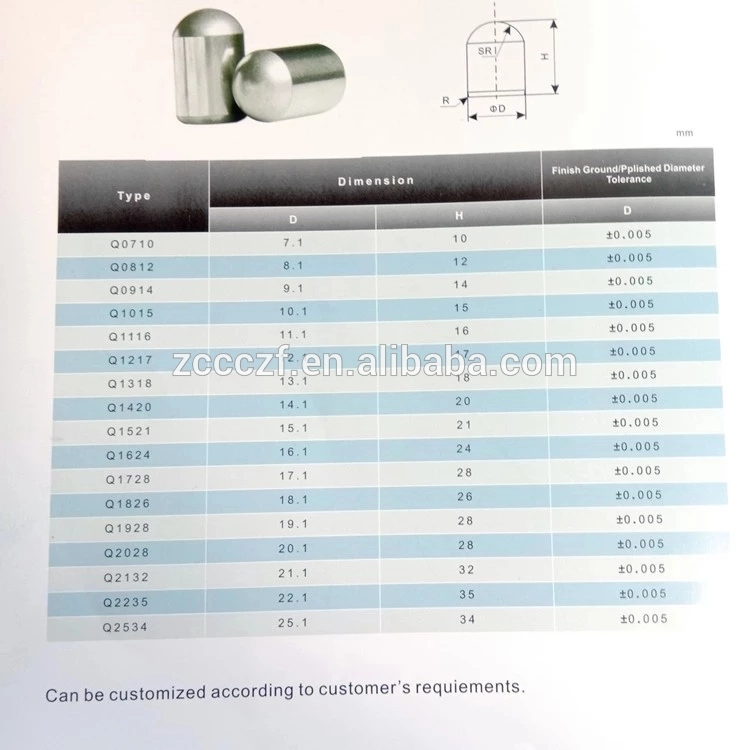

6.Spherical carbide button type
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图6)

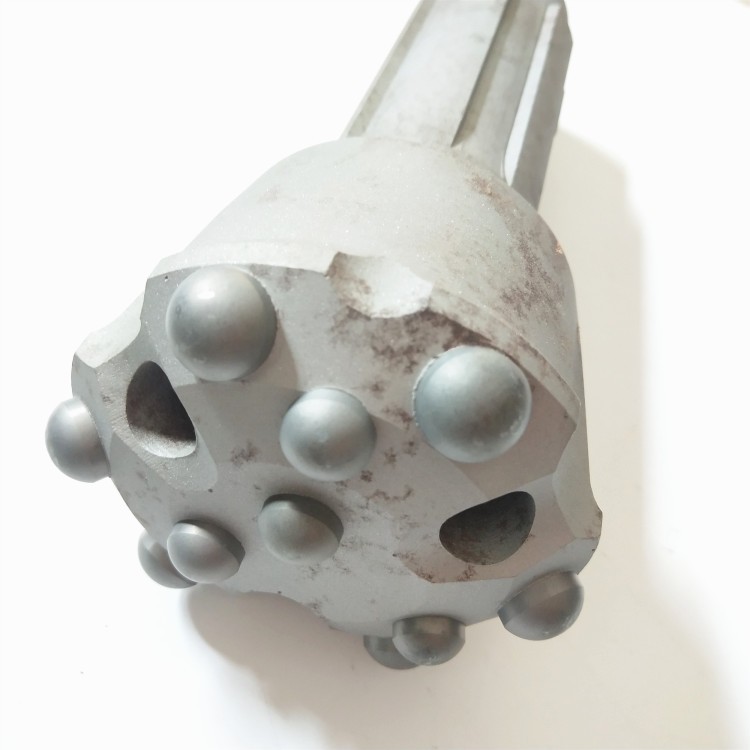

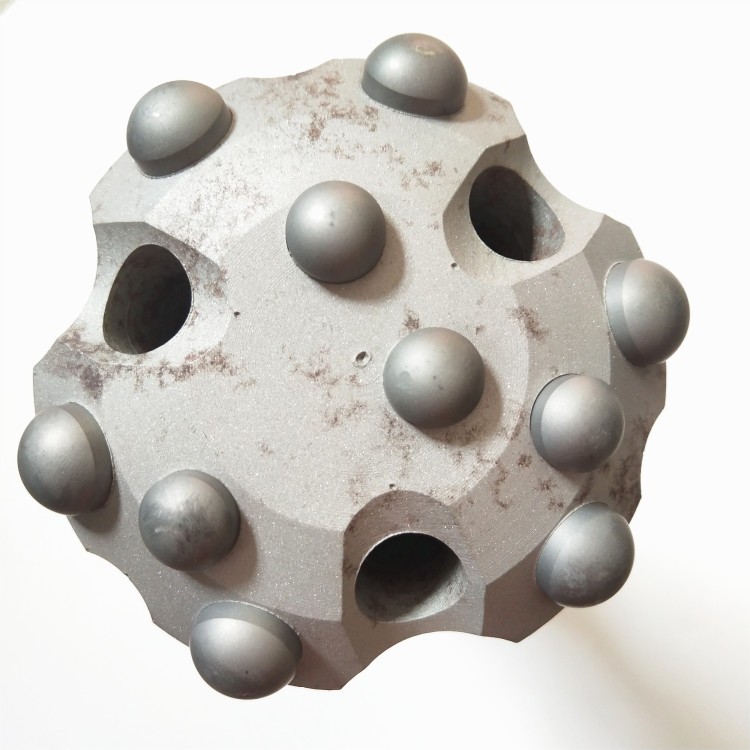

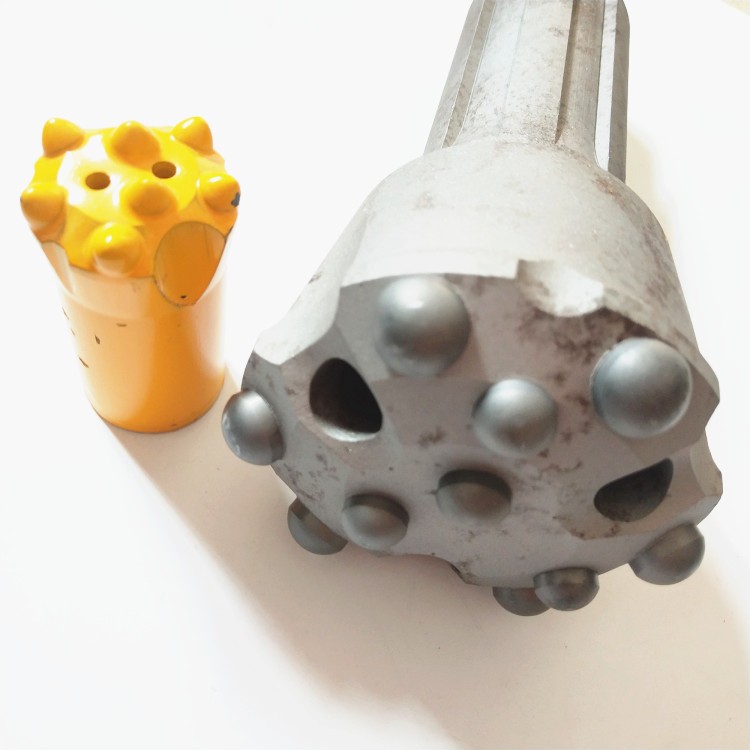

Application Field:
Tungsten carbide button is widely used for geological exploration, crushing, road construction and exploitation of coal crude oil, mine, stone and etc.
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图7)
Packing & Delivery
Hot sale virgin material long lifetime mining tools tungsten cemented carbide insert button bits(图8)

If have any more doubt, please feel free to contact with me.
