tungsten carbide blade

Zund Cutting Machine Blades tungsten carbide ZUND Z28 Plotter Cutter Blade knives

Zund Cutting Machine Blades tungsten carbide ZUND Z28 Plotter Cutter Blade knives

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG10X
Minimum Order Quantity:10 pcs
Price:USD 3-10
Delivery Time:10-15 days
Payment Terms:T/T, western union, LC etc
Supply Ability:100000 pcs/month

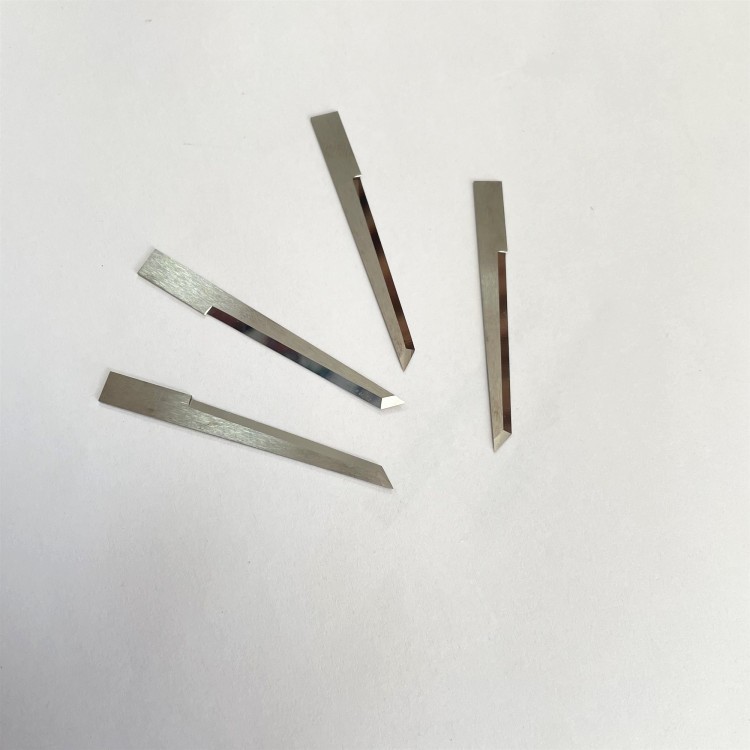

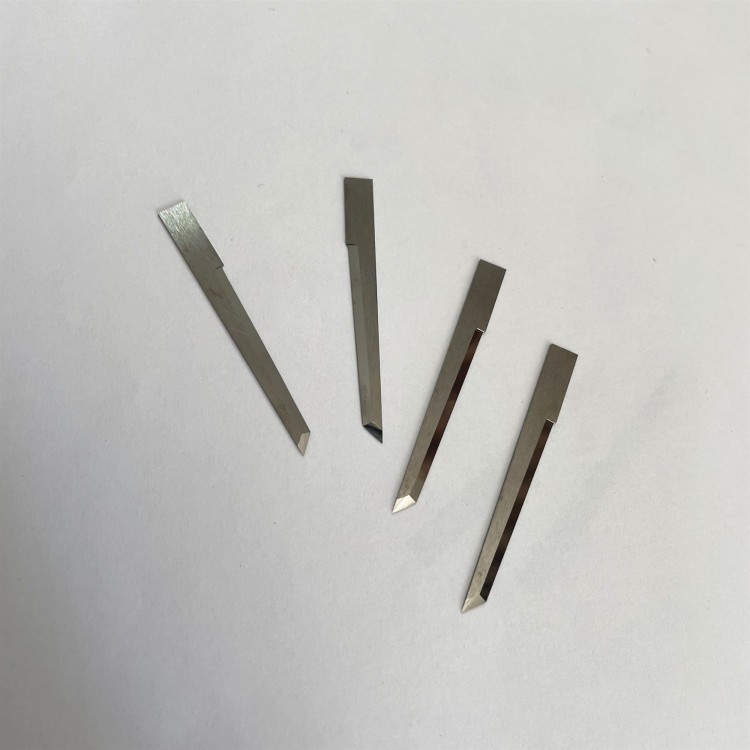

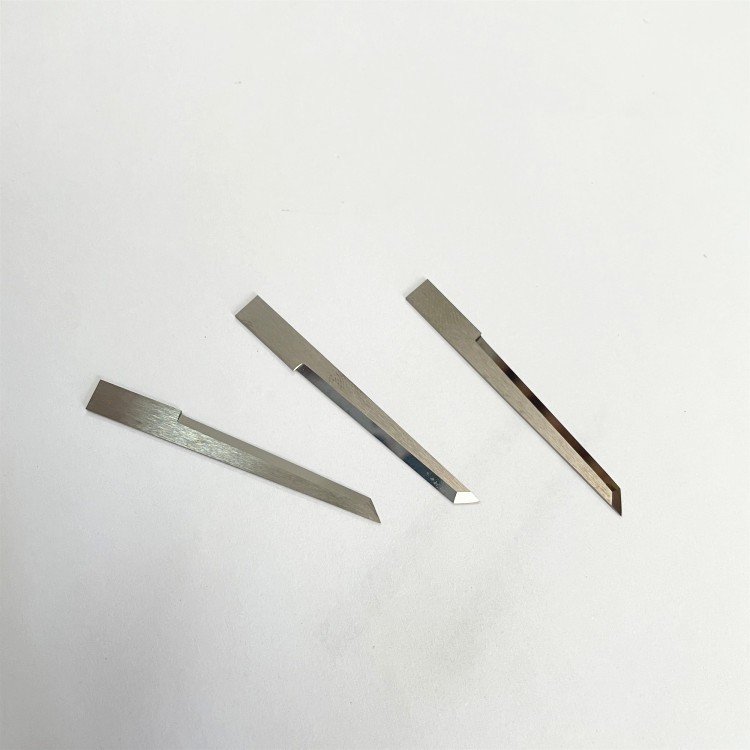

Zund Cutting Machine Blades tungsten carbide ZUND Z28 Plotter Cutter Blade knives

We supply Zund Cutter Blade Z28, Carbide Zund Z28 Oscillating blade, 3910318, Zund Drag blade. Tungsten Carbide Zund Cutter Blade Z28 is commonly used for Carbon fiber, Corrugated, Nylon fabric, Polyester fabric, Sandwich board, Leather hide, etc.

Product Pamaeter

Place of Origin:	China (Mainland)	Brand Name:	Zhenfang
Model Number:	Z28	Type:	Oscillating blade pointed

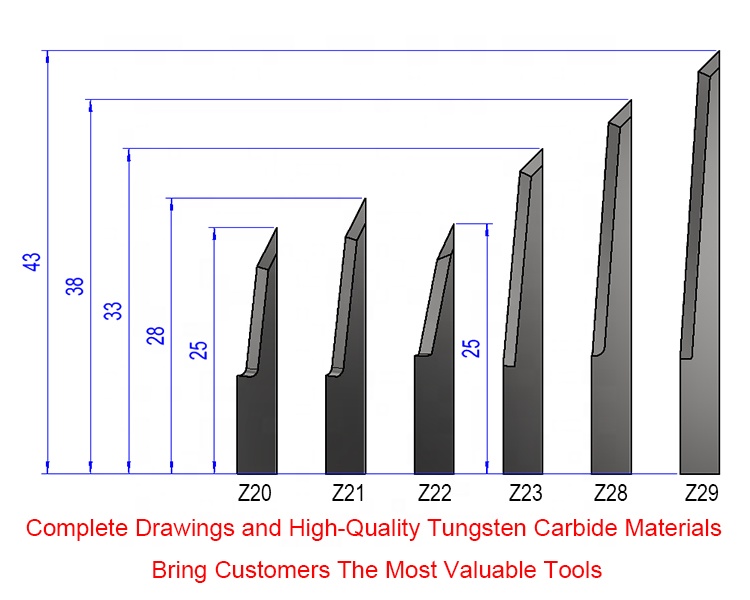

Max. Cutting depth:	26mm	Length:	38mm
Thickness:	0.63mm	Material:	Tungsten Carbide
Pre-cut:	1.9+0.07×TM	Post-cut:	-
Properties:	Long oscillating blade for soft, thick materials.
Logo:	can be customized	Package:	can be customized

Product Feature and Application

Zund Cutter blade Z28 tool is one of the most important products of our company. The blade is made of ultra-fine-grained carbide, HIP high temperature and pressure, the blade is sharp and wear-resistant, and the cutting edge is enlarged without gap. With the highest sharpness and precision, each blade has an extremely long life. Increased productivity due to increased cutting speed and reduced number of blade changes. The trimming is clean and no burrs are formed.
Tungsten steel, also known as hard alloy, is made of high-quality tungsten carbide + cobalt powder by formula blending and then pressed and sintered. It has high hardness, high strength, high wear resistance and high elastic modulus. It belongs to powder metallurgy industry. Carbide as a tooth of modern industry, cemented carbide tools play a fundamental role in the development of the manufacturing industry.

We guarantee:

* We are real factory in Zhuzhou

* Full ability to accept OEM & ODM orders

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Strict inspection for quality of raw material and finished products

* Rich experience of over 10 years

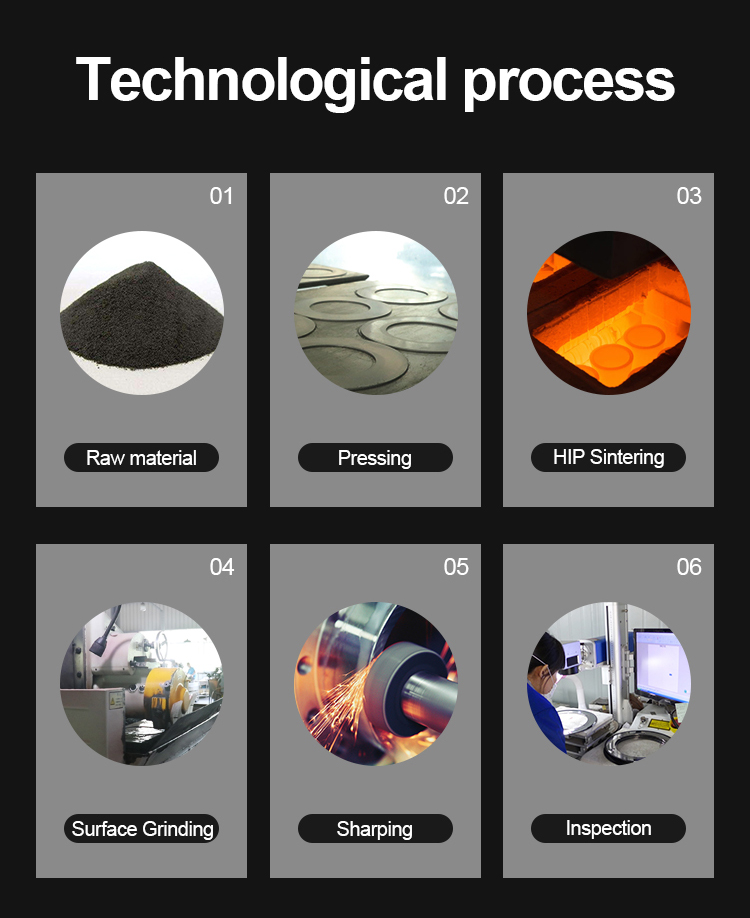

* Advanced technology , automatic pressing , HIP sintering

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

Our more Products
Tungsten Carbide rod
Tungsten Carbide Sealed Ring
Tugnsten Carbide Wear parts
Tugnsten Carbide Dies
Tungsten Carbide Non-standard parts
Tungsten Carbide Circular Blade
