tungsten carbide blade

Tungsten carbide zund cutting blade Z71 Z69 for zund cutter machine

Tungsten carbide zund cutting blade Z71 Z69 for zund cutter machine

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10,K20,K30
Minimum Order Quantity:100 pcs
Price:USD 2.2-3.5/pcs
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

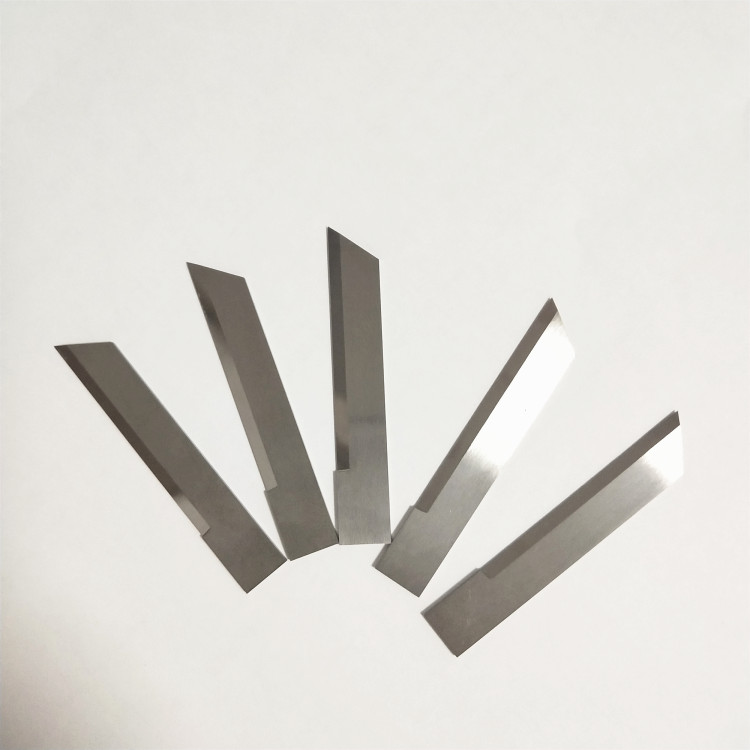

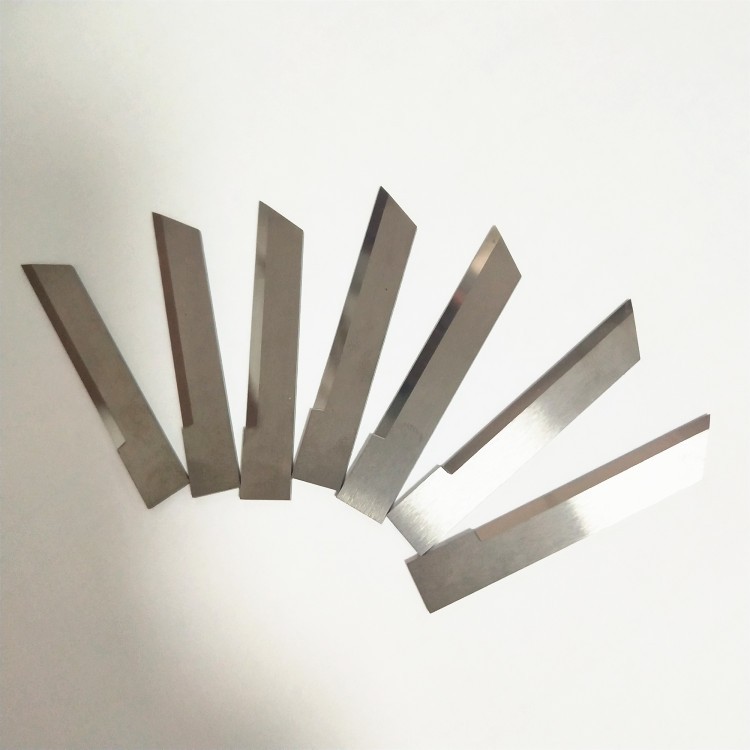

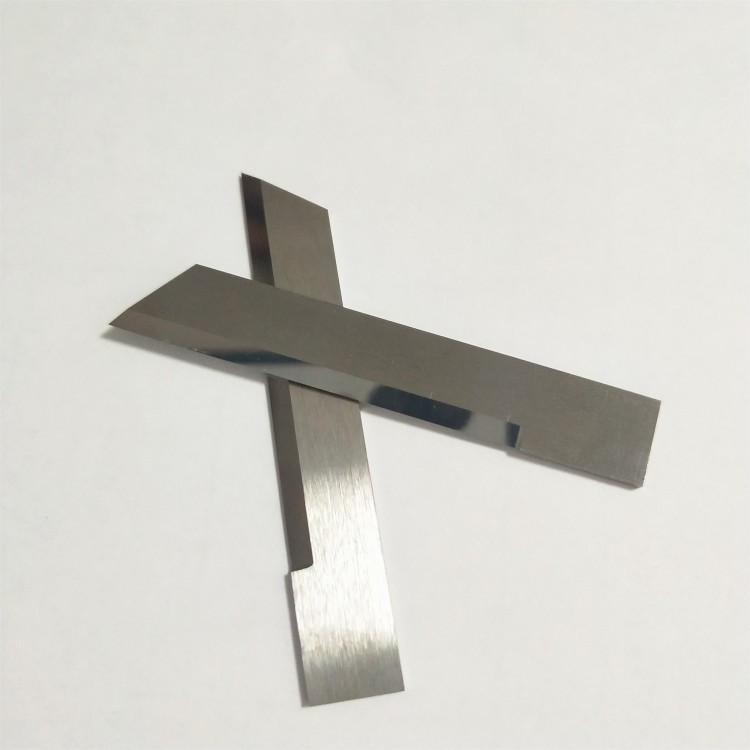

Tungsten carbide zund cutting blade Z71 Z69 for zund cutter machine

We supply Carbide Zund Z71 V-cut blade, Zund Cutter Blade Z71, Zund Z71, Zund blade 5006045. Tungsten Carbide Zund Cutter Blade Z71 is commonly used for the cutting of Corrugated, Corrugated plastic, Sandwich board, Foam board/Foam, Carpet etc.

Product Pamaeter

Place of Origin:	China (Mainland)	Brand Name:	Zhenfang
Model Number:	ZF	Type:	V-cut blade
Max. Cutting depth:	16/18.4mm	Length:	50mm
Thickness:	1mm	Material:	Tungsten Carbide
Properties:	Stable, long-life carbide blade.
Properties:	Blade for sandwich materials
Logo:	Acceptable	Package:	Single piece packaging

Product Feature and Application

Tungsten steel, also known as hard alloy, is made of high-quality tungsten carbide + cobalt powder by formula blending and then pressed and sintered. It has high hardness, high strength, high wear resistance and high elastic modulus. It belongs to powder metallurgy industry. Carbide as a tooth of modern industry, cemented carbide tools play a fundamental role in the development of the manufacturing industry.
Tungsten Carbide Zund Cutter Blade Z71 is commonly used for the cutting of Corrugated, Corrugated plastic, Sandwich board, Foam board/Foam, Carpet etc.
The distinction between the following blade types
• Drag blades: used in non-powered tools such as UCT, KCT, VCT, SCT, C2, insert sleeve 40) Particularly suitable for Foils, Paper, Thin folding carton, PVC, Plastic ,Carpet ,Light foam core etc.
• Oscillating blades: used in EOT/POT oscillating tools.
Recommended materials: Folding carton, Gasket materials, Foam, Leather, Rubber, Felt, Woven, Textiles, Plastic etc.• Rotary blade: decagonal (ten-sided) blades for DRT/PRT tools.
Recommended for breathable materials such as textile, carbon fiber, glass fiber, etc.

Features:
*Superior Tungsten Carbide
*Excellent sharpness and durability
*Extended shelf-life packaging.
*Full range of specifications and sizes.
*Small quantity is available .

You will find various blades here for different Zund Cutter heads .They are ideal to cut leather , carton boards,doubling plate,composite material,paper,textile,packaging material ,frame,sponge,plastic ,medical products,filter,Skiing material,cable etc different material .

Irregular shape customized by specification or drawing are welcomed.

Production type:

Tungsten carbide Zund cutter blade for leather textile industry Z16, Z3(图1)
