tungsten carbide blade

  • High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth
  • High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth
  • High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth
High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth

High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth

  • Place of Origin： Zhuzhou, Hunan
  • Brand Name： Zhenfang
  • Certification： ISO9001:2015
  • Grade： ZF-R852
  • Minimum Order Quantity:10 pcs
  • Price:Negotiable
  • Delivery Time:3-15days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

Formoreinformation, warmly welcome to contact me

Ms. Shirley Pan

Email:shirley@chinahardalloy.com

Mobile:+8617773379950

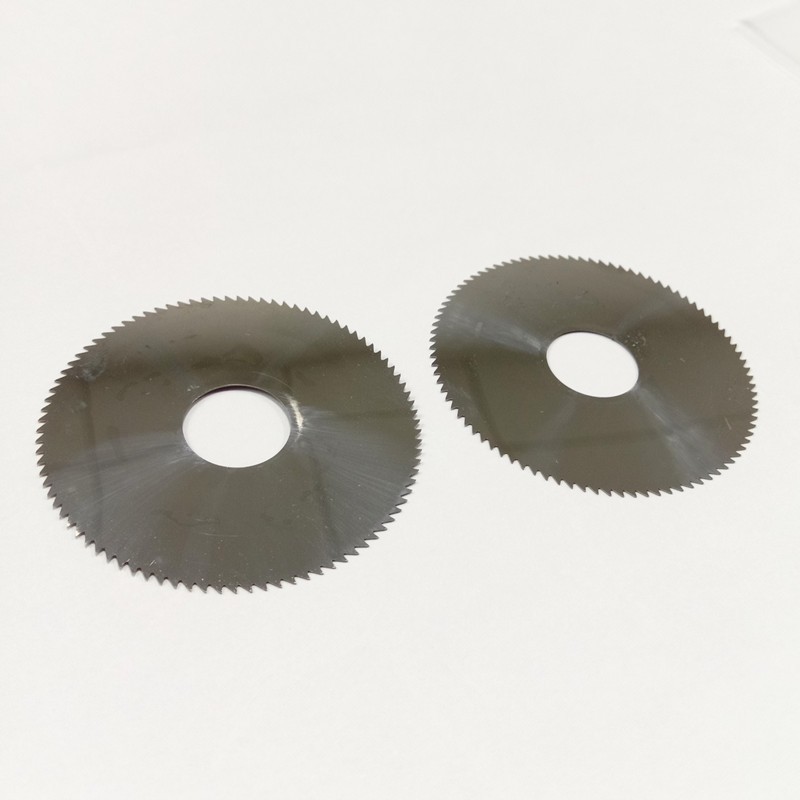

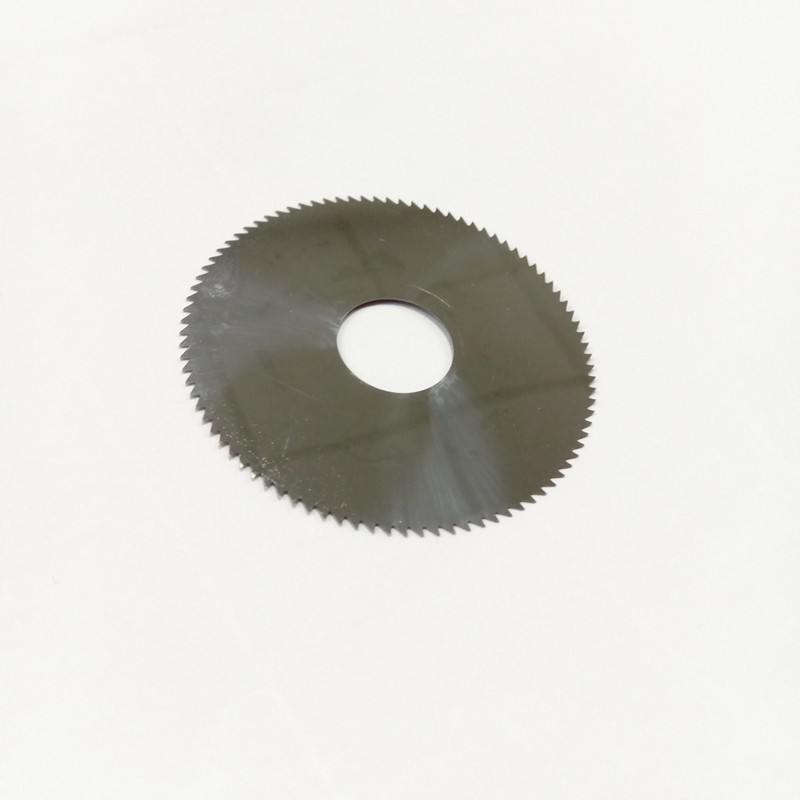

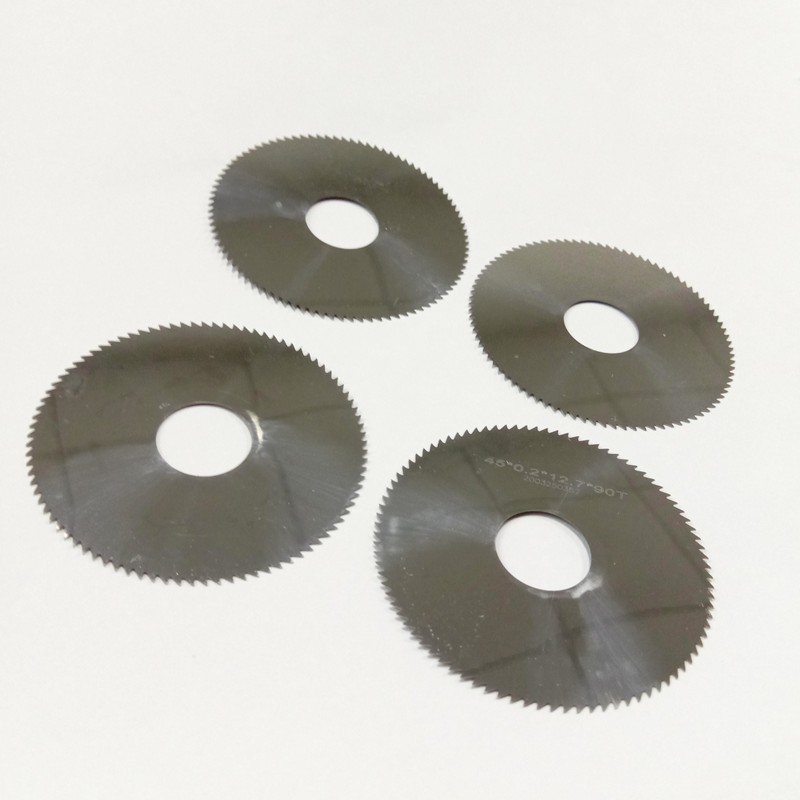

High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth

Tungsten carbide (WC) is approximately three times working life than tool steels like D2 HSS tool

Grade information
Grade
ISO
Cobalt %
Density(g/cm3)
Hardness(HRA)
Application
YG8
K30
8
14.5
89.5
The first choice for non-ferrous metal cutting
YG6
K20
6
14.95
90.5
YG6X
K10
6
14.95

91.5
suitable for Chilled alloy cast iron, heat-resistant alloy steel ,common castiron
YL10.2
K35
10
14.5
92.5
For all kinds of metal working
YS2T
K30
10
14.5
92
YG12X

12
14.6
89.5
cutting filter,ciga. etc

Key Benefits

1. Virgin Raw Material
2. Super precision, better physical appearance
3. Clean and neat cut, no burr
4. Anti wear resistance, long working lifetime







carbide circular saw blade
Raw material: solid tungsten carbide
Specification: OD45*ID12*0.2mm with 90 teeth standard/customized
Workpiece:
1. For cutting stainless steel and high manganese steel
2. for roughing, semi-finishing of chilled cast iron
3. for cutting semi-finishing and finishing of hardened steel, alloy steel
Advantage:
1. High wear resistance
2. High bending strength
3. Better impact,cutting speed and shock resistance higher than JR6A
Product Name
Tungsten carbide disc
Size
45*12*0.2mm; 80*40*1.0mm; or according to customers' request
Grade
YG6X, YG6, YG8, YG10X, YL10.2, YS2T etc
Feature
Long lifetime with competitive price
Application
For cutting paper, rubber, plastic, soft metal, wood, MDF, etc.
Various dimension for reference(We can manufacture based on your drawing)
Type
Out diameter(mm)
Inner diameter(mm)
Thickness（mm）
12*6*T
12
6
0.6-4.5
13*6*T
13
6
0.6-4.5
16*6*T
16
6
0.6-4.5
22*10*T
22
10
0.6-4.5
25*12*T
25
12
0.6-5.5
32*10*T
32
10
0.8-5.5
40*10*T
40
10
0.8-6.0
45*13*T
45
13
0.8-6.0
52*24.5*T
52
24.5
0.8-6.0
55*16*T
55
16
0.8-6.0
60*19*T
6.
19
0.8-6.0
63*17*T
63
17
0.8-7.0
70*22*T
70
22
0.8-7.0
75*22*T
75
22
0.8-7.0
80*22*T
80
22
0.8-7.0
86.5*21.5*T
86.5
21.5
1.0-7.0
90*22*T
90
22
1.0-7.0
100*22*T
100
22
1.0-7.0
125*22*T
125
22
1.0-7.0
140*40*T
140
40
0.55-6.0
200*70*T
200
70
3.0-4.5
250*70*T
250
70
3.0-4.5
250*95*T
250
95
3.0-4.5
Production Process:
Powder preparing-Pressing-Sintering-Processing- Finishing
Advantages of Our Carbide Circular Blade
1. With sub-micron grain size
2. With strict tolerance extent control
3. Enjoy excellent wear resistance & high toughnees
4. Have very good thermal & chemical stability
5. A special Hot Isostatic Press (HIP) process provides quality improvement to the finished products to ensure material reliability
6. Sharp cutting edge
7. Good wear-resistant,long service life
8. Exclusive cutting blade for wood,PCB board,circuit boat,plastic and so on
9. Professional package,protecting the edge from damage
10. We can make carbide disc cutter with teeth or without teeth,blanks or ground.
Our packing and shipment

step 1, wrapped carbide blades in paper to avoid carbide blade be broken
step 2, put the carbide blade in inner small carton box
step 3, put the inner box into outer carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape

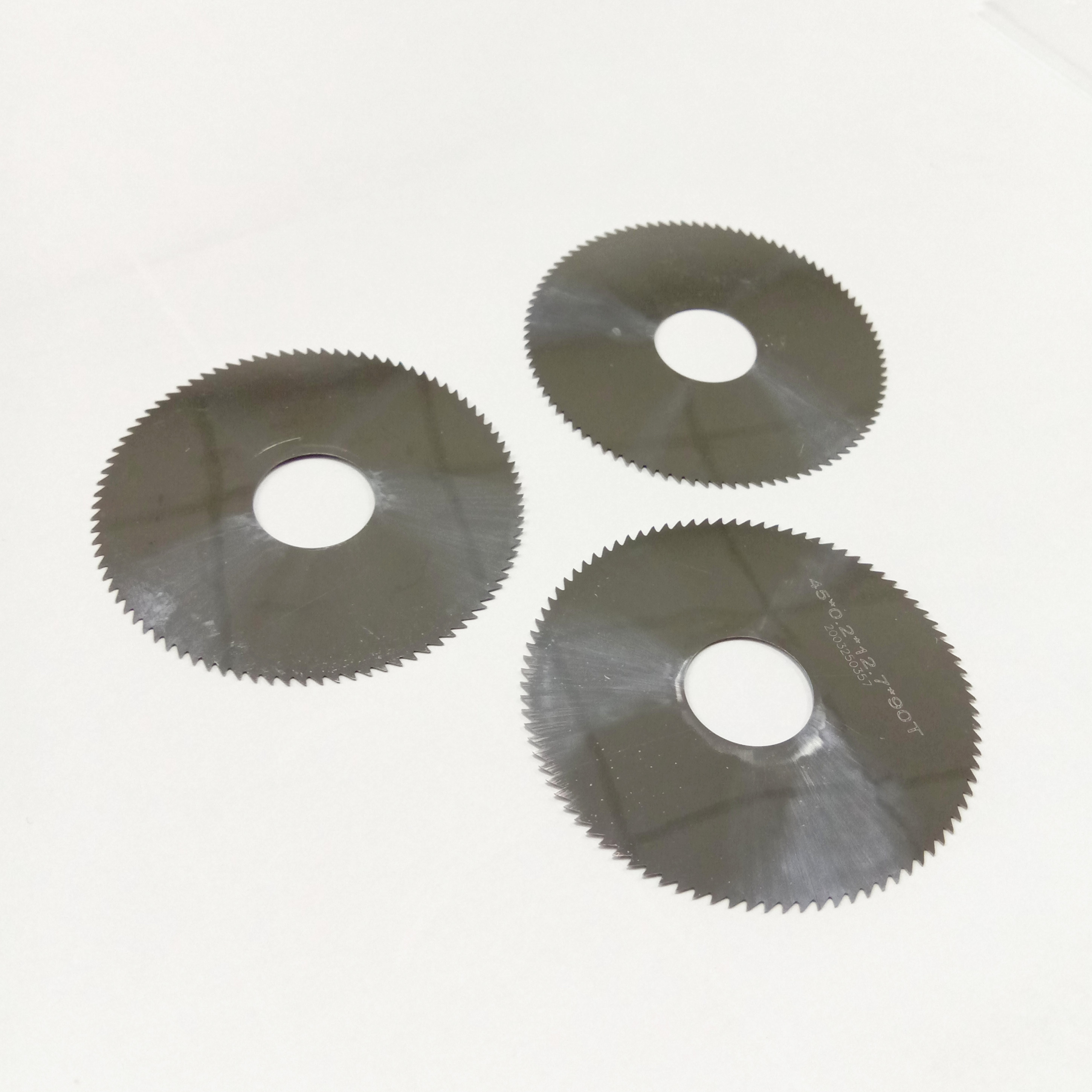

High Cutting Performance Circular Cemented Carbide Disc With 90 Teeth(图1)
