PCB Cutting Tungsten Carbide Circular Blade Various Sizes Optional

PCB Cutting Tungsten Carbide Circular Blade Various Sizes Optional

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-C46
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-18days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcomr to contact me

Shirley Pan

Email:shirley@chinahardalloy.com

Mobile:+8617773379950

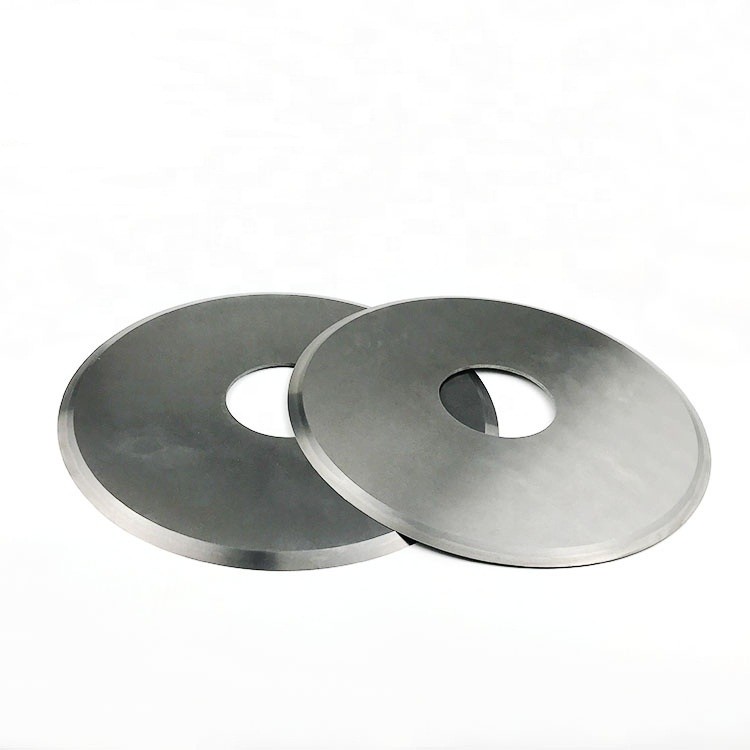

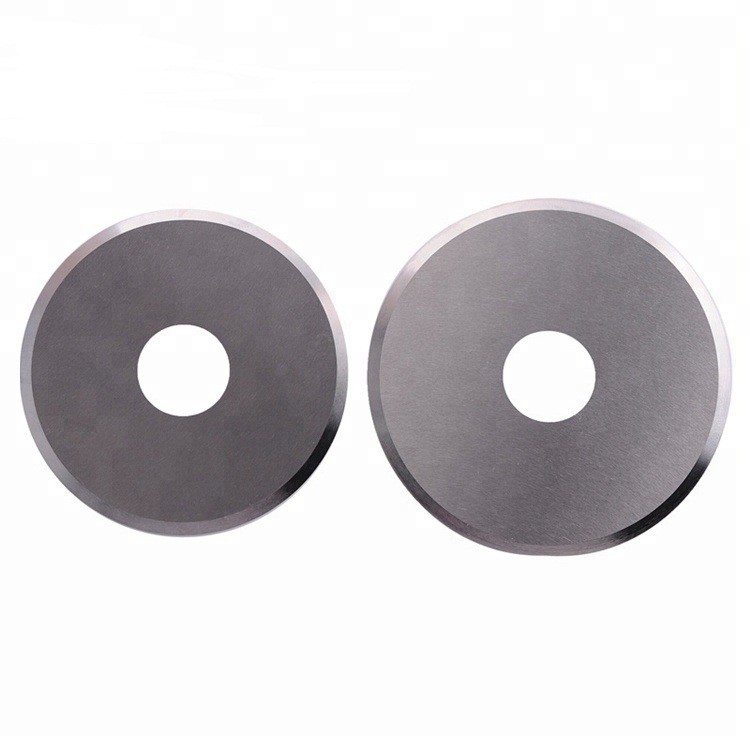

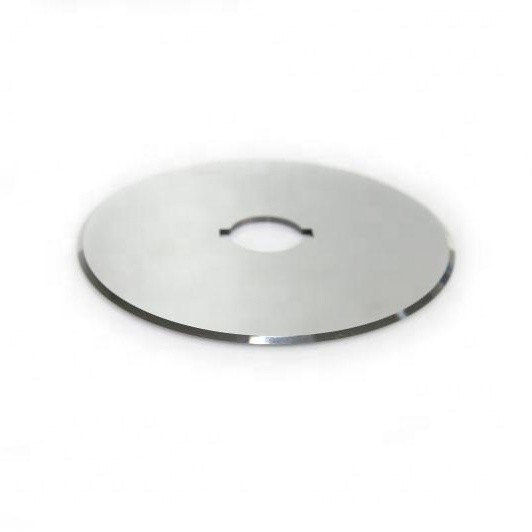

PCB Cutting Tungsten Carbide Circular Blade Various Sizes Optional

Description

1. Sharp cutting edge

2. Good wear-resistent,long service life

3. Exclusive cutting blade for wood,PCB board,circuit boat,plastic and so on

4. Professional package,protecting the edge from damage

5. We can make carbide disc cutter with teeth or without teeth,blanks or ground

6. Process according to customer's different request

7. Samples available

Product Name	Tungsten carbide circular blade
Size	4580.3mm; 80401.0mm; or according to customers' request
Grade	YG6X, YG6, YG8, YG10X, YL10.2, YS2T etc
Feature	Long lifetime with competitive price
Application	For cutting paper, rubber, plastic, soft metal, wood, MDF, etc.
Main Market	Western Europe, Southeast Asia, Domestic Market etc.

Various dimension for reference(We can manufacture based on your drawing)

Types of discs unit:mm
TYPE	D	d	S
Φ12×Φ6×S	12	6	0.6-4.5
Φ13×Φ6×S	13	6	0.6-4.5
Φ16×Φ6×S	16	6	0.6-4.5
Φ22×Φ10×S	22	10	0.6-4.5
Φ25×Φ12×S	25	12	0.6-5.5
Φ32×Φ10×S	32	10	0.8-5.5
Φ40×Φ10×S	40	10	0.8-6.0
Φ45×Φ13×S	45	13	0.8-6.0
Φ53×Φ13×S	53	13	0.8-6.0
Φ52×Φ24.5×S	52	24.5	0.8-6.0
Φ53×Φ24.5×S	53	24.5	0.8-6.0
Φ55×Φ16×S	55	16	0.8-6.0
Φ58×Φ22×S	58	22	0.8-6.0
Φ60×Φ19×S	60	19	0.8-7.0
Φ63×Φ17×S	63	17	0.8-7.0
Φ70×Φ22×S	70	22	0.8-7.0
Φ75×Φ22×S	75	22	0.8-7.0
Φ80×Φ22×S	80	22	0.8-7.0
Φ83×Φ21×S	83	21	0.8-7.0
Φ86.5×Φ21.5×S	86.5	21.5	1.0-7.0
Φ90×Φ22×S	90	22	1.0-7.0
Φ100×Φ22×S	100	22	1.0-7.0
Φ125×Φ22×S	125	22	1.0-7.0
Φ140×Φ40×S	140	40	0.55-6
Φ200×Φ70×S	200	70	3.0-4.5
Φ250×Φ70×S	250	70	3.0-4.5
Φ250×Φ95×S	250	95	3.0-4.5
Other types be offered by customers' requirement

Some Recommended Grade for Reference

Grade	ISO	Cobalt %	Density(g/cm3)	Hardness(HRA)	Application
YG8	K30	8	14.8	89.5	The first choice for non-ferrous metal cutting
YG6	K20	6	14.95	90.5	The first choice for non-ferrous metal cutting
YG6X	K10	6	14.95	91.5	suitable for Chilled alloy cast iron, heat-resistant alloy steel , common castiron
YL10.2	K25-K35	10	14.5	91.8	For all kinds of metal working
YS2T	K30	10	14.5	92	For all kinds of metal working
YG12X		12	14.6	89.5	cutting filter,ciga. etc.

More dimension and grades please kindly contact us. We have various grade and size to meet you.

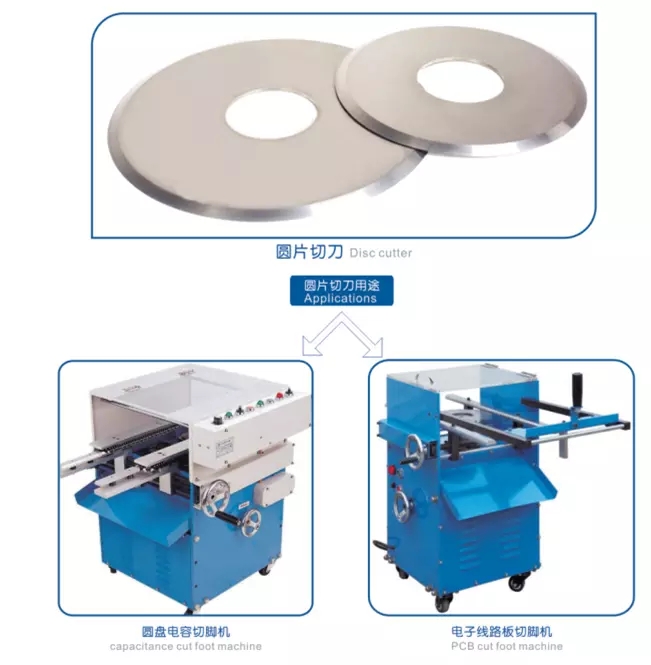

Application of tungsten carbide circular blade

carbide circular blades for Slitting Corrugated Board,

carbide rotary blade for rubbers cutting

carbide blade for battery industry

carbide blades for Tobacco Machines

Carbide circuit board cutting knife

carbide blades for metal cutting

carbide knife for Rewinder machines

carbide blades for chemical fiber cutting

carbide blades for printing industry

carbide milling cutter for paper industry

carbide blades for other special range

Production Process:

Powder preparing-Pressing-Sintering-Processing- Finishing

Advantages of Our Carbide Circular Blade

1. With submicron grain size
2. With strict tolerance extent control
3. Enjoy excellent wear resistance & high toughnes
4. Have very good thermal & chemical stability
5. A special Hot Isostatic Press (HIP) process provides quality improvement to the finished products to ensure meterial reliability

Our packing

step 1, wrapped carbide blades in paper to avoid carbide blade be broken

step 2, put the carbide blade in inner small carton box

step 3, put the inner box into outer carton and fill the carton with foamed plastic

step 4, wrap the carton with packaging tape
