Tungsten carbide rod

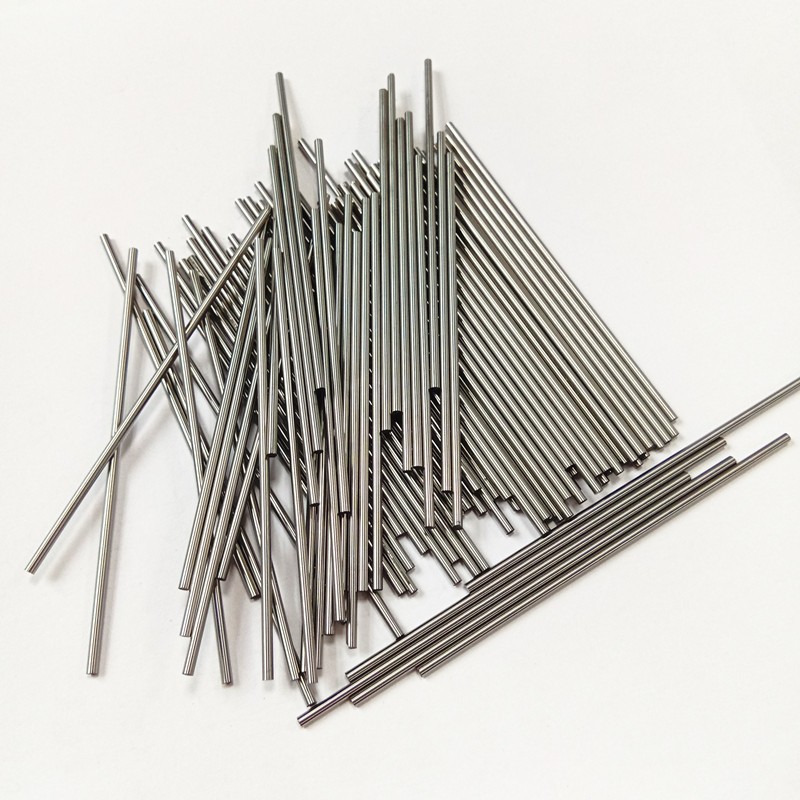

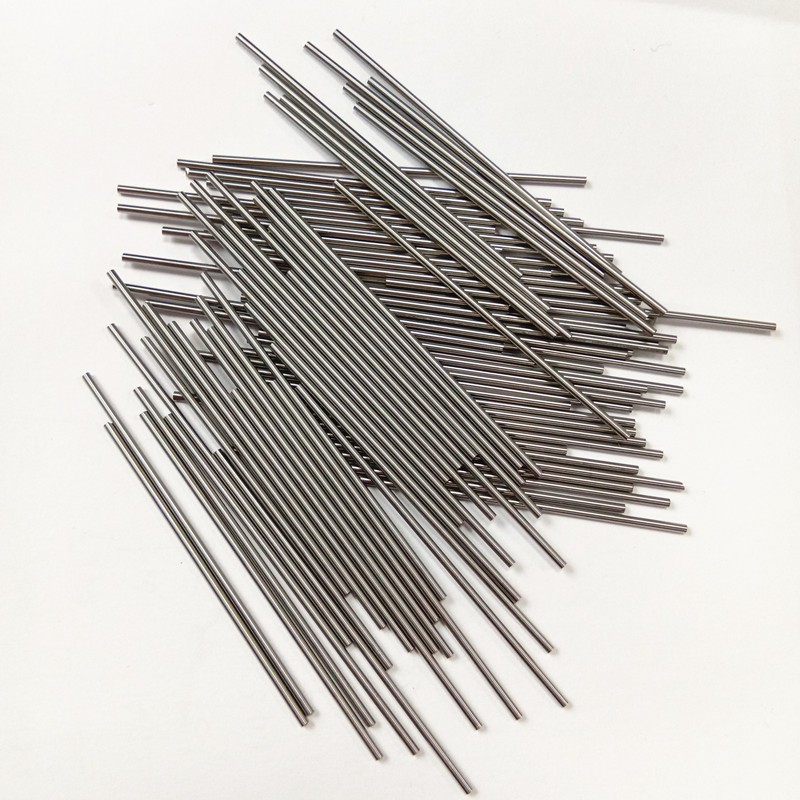

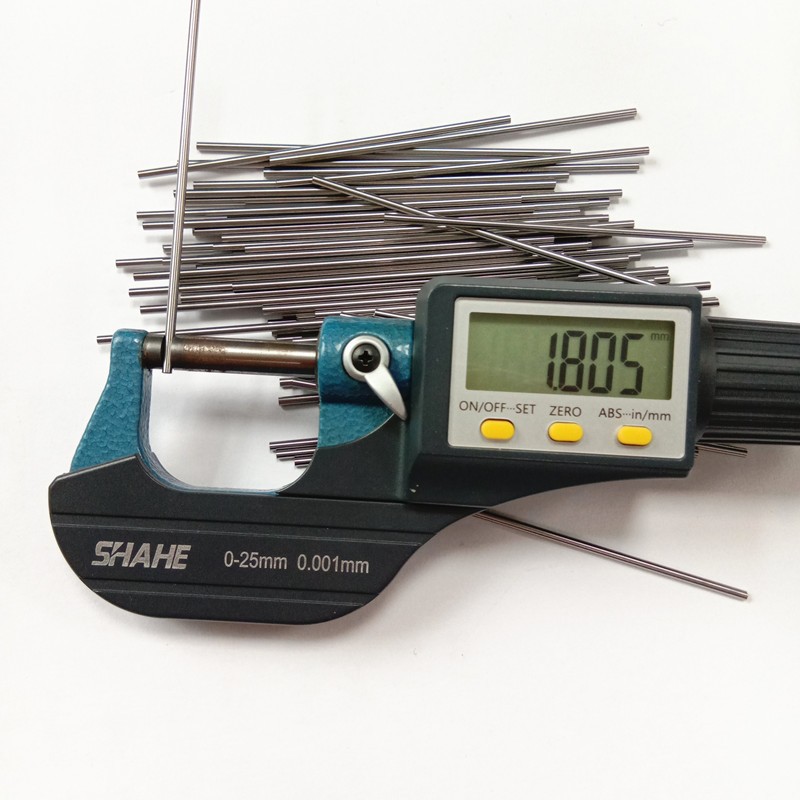

Dia 1.8*80mm H6 Ground Tungsten Carbide Rod With Polished For Endmills

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-R470
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile: +8617773379950

Dia1.8*80mm H6 Ground Tungsten Carbide Rod With Polished For Endmills

H6 Ground Cemented Carbide Rods Advantages:

1. Superior heat stability and Anti-deformation in high temperature.

2. Fine thermal shock resistance and High thermal conductivity.

3. Excellent Oxidation control ability and Strong anti-corrosion in high temperature.

4. Good corrosion resistance from Chemical and High-wearing feature.

5. Long usage lifetime.

H6 Ground Cemented Carbide Rods Application:

Cemented Tungsten carbide has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness). It can be used to cut cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc., and make drilling tools, mining tools, wear parts, precision bearings, nozzles and metal molds, etc.

Tungsten Carbide Rod Features

- Manufactured with good quality tungsten carbide material

- Dimension: Dia10/12/14*100/150/200/330mm any length can be cut

- Tolerance: Ground h6/h7..., blank(+0.3/0.5mm) based on requirement

- Type: Solid round bar

- Performance: good wear resistance and toughness, corrosion resistance, high temperature resistance,stable chemical properties.

- Main application: is for making PCB drills, drills,endmills and reamers, wear parts, and stamping dies, measuring tools.
- Anti-deformation and deflection.
- Produces tungsten carbide rods with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

- Customized: accepted

Our common size models:

Size range(DiaXL mm)	Tolerance
Size range(DiaXL mm)	D(blank, mm)	D (ground, mm)	L(mm)
Dia(0.4-5)x330	+0.3/+0.4	h6/h7	0/+2
Dia(6-20)x330	+0.3/+0.6	h6/h7	0/+2
Dia(21-40)x330	+0.5/1.0	h6/h7	0/+3
We are able to help you customized various diameter and length carbide rod

Some grade information for Reference

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Performances &applications recommended
YL10.2	14.5	92.5	3800	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X	14.9	92	1900	With fine grain size,Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YS2T	14.45	92.5	2800	Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi8	14.6	88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.
