Tungsten carbide rod

Zhuzhou Cemented carbide tube, tungsten carbide pipe, wolfram carbide rod with bland hole

Zhuzhou Cemented carbide tube, tungsten carbide pipe, wolfram carbide rod with bland hole

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10,K20,K30
Minimum Order Quantity:10 pcs
Price:USD 45-58/kg
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Zhuzhou Cemented carbide tube, tungsten carbide pipe, wolfram carbide rod with bland hole

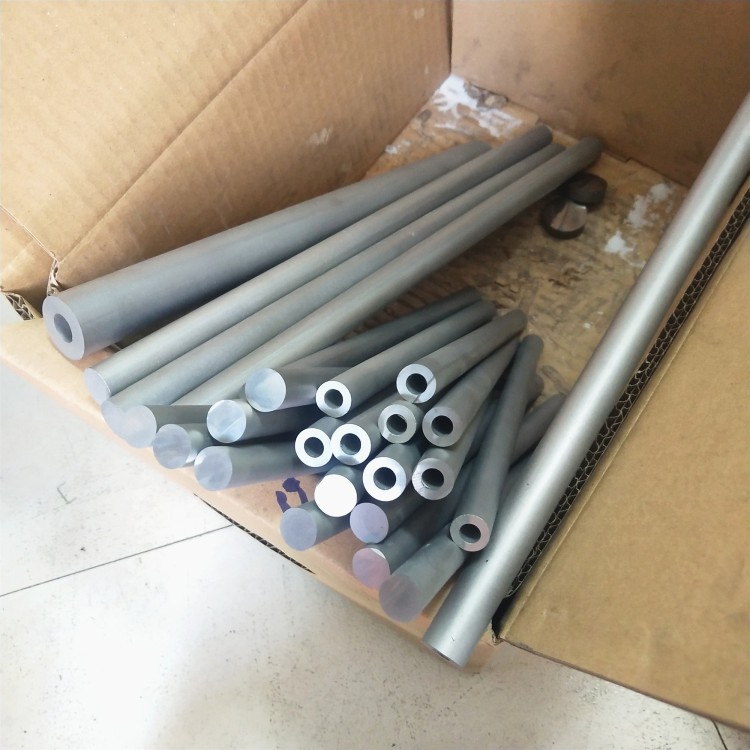

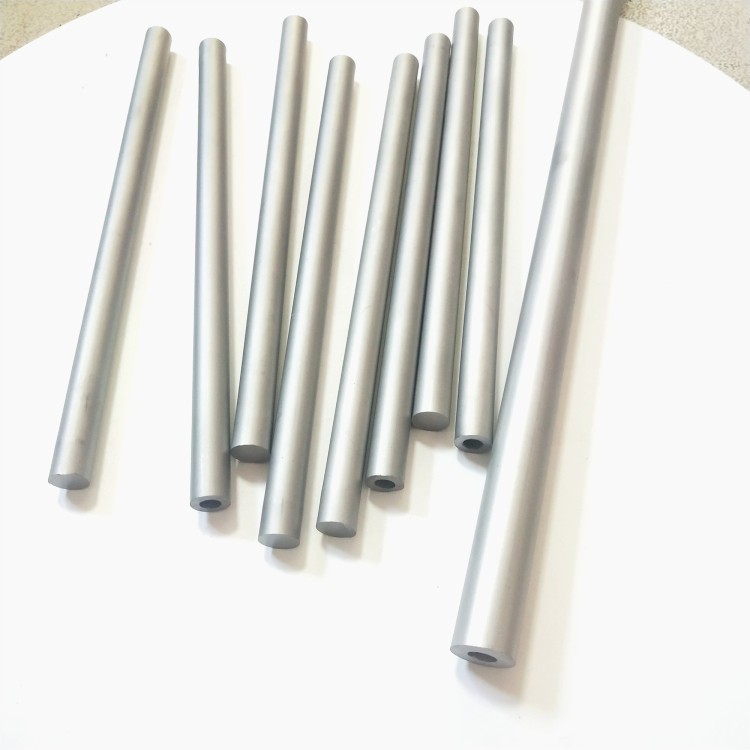

Description of tungsten carbide tube carbide rod with blind hole

Tungsten carbide tube has many different grades with different application for clients to select. The chemical composition of tungsten carbide tube with double holes is tungsten carbide + Cobalt and other carbides. The tungsten carbide tube with double holes is usually made into end mills for cutting or made into drill bits for mining.

Application of tungsten tube

Tungsten carbide tube is widely used for processing cast iron, non-ferrous metal, steel, heat resistance alloy.Tungsten carbide tube has high hardness and wear resistance and long life working time. We recommeded use tungsten carbide tube for drill bits and end mills.

Grade of tungsten carbide tube

ISO Code	Grain Size	Density (g/cm3)	Hardness (HRA)	T.R.S(Mpa)
K05-K10	0.4	14.8	94	3800
K20-K40	0.8	14.5	91.5	3900
K05-K10	0.6	14.3	92.3	3800
K20-K40	0.4	14.1	92.5	4200

Cemented carbide rods blanks with one central coolant hole


Type	D(mm)	Tolerance	d(mm)	Tolerance	Deviation of holes position≤(mm)	L(mm)	Tolerance
BΦ4.0×Φ1.0×330	4.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ5.0×Φ1.0×330	5.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ5.0×Φ1.5×330	5.0	+0.2/+0.6	1.5	±0.15	0.2	330	0/+5
BΦ6.0×Φ1.0×330	6.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ6.0×Φ1.5×330	6.0	+0.2/+0.6	1.5	±0.15	0.2	330	0/+5
BΦ8.0×Φ1.0×330	8.0	+0.2/+0.6	1.0	±0.15	0.25	330	0/+5
BΦ8.0×Φ1.5×330	8.0	+0.2/+0.6	1.5	±0.15	0.25	330	0/+5
BΦ9.0×Φ1.0×330	9.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ10.0×Φ1.0×330	10.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ10.0×Φ2.0×330	10.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ11.0×Φ1.0×330	11.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ12.0×Φ1.0×330	12.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ12.0×Φ2.0×330	12.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ14.0×Φ2.0×330	14.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ16.0×Φ2.0×330	16.0	+0.4/+0.8	2.0	±0.2	0.25	330	0/+5
BΦ16.0×Φ3.0×330	16.0	+0.4/+0.8	3.0	±0.25	0.25	330	0/+5
BΦ18.0×Φ3.0×330	18.0	+0.4/+0.8	3.0	±0.25	0.3	330	0/+5
BΦ20.0×Φ3.0×330	20.0	+0.4/+0.8	3.0	±0.25	0.3	330	0/+5

20.0≤Dia ≤40.0 are available on request

For Advantage of our tungsten carbide rod

1.Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life
than the normal one.
2. Using ultrafine grain size of tungsten carbide powder to produce,Hardness can reach to HRA93.6, Bending strength can reach to
4000N/mm²
3.Tolerance can reach to ±0.001mm, straightness can reach to ±0.02mm

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture. We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.

We always keep good relationship with our clients, enhancing communication and cooperation to each other, trying to create WIN-WIN cooperation.

Our Service

OEM Manufacturing welcome: Product, Package...
Sample order
We will reply you for your inquiry in 24 hours.
after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
