Tungsten carbide rod

YL10.2 Grade Tungsten Carbide Rod , Round Shape Cemented Carbide Bar

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-R478
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pam(Ms.)

Email:shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)

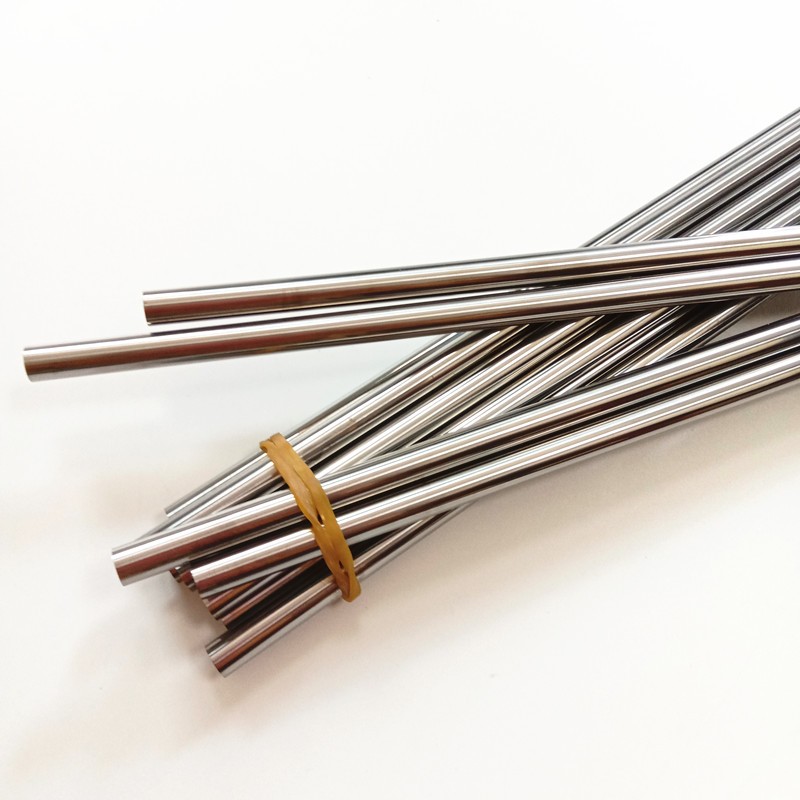

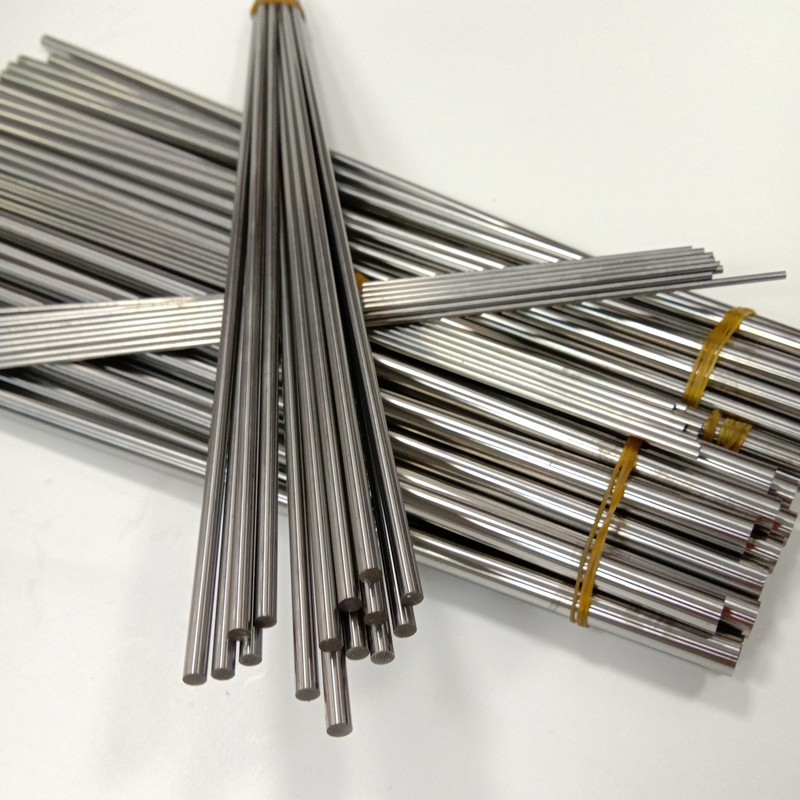

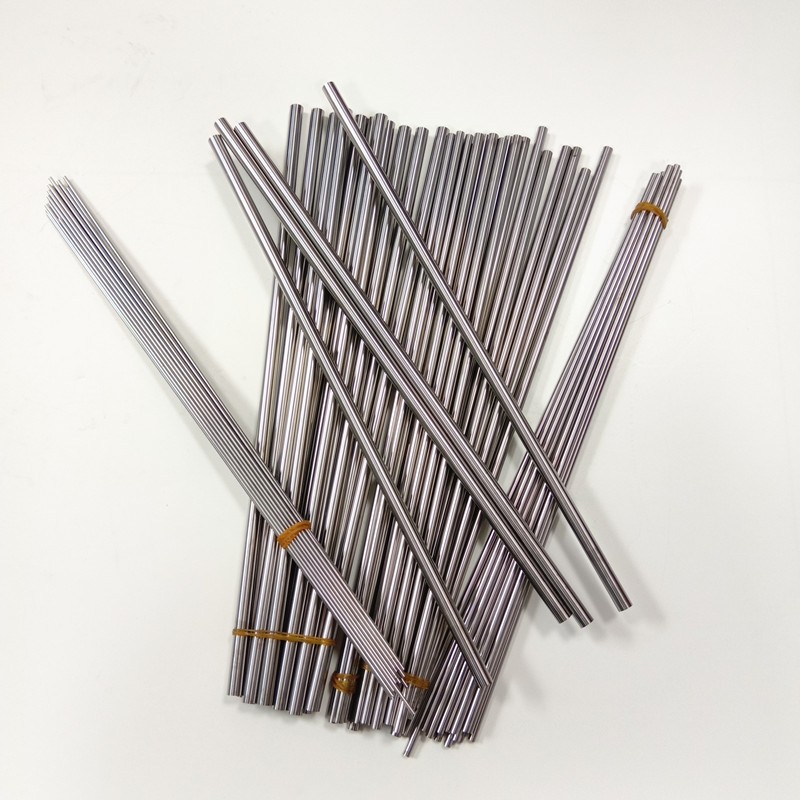

YL10.2 Grade Tungsten Carbide Rod , Round Shape Cemented Carbide Bar

We can offer a lot of type tungsten carbide rods:

1. un-gound, finish-ground round rod

2. Carbide rods with one single centralhole

3. Fixed length Carbide Rod

4. Random Length carbide rod

5. Carbide rods with chamfered end.

Description and Application

Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower.

Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new customers.

Application Industries:

- packaging

- Paper

- Non-ferrous metal processing

- printing

- Mechanical

- Defense industries

- Chemical

- Petroleum

- Metallurgy

- Electronic

Products Specification:

Dimension:	Dia0.7/0.8/1/2/3*330mm, various size
Material:	100% virgin tungsten carbide
Grade:	YL10.2
Hardness:	HRA92
Grain Size:	0.6-0.8μm
Surface:	ground
Precision:	based on your requirement
Features:	durable, high performance, no stick for cutting tools
Application:	Metal Tool Parts

Common Unground Dimension and Tolerance

Dimension	Tolerance of diameter(mm)	Tolerance of length(mm)
ZF-Φ1.0×330	+0/+0.3	+0/+2
ZF-Φ4.0×330	+0.3/+0.5	+0/+5.0
ZF-Φ6.0×330
ZF-Φ8.0×330
ZF-Φ10.0×330
ZF-Φ10.0×330	+0.30/+0.70	+0/+5.0
ZF-Φ12.0×330
ZF-Φ14.0×330
ZF-Φ16.0×330
ZF-Φ18.0×330	+0.40/+1.0	+0/+5.0
ZF-Φ20.0×330
ZF-Φ22.0×330
ZF-Φ24.0×330
ZF-Φ26.0×330
ZF-Φ28.0×330
ZF-Φ30.0×330
ZF-Φ32.0×330	+0.7/+1.5	+0/+5.0
ZF-Φ34.0×330	+0.7/+1.5	+0/+5.0
We are able to help you customized various diameter and length carbide rod. gound or unground both available

Some grade information for Reference

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Grain Size(μm)
YL10.2	14.5	92.5	3800	0.6-0.8
YG6	14.9	89.5	2150	0.8-1.2
YG8	14.6	89	2320	0.8-1.2
YG11	14.4	87.5	2260	0.8-1.2
YG15	14.1	86.5	2400	0.8-1.2
YS2T	14.45	92.5	2800	0.6-0.8
YNi8	14.6	88.5	1710	0.8-1.2

Our advantage of tungsten carbide rod

* ISO 9001:2015 Certification

* Use 100% tungsten carbide raw material

* Advanced technology , automatic pressing , HIP sintering

* with over ten year experience

* And precision grinding

* the tolerance of polish and ground can be +0.005/-0.005mm

* Full ability to accept OEM & ODM orders

* Stringent quality control and quality consistency.

* Strict inspection for quality of raw material and finished products

We Guarantee:

1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. OEM and ODM are accepted as well.

7. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for consistent performance capacity of your tools.
