Tungsten Carbide Nozzle

  • Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm
  • Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm
  • Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm
Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm

Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head 7.14x1.02x76.2mm

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-N85
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcome to contact me

Shirley Pan(Ms.)

Email: shirley@chinahardalloy.com

Mobile:+8617773379950


7.14x1.02x76.2mm Abrasive Solid Tungsten Carbide Nozzle For Water Jet Cutting Head

Carbide water jet nozzle made from high hardness tungsten carbide, the life time is 10 times longer than ceramic nozzles. They are good for cleaning, even small areas: weldments, grillwork, and railings. It can be used with water from a tap or with rust inhibitors introduced through any simple pump, no special equipment is required. If your needed a non-standard nozzle, we also can produce it for you.

Unique advantage of tungsten carbide water jet nozzles

1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.

2. Super oxygen-resistant

3. Using HIP sintering which can increase the performance of carbide greatly.

4. Precision Ground and polished

Detail information:

1. Size: Φ7.14*Φ1.02*76.2mm( customized is also available)

2. Material: tungsten carbide(WC+Co)

3. Hardness: HRA92.5-93

4. Application: waterjet cutting head

Physic character of tungsten carbide water jet nozzles

1. Long life span: 80 hrs for finish grinding, 140hrs for rough grinding

2. Density:15.45g/cm3 —15.60 g/cm3

3. Hardness:2000Mpa-2400Mpa

4. the tolerance of polish and ground can be +0.005/-0.005m

Application of tungsten carbide water jet nozzles

1.Metal cutting

2.Ceramic cutting

3.Stone cutting

4.Glass cutting

Recommen Grade information

GradeDensity(g/cm3)Hardness(HRA)TRS(MPa)grain SizeComposition
YG6X14.959218000.6um6%Co+94% WC
YG614.959019000.8-1.2um6%Co+94% WC
YL10.214.692.840000.6-0.7um10%Co+90% WC
YG10X14.59335000.4-0.6um10%Co+90% WC

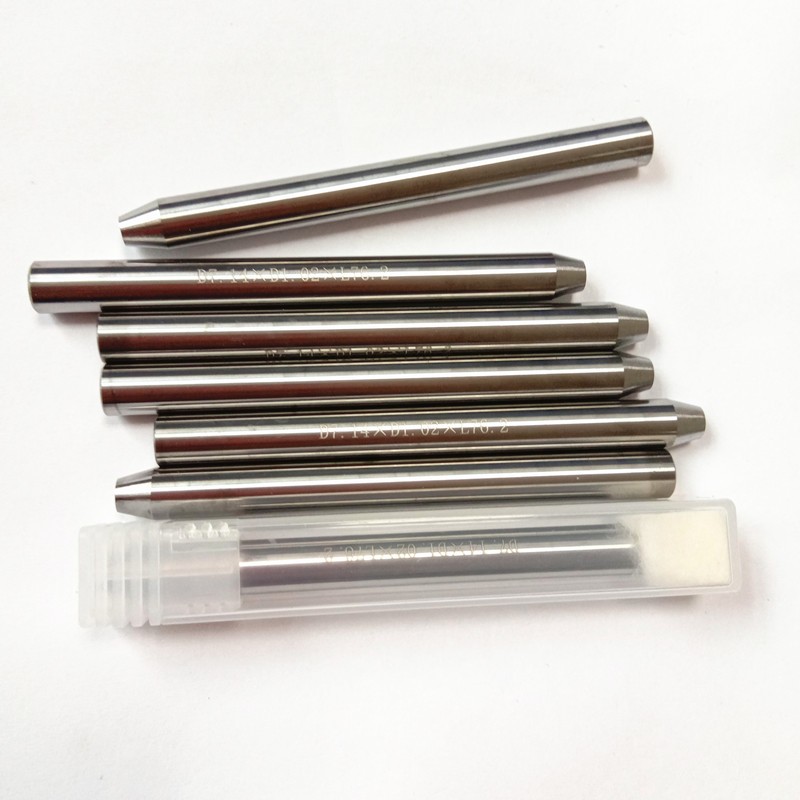

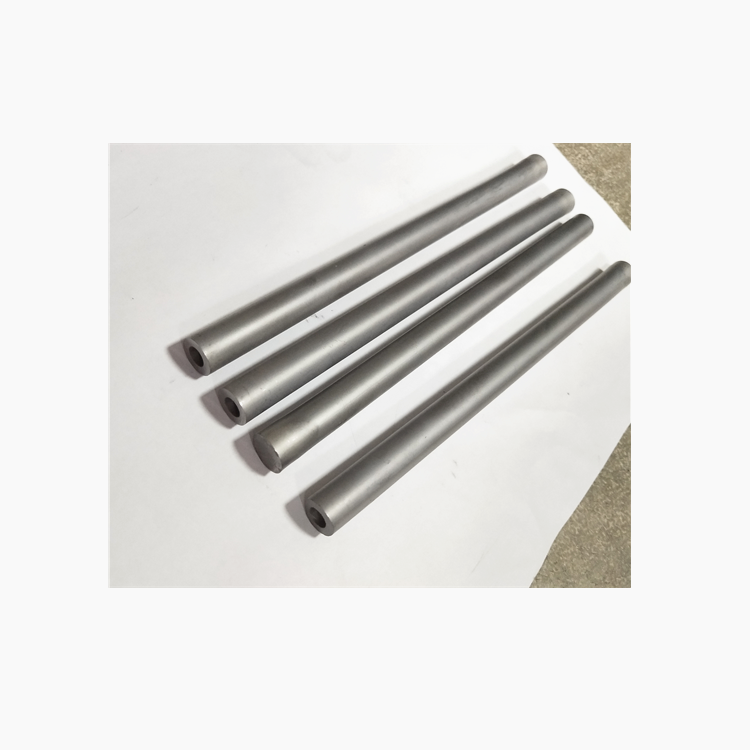

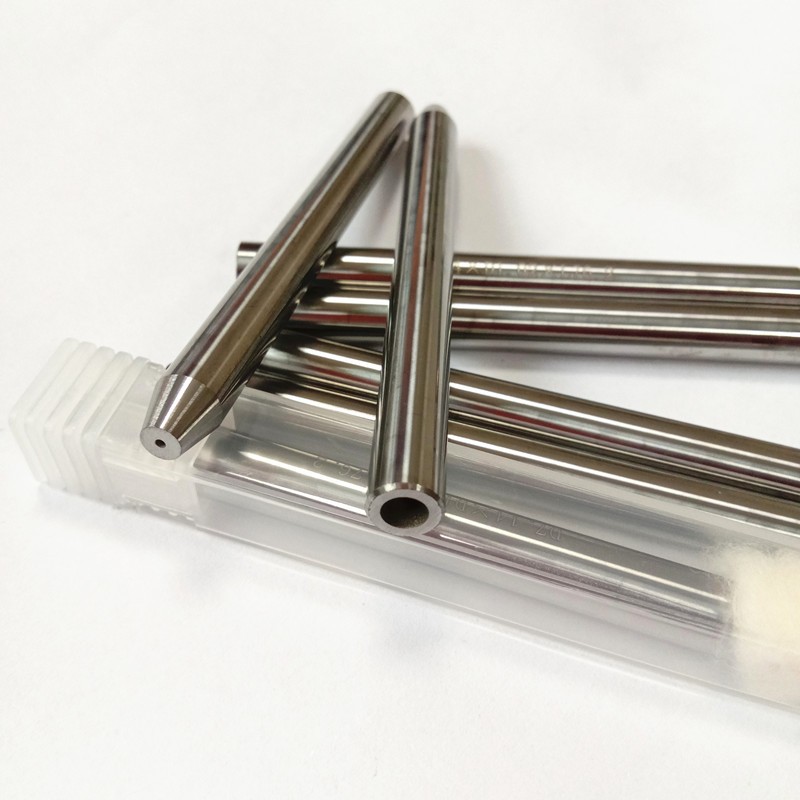

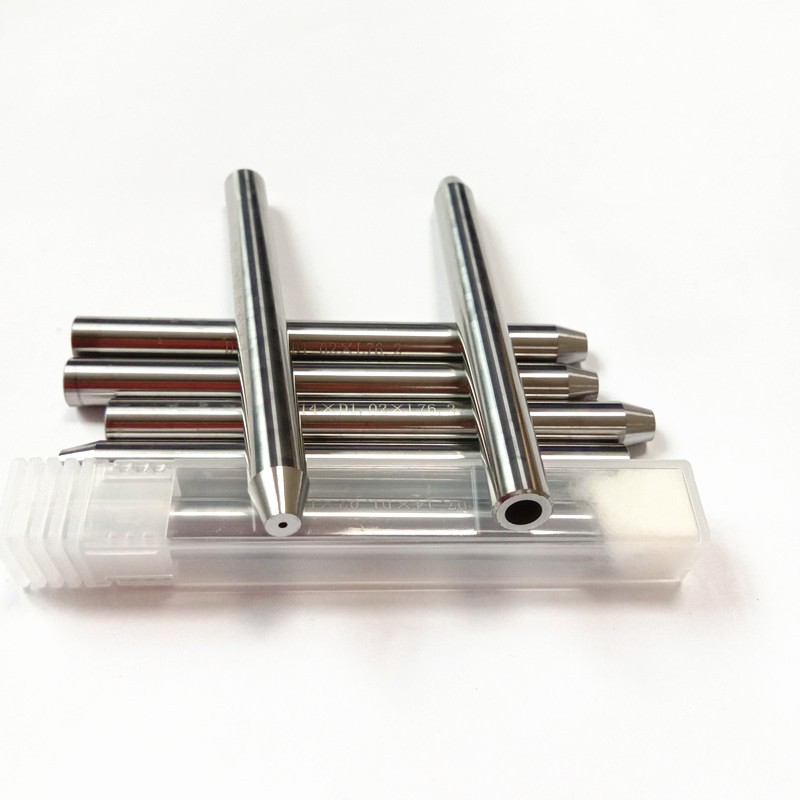

Products Show:


waterjet nozzle 2.jpgwaterjet nozzle.jpg


Advantages of Tungsten Carbide Nozzle

Cost effective

Good performance property of abrasive resistance

corrosion resistance

stable property performance and long service life.

Customized nozzles are available according to your drawing and application.


Our Service:

We can according to customers’ requirement and drawings or sample to process all kinds of fine products, also can help customer in design.


Packing & Shipment

Packing outside carton or plywood case with inner packing

By Express DHL, TNT, FEDEX, UPS, ARAMEX, etc.

We can arrange shipment according to our customers’ requests.
