Tungsten Carbide Drill Blanks

  • Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage
  • Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage
  • Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage
Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage

Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R259
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcome to contat me at any time

Shirley Pan

Email:  shirley@chinahardalloy.com

Mobile:+8617773379950

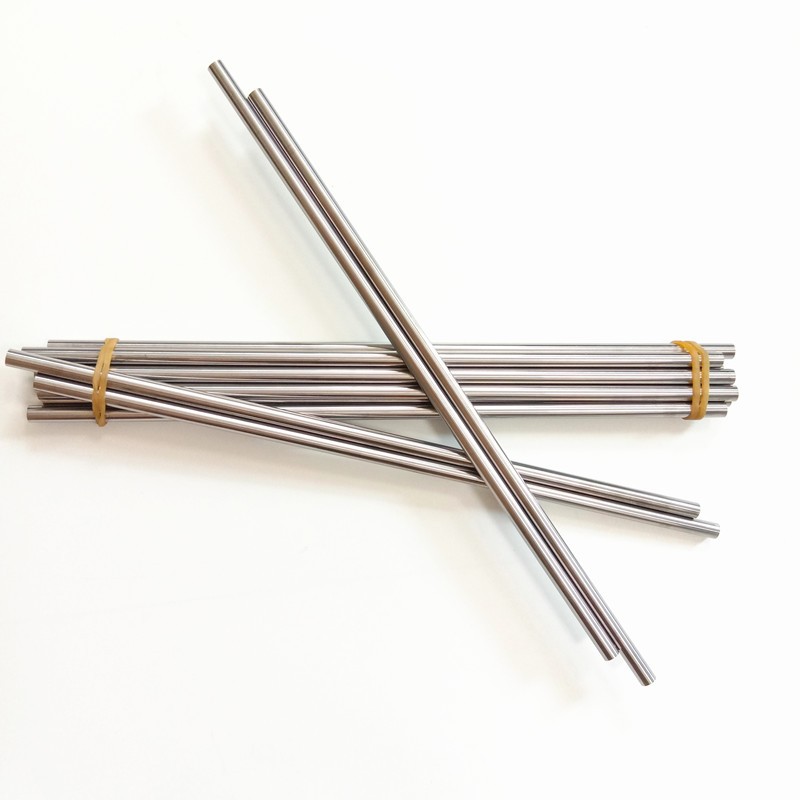

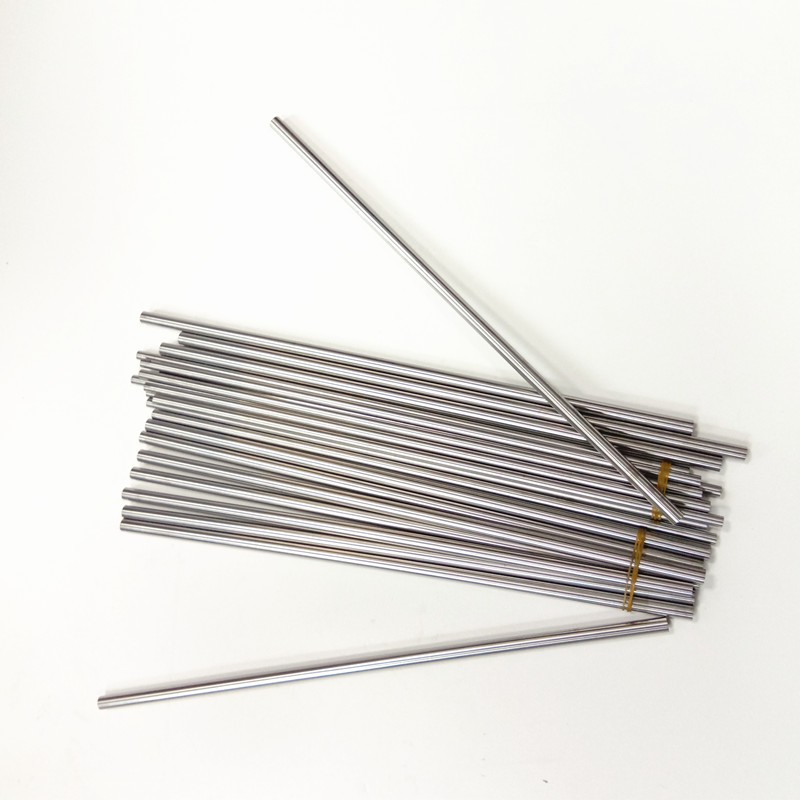

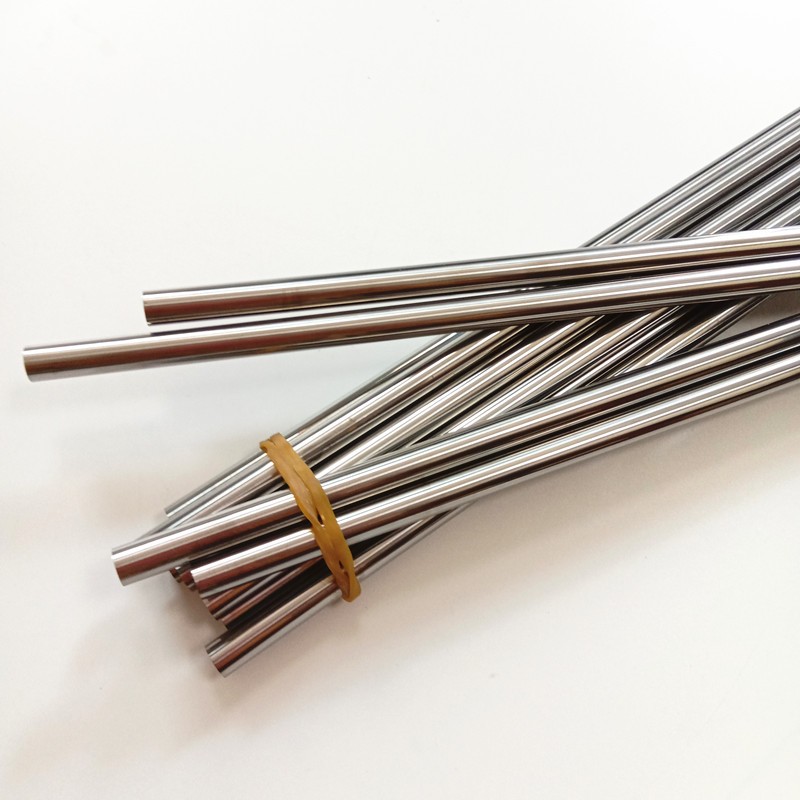

Durable Tungsten Carbide Rod Blanks Metal Cutting Tools Making Usage

we offers a wide range of custom and standard cutting tool carbide blanks

Our tungsten carbide rod blanks are available in a wide selection of micro-grain and sub-micron grades that are engineered to stand up to thermal extremes, vibration, and impact wear. Our products are sinter-HIP processed for ISO 900:2015 certified manufacturing facilities.
We offer:

  • pressed and extruded unground, ground and polished rods with or without chamfers

  • rod products that can be ground to h6 tolerances

  • a variety of grades that provide exceptional wear and impact resistance

  • grades for use in end mills, reamers, drills, countersinks, engraving tools, routers, and other rotary tools

  • grades for use in a broad range of applications in almost any material

Cut-to-Length (CTL) Rod
We have one of the largest and most complete lines of ground CTL selections in the industry. Premium grades, standard and micro-finished surface finish, and h6 ISO diameter tolerances in inch and metric lengths and diameters. Special preform features are available, including male center, female center, ballnose, step reduction, and shaped points.

Solid Rods and Rods with Coolant
Kennametal manufactures 12” (330mm) length rods with single hold, straight two-hole, in diameters from 2mm to 40mm. High-performance gun drill rod blanks are available.

Common size list

GrindingBlank
DLDL
(mm)Tol.(mm)Tol.(+1mm)(mm)Tol.(mm)Tol.(+3mm)
0.7h63301+0.2330
2h63302.2+0.2330
3h63302.7+0.2330
3.175h63303.2+0.2330
4h63303.7+0.2330
5h63304.2+0.2330
6.35h63304.7+0.2330
7h63305.2+0.2330
8h63305.7+0.2330
9h63306.2+0.2330
10h63306.7+0.2330
12h63307.7+0.3330
12.7h63308.2+0.3330
13h63308.7+0.3330
14h63309.2+0.3330
15h63309.7+0.3330
16h633010.2+0.3330
17h633010.7+0.3330
18h633011.2+0.3330
20h633012.2+0.3330
25h633014.3+0.3330
30h633016.2+0.3330

For more size information, please kindly email or call us.For length, we can cut to any size

Production Info.

1. Hardness can reach to HRA 94 max, TRS ≥4000 N/mm²

2. Various dimension of the rods can be supplied, also can customized as your requirements.

3. Blank rods and polished rods  available

4. The minimum diameter is φd 0.3mm and the tolerance can reach to ±0.001mm.

5. Common diameter from 1mm---35mm

6. Blank Diameter tolerance: +0.3--0.8mm; length tolerance: +0.3--1.8mm

7. Ground tolerance generally h5/h6, can based on your requirement.

Product features:

1. Using100% virgin raw material guaranteed products quality

2. Our tugnsten  carbide rods use dry isostatic pressing machine and low press sintering technology, which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

3. Inner structure are more compact and well distributed in metallographic test.

4. It can reach a mirror effect surface after accurate grinding.

5. Perfect quality control systerm: ISO9001:2015

6. customization is avaliable

Grade information
Carbide GradeZF06CZF08CZF12CZF10CSZF10CFZF10C
WC%949288909090
Co%6812101010
Grain Sizeμm0.40.40.40.40.60.8
Densityg / c m³14.8514.6514.2514.414.414.4
HardnessHRA9493.592.39392.591.5
TRSN / m m²400040003800380036003600


GradeRecommendation
ZF06CThis tungsten carbide rod is with 0.4μm ultrafine particles and CO 6%. Be suitable for processing aluminum- magnesium alloy, glass fiber, carbon fiber, wood, hard plastic, etc. Recommend for making micro tools and drills.
ZF08CThis tungsten carbide rod is with 0.4μm ultrafine particles and CO 8%. Be suitable for processing resin, wood, titanium alloy, stainless steel, copper-aluminum alloy, composite material. Recommend making high speed drill, end mill, graver and micro-drill PCB with diameter less than 0.8mm.
ZF12CThis tungsten carbide rod is with 0.4μm ultrafine particles and CO 12%. Be suitable for semi-finishing and finishing process of stainless steel, mold steel and normal titanium alloy, etc. Recommend for making all types of high speed end mills, reamers and gravers.
ZF10CSThis tungsten carbide rod is with 0 . 4 μ m ultrafine particles and CO 12 %, higher hardness . Be suitable for finishing process of stainless steel , mold steel and normal titanium alloy , etc . Recommend for making all types of high speed end
ZF10CFThis tungsten carbide rod is with 0 . 6 μ m Sub - micron particles and CO 10 %, which is widely used in cutting tools . Be suitable for rough finishing , semi - finishing and finishing of mold steel , grey cast iron , austenitic stainless steel and heat - resistant alloy . Recommend for making normal drill and end mill
ZF10CThis tungsten carbide rod is with 0 . 8 μ m Sub - micron particles and CO 10 %. Be suitable for rough finishing and semi - finishing of normal steel , cast iron and stainless steel . Recommend for making normal drill and end mill

Advantages of our cemented carbide products:

1. Made From 100% Virgin Raw Material.
2. Producted With Advanced Equipments And Perfect Workmanship.
3. All Product Go Through In-Process And Final Inspection.
4. Stable And Best Production Ability.
5. Best Quality along With Reasonable Price.

6. Size Can be Supplied on the Requirement of Clients.

Various types

Solid rods

Single Central hole rods

Double parallel hole rods

Chmafered rods

One side chamfered rods

Special customized rods

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Our packing

Based on Detail products, we use different Standard packing suitable overseas shipment.

For  carbide rod packing as following

1. outsizde carton or plywood case

2. inner packing is plastic box or small carton with cotton or paper protection

We always persuit long term business with our clients by our good quality. please do not hesitate to contact us at any time
