Solid Carbide Rods

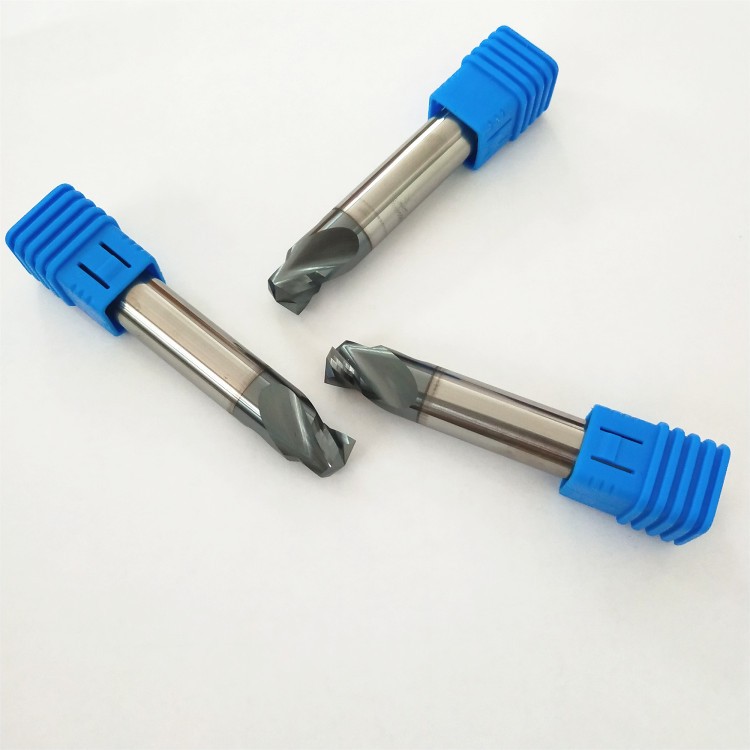

  • Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder
  • Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder
  • Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder
Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder

Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YL10.2
  • Minimum Order Quantity:10 pcs
  • Price:USD 2-15/pcs
  • Delivery Time:5-10 days
  • Payment Terms:T/T, western union, LC etc
  • Supply Ability:100000 pcs/month

Solid Tungsten carbide End mill for general machining of steel with hardness up to HRC45 shoulder


If have any more information, please feel free to contact with me.

Contact person:Ms Sharon Chen

Mobile phone:+86-18173388506

Email address:sharon@chinahardalloy.com

Website:www.wmcarbide.com




1.Fully enables running at rough machining parameters, resulting in finish surface quality.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.


1.raw material
100% virgin material carbide rods
2.coating
hrc45 is ALTin, HRC55 is Tisin, hrc63 is blue naco coating
3.oem and odm
oem brand is welcome, colorful sticker and laser logo is free

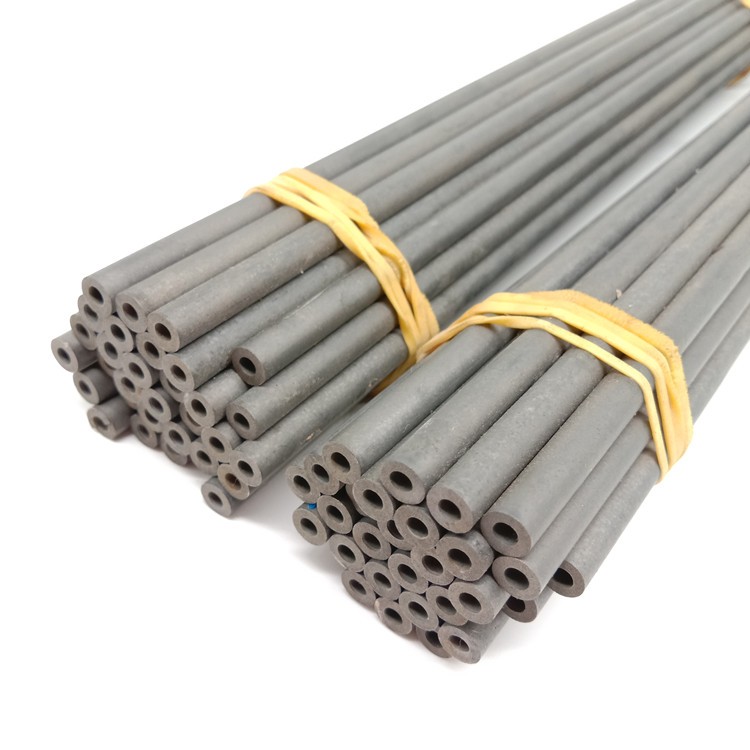

4.carbide rods
HRC45 is YG10X, hrc55 is YL10.2, hrc63 is japan carbide rods
5.coating color
hrc45 is black, hrc55 is copper, hrc63 is blue nano


Super Raw Material


Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
(Sandvik H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2

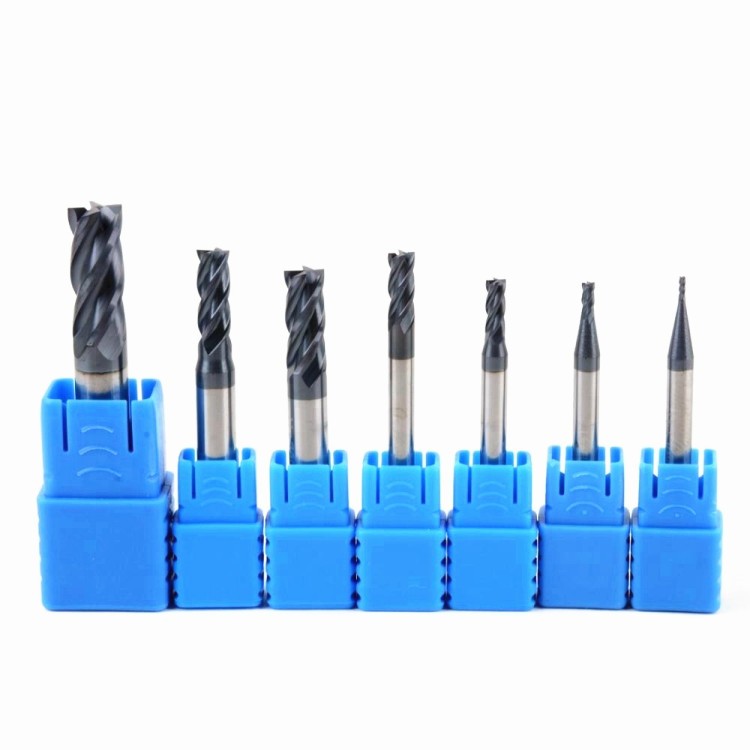

high quality 4 flute tungten carbide end mill HRC55(图1)


Specification
Flute Dia(φ)
Flute Length (C)
Shank Dia(D)
Overall Length(L)
Φ1x3Cx4x50L
1.0
3
4
50
Φ2x6Cx4x50L
2.0
6
4
50
Φ3x8Cx4x50L
3.0
8
4
50
Φ4x10Cx4x50L
4.0
10
4
50
Φ5x13Cx6x50L
5.0
13
6
50
Φ6x15Cx6x50L
6.0
15
6
50
Φ8x20Cx8x60L
8.0
20
8
60
Φ6x20Cx6x75L
6.0
20
6
75
Φ8x25Cx8x75L
8.0
25
8
75
Φ10x25Cx10x75L
10.0
25
10
75
Φ12x30Cx12x75L
12.0
30
12
75
Φ10x40Cx10x100L
10.0
40
10
100
Φ12x45Cx12x100L
12.0
45
12
100
Φ14x40Cx14x100L
14.0
40
14
100
Φ16x40Cx16x100L
16.0
40
16
100
Φ18x40Cx18x100L
18.0
40
18
100
Φ20x45Cx20x100L
20.0
45
20
100
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.high quality 4 flute tungten carbide end mill HRC55(图2)
