Solid Carbide Rods

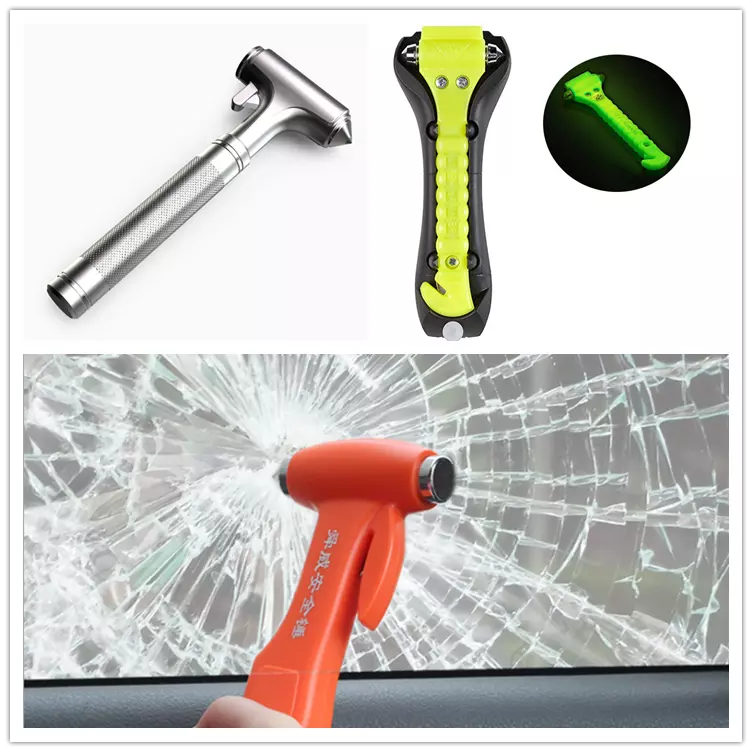

  • Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass
  • Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass
  • Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass
Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass

Customize high hardness tungsten carbide tips, cemented carbide-tipped center for breaking glass

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG6, YG8, YG15
  • Minimum Order Quantity:100 pcs
  • Price:USD 45-55/kg
  • Delivery Time:5-10 days
  • Payment Terms:T/T, western union, LC etc
  • Supply Ability:10000 kg/month

Customize high hardness tungsten carbide  tips, cemented carbide-tipped center for breaking glass


Description and Application
Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a
Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower.  Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy,  titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products  have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new  customers.


Products Specification:
Dimension:
Dia 3mm, 4mm, till 25mm  with length 5mm, 8mm, 10mm, till 330mm, cut to length
Cutting amgles:
30°, 45°, 60°, 90°, 120°. Or Based On Requirement
Material:
100% virgin tungsten carbide steel
Grade:
YL10.2
Hardness:
HRA92
Composition:
10%Co+90%WC
Grain Size:
0.6um
Surface:
unground
Features:
durable
high pwear resistance
Replaceable
Very Sharp Point
Create Fine Edge
Application:

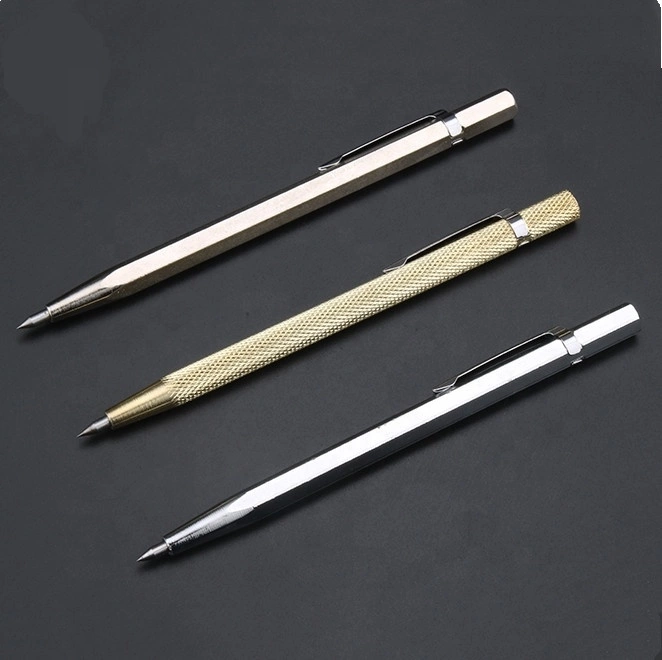

Assembling On Tool Bit, Engraving or Scribing On Very Hard Items, For Example:
Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.

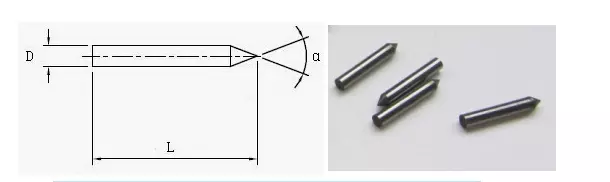

Common Size List
D(mm)
L(mm)
α
1.5
5
40°-90°
2
10
40°-90°
2.5
10
40°-90°
3
18
40°-90°
3
10
40°-90°
3.5
10
40°-90°
4
20
40°-90°
Other size can be customized

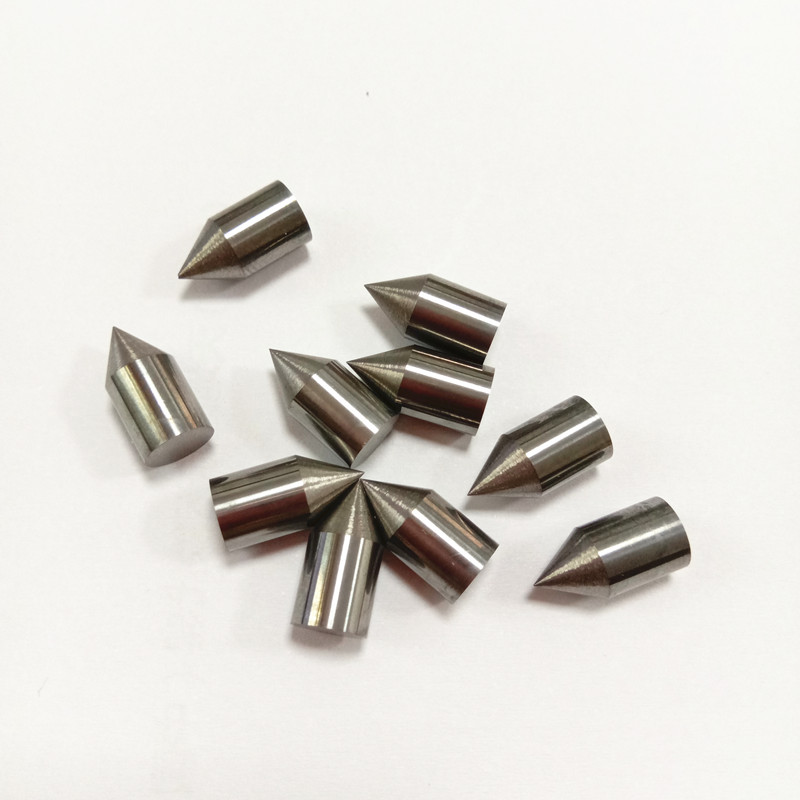

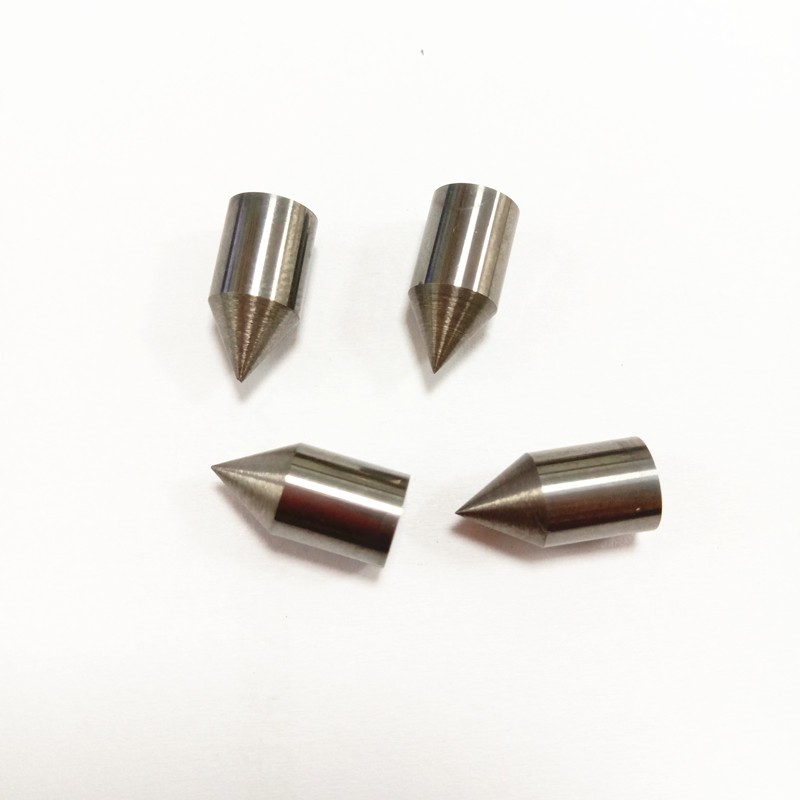

Application of tungsten carbide pin/neddle
Assembling On Tool Bit, Engraving or Scribing On Very Hard Items, For Example: Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.
Our advantage of tungsten carbide pin
* ISO 9001:2015 Certification
* Use 100% tungsten carbide raw material

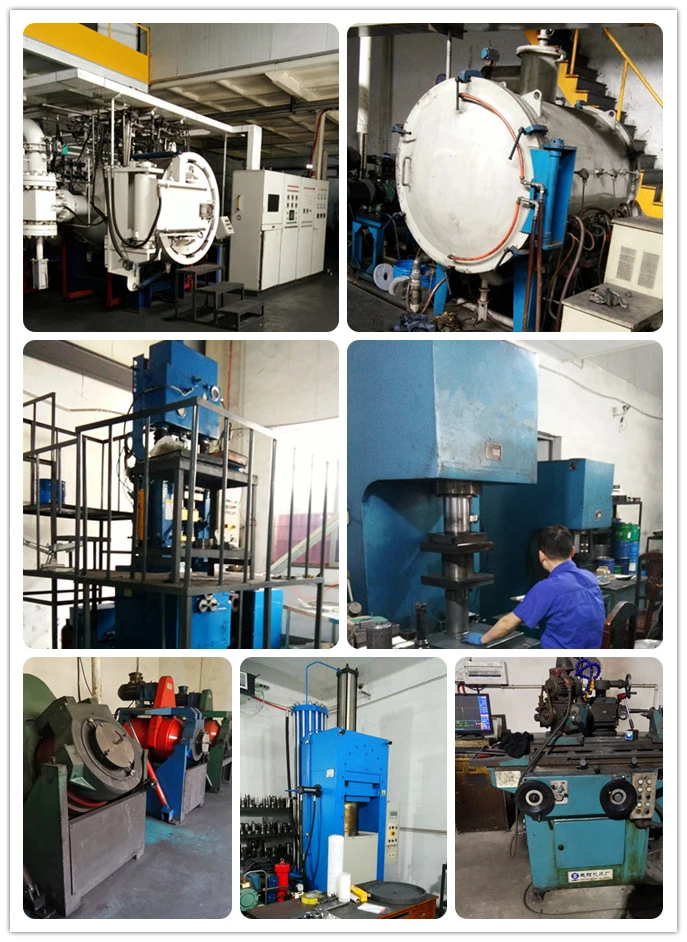

* Advanced technology , automatic pressing , HIP sintering
* with over ten year experience
* And precision grinding
* the tolerance of polish and ground can be +0.005/-0.005mm
* Full ability to accept OEM & ODM orders
* Stringent quality control and quality consistency.
* Strict inspection for quality of raw material and finished products
We Guarantee:
1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. free online technical service available.
7. OEM and ODM are accepted as well.
8. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
9. Undertake orders of non-standard sizes at customer's requests.
We can offer a lot of type tungsten carbide rods:
1. un-gound, finish-ground in metric and imperial diameters;
2. Carbide rods with central coolant duct;
3. Fixed length Carbide Rod
4. Random Length carbide rod
5. Carbide rods with chamfered end.
