Ground Tungsten Carbide Rod

H6/8 carbide K30 K20 polishing tungsten carbide rod for cutting with competitive price

H6/8 carbide K30 K20 polishing tungsten carbide rod for cutting with competitive price

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG6/YG8/YG8C/YG11/YG11C etc
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

H6/8 carbide K30 K20 polishing tungsten carbide rod for cutting with competitive price

Tungsten carbide is a chemical compound contains ingequal parts of tungsten and carbon atoms. The tungsten carbide rods are widely used in many ways, such as finishing machining of cast iron and non-ferrous, percussion drill bits mining inserts, rough machining of non-ferrous, wood-working tools, processing blades, wear resistance parts, and so on.

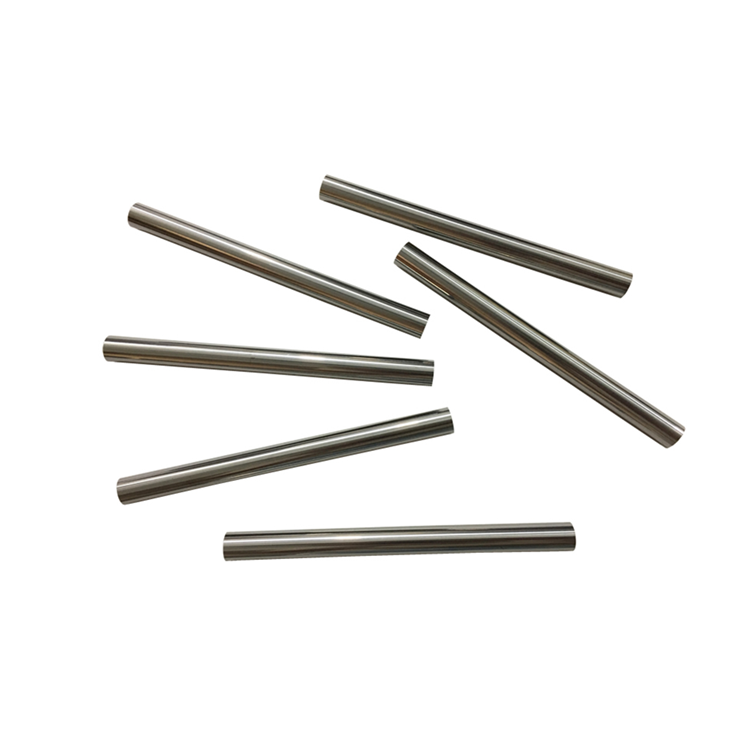

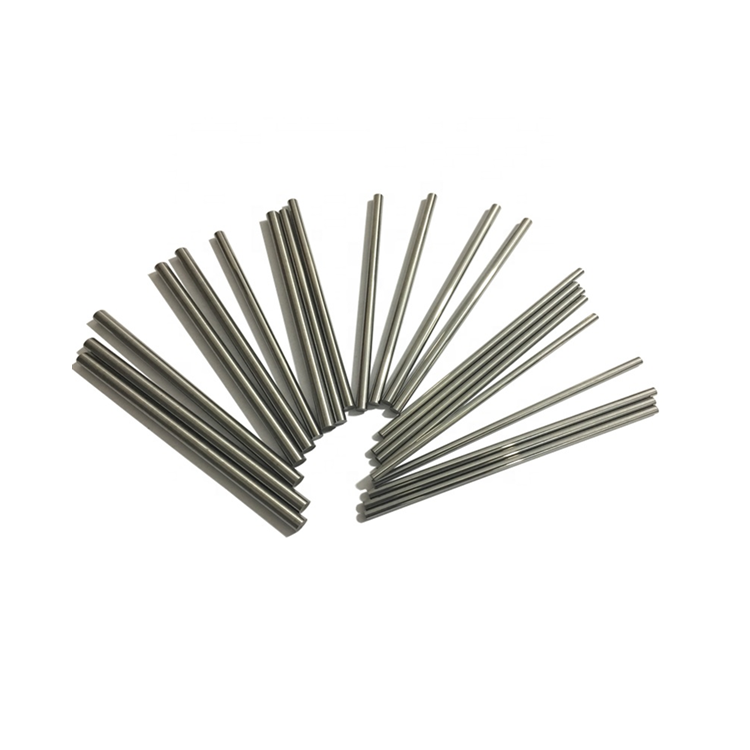

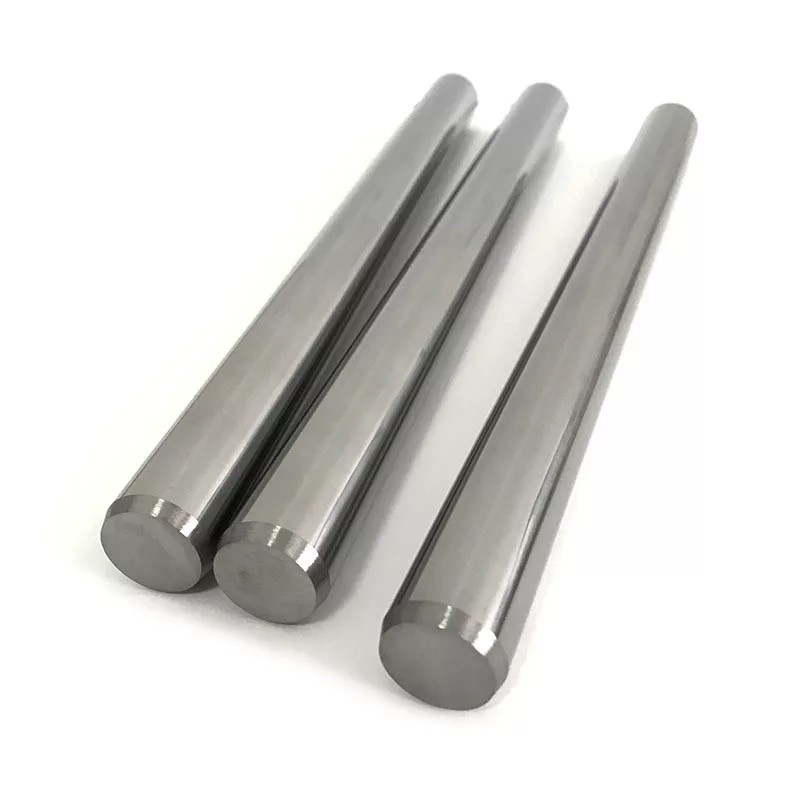

Tungsten carbide extruded rod
1.100% virgin material
2.Various sizes and full types stock available
3.Products can be customized upon requirement

Features of tungsten carbide rod:
As for tungsten carbide rod, below are the general features for your reference
For more details of specific type, please inform us:
1.Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy
2.Adopt advanced automatic extrusion equipment
3.HIP sintering and precision grinding to ensure the good performance
4.Both blank and finished tungsten carbide rods available
5.Can reach a mirror effect surface after accurate grinding and polishing

Applications:
For making the drill bits, end-mills, reamers

Quality control:
1. each rod will be drop from 1.2m higher place
2.All raw materials are tested in terms of density, hardness and TRA and HV30 before use
3.Every piece of product goes through in-process and final inspection
4.Every batch of product can be traced

Recommended Grade:

GRADE	GRAIN SIZE	COBALT	DENSITY	HRA	TRS
YG10X	<=0.8um	10%	14.4	>=91.3	>=3600
YL10.2	<=0.8um	10%	14.4	>=91.5	>=3800
YG12	<=0.6um	12%	14.1	>=92.5	>=4000

Dimension and Tolerance:

Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.5	-0/+5.0
Max BL-Φ50.0×330	+0.30/+0.8	-0/+5.0

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

h6 standard Tungsten Carbide Welding Rod For Metal Working 14x330mm(图1)
