Cemented Carbide Bar Stock D10mm*330mm With Excellent Wear Resistance

Cemented Carbide Bar Stock D10mm*330mm With Excellent Wear Resistance

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-R882
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more iformation, warmly welcome to contact me

Shirley Pan

Email:shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)

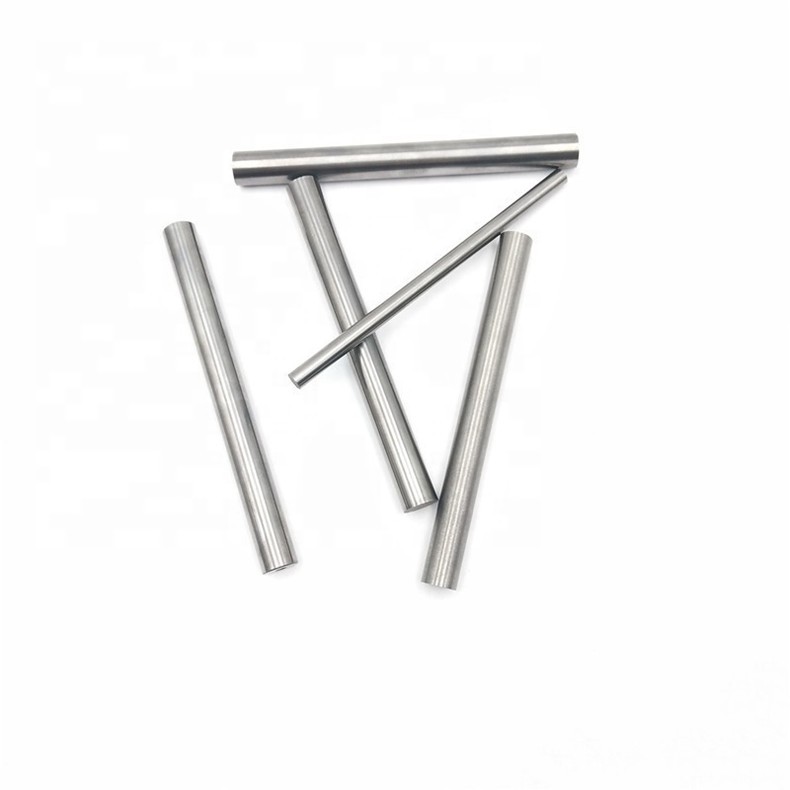

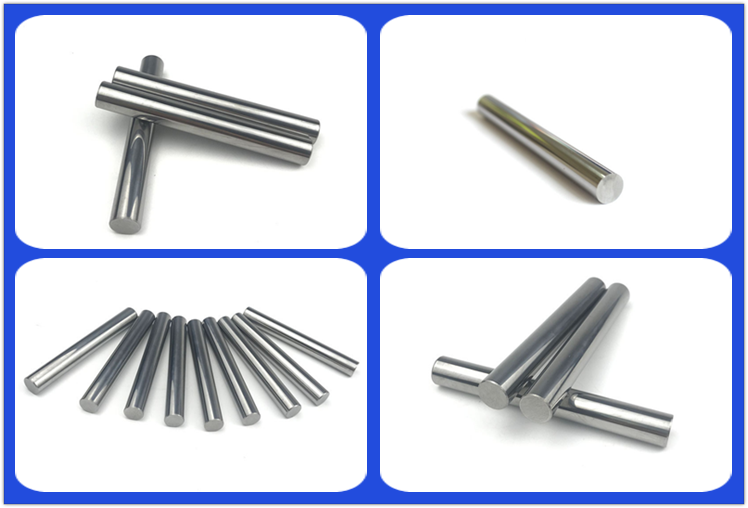

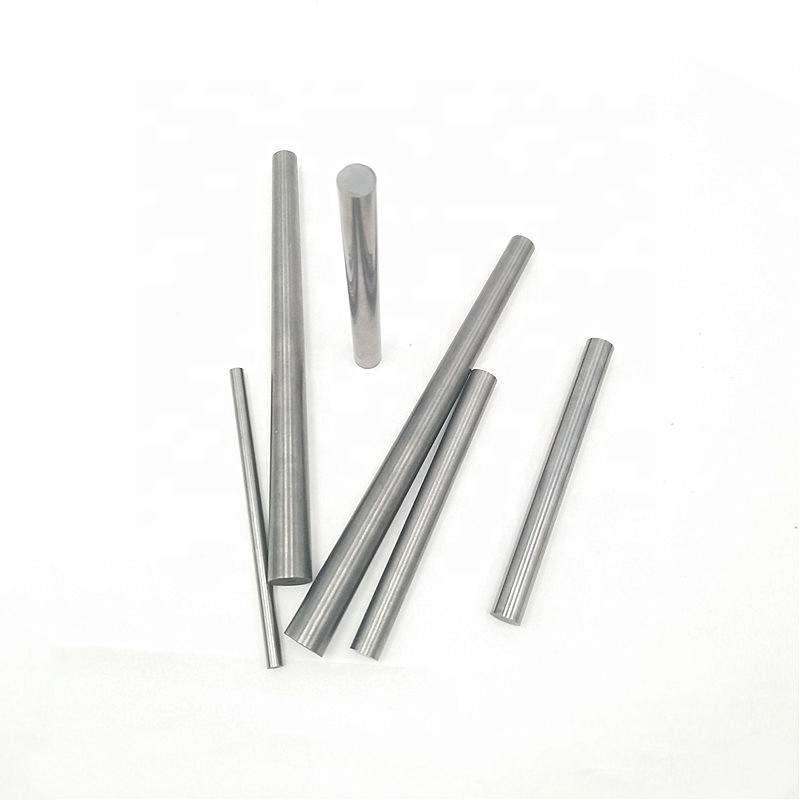

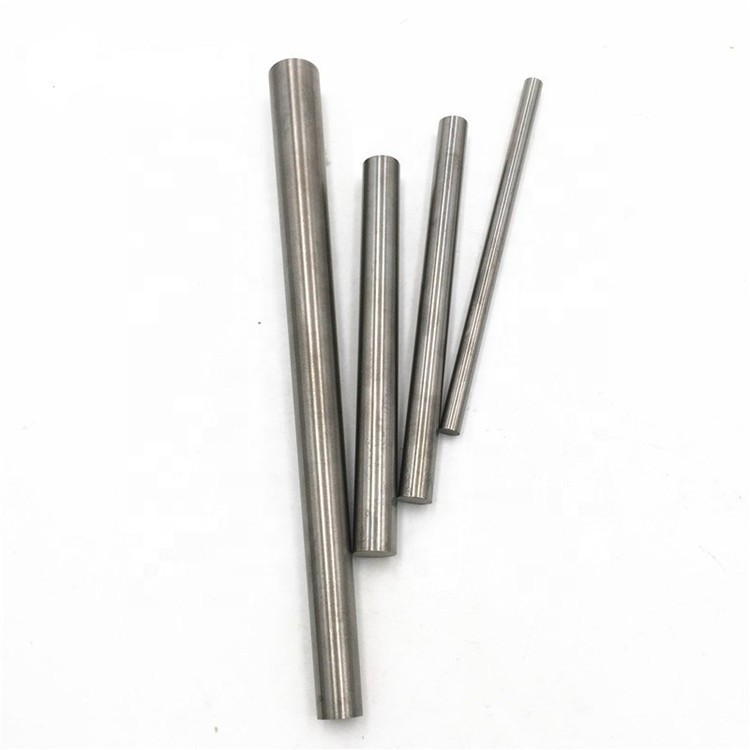

Cemented Carbide Bar Stock D10mm*330mm With Excellent Wear Resistance

We permanently stock all series of ground carbide rods. All round bars are available for you with or without central, parallel holes.
We produce ground carbide rods carbide round bars made of K10, K20, K30, YL10.2, YG10X and other types in rods.

Our main programme guarantees rapid availability and thus optimum procurement times for you.

Specification

Material:	tungsten carbide
Dimension:	Dia10*75/100/150mm various size for choose
Ground Tolerance:	+-0.05mm based on requirement
Blank tolerancce:	+0.3~0.5mm
Grade:	K10, YL10.2, YG20 YG10X
Performance	High hardness, wear /corrosion resistancce, good toughness, good straightness
Non-standard or tolerance	can be customized
Delivery time	3-10 days
Standard	ISO9001:2015

Production Advantages

1. We make tungsten carbide rods extruded or pressed.

2. we using 100% WC and the raw matearils of CO.

3. High hardness HRA89-93 ,good bending strength TRS 2800-4200.N/mm2

4. Has good wear resitance.

5. Professional manufacturer for more than 10years experience.

6. ISQ 9001-2015 Quality Control System.

7. With the HIP sintered technology,the structure of tungsten carbide is more uniform,more dense,the TRS can be raised more than 20%

The carbide rod is used in end mills , which die & mold and process parts for automobiles and aircraft.

Tungsten carbide rods produced with high temperature resistance and high hardness and toughness, widely used in PCB micro drills, for making drills, end mill reamer,taps,burrs, etc.

Application material:

general steel, stainless steel, cast iron, hardened steel, titamium alloy, heat resistant alloy, non-ferrous metals, hard wood, common wood ect.

Our Various Size List

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
11	h6	330	7.2	+0.2	330
12	h6	330	7.7	+0.3	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
18	h6	330	11.2	+0.3	330
19	h6	330	11.7	+0.3	330
20	h6	330	12.2	+0.3	330

For more size information, please kindly email or call us

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Carbide Rod Grade Properties

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

WC%

Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application

YG6X

K10

0.6-0.8

14.9

2000

Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron

YL10.2

K25-K35

0.6-0.8

14.5

92.5

3800

Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.

Carbide Rods Grades for Moulds/Dies

Grade	ISO Grade	WC%	Co%	Grain Size μm	Hardness (HRA)	Density g/cm3	T.R.S. N/mm2	Application
YG8	K30	92	8	1.2	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6	K20	94	6	1.2	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG15		85	15	1.6	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YG20		80	20	1.6	13.7	85	2500	suitable for stamping dies such as screw, watch parts
YG20C		80	20	1.8-2	13.6	82	2200	suitable for colding heading dies, stamping dies such as shaft ,standard parts

We guarantee:

* We are real factory in Zhuzhou

* Manufactured with100% tungsten carbide raw material

* Comply with ISO 9001:2015 Certification

* Rich experience of over 10 years

* Advanced technology , automatic pressing , HIP sintering

* Full ability to accept OEM & ODM orders

* Strict inspection for quality of raw material and finished products

All standard carbide rods are available un-ground and finish-ground (metric diameters, h5/h6 tolerance). If you have any special needs, please do not hesitate to call, or e-mail us. Our team will answer all of your questions in time
