Cemented Carbide Rods

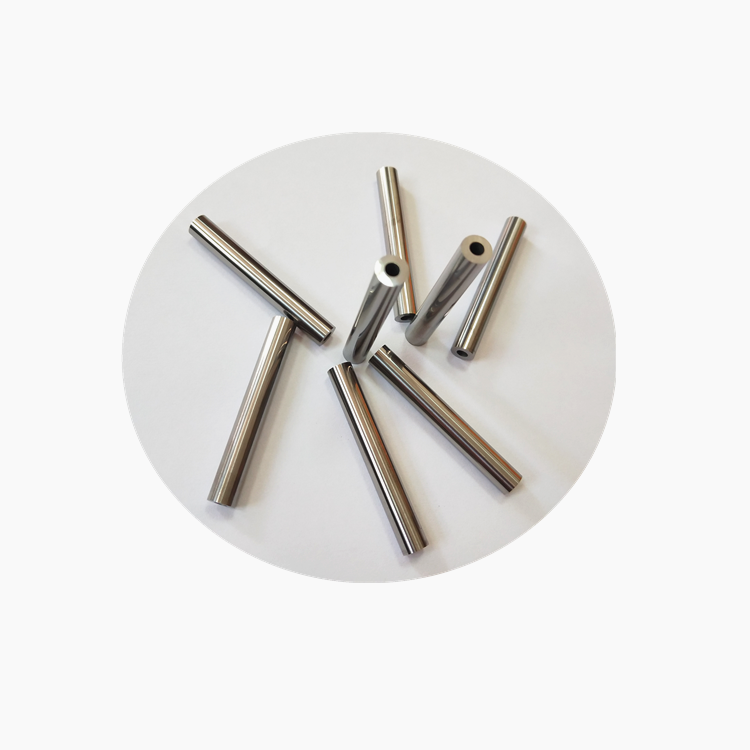

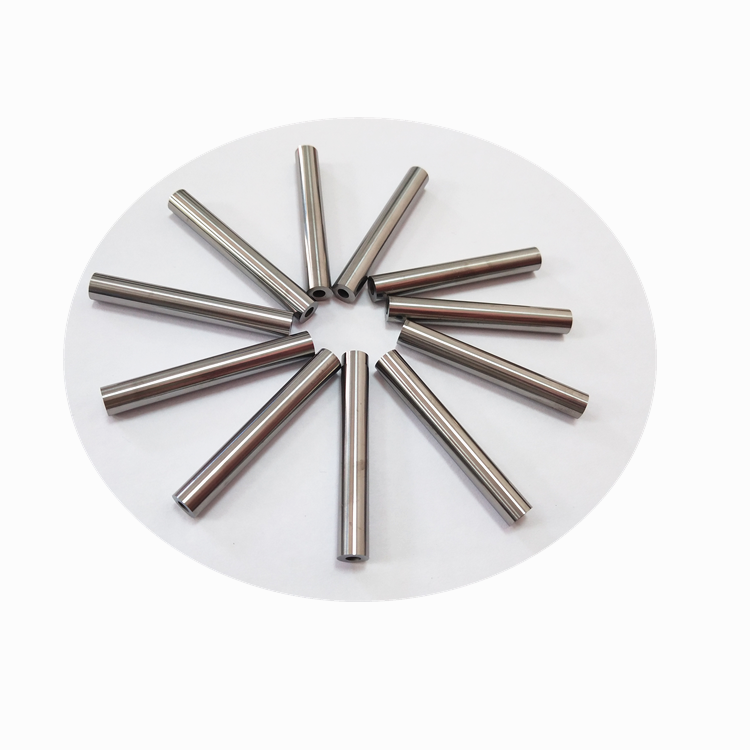

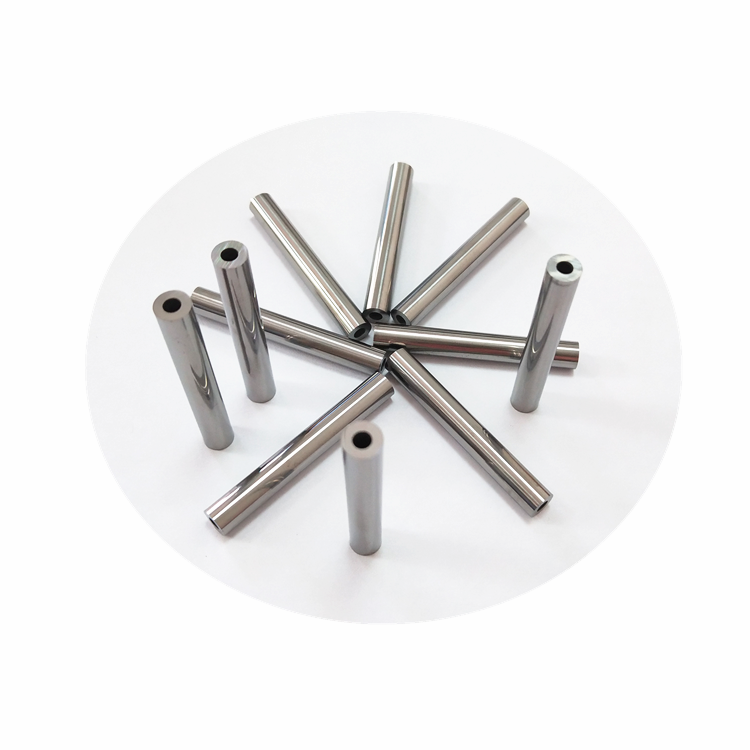

Sintered ground single straight hole tungsten cemented carbide tube

Sintered ground single straight hole tungsten cemented carbide tube

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00145
Minimum Order Quantity:100 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Sintered ground single straight hole tungsten cemented carbide tube

1.Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2. Using ultrafine grain size of tungsten carbide powder to produce,Hardness can reach to HRA93.6, Bending strength can reach to 4000N/mm²
3.Tolerance can reach to ±0.001mm, straightness can reach to ±0.02mm

Advantages of product:

1. Adopting spray drying tower granulation, raw material with low oxygen content, contamination, the flowability, apparent density particle and granulate is uniform;

2. Adopting high-precision extrusion molding machine, uniform product density, precise dimension, high roundness, and straightness;

3. Adopting advanced HIP sintering, effectively eliminate the internal holes and defects, the product has good compactness, high strength, good polishing performance;

4. Adopting a special stress-relief process to eliminate the internal stress of products to further enhance the product strength and improve the microstructure;

5. Precision grinding machine processing, ground rod can reach h6 tolerance.

Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of tools. We are looking forward to establish new business with new customers.

Recommended Grade

Grade	Grain size(μm)	Density(g/cm³)	Hardness(>=HRA)	TRS(>=MPA)
YG8	1.6	14.80	89.0	2800
YG6X	1.0	14.90	90.5	2300
ZF05	0.4	14.80	93.0	3300
LX25	0.8	14.50	91.3	3800
YL10.2	0.8	14.40	91.5	4000
ZF10	0.5	14.2	92.7

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

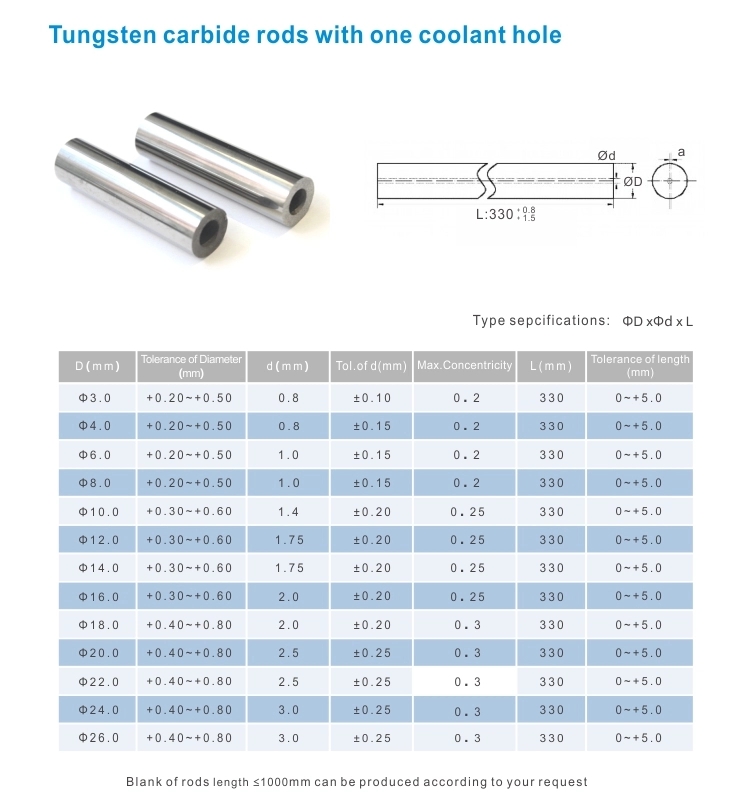

330mm length 100% raw material yg10x solid tungsten carbide rod round bar (图4)
