Customize tungsten carbide gripper chuck jaw teeth cemented carbide gripper insert

Customize tungsten carbide gripper chuck jaw teeth cemented carbide gripper insert

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG8, YG11
Minimum Order Quantity:10 kg
Price:USD 50-68/kg
Delivery Time:10-15 days
Payment Terms:T/T, western union, LC etc
Supply Ability:10000 kg/month

Customize tungsten carbide gripper chuck jaw teeth cemented carbide gripper insert

1.Application of the carbide gripper

The carbide gripper is widely used for chunk jaws, and widely used in chuck jaw factories.

2. Tungsten carbide grades for carbide grippers for chuck jaw

Feature:
Tungsten Jaw Grippers
Tungsten Carbide Chuck Jaws/ Gripper Pads/Inserts the gripper inserts are welded into the steel jaws as chuck jaw for gripping drill rods used in diamond drilling industry.

Tungsten Carbide gripper inserts are used in different ways, such as diamond drilling, coal mining, stone mining and oil mining.
Carbide Inserts for Hydraulic and Mechanical chucks

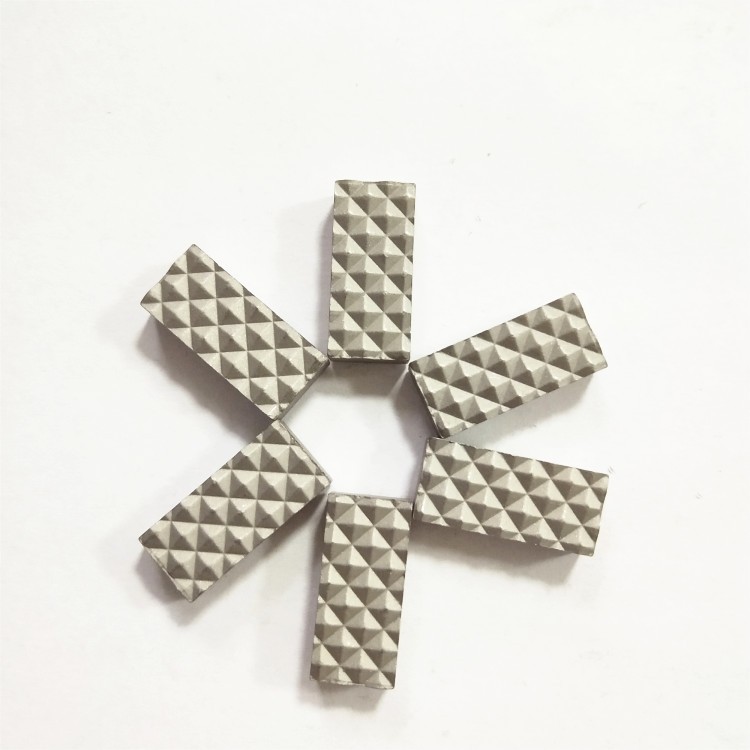

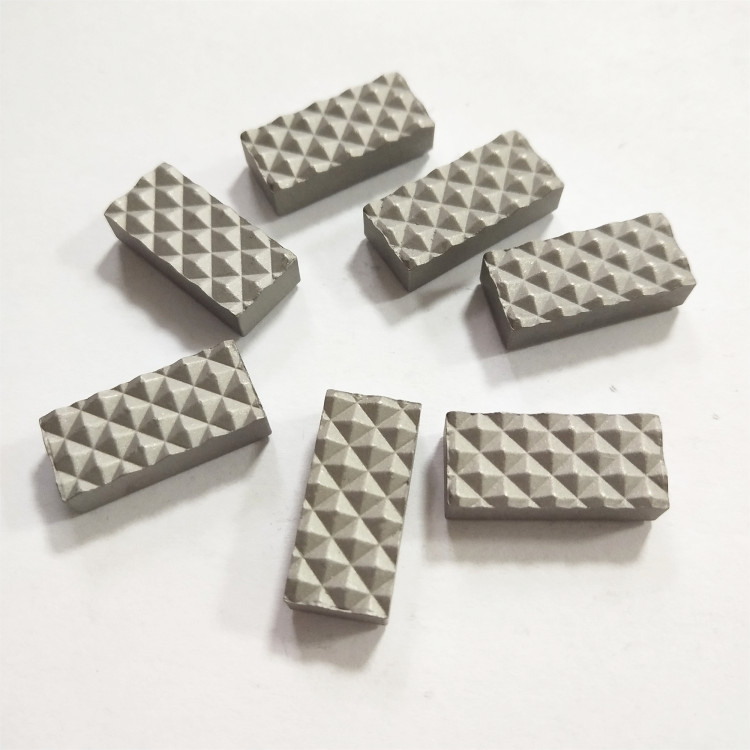

Tungsten Carbide Gripper Insert Gripper Teeth
Carbide gripper inserts are our featured products for worldwide markets.
Steady performance, long service time and used in different ways for mining field.
Like coal mining, stone mining and oil mining.

Size:
35x6x4, 28x6x5.5, 22x10x6.3,25x3x5,35x6x4,30x7x7,30x6x6,28x8x7,15x6.8x7,22x10x6 etc..

We can accept Customized, You just provide us drawings.

Product Name	Long Service Life Tungsten Carbide Gripper Jaw Insert Carbide Jaw Inserts for Chuck Jaws
Material	Advanced quality tungsten carbide
Grade	YG6/YG8/YG8C/YG11C/YG13C etc
Size	We can also produce the carbide inserts based on your designs.
Finishing	Sintered as blank, tumbling
Application	Hard metal inserts was brazed onto the gripper which is fitted to the chuck jaw for clamping the components.
Additional Features	Our carbide inserts have very good finshing and long tool life, it will make your job easy and save your cost.

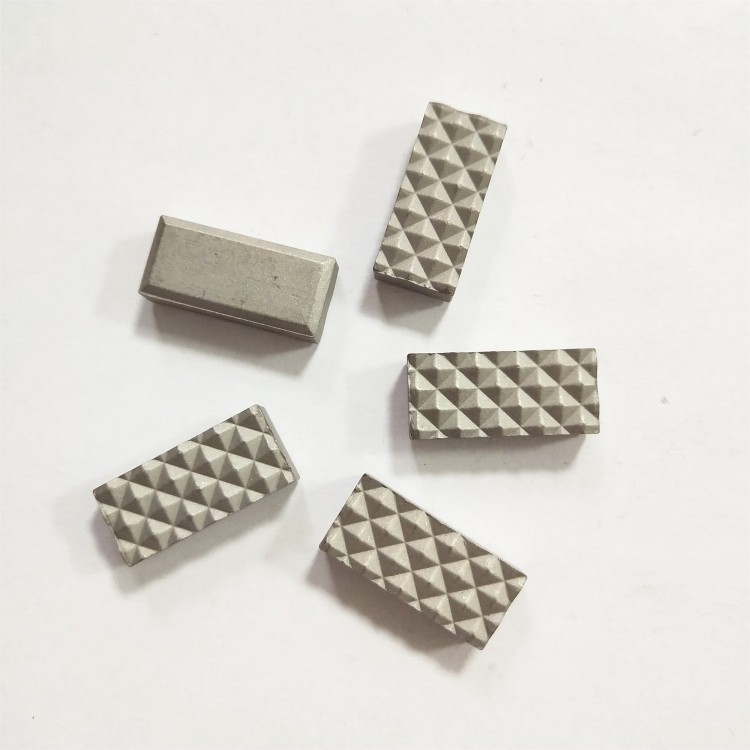

Inserts Types.

A wide range of high wear resistant tungsten carbide inserts was provided with many teeth patterns and shapes to suit chucks from manufacturer all over the world.

a. With one end round
b. Straight at both ends
c. Round at both ends

We have substantial custom manufacturing capacity as well. Please contact us if you need a size not shown.

Grades, Properties And Applications Recommended

Grades	Density(g/cm³)	Hardness(HRA)	T·R·S(N/mm2)	Application
YG4C	15.00	89.5	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	14.80	89.5	1700	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.70	88.5	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8C	14.70	88.0	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C	14.50	87.0	2400	Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG11C	14.40	86.5	2450	Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C	14.30	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.00	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
YG16	14.10-14.30	87.5	2400	It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
YG20	13.40-13.70	85.0	2254	Mainly for the stamping dies used in the conditions of heavy impact load and large strees.

Our advantage of tungsten carbide inserts

* ISO 9001:2015 Certification

* Use 100% tungsten carbide raw material

* Advanced technology , automatic pressing , HIP sintering

* with over ten year experience

* And precision grinding

* the tolerance of polish and ground can be +0.005/-0.005mm

* Full ability to accept OEM & ODM orders

* Stringent quality control and quality consistency.

* Strict inspection for quality of raw material and finished products

We Guarantee:

1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. OEM and ODM are accepted as well.

7. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for consistent performance capacity of your tools.

Our more Products

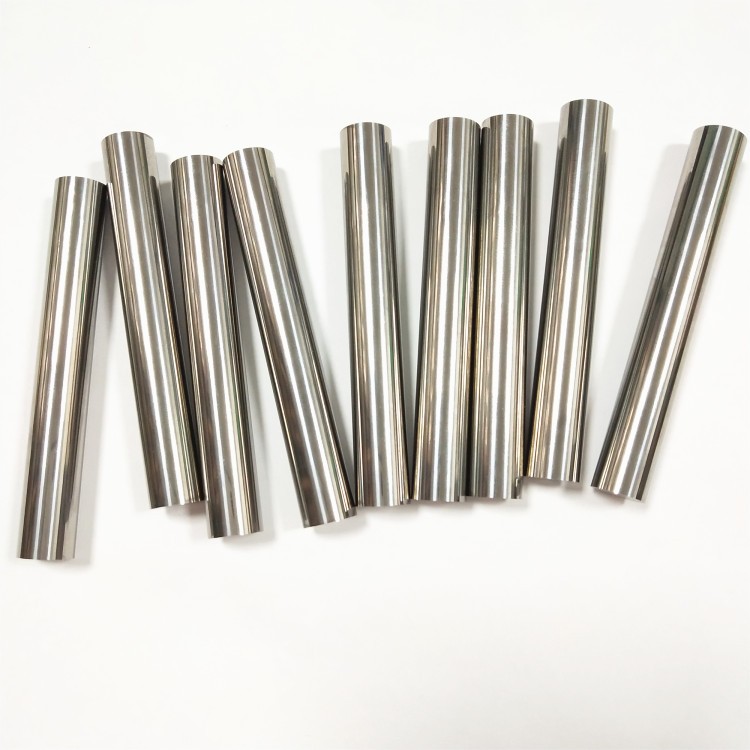

Tungsten Carbide rod
