Carbide Wear Parts

  • cemented carbide down hole drill bit button inserts
  • cemented carbide down hole drill bit button inserts
  • cemented carbide down hole drill bit button inserts
  • cemented carbide down hole drill bit button inserts
cemented carbide down hole drill bit button inserts cemented carbide down hole drill bit button inserts cemented carbide down hole drill bit button inserts cemented carbide down hole drill bit button inserts

cemented carbide down hole drill bit button inserts

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF00129
  • Minimum Order Quantity:100 pcs
  • Price:USD 0.1-2/pcs
  • Delivery Time:7-15 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

cemented carbide down hole drill bit button inserts


If have any more information, please feel free to contact with me. And warmly welcoem to visit our factory.


Conter person:Ms Sharon  Chen

Email:sharon@chinahardalloy.com

Mobile phone:+86-181733888506

Website:www.wmcarbide-rods.com




 Tungsten carbide buttons:

1.Products description

Tungsten carbide buttons are mainly used for high and low pressure DHT drill and hydraulic Screw-in drill and so on.

They are suitable for hot insert or cold pressing bit inserting process, With some of the materials used in the welding process. These products are stable in quality,Excellent in performance, can meet or exceed the domestic advanced level.

We are developing carbide grades use in crushing and recycling industry. Tire, plastic, metals and trashes that needs to break down and recycle. Weariness, toughness and resistance to acidy working environment are essential properties. Specific develop grades working with different crushing materials improves the runtime of your equipment.

2.Mining button bits

Normal grade suggestions

Grade

Density (g/cm3)

Hardness
  (HRA)

TRS
  (MPa)

Applications recommended

YG8

14.80

89.5

2200

For coring crowns, electric coal drill bits, coal   cutting picks, oil cone bits and scraping knife bits, used in geological   prospecting, coal mining and oil well boring.

YG8C

14.80

88.5

2400

Mostly used as the buttons of small and medium sized   percussion bits and as the inserts of rotary prospecting bits to cut soft and   medium hard formations.

YG11C

14.40

87.00

2850

Suitable for embedding rotary percussive drill bits of   heavy rock drilling machines for drilling hard formations of class f=18 or   above

YK05

14.95

90.5

2500

Mostly used as the buttons of small and medium sized   percussion bits and as the inserts of rotary prospecting bits to cut soft and   medium hard formations.

YK15

14.60

87.6

2700

Suitable for embedding rotary percussive drill bits of   light rock drilling machines for drilling medium rock formations of class   f=14-15

YK20

14.52

87.3

2650

Suitable for embedding rotary percussive drill bits of   medium rock drilling machine for drilling hard rock formations of class f=18   or above.

YK25

14.40

87.2

2550

Primarily for the buttons and inserts of rotary   percussion bits to cut medium-hard and very hard formations

Application:

Tungsten Carbide ball tooth is widely used in oil drilling and snow removal of snow plough device.In addition, carbide ball tooth in the cutting tool and coal mining machinery, road maintenance and drill tool also has a good application.Mining with cemented carbide balls tooth mainly used for quarrying, mining, and mining tools in tunnel and civil construction.

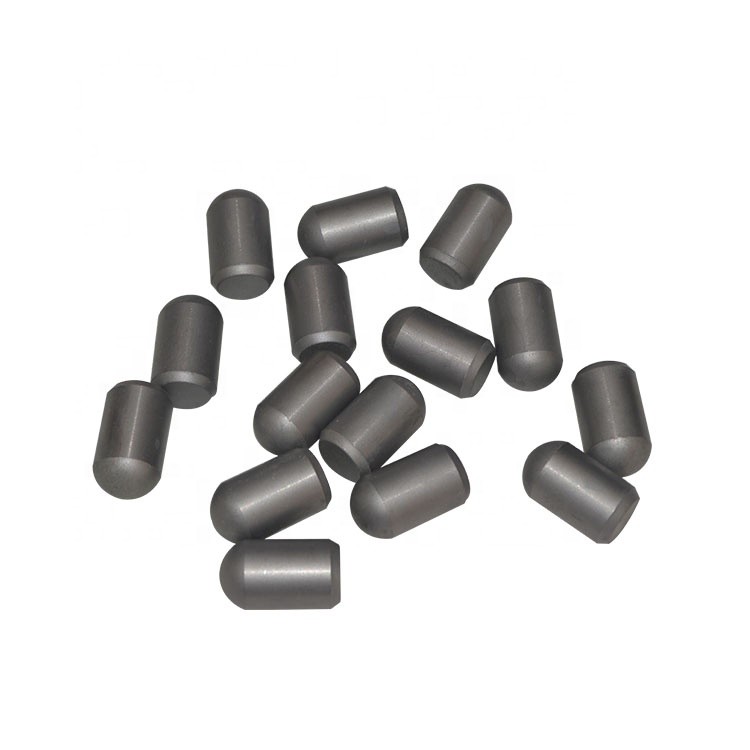

Virgin Material Cemented Tungsten Carbide Wear Parts Button Teeth For Drilling Bits(图1)

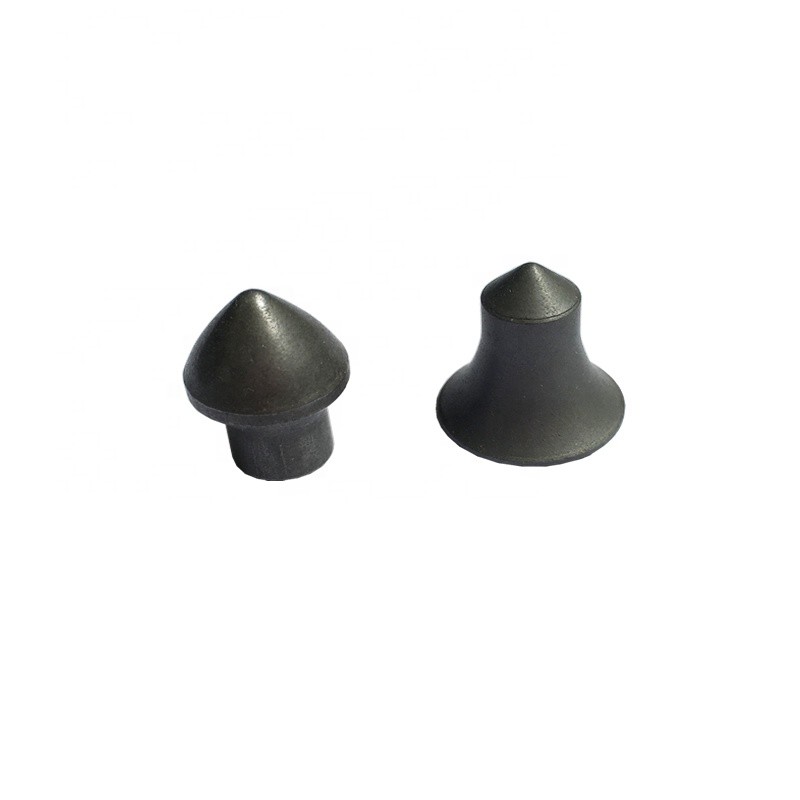

Carbide button type

1. Spherical carbide button type
2. Conical Carbide button Type
3. Ballistic Carbide Button type
4. Scoop Carbide Button Type
5. Wedged Carbide button Type
6. Flat Carbide button Type
Our advantage

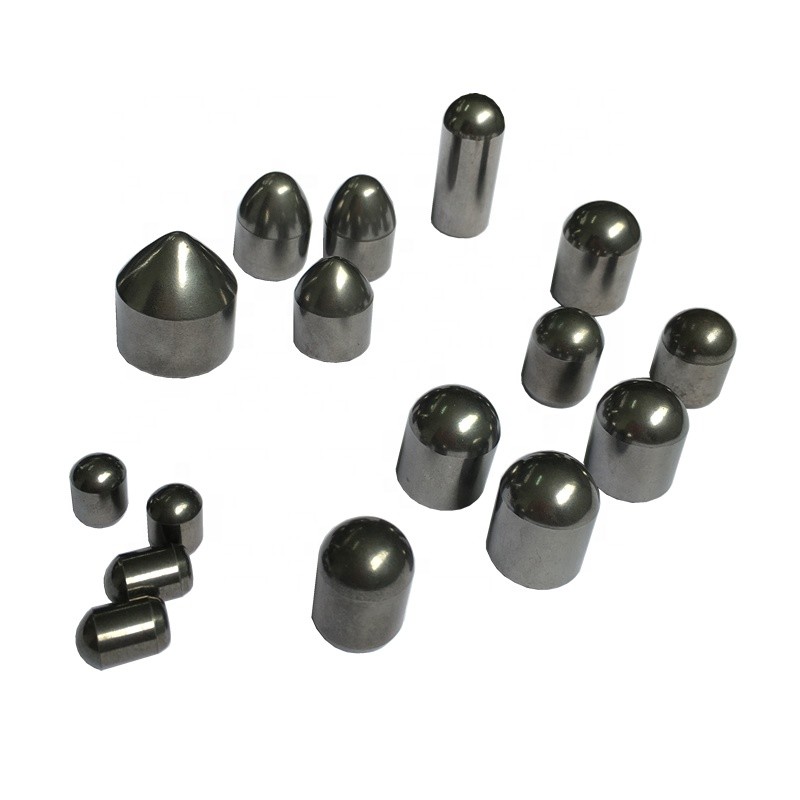

Virgin Material Cemented Tungsten Carbide Wear Parts Button Teeth For Drilling Bits(图2)
Our packing

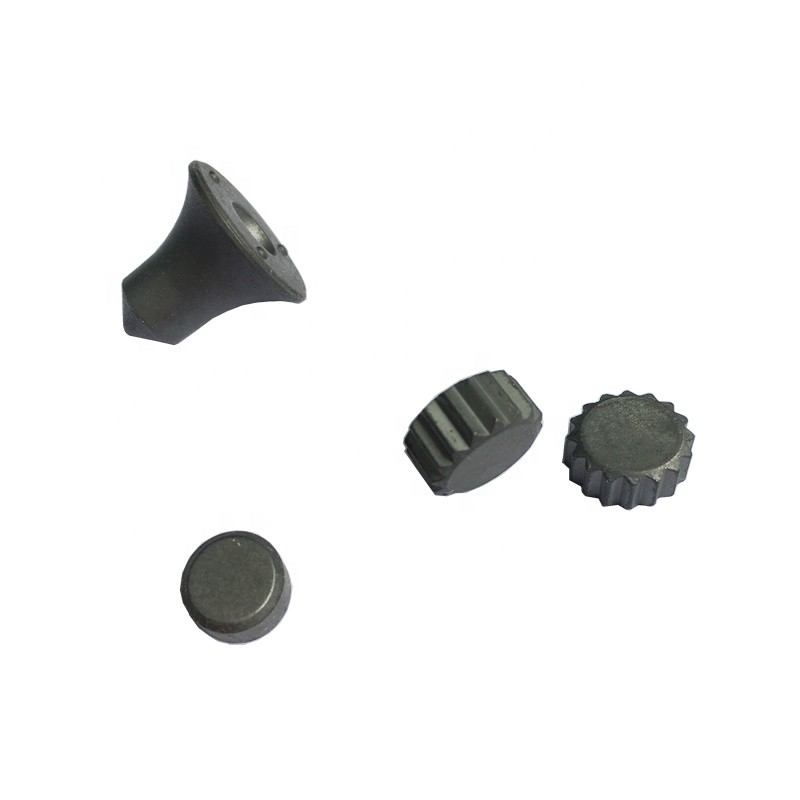

Virgin Material Cemented Tungsten Carbide Wear Parts Button Teeth For Drilling Bits(图3)
