Tungsten Products

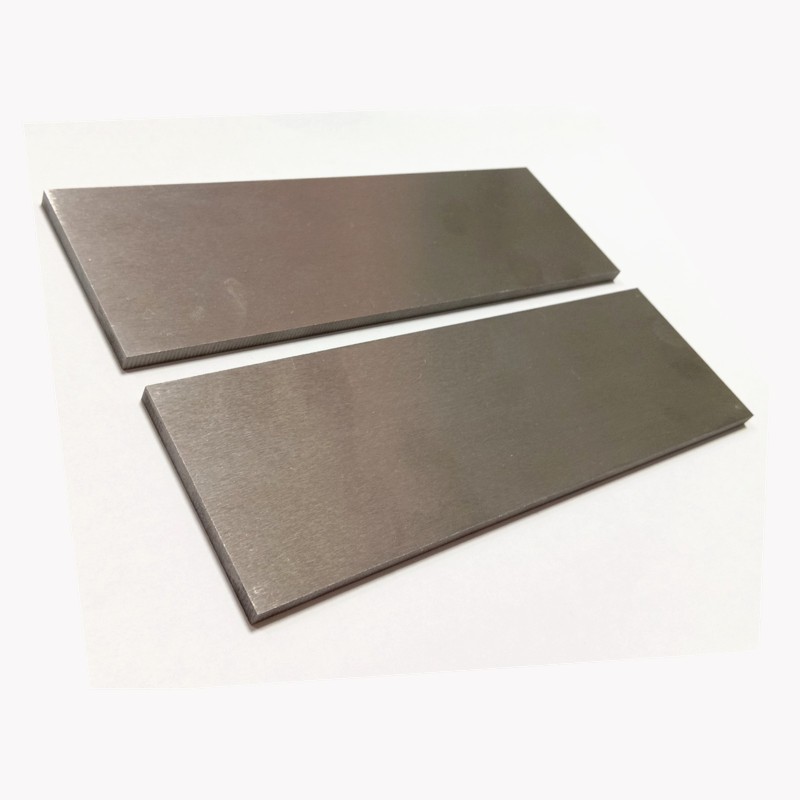

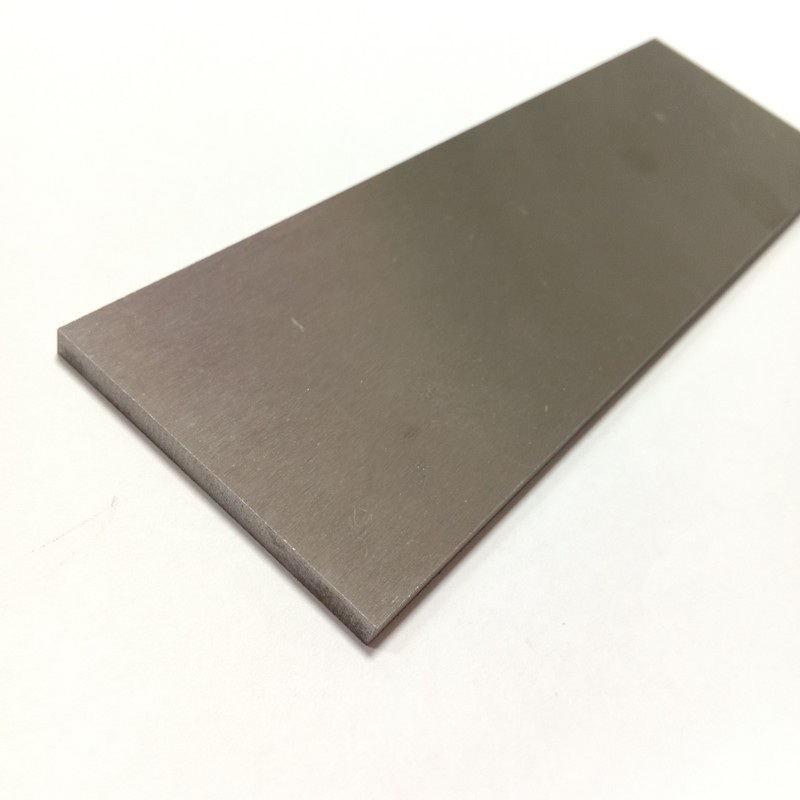

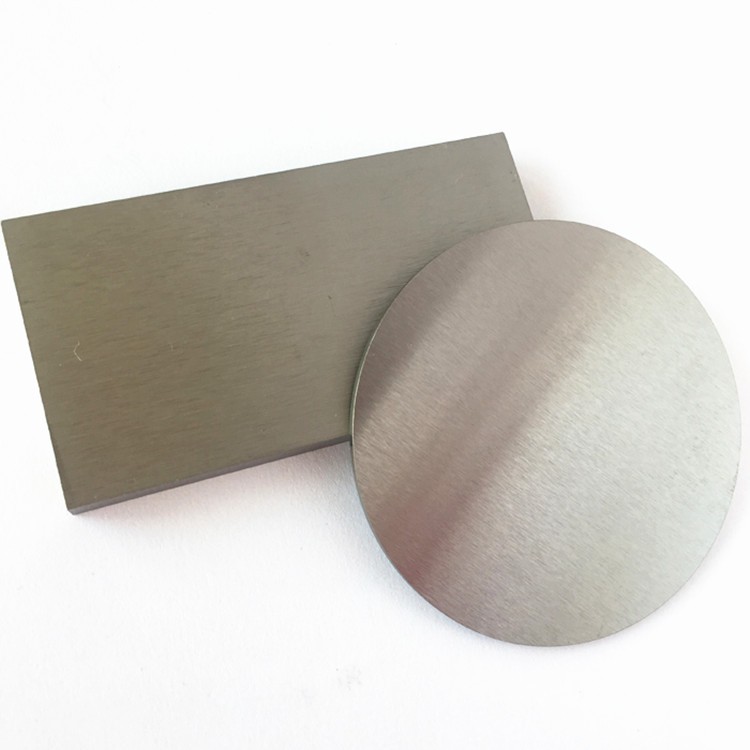

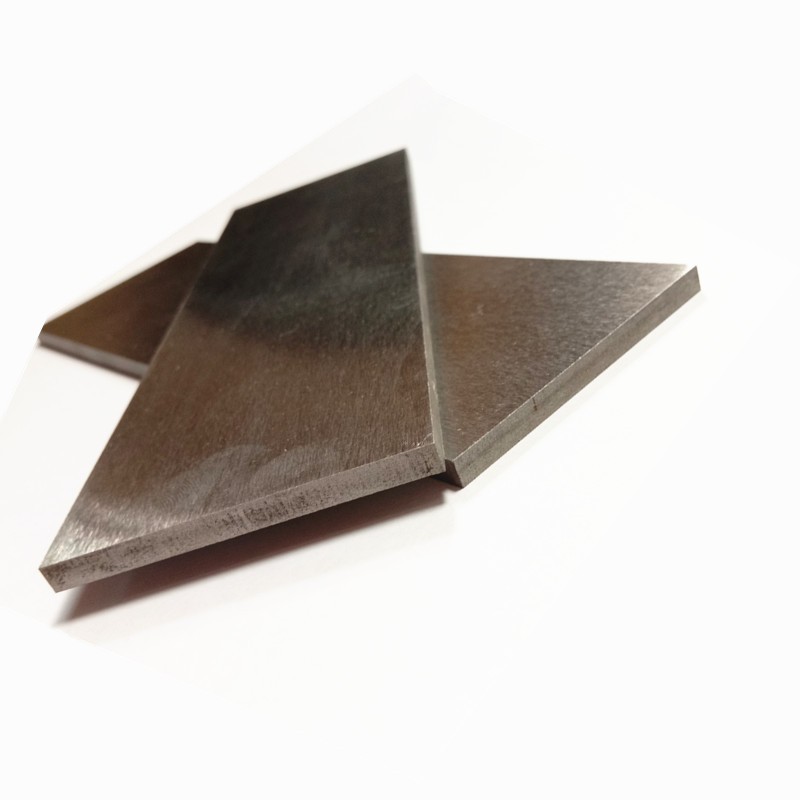

99.95% Purity Tungsten Sheet / Plate High Temperature Resistance

99.95% Purity Tungsten Sheet / Plate High Temperature Resistance

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-TP025
Minimum Order Quantity:10 pcs
Price:Negotiable
Delivery Time:3-18days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcome to contact me:

Ms.Shirley Pan

Email: shirley@chinahardalloy.com

High Temperature Resistance 99.95% Purity Tungsten Sheet / Plate Price Per KG
Specification:
Materials: W1
Purity: 99.95%
Density: 19.3g/cm³
Melting Point: 3410℃
Surface:Black/Alkali cleaning/ polished
Size:Thick0.05mm min*Width300mm max*L1000mm max
Process: hot rolling
Feature:
tungsten is the highest melting point of all metals.
low coefficient of thermal expansion.
very high level of dimensional stability.
Tungsten plate chemical composition
Fctory 99.95% purity tungsten metal sheet plate for sale

Chemical composition
	Impurity content ( % ) , ≤
	Al	Ca	Fe	Mg	Mo	Ni	Si	C	N	O
balance	0.002	0.005	0.005	0.003	0.01	0.003	0.005	0.008	0.003	0.005

Normal specification we can provide:

Thickness	Thickness Tolerance		Width	Width Tolerance	Length	Length Tolerance
Thickness	I	II	Width	Width Tolerance	Length	Length Tolerance
0.10-0.20	±0.02	±0.03	30-150	±3	50-400	±3
>0.20-0.30	±0.03	±0.04	50-200	±3	50-400	±3
>0.30-0.40	±0.04	±0.05	50-200	±3	50-400	±3
>0.40-0.60	±0.05	±0.06	50-200	±4	50-400	±4
>0.60-0.80	±0.07	±0.08	50-200	±4	50-400	±4
>0.8-1.0	±0.08	±0.10	50-200	±4	50-400	±4
>1.0-2.0	±0.12	±0.20	50-200	±5	50-400	±5
>2.0-3.0	±0.20	±0.30	50-200	±5	50-400	±5
>3.0-4.0	±0.30	±0.40	50-200	±5	50-400	±5
>4.0-6.0	±0.40	±0.50	50-150	±5	50-400	±5

Application
1. For producing electric light source parts and electric vacuum components
2. For producing heating elements and refractory parts in high temperature furnaces
3. Used as electrodes in the field of rare earth metal industry
4. Used in military of some aspects
5. For medical aspects
6. Be used to make decorations and etc.

Packaging:
• Carton with water proof paper and protective foam inside
• Standard wooden case
• As consumers' requirements

plate pack.jpg

Shipping:
• Transport: TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport.
• Consumers' request for shipment is available.
• We will recommend the most appropriate transport way for reference.
