Tungsten Carbide Round Bar

  • D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill
  • D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill
  • D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill
  • D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill
D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill

D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R136
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcomr to contact me

Shirley Pan

Email:shirley@chinahardalloy.com

Mobile:+8617773379950


D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill

We manufactured and stocked a large range of tungsten carbide rod with or without hole for you.

Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min

length in 310mm, 330mm or 340mm, or any length.

Grade inYL10.2, K10, K20 K30, K35 or etc.

Some grade information for Reference
GradeYL10.2YG6YG6XYG10XYG8
ISO RangeK25-K35K20K10K35K30
WC+others %9094949092
Co %1066108
Grain Size μm0.60.80.60.60.8
Density g/cm314.514.914.914.514.6
Hardness HRA92.5-92.889.5929089
T.R.S N/mm23800-40002150200022002200


GradeApplication
YL10.2ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6Xultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10Xultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

Specification

Material:Wc+Co
Dimension:OD5.6*ID2.7*33/100/150mm various size for choose
GradeYL10.2
Compostition10%Co+90%WC
Type:carbide hollow round rod
Surface:polished
Production Process:Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
PerformanceHigh hardness, wear /corrosion resistancce, good toughness, good straightness
Application:carbide endmill
Non-standard or tolerancecan be customized

Tungsten carbide is a kind of alloy made by powder metallurgical process with the refractory carbides (such as tungsten carbide, titanium carbide, tantalum carbide, niobium carbide, vanadium carbide and chromium carbide) as the hard phase and cobalt or nickel as the binder.It is divided into cutting inserts, wear parts,mining tools, profiles and hard-facing material in terms of the basical applications.

Tugnsten Carbide Rod Features

- Main application is for making various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines, wear resistant Parts. PCB drills, drills,endmills and reamers etc
- Manufacture with 100% virgin tungsten carbide material

- good straightness and precision

- Excellent combinations of wear resistance and high toughness by using sub-micron and ultra-fine grades.
- Anti-deformation and deflection.
- produces tungsten carbide rods with state-of-the-art technology including high precision

automated presses, DORST extrusion equipment and HIP sintering furnace

Our common size models:

Size range(ODXIDXL mm)
Detail size and blank tolerance
OD( mm)
ID (mm)
L(mm)
ODxIDx330
2-3(0/+0.3)
0.15/0.2/0.25/0.3/......1.1(+-0.05)
30-340
ODxIDx330
4-6(0/+0.4)
0.2/0.25/0.3/0.4..........4(+-0.05)
30-340
ODxIDx3307-10(0/+0.5)0.2/0.25/0.3/0.4...........6(+-0.05)30-340
ODxIDx33011-20(0/+0.5)0.2/0.25/0.3/0.4........12(+-0.05)30-600
ODxIDx330226/8/10/12(+-0.2)100-600
ODxIDx330256/8/10/12(+-0.2)100-600
We are able to help you customized various diameter and length carbide rod

Our factory advantage of tungsten carbide rod

1. Focusing on manufacturing tungsten carbide products over 13 years.

2. Specialist manufacturer equipped with advanced processing machines

3. Over 15 tons/month productivity to assure sustainable supply of products

4. Full ability to accept OEM & ODM orders

5. Stringent quality control and quality consistency.

6. Strict inspection for quality of raw material and finished products

We can offer a lot of type tungsten carbide rods:

1. un-gound, finish-ground in metric and imperial diameters;
2. Carbide rods with central coolant duct;
3. Fixed length Carbide Rod
4. Random Length carbide rod
5. Carbide rods with chamfered end.

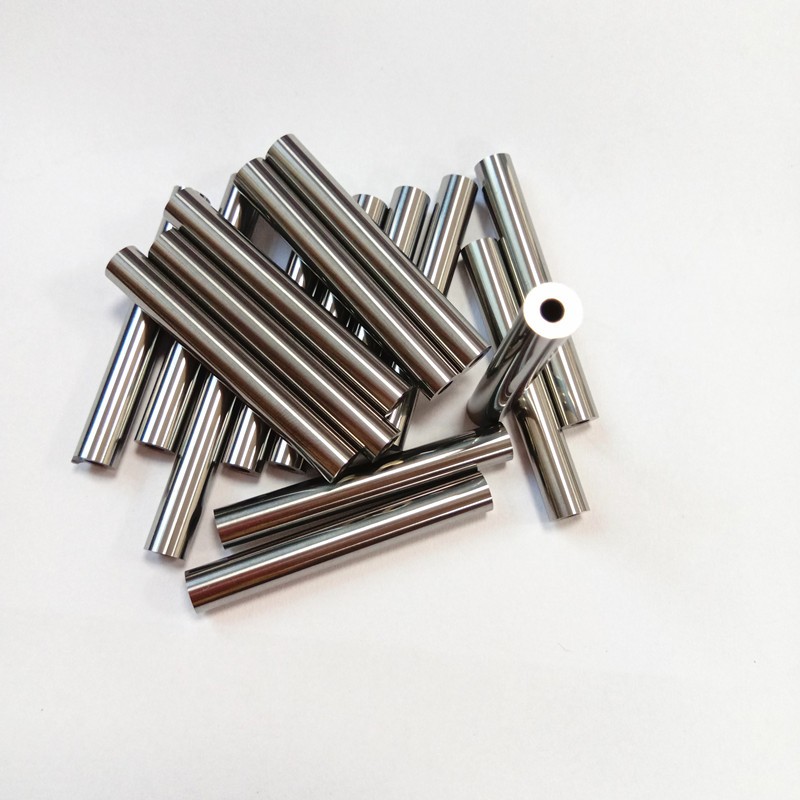

D5.6 X D2.7mm High Hardness Custom Tungsten Carbide Alloy Tube For Endmill(图1)
